Nordictrack Elite 11.0 Elliptical – NTEVEL99915.3 / NTEVEL999153
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
143 Parts Available for Nordictrack Elite 11.0 Elliptical - NTEVEL99915.3 / NTEVEL999153 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 376234 | 3A | RAMP | $192.99 | |||
| 317273 | 3B | TRACK FOAM TAPE | $13.49 | |||
 | 194878 | 5 | M4 X 19MM SCREW | $2.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 368895 | 7A | Console for ProForm ELNE99915 | $286.99 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
| 369539 | 9 | TABLET HOLDER | $118.49 | |||
| 376166 | 10 | RAMP COVER | $147.99 | |||
| 342866 | 11A | INCLINE MOTOR | $146.99 | |||
| 302754 | 11B | LIFT MOTOR WIRE HRNS | $27.49 | |||
| 331259 | 12 | INCLINE MOTOR ARM | $72.49 | |||
| 331260 | 13 | RAMP ARM | NLA | |||
 | 320336 | 14 | SMALL ROLLER | $8.49 | ||
 | 371314 | 16 | TRACK | $18.99 | ||
| 320335 | 17 | LARGE FRAME BUSHING | $16.99 | |||
| 338325 | 18 | CRANK | $102.99 | |||
| 277369 | 19 | PULLEY | $174.49 | |||
 | 339855 | 20 | CRANK ARM | $150.99 | ||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 193223 | 25A | RESISTANCE MOTOR | $99.99 | ||
| 324737 | 25B | 20″ CNTRLR/RESIST WIRE | $30.49 | |||
| 195975 | 26 | M10 X 42MM BOLT | $12.49 | |||
 | 125819 | 27 | PLASTIC STAND-OFF | $3.99 | ||
| 362898 | 28A | EDDY MECHANISM | $319.99 | |||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
 | 316981 | 31A | CONTROL BOARD | $124.99 | ||
| 342904 | 31B | CNTRLR/RCPTCL WIRE | $4.99 | |||
| 250627 | 32A | POWER SWITCH | $16.49 | |||
| 130424 | 32B | 4″ BLK WIRE, F/F, SWITCH | $4.99 | |||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||

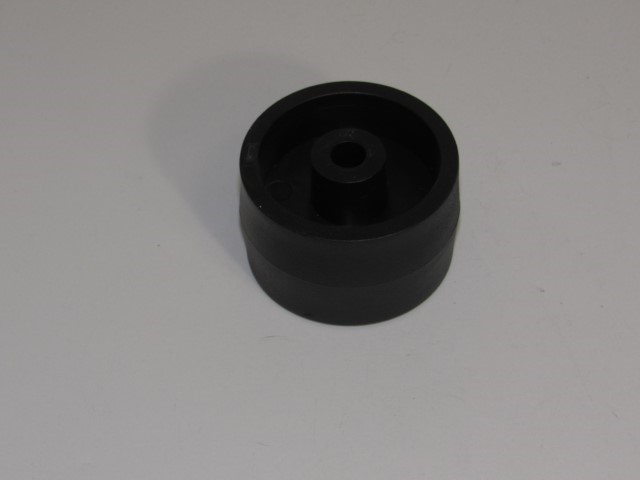

 | 148803 | 34 | FRONT WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 186070 | 38 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 39 | REED SWITCH CLIP | $0.99 | ||
 | 295804 | 40 | FRAME BEARING | $66.99 | ||
| 362905 | 41 | EDDY MECH SNAP RING | $1.49 | |||
| 338320 | 42 | SLEEVE | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 378487 | 44 | LEFT PEDAL ARM | $175.99 | |||
| 379975 | 45 | LEFT ROLLER ARM | $150.49 | |||
| 385068 | 46 | Left Upper Body Leg | $135.49 | |||
| 331059 | 47 | LEFT UPPER BODY ARM | $102.99 | |||
| 250210 | 48 | HAIRPIN COTTER PIN | $1.99 | |||
| 362777 | 49A | LEFT PDEAL | $162.99 | |||
| 362778 | 49B | RIGHT PEDAL | $162.99 | |||
 | 275907 | 50A | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM REAR CAP | $6.49 | |||
 | 337966 | 53 | LARGE AXLE COVER | $5.49 | ||
 | 287202 | 54 | 16MM WAVE WASHER | $1.99 | ||
 | 379978 | 55 | SMALL AXLE COVER | $3.49 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 378490 | 58 | RIGHT PEDAL ARM | $175.99 | |||
| 379970 | 59 | RIGHT ROLLER ARM | $150.49 | |||
| 385069 | 60 | RIGHT UPPER BODY LEG | $122.99 | |||
| 331061 | 61 | RIGHT UPPER BODY ARM | $102.99 | |||
| 316467 | 62A | LEFT GRIP | $107.99 | |||
| 316468 | 62B | RIGHT GRIP | $80.99 | |||
| 272391 | 63A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 63B | LEFT PULSE WIRE | $17.49 | |||
| 324444 | 63C | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 335812 | 65 | RIGHT ARM FRONT COVER | $68.49 | |||
| 335813 | 66 | RIGHT ARM REAR COVER | $54.99 | |||
| 335810 | 67 | LEFT ARM FRONT COVER | $68.49 | |||
| 335811 | 68 | LEFT ARM REAR COVER | $54.99 | |||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
 | 316683 | 71 | DISC | $99.99 | ||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 362774 | 73 | LEFT SHIELD | $189.99 | |||
| 362775 | 74 | RIGHT SHIELD | $189.99 | |||
| 362773 | 75 | SHIELD COVER | $146.49 | |||
 | 337964 | 76 | LEFT PEDAL ARM SIDE CAP | $10.99 | ||
| 316841 | 77 | AXLE SPACER | $17.99 | |||
 | 386629 | 78 | KEY | $9.49 | ||
| 337388 | 79 | FRONT CONSOLE COVER | $25.49 | |||
| 337389 | 80 | REAR CONSOLE COVER | $32.49 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82 | M8X13MM,PULLEY CRANK SCRW | $1.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 238278 | 84A | LIFT ARM WASHER | $1.49 | |||
| 248342 | 84B | M10 WASHER | $1.99 | |||
| 310664 | 85 | M4 X 14MM SCREW | $2.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
 | 337965 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | ||
 | 281150 | 88 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
 | 208163 | 89 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 340140 | 90 | M6 CRANK ARM WASHER | $1.49 | ||
 | 281149 | 91 | M10 X 50MM HEX SCREW | $6.49 | ||
| 248334 | 92 | M10 X 19MM SCREW | $5.49 | |||
 | 168267 | 93 | FAN SCREW | $0.99 | ||
| 235322 | 94 | M5 WASHER | $2.49 | |||
 | 206321 | 95A | M8 X 19MM SCRW, NOTE: OM | $3.49 | ||
 | 223089 | 95B | LINKARM WHEEL BKT SCRW | $6.99 | ||
 | 234732 | 96 | M8 X 38MM BOLT | $4.49 | ||
 | 248349 | 97A | M8 PVT CAP WASHER | $6.49 | ||
 | 223812 | 97B | M8 WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
 | 232289 | 99 | M10 X 25MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102A | M8 LOCKNUT | $1.99 | ||
 | 256446 | 102B | M8 NUT | $0.99 | ||
| 262341 | 103 | M6 X 12MM SCREW | $3.49 | |||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 106B | COVER MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 242105 | 108 | M6 X 13MM SCREW | $1.99 | |||
| 208938 | 109 | M10 X 60MM BOLT | $5.99 | |||
| 362904 | 110 | MAIN WIRE | $69.99 | |||
 | 130853 | 111 | #8 X 12MM SCREW | $0.99 | ||
 | 109231 | 112 | RECEPTICAL | $18.49 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 322839 | 114 | M4 X 42MM SCREW | $1.49 | ||
| 300804 | 115 | CONTROLLER BRACKET | $29.99 | |||
| 362776 | 116 | DISC RING | $107.49 | |||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 347920 | 118 | Shield Cover Cap | NLA | |||
| 327046 | 119 | Power Cord Drawing | NLA | |||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | FRAME BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
| 273352 | 124 | M4 X 19MM SELF-TAP SCRW | $0.99 | |||
 | 157600 | 125 | BUMPER | $1.99 | ||
 | 347975 | 126 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
 | 224606 | 127 | M4 X 25MM SCREW | $0.99 | ||
 | 379979 | 129 | SMALL ARM BEARING | $42.49 |
