Nordictrack Commercial 12.9 Elliptical - NTEL71215.0 / NTEL712150

Nordictrack Commercial 12.9 Elliptical – NTEL71215.0 / NTEL712150

Brand: NordicTrack

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

153 Parts Available for Nordictrack Commercial 12.9 Elliptical - NTEL71215.0 / NTEL712150 ↓

Part #	Diagram #	Title	Price
351008	3B	1 1/4″ X 27.5 FOAM TAPE	$22.49
371462	3C	3/4″ X 2″ FOAM TAPE	$1.99
365256	4	Upright for Fitness Equipment	NLA
350867	5	REAR STABILIZER	$64.99
350835	6	RIGHT FRONT STABILIZER	$70.49
376686	7A	Console for ProForm ELNT71215 V3	$640.99
376687	7B	Card Reprogramming for ARPS	$131.49
350885	8	FRONT STABILIZER COVER	$85.49
350833	9	LEFT FRONT STABILIZER	$70.49
350882	10	RAMP COVER	$61.99
365468	11	TRACK	$67.49
351323	12	LEFT ROLLER ARM	$193.49
354860	13	LIFT MOTOR	$169.49
379397	14	PEDAL,LT,ARPS,W/DECAL	$92.49
316981	15	CONTROLLER	$124.99
264511	16	POWER SWITCH	$32.99
313668	17	STRAIN RELIEF,NOTE:	$9.49
350829	18	CRANK	$99.49
356073	19	PULLEY	$181.49
350790	20	CRANK ARM	$177.99
350966	21	PEDAL ARM CAP	$5.99
351325	22	IDLER	$101.49
319294	24A	Right Pulse Wire	NLA
376654	24B	ECA,PLSE&CNTL GRIP,ASSY,RT,RES	$87.49
366951	24C	M2.6 X 33MM SCREW	$3.49
366952	24D	M2.6 PULSE GRIP NUT	$0.99
193223	25	RESISTANCE MOTOR	$99.99
356516	26	LOWER SADDLE BRACKET	$116.99
350929	27	LIFT FRAME BUSHING	$39.49
364319	28A	EDDY MECHANISM	$312.99
356546	28B	RESISTANCE CABLE	$39.49
376689	29	HANDLE,PEDAL ADJ,ARPS,LT	NLA
350041	30	MEDIUM BUSHING	$49.99
346262	31	LIFT FRAME AXLE	$30.99
319293	32A	Left Pulse Wire	NLA
376655	32B	Pulse and Control Grip Assembly for Light Fitness Equipment	$87.49
281865	33	SMALL SNAP RING	$3.49
148803	34	WHEEL	$3.49
356056	35	BOLT SET	$20.99
350796	36	RIGHT UPPER BODY LEG	$151.49
350874	37	ACCESSORY TRAY	$78.99
372087	38	REED SWITCH/WIRE	$23.49
282277	39	CLAMP	$3.49
251313	40	CRANK BEARING	$53.49
350956	41	RIGHT UPPER GRIP	$62.99
350830	42	MEDIUM CRANK SPACER	$2.49
113842	43	MAGNET	$1.49
350786	44	LEFT PEDAL ARM	$175.49
351324	45	RIGHT ROLLER ARM	$193.49
350794	46	LEFT UPPER BODY LEG	$151.49
352310	47	LEFT UPPER BODY ARM	$111.49
350947	48	LEFT UPPER GRIP	$62.99
379398	49	PEDAL,RT,ARPS,W/DECAL	$71.99
350955	50	RIGHT LOWER GRIP	$60.99
329271	51	LARGE ROLLER	$176.49
350946	52	LEFT LOWER GRIP	$60.99
350958	53	AXLE COVER	$15.49
350960	54	LEFT SADDLE BRACKET CVR	$64.99
365059	55	Crank Disk Cap	$70.49
354856	56	SHIELD COVER	$38.99
287322	57	SMALL BUSHING	$10.99
350788	58	RIGHT PEDAL ARM	$175.49
350939	59	LEFT UPPER SADDLE BKT	$65.49
350961	60	RIGHT SADDLE BRACKET CVR	$64.99
352311	61	RIGHT UPPER BODY ARM	$111.49
332578	62	FOOT	$13.49
353075	63	NYLON BUSHING	$1.99
194878	64	M4 X 20MM SCREW	$2.99
350943	66	LEFT OUTER LEG COVER	$34.99
350942	67	LEFT INNER LEG COVER	$29.49
350953	68	UPPER UPRIGHT COVER	$23.49
350952	69	LOWER UPRIGHT COVER	$27.49
350913	70	UPPER BODY LEG BSHG	$32.49
376688	71	Crank Disk Ring Cover	$140.49
365069	73	SDSHLD,LT,ARPS	$192.99
365070	74	SDSHLD,RT,ARPS	$197.99
354857	75	Rear Shield	$108.99
365072	76	Rear Frame Cover	$77.99
350959	77	UPPER BODY ARM COVER	$67.49
351233	78	KEY	$6.49
194653	79	M6 ACORN NUT	$1.99
350875	80	ACCESSORY TRAY BASE	$78.99
351235	81	J-BOLT	$18.99
351287	82	PEDAL SPACER	$2.49
350846	83	SMALL CRANK SPACER	$2.49
350949	84	RIGHT PEDAL INSERT	$92.49
350948	85	LEFT PEDAL INSERT	$92.49
018030	86	MEDIUM ROLLER	$19.49
365063	87	PEDAL,RT,PMSVR/LABBK	$142.49
365062	88	Left Pedal for ProForm PMSVR/LABBK	$173.49
328293	89	M10 X 122MM SCREW	$18.99
350957	90	FRAME CAP	$9.49
350954	91	Ramp Cap	NLA
246285	92	LEVELING FOOT	$10.99
167082	93	LARGE SNAP RING	$0.99
321268	94	SPRING	$3.49
286527	95A	COVER MOUNT	$2.49
303479	95B	COVER MOUNT SCREW	$3.99
289434	96	SNAP RING	$1.99
346264	97	ROLLER AXLE	$11.99
133333	98	COVER CLIP	$0.99

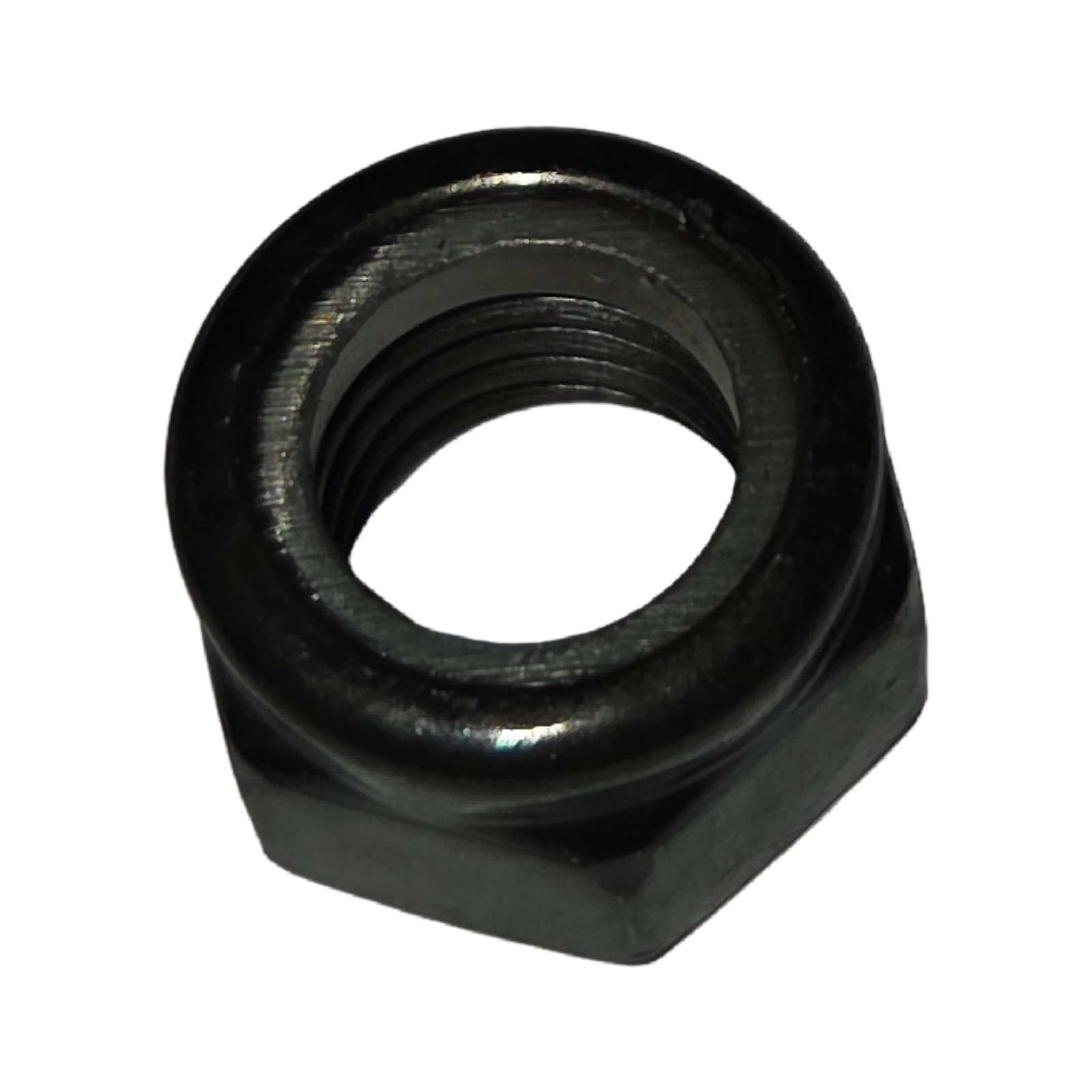

380688	99	M10 LOCKNUT	$1.99
350831	100	LARGE CRANK SPACER	$13.99
362389	101	M8 X 18MM SCREW	$3.49
256446	102A	M8 LOCKNUT	$0.99
333350	102B	M8 LOCKNUT	$1.99
325993	103	ADJUSTMENT PIN	$19.99
195562	104	M4 X 16MM SCREW	$1.99
360433	105	LIFT FRAME	$138.49
320336	106	RAMP ROLLER	$8.49
125819	107	STANDOFF	$3.99
144788	108	M4 x 12mm Screw	$2.99
251831	109	M4 X 16MM ROUND HEAD SCRW	$1.99
360619	110	MAIN WIRE	$114.99
376690	111	HANDLE,PEDAL ADJ,ARPS,RT	$101.49
342275	112	POWER CORD	$49.99
353858	113	DRIVE BELT	$59.99
356153	114	M17 WASHER	$8.49
224545	115	M8 SMALL WASHER	$6.49
350042	116	ROD END BEARING	$76.99
328419	117	M10 X 54MM BOLT	$9.49
275907	118	CRANK ARM M10 LOCKNUT	$4.49
193108	119	M8 WASHER	$0.99
347975	120	M8 X 14MM SHOULDER SCREW	$10.99
350937	121	RIGHT UPPER SADDLE BKT	$65.49
177325	122	STOP PLATE	$1.99
334515	123	CONTROL BOARD BRACKET	$22.49
224606	124	M4 X 25MM SCREW	$0.99
350944	125	RIGHT INNER LEG COVER	$29.49
350945	126	RIGHT OUTER LEG COVER	$23.49
301345	127	BASE PAD	$2.99
346533	128	M8 FLAT WASHER	$4.49
356253	129	M10 X 38MM WASHER	$2.99
247329	130	M8 X 18MM BOLT	$2.99
356255	131	M8 FLAT HEAD SCREW	$2.49
373258	132	M10 X 20MM BOLT	$5.49
268411	133	M6 PDL ADT WASHER	$0.99
350182	134	M10 X 48MM BOLT	$9.49
194885	135	M10 X 40MM BOLT	$6.49
356254	136	M10 WASHER	$0.99
208320	137	M4 X 10MM SCREW	$0.99
197037	138	M6 X 12MM SCREW	$0.99
355854	139	M10 X 70MM SCREW	$11.99
208938	140	M10 X 60MM BOLT	$5.99
014039	141	M4 WASHER	$4.99
223809	142	M10 X 75MM SCREW	$15.49
275977	143	M10 X 45MM BOLT	$7.99
248334	144	M10 X 20MM SCREW	$5.49
362905	145	SMALL SNAP RING	$1.49
372664	146	TABLET HOLDER	$96.99
130853	147	#8 X 1/2″ SCREW	$0.99
364361	148	CHEST HEART RATE MONITOR	$135.99
369805	149	CENTER RAMP COVER	$56.49
