Golds Gym Adjustable Stridetrainer 330 Wl Elliptical - GGEL62807.1 / GGEL628071

Golds Gym Adjustable Stridetrainer 330 Wl Elliptical – GGEL62807.1 / GGEL628071

Brand: Gold's Gym

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

85 Parts Available for Golds Gym Adjustable Stridetrainer 330 Wl Elliptical - GGEL62807.1 / GGEL628071 ↓

Part #	Diagram #	Title	Price
236277	4	REAR STABILIZER	NLA
236223	6	LEFT SIDE SHIELD	$101.99
236224	7	RIGHT SIDE SHIELD	$101.99
243498	8	Left Pedal Disc	NLA
236382	9	LEFT HANDLEBAR	NLA
236263	11	FOAM GRIP	NLA
236255	13	UPRIGHT ENDCAP	NLA
236298	14	LEFT PEDAL ARM	NLA
236269	15	MAST	NLA
236300	16	PEDAL POST	NLA
236281	17	ADJUSTMENT PIN	NLA
236325	19	ADJUSTMENT SPRING	NLA
143742	21	LARGE SNAP RING	$3.99
236321	22	M8 X 25MM SCREW	$4.49
236251	24	HANDLEBAR BUSHING	NLA
236317	25	HANDLEBAR SPACER	$8.49
236261	26	UPRIGHT SPACER	NLA
236248	27	M10 x 59mm Bolt Set	NLA
148710	29	M10 LOCKNUT	$2.49
236272	30	PILLOW BLOCK	NLA
236285	31	IDLER PULLEY	NLA
236260	32	WHEEL	$6.99
184366	33	M10 X 44MM BUTTON BOLT	$6.49
247344	34	M10 X 75MM CARRIAGE BOLT	$3.99
236258	35	STABILIZER ENDCAP	NLA
236301	37	IDLER BRACKET	NLA
250164	38	RIGHT CRANK ARM	NLA
236375	39	CRANK	NLA
139703	40	CRANK BEARING	$33.49
229541	42	LARGE SNAP RING	$2.99
113842	43	MAGNET	$1.49
200844	44	FLYWHEEL WASHER	$2.49
236246	45	ADJUSTMENT KNOB	NLA
012002	46	M8 NYLON LOCKNUT	$1.49
012033	47	M10 NYLON LOCKNUT	$2.99
236262	48	HUB COVER	NLA
013567	49	#12 X 1/2″ SCREW	$0.99
250180	50	M8 X 45MM BUTTON BOLT	$2.49
236283	51	TENSION SPRING	NLA
236282	52	MAGNET GUIDE	NLA
206322	53	M8 WASHER	$1.49
250161	54	“C” MAGNET	NLA
211876	55	RESISTANCE MOTOR	$106.99
236376	57	HUB	$78.49
100488	58	LINK SNAP RING	NLA
145943	59	M5 X 40MM SCREW	$0.99
012111	60	M6 NUT	$1.49
150327	61	M5 NUT	$1.99
179002	62	M5 X 12MM BOLT	$5.99
206584	63	M10 X 82MM BUTTON BOLT	$16.99
013373	64	M8 X 40MM BOLT	$6.49

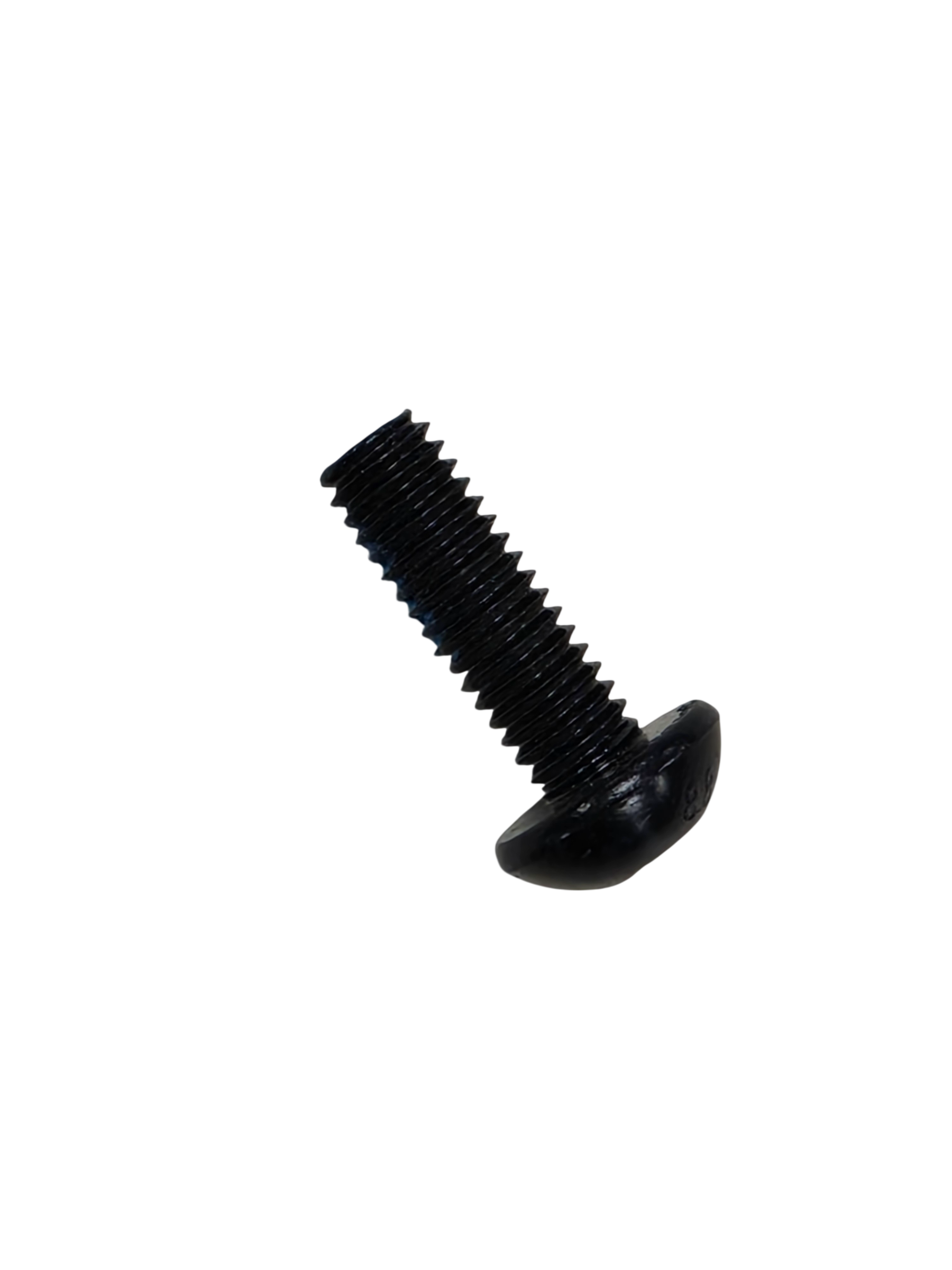

212054	65	M6 X 18MM PATCH SCREW	$2.49
250181	66	BRIGHT M4X16MM BTTN SCREW	$0.99
250179	67	M8 X 72mm Button Screw	$2.99
236322	68	FLYWHEEL SCREW	NLA
131090	69	REED SWITCH CLIP	$0.99
142276	70	LIFT FRAME BOLT	$1.99
236257	71	HANDLEBAR ENDCAP	NLA
199493	73	M6 X 15MM SCREW	$4.62
013529	74	#8 X 1.5″ SCREW	$0.99
236299	75	RIGHT PEDAL ARM	NLA
206394	76	M4 X 25MM SCREW	$0.99
196564	77	Reed Switch	NLA
236275	78	REED SWITCH BRACKET	NLA
236384	79	HANDLEBAR LEG	NLA
237298	80	Return Spring	$4.49
236264	81	PIVOT AXLE	NLA
223450	82	Cover Screw	NLA
014066	83	INCLINE CABLE WASHER	$0.99
214070	84	RAIL BOLT, SEE #72	$6.49
240926	85	Resistance Cable	NLA
223428	87	LOWER WIRE HARNESS	$14.49
236253	88	PEDAL ARM SLEEVE BUSHING	$20.99
220047	89	M3 X 12MM SCREW	$1.49
197404	90	5MM WASHER	$1.99
213148	91	WAVE WASHER	$6.49
236254	92	INNER PEDAL ARM SLEEVE	NLA
014003	93	M6 WASHER	$0.99
121519	94	M10 SPLIT WASHER	$5.99
212501	95	UPPER WIRE HARNESS	$68.49
236378	96	PEDAL ARM ENDCAP	NLA
236393	97	PILLOW BLOCK RETAINER	NLA
012169	101	M8 JAMNUT	$3.49
243499	102	RIGHT PEDAL DISC	~~$92.62~~ $87.99
236418	103	FLAT FLYWHEEL SCREW	$1.49
