Reebok Stride Select Rl 7.0 Elliptical – RBEL16911.0 / RBEL169110
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
151 Parts Available for Reebok Stride Select Rl 7.0 Elliptical - RBEL16911.0 / RBEL169110 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 320453 | 6 | Right Upper Body Leg | $104.99 | |||
| 320452 | 7 | Left Upper Body Leg | $104.99 | |||
| 320454 | 8 | Right Upper Body Arm | $80.99 | |||
| 320455 | 9 | Left Upper Body Arm | $80.99 | |||
| 320457 | 10 | Right Handlebar | $62.99 | |||
| 320456 | 11 | Left Handlebar | $62.99 | |||
| 289865 | 16 | WHEEL CAP | $9.49 | |||
| 320474 | 24 | Front Upright Cover | $100.99 | |||
| 320473 | 25 | Rear Upright Cover | $105.99 | |||
| 291639 | 27 | TOP COVER | $49.49 | |||
| 289872 | 28 | PEDAL ARM CAP | NLA | |||
 | 286527 | 29A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 29B | COVER MOUNT SCREW | $3.99 | |||
| 320469 | 30 | Magnet Cover | $21.99 | |||
| 279656 | 31 | PEDAL ARM MAGNET | NLA | |||
 | 286547 | 32 | PEDAL ARM ROLLER | $59.99 | ||
| 290474 | 34A | PULSE SENSOR | $80.99 | |||
| 244142 | 35 | HANDGRIP | $68.49 | |||
 | 289864 | 36 | WHEEL | $30.49 | ||
| 289866 | 37 | STABILIZER CAP | $63.49 | |||
 | 308037 | 38 | DRIVE BELT | $71.99 | ||
| 287161 | 39 | CRANK ARM | NLA | |||
| 250210 | 40 | HAIRPIN COTTER PIN | $1.99 | |||
 | 237631 | 41 | LEVELING FOOT | $34.99 | ||
| 320459 | 43 | Right Link Arm | $68.49 | |||
| 247036 | 44 | LIFT BRACKET | $6.99 | |||
| 246935 | 45 | LIFT AXLE BUSHING | $16.49 | |||
 | 289867 | 46 | PEDAL ARM SLEEVE | $16.99 | ||
 | 233710 | 47 | INNER SLEEVE BUSHING | $22.99 | ||
| 289399 | 48 | UPRIGHT AXLE | $80.99 | |||
| 272907 | 49 | Latch Bracket | $14.49 | |||

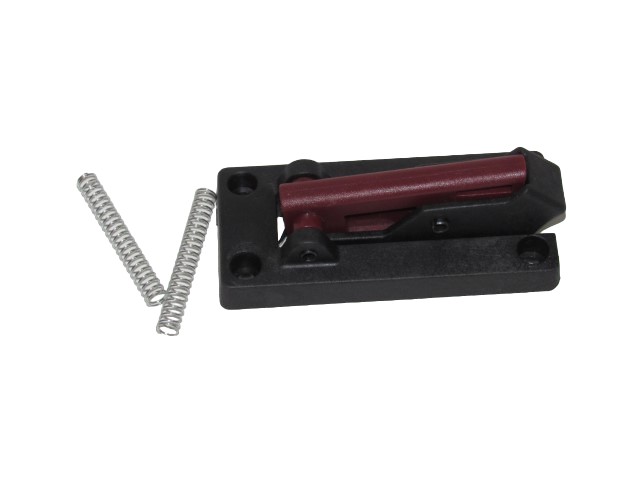

 | 293610 | 50 | Latch | NLA | ||
 | 293160 | 54 | ARM/LEG BUSHING | $16.99 | ||
| 250957 | 55 | #8X5/8″ FLAT HEAD SCREW | $0.99 | |||
 | 287135 | 56 | SMALL AXLE COVER | $7.99 | ||
 | 293159 | 57 | UPRIGHT BUSHING | $9.49 | ||
 | 233194 | 58 | OUTER SLEEVE BUSHING | $20.99 | ||
 | 304180 | 59 | SNAP RING | $0.99 | ||
 | 290674 | 60 | WIRE HARNESS | $26.49 | ||
| 312441 | 61 | FLYWHEEL | $286.99 | |||
| 250941 | 62 | M6 X 50MM PATCH SCREW | NLA | |||
| 291374 | 63 | FRAME AXLE | $35.49 | |||
| 291373 | 64 | MAIN FRAME BUSHING | $17.99 | |||
| 285256 | 65 | LATCH BRACKET AXLE | $17.49 | |||
 | 247275 | 66 | LATCH BRACKET SPRING | $7.49 | ||
| 287167 | 67 | Latch Button | NLA | |||
| 284207 | 68 | BUTTON HOUSING | NLA | |||
 | 186070 | 69 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 70 | REED SWITCH CLIP | $0.99 | ||
| 228084 | 71 | CRANK HUB | $98.49 | |||
 | 287117 | 72 | CRANK | NLA | ||
 | 283736 | 73 | CRANK SPACER | $27.49 | ||
| 255072 | 74 | PULLEY | $91.99 | |||
 | 113842 | 75 | MAGNET | $1.49 | ||
 | 139703 | 76 | CRANK BEARING | $33.49 | ||
 | 363093 | 77 | IDLER | $116.49 | ||
 | 241949 | 78 | RESISTANCE MOTOR | $99.99 | ||
 | 304734 | 79 | RESISTANCE ROD | $43.49 | ||
 | 241954 | 80 | RSISTANCE MOTOR DISK | $1.99 | ||
 | 303952 | 81 | HANDLE BRACKET | $4.99 | ||
| 279645 | 82 | MOTOR BRACKET | $12.99 | |||
| 308028 | 83 | C-MAGNET | NLA | |||
 | 284116 | 84 | FLYWHEEL AXLE | $19.99 | ||
 | 281149 | 85 | M10 X 50MM HEX SCREW | $6.49 | ||
| 237611 | 86 | M8 X 28MM SCREW | $1.49 | |||
 | 143742 | 87 | LARGE SNAP RING | $3.99 | ||
| 281148 | 88 | M6 X 65MM HEX SCREW | $3.49 | |||
 | 168267 | 89 | FAN SCREW | $0.99 | ||
| 283304 | 90 | M5 X 7MM SCREW | $3.49 | |||
| 276024 | 91 | MOTOR DISK MOUNTING SCREW | $1.49 | |||
| 254769 | 92 | M6 NUT | $1.49 | |||
| 289473 | 93 | LIFT ARM AXLE | $130.99 | |||
 | 256446 | 94 | M8 NUT | $0.99 | ||
 | 261150 | 95 | M8 WASHER | $2.20 | ||
 | 014033 | 96 | WASHER | $1.49 | ||
 | 208163 | 97 | M6 X 20MM HEX SCREW | $1.99 | ||
| 234286 | 98 | M6 X 8MM HEX SCREW | $0.99 | |||
 | 281150 | 99 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
| 252438 | 100 | M10 X 95MM BOLT | $19.99 | |||
 | 243375 | 101 | SMALL PEDAL ARM SNAP RING | $2.49 | ||
 | 237612 | 102 | M8 X 16MM SCREW | $1.49 | ||
| 014174 | 103 | M8 SPLIT WASHER | $1.99 | |||
 | 243374 | 104 | IDLER SNAP RING | $12.99 | ||
| 272391 | 105A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 105B | LEFT PULSE WIRE | $17.49 | |||
 | 013162 | 106A | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
 | 195562 | 106B | M4 X 16MM SCREW | $1.99 | ||
| 250420 | 107 | M10 X 19MM BUTTON BOLT | $2.99 | |||
| 140206 | 108 | M10 FLAT WASHER | $1.99 | |||
| 214070 | 109 | RAIL BOLT, SEE #72 | $6.49 | |||
| 197037 | 111 | M6 X 12MM SCREW | $0.99 | |||
 | 322918 | 113 | CRANK AXLE COVER (244070) | NLA | ||
 | 286526 | 114 | LINK ARM AXLE | $27.49 | ||
 | 186726 | 115 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
 | 313668 | 116 | POWER CORD GROMMET | $9.49 | ||
 | 172638 | 117 | FLYWHEEL BEARING | $23.49 | ||
 | 287202 | 118 | 16MM WAVE WASHER | $1.99 | ||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 307816 | 120 | Part # 307816 | NLA | |||
 | 236321 | 121 | M8 X 25MM SCREW | $4.49 | ||
 | 283582 | 122 | CRANK SCREW | $66.99 | ||
 | 125819 | 123 | PLASTIC STAND-OFF | $3.99 | ||
| 300804 | 124 | CONTROLLER BRACKET | $29.99 | |||
| 209478 | 125 | TRANSFORMER | $71.49 | |||
 | 148710 | 126 | M10 LOCKNUT | $2.49 | ||
 | 013423 | 129 | LATCH PLATE SCREW | $0.99 | ||
| 290833 | 130 | RAMP | $188.49 | |||
| 289856 | 131 | Ramp Cover | NLA | |||
 | 291372 | 132 | RAMP BUSHING | $17.99 | ||
| 291377 | 133 | RAMP AXLE | NLA | |||
| 300035 | 134 | LIFT MOTOR | NLA | |||
 | 287374 | 135 | LIFT MOTOR WIRE | $24.99 | ||
| 286400 | 136 | RAMP ARM ROLLER | NLA | |||
| 290237 | 137 | LONG MOTOR AXLE | $11.49 | |||
| 246931 | 138 | SHORT MOTOR AXLE | $8.49 | |||
| 194883 | 139 | LIFT AXLE WASHER | NLA | |||
| 247921 | 140 | MOTOR SPACER | $3.49 | |||
| 259772 | 141 | LIFT AXLE SCREW | $3.49 | |||
| 320458 | 144 | Left Link Arm | $68.49 | |||
| 290673 | 145 | MOTOR POWER WIRE | $104.99 | |||
| 276123 | 146 | M4 X 12MM FLANGE SCREW | $1.99 | |||
| 285403 | 147 | Frame Wire Harness | NLA | |||
| 235634 | 148 | 10″ GREEN WIRE,F/R | $3.99 | |||
 | 251511 | 149 | M8 X 35MM SCREW | $3.49 | ||
 | 234732 | 150 | M8 X 38MM BOLT | $4.49 | ||
| 208817 | 152 | M4.2 X 13MM PAN HD SCREW | $0.99 | |||
| 128263 | 153 | LONG CONSOLE SCREW | $0.99 | |||
| 314615 | 154 | M4 X 8MM SCREW | $1.49 | |||
 | 289434 | 155 | MEDIUM SNAP RING | $1.99 | ||
| 213769 | 156 | #8 X 5/8″ PAN HEAD SCREW | $0.99 | |||
 | 150327 | 158 | M5 NUT | $1.99 | ||
| 183633 | 159 | M5 WASHER | $1.99 |
