Reebok R 5.10 Elliptical – RBEL15911.0 / RBEL159110
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
131 Parts Available for Reebok R 5.10 Elliptical - RBEL15911.0 / RBEL159110 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 285616 | 4 | Rear Stabilizer | $112.49 | |||
| 320519 | 5 | Upright for Fitness Equipment | $182.49 | |||
| 320453 | 6 | Right Upper Body Leg | $104.99 | |||
| 320452 | 7 | Left Upper Body Leg | $104.99 | |||
| 320454 | 8 | Right Upper Body Arm | $80.99 | |||
| 320455 | 9 | Left Upper Body Arm | $80.99 | |||
| 320457 | 10 | Right Handlebar | $62.99 | |||
| 320456 | 11 | Left Handlebar | $62.99 | |||
| 320526 | 12 | Right Pedal Arm | $235.99 | |||
| 320525 | 13 | Left Pedal Arm | $235.99 | |||
| 320465 | 14 | Right Pedal | $104.99 | |||
| 320463 | 15 | Left Pedal | $104.99 | |||
| 289865 | 16 | WHEEL CAP | $9.49 | |||
| 320524 | 17 | Disc for Fitness Equipment | $140.49 | |||
| 320468 | 18 | Right Shield | $130.99 | |||
| 320522 | 19 | Left Shield | $141.99 | |||
| 320521 | 21 | Right Frame Cover | $130.99 | |||
| 320520 | 22 | Left Frame Cover | $132.49 | |||
| 320474 | 24 | Front Upright Cover | $100.99 | |||
| 320473 | 25 | Rear Upright Cover | $105.99 | |||
| 303901 | 26 | Accessory Tray | $34.49 | |||
| 320472 | 27 | Top Cover | $49.49 | |||
| 289872 | 28 | PEDAL ARM CAP | NLA | |||
 | 286527 | 29A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 29B | COVER MOUNT SCREW | $3.99 | |||
| 320469 | 30 | Magnet Cover | $21.99 | |||
| 279656 | 31 | PEDAL ARM MAGNET | NLA | |||
 | 286547 | 32 | PEDAL ARM ROLLER | $59.99 | ||
| 290474 | 34A | PULSE SENSOR | $80.99 | |||
| 244142 | 35 | HANDGRIP | $68.49 | |||
 | 289864 | 36 | WHEEL | $30.49 | ||
| 289866 | 37 | STABILIZER CAP | $63.49 | |||
 | 308037 | 38 | DRIVE BELT | $71.99 | ||
| 285626 | 39 | RIGHT CRANK ARM | $134.49 | |||
| 303905 | 40 | Disc Insert | $57.49 | |||
 | 237631 | 41 | LEVELING FOOT | $34.99 | ||
| 285205 | 42 | LATCH BRACKET | $27.49 | |||
| 320459 | 43 | Right Link Arm | $68.49 | |||
| 307141 | 44 | Ramp Pin | $47.99 | |||
| 298698 | 45 | Ramp Knob | NLA | |||
 | 320477 | 46 | OEM PEDAL ARM SLEEVE | $12.99 | ||
 | 233710 | 47 | INNER SLEEVE BUSHING | $22.99 | ||
| 289399 | 48 | UPRIGHT AXLE | $80.99 | |||
| 320527 | 50 | Latch | $25.49 | |||
 | 293160 | 54 | ARM/LEG BUSHING | $16.99 | ||
| 250957 | 55 | #8X5/8″ FLAT HEAD SCREW | $0.99 | |||
 | 287135 | 56 | SMALL AXLE COVER | $7.99 | ||
 | 293159 | 57 | UPRIGHT BUSHING | $9.49 | ||
 | 233194 | 58 | OUTER SLEEVE BUSHING | $20.99 | ||
| 298511 | 60 | Main Wire | $98.49 | |||
| 312441 | 61 | FLYWHEEL | $286.99 | |||
| 250941 | 62 | M6 X 50MM PATCH SCREW | NLA | |||
| 291374 | 63 | FRAME AXLE | $35.49 | |||
| 291373 | 64 | MAIN FRAME BUSHING | $17.99 | |||
| 285256 | 65 | LATCH BRACKET AXLE | $17.49 | |||
 | 247275 | 66 | LATCH BRACKET SPRING | $7.49 | ||
| 304713 | 67 | Latch Button | $4.99 | |||
| 284207 | 68 | BUTTON HOUSING | NLA | |||
 | 186070 | 69 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 70 | REED SWITCH CLIP | $0.99 | ||
| 228084 | 71 | CRANK HUB | $98.49 | |||
 | 287117 | 72 | CRANK | NLA | ||
 | 283736 | 73 | CRANK SPACER | $27.49 | ||
| 255072 | 74 | PULLEY | $91.99 | |||
 | 113842 | 75 | MAGNET | $1.49 | ||
 | 139703 | 76 | CRANK BEARING | $33.49 | ||
 | 363093 | 77 | IDLER | $116.49 | ||

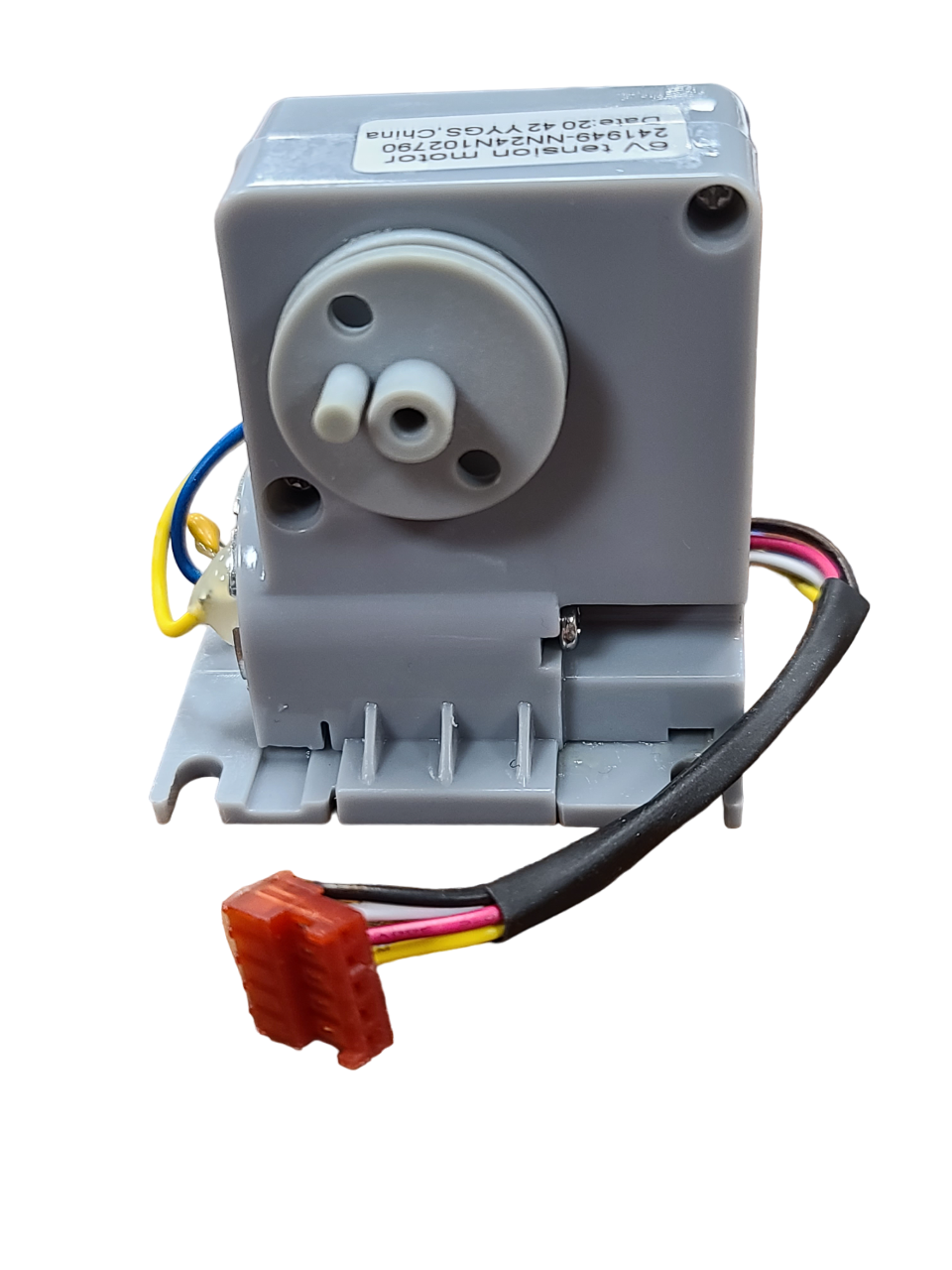

 | 308036 | 78 | RESISTANCE MOTOR | $117.99 | ||
 | 304734 | 79 | RESISTANCE ROD | $43.49 | ||
 | 241954 | 80 | RSISTANCE MOTOR DISK | $1.99 | ||
 | 303952 | 81 | HANDLE BRACKET | $4.99 | ||
| 279645 | 82 | MOTOR BRACKET | $12.99 | |||
| 308028 | 83 | C-MAGNET | NLA | |||
 | 284116 | 84 | FLYWHEEL AXLE | $19.99 | ||
 | 281149 | 85 | M10 X 50MM HEX SCREW | $6.49 | ||
| 237611 | 86 | M8 X 28MM SCREW | $1.49 | |||
 | 143742 | 87 | LARGE SNAP RING | $3.99 | ||
| 281148 | 88 | M6 X 65MM HEX SCREW | $3.49 | |||
 | 168267 | 89 | FAN SCREW | $0.99 | ||
| 283304 | 90 | M5 X 7MM SCREW | $3.49 | |||
| 276024 | 91 | MOTOR DISK MOUNTING SCREW | $1.49 | |||
| 254769 | 92 | M6 NUT | $1.49 | |||
| 302318 | 93 | Spring Pin | $2.49 | |||
 | 256446 | 94 | M8 NUT | $0.99 | ||
 | 261150 | 95 | M8 WASHER | $2.20 | ||
 | 014033 | 96 | WASHER | $1.49 | ||
 | 208163 | 97 | M6 X 20MM HEX SCREW | $1.99 | ||
| 234286 | 98 | M6 X 8MM HEX SCREW | $0.99 | |||
 | 281150 | 99 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
| 252438 | 100 | M10 X 95MM BOLT | $19.99 | |||
 | 304180 | 101A | SNAP RING | $0.99 | ||
 | 243375 | 101B | SMALL PEDAL ARM SNAP RING | $2.49 | ||
 | 237612 | 102 | M8 X 16MM SCREW | $1.49 | ||
| 014174 | 103 | M8 SPLIT WASHER | $1.99 | |||
| 320462 | 104 | Right Pedal Pad | $80.99 | |||
| 272391 | 105A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 105B | LEFT PULSE WIRE | $17.49 | |||
 | 013162 | 106A | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
| 208817 | 106B | M4.2 X 13MM PAN HD SCREW | $0.99 | |||
| 250420 | 107 | M10 X 19MM BUTTON BOLT | $2.99 | |||
| 140206 | 108 | M10 FLAT WASHER | $1.99 | |||
| 214070 | 109 | RAIL BOLT, SEE #72 | $6.49 | |||
| 197037 | 111 | M6 X 12MM SCREW | $0.99 | |||
 | 286660 | 113 | LARGE AXLE COVER | $4.99 | ||
 | 286526 | 114 | LINK ARM AXLE | $27.49 | ||
| 298762 | 115 | PEDAL INSERT, WHITE | $30.49 | |||
| 320461 | 116 | Left Pedal Pad | $80.99 | |||
 | 172638 | 117 | FLYWHEEL BEARING | $23.49 | ||
 | 287202 | 118 | 16MM WAVE WASHER | $1.99 | ||
 | 224606 | 119 | M4 X 25MM SCREW | $0.99 | ||
| 128263 | 120 | #8 X 1 3/4″ SCREW | $0.99 | |||
 | 236321 | 121 | M8 X 25MM SCREW | $4.49 | ||
 | 283582 | 122 | CRANK SCREW | $66.99 | ||
| 213769 | 123 | #8 X 5/8″ PAN HEAD SCREW | $0.99 | |||
 | 289434 | 124 | MEDIUM SNAP RING | $1.99 | ||
| 314615 | 125 | M4 X 8MM SCREW | $1.49 | |||
 | 148710 | 126 | M10 LOCKNUT | $2.49 | ||
| 320458 | 129 | Left Link Arm | $68.49 | |||
| 320523 | 130 | RAMP | $180.99 | |||
| 298243 | 131 | Ramp Cover | $164.99 | |||
 | 291372 | 132 | RAMP BUSHING | $17.99 | ||
| 291377 | 133 | RAMP AXLE | NLA | |||
 | 195562 | 134 | M4 X 16MM SCREW | $1.99 | ||
| 298512 | 135 | Power Receptacle/Wire | NLA | |||
 | 234732 | 136 | M8 X 38MM BOLT | $4.49 | ||
 | 251511 | 137 | M8 X 35MM SCREW | $3.49 | ||
 | 248512 | 138 | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
 | 150327 | 139 | M5 NUT | $1.99 | ||
| 183633 | 140 | M5 WASHER | $1.99 |
