PROFORM HIIT H7 PFEL08920.0 Elliptical
139 Parts Available for PROFORM HIIT H7 PFEL08920.0 Elliptical ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 416180 | 2 | RIGHT PEDAL BASE | $192.99 | |||
| 416177 | 3 | LEFT PEDAL BASE | $192.99 | |||
| 450784 | 5D | TABLET ONLY | $381.99 | |||
| 407854 | 5E | FAN | $50.99 | |||
| 386993 | 6 | SNAP RING | $13.49 | |||
| 386965 | 8 | RIGHT STABILIZER | $289.99 | |||
| 386959 | 9 | LEFT STABILIZER | $185.99 | |||
| 416223 | 10 | RIGHT HANDLEBAR | $180.99 | |||
| 416222 | 11 | LEFT HANDLEBAR | $142.99 | |||
 | 375970 | 12 | SHIELD COVER | $42.99 | ||
| 271688 | 13 | PULSE GRIP ASSY | $60.99 | |||
| 376769 | 14 | LEFT HANDLEBAR ARM | $165.49 | |||
| 376768 | 15 | RIGHT HANDLEBAR ARM | $165.49 | |||
| 416818 | 16 | MAGNET BRACKET | $102.49 | |||
| 375887 | 17A | IDLER BRACKET | $26.49 | |||
| 375928 | 17B | Idler Bushing | $1.99 | |||
| 376548 | 17C | IDLER | $65.49 | |||
| 373273 | 17D | Idler Axle | $17.99 | |||
| 150731 | 17E | IDLER RETAINER RING | $0.99 | |||
 | 375968 | 18 | ACCESSORY TRAY | $19.99 | ||
| 375860 | 19 | EXCHANGE AXLE | $79.99 | |||
| 375936 | 20 | MEDIUM PULLEY | $40.99 | |||
 | 375952 | 21 | Large Pulley | $69.99 | ||
| 416188 | 22 | RIGHT PEDAL | $184.99 | |||
| 416182 | 23 | LEFT PEDAL | $184.99 | |||
 | 376767 | 24 | RIGHT PEDAL LEG | $307.99 | ||
 | 376766 | 25 | LEFT PEDAL LEG | $269.49 | ||
 | 386625 | 26 | CONNECTOR ARM | $190.49 | ||
| 416361 | 27 | DISC AXLE | $175.99 | |||
 | 408855 | 28 | DRIVE BELT KIT (Set of 2) | $125.99 | ||
| 375858 | 29 | CRANK ARM | $90.99 | |||
 | 375856 | 30 | CRANK | $134.49 | ||
| 416812 | 32 | DISC | $355.49 | |||
| 375927 | 33 | Disc Hub | $28.49 | |||
| 373268 | 34 | SPROCKET | $189.99 | |||
| 375868 | 35 | LINK ARM | $58.99 | |||
 | 411461 | 36 | RESISTANCE MOTOR | $89.99 | ||
 | 241954 | 37 | RESISTANCE DISC | $1.99 | ||
 | 304734 | 38 | RESISTANCE BLOCK | $32.99 | ||
 | 303952 | 39 | RESISTANCE BRACKET | $4.99 | ||
 | 411087 | 40A | POWER RECEPTACLE/WIRE | $48.99 | ||
 | 214003 | 40B | POWER JACK NUT | $5.49 | ||
| 375958 | 41 | SMALL PULLEY | $55.99 | |||
 | 131090 | 42 | CLAMP | $0.99 | ||
 | 375931 | 43 | KEY | $3.99 | ||
| 416815 | 44 | MAGNET COVER | $102.49 | |||
 | 331026 | 45 | M8 SMALL WASHER | $3.99 | ||
 | 375923 | 46 | Left Wheel Cover | $8.49 | ||
| 386602 | 47 | SELF-ALIGNING BEARING | $50.99 | |||

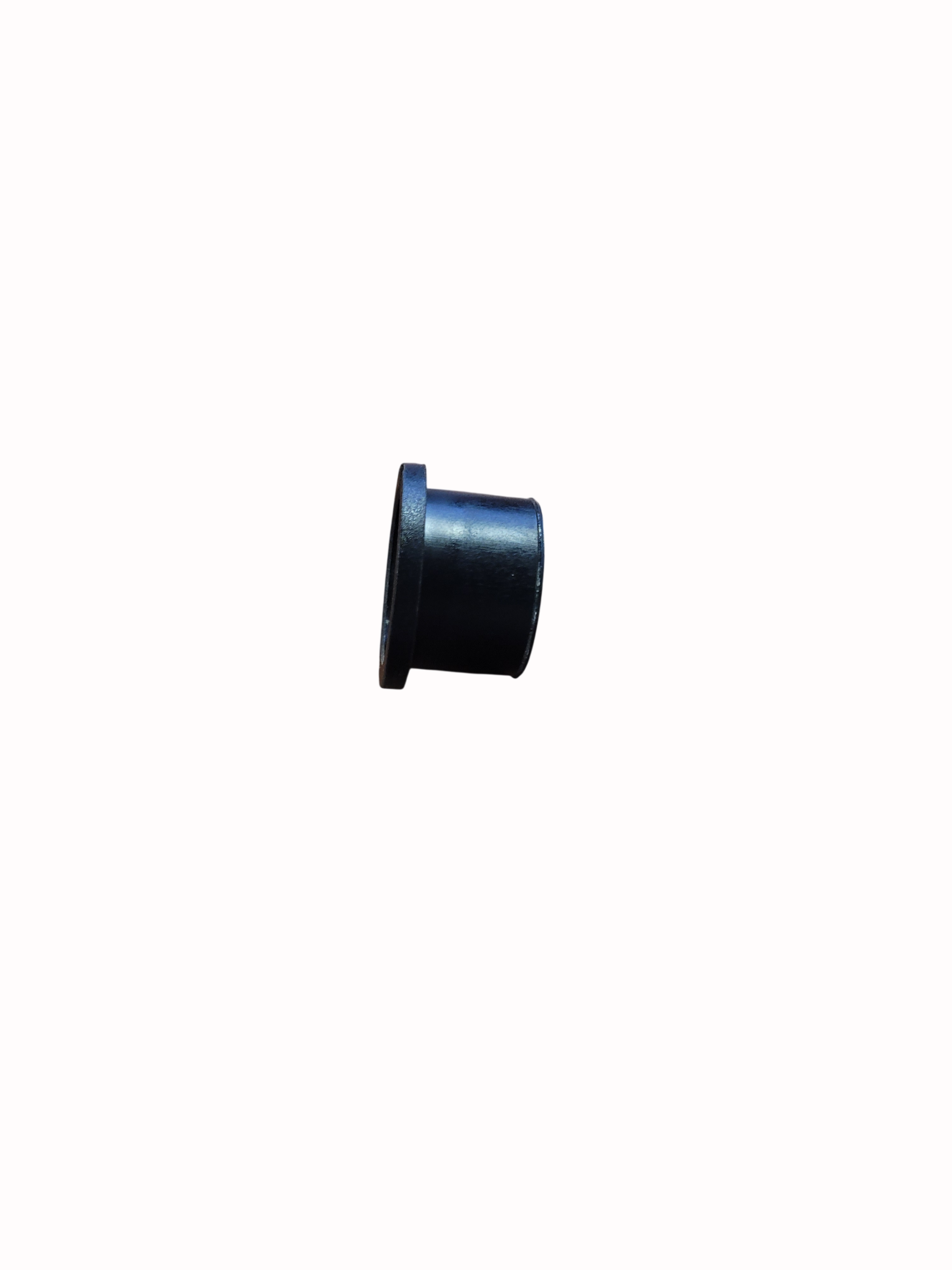

 | 416364 | 48 | ROLLER ARM BEARING SLEEVE | $18.49 | ||
| 416200 | 49 | DISC RING | $110.99 | |||
| 416173 | 52 | FRONT COVER | $80.99 | |||
| 416202 | 53 | REAR COVER | $80.49 | |||
 | 375967 | 54 | ACCESSORY TRAY BASE | $24.99 | ||
 | 375925 | 55 | STABILIZER CAP | $14.99 | ||
 | 332578 | 56 | FOOT | $13.49 | ||
 | 375922 | 57 | WHEEL | $16.99 | ||
 | 375924 | 58 | RIGHT WHEEL COVER | $8.49 | ||
| 375971 | 59 | HANDLEBAR CAP | $5.99 | |||
 | 291606 | 60 | DISC AXLE BEARING | $22.49 | ||
 | 416169 | 61 | LT FRONT HANDLEBAR COVER | $59.99 | ||
 | 416170 | 62 | LEFT REAR HANDLEBAR COVER | $125.49 | ||
| 416171 | 63 | RT REAR HANDLEBAR COVER | $59.99 | |||
 | 416172 | 64 | RT FRONT HANDLEBAR COVER | $59.99 | ||
| 375969 | 65 | REAR PIVOT COVER | $19.99 | |||
| 376422 | 66 | FRONT PIVOT COVER | $22.49 | |||
| 380618 | 67 | SPRING | $60.49 | |||
| 416203 | 68A | LOWER REAR SHIELD COVER | $103.49 | |||
 | 396209 | 68B | PULLEY COVER | $24.99 | ||
 | 237631 | 69 | LEVELING FOOT | $34.99 | ||
 | 139703 | 70 | SMALL BEARING | $33.49 | ||
| 218132 | 71 | MEDIUM BEARING | $60.49 | |||
| 300223 | 72 | LARGE BEARING | $71.99 | |||
| 375929 | 73 | BUSHING | $2.99 | |||
 | 259935 | 74 | LARGE SPACER | $5.99 | ||
 | 116014 | 75 | SMALL SPACER | $11.49 | ||
| 341554 | 76 | M10 JAM NUT | $1.99 | |||
| 222789 | 77 | CRANK WASHER | $3.99 | |||
 | 261150 | 78 | M8 WASHER | $2.20 | ||
| 249933 | 79 | M6 WASHER | $0.99 | |||
 | 150327 | 80 | M5 NUT | $1.99 | ||
| 375930 | 81 | M10 SHOULDER BOLT | $8.49 | |||
| 373149 | 82 | M4 X 42MM SCREW | $0.99 | |||
 | 133333 | 83 | CLIP | $0.99 | ||
| 393601 | 84 | M6 X 14MM SCREW,NOTE | $3.99 | |||
| 332268 | 85 | M5 X 16MM SCREW | $0.99 | |||
| 172677 | 86 | M3.5 X 12MM SCREW | $0.99 | |||
| 351556 | 87 | M8 X 15MM ROUND HD SCREW | $26.99 | |||
| 375972 | 88 | DISC SCREW | $18.99 | |||
 | 275907 | 89 | M10 LOCKNUT | $4.49 | ||
| 277730 | 90 | M10 X 55MM HEX BOLT | $8.99 | |||
| 356255 | 91 | AXLE SCREW | $2.49 | |||
 | 346533 | 92 | FLANGE | $4.49 | ||
| 371429 | 93 | STUD | $18.99 | |||
| 195561 | 94 | M10 X 55MM BOLT | $11.49 | |||
| 130302 | 95 | ADJUSTMENT SCREW | $26.49 | |||
 | 223089 | 96 | M8 X 15MM SCREW | $6.99 | ||
| 419907 | 97 | M8 SHOULDER SCREW | $6.49 | |||
| 209659 | 98 | M8 X 30MM BOLT | $0.99 | |||
 | 256446 | 99 | M8 LOCKNUT | $0.99 | ||
| 265605 | 100 | M8 X 23MM SCREW | $9.49 | |||
| 380825 | 101 | M4 X 16MM FLAT HEAD SCREW | $2.49 | |||
| 417308 | 102 | M8 X 20MM FLANGE SCREW | $6.49 | |||
| 417306 | 103 | CAP SCREW | $3.49 | |||
 | 113842 | 104 | PULLEY MAGNET | $1.49 | ||
 | 236321 | 105 | M8 X 25MM SCREW | $4.49 | ||
 | 195562 | 106 | M4 X 16MM SCREW | $1.99 | ||
| 251831 | 107 | M4 X 16MM ROUND HEAD SCRW | $1.99 | |||
 | 197037 | 108 | M6 X 12MM SCREW | $0.99 | ||
| 382359 | 109 | M8 X 86MM SCREW | $10.99 | |||
| 400743 | 110 | M10 X 20MM SCREW | $9.49 | |||
| 391858 | 111 | SLANTED CAP | $24.99 | |||
| 227701 | 112 | M10 SCREW | $2.49 | |||
 | 250961 | 113 | M4 X 19MM SCREW | $0.99 | ||
 | 213457 | 114 | M4 X 12MM SCREW | $1.99 | ||
| 416987 | 115 | MAIN WIRE | $126.49 | |||
 | 415080 | 116 | REED SWITCH/WIRE | $46.49 | ||
| 416986 | 117 | PULSE WIRE | $68.49 | |||
 | 339802 | 118 | POWER ADAPTER | $24.99 | ||
 | 375926 | 119 | CRANK COVER DISC | $24.99 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 417307 | # | HARDWARE KIT, NOTE: | $137.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
 | 306510 | # | 5MM ALLEN WRENCH | $6.49 | ||
| 411544 | # | WIFI REPEATER | $62.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 266083 | # | DECAL, GENERAL WARNING | $6.49 |
