Proform Endurance 720 E Elliptical – PFEL57914.1 / PFEL579141
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
142 Parts Available for Proform Endurance 720 E Elliptical - PFEL57914.1 / PFEL579141 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 362861 | 4 | UPRIGHT | $163.49 | |||
 | 194878 | 5 | M4 X 20MM SCREW | $2.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 362859 | 7A | Fitness Equipment Console | NLA | Unavailable to order | ||
| 338242 | 8 | LEFT HANDLEBAR | $62.99 | |||
| 338240 | 9 | RIGHT HANDLEBAR | $62.99 | |||
| 362863 | 10 | Ramp Cover | NLA | Unavailable to order | ||
| 320496 | 11A | INCLINE MOTOR | $156.49 | |||
| 302754 | 11B | LIFT MOTOR WIRE HARNESS | $27.49 | |||
| 331259 | 12 | INCLINE MOTOR ARM | $72.49 | |||
| 331260 | 13 | RAMP ARM | NLA | Unavailable to order | ||
 | 320336 | 14 | RAMP ROLLER | $8.49 | ||
| 362862 | 15 | Rear Stabilizer Cover | $159.49 | |||
| 317273 | 16C | TRACK FOAM TAPE | $13.49 | |||
| 320335 | 17 | LARGE FRAME BUSHING | $16.99 | |||
| 338325 | 18 | CRANK | $102.99 | Unavailable to order | ||
| 277369 | 19 | PULLEY | $174.49 | |||
 | 339855 | 20 | CRANK ARM | $150.99 | Unavailable to order | |
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 371887 | 25A | RESISTANCE MTR,W/TCD CBL | $105.99 | ||
| 324737 | 25B | 20″ WIRE HRNS, RESIST MTR | $30.49 | |||
| 195975 | 26 | M10 X 42MM BOLT | $12.49 | |||
 | 125819 | 27 | STANDOFF | $3.99 | ||
| 362898 | 28A | EDDY MECHANISM | $319.99 | |||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
 | 316981 | 31 | CONTROLLER W/STANDOFFS | $124.99 | ||
 | 264511 | 32 | POWER SWITCH | $32.99 | ||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | RAMP BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 186070 | 38 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 39 | CLAMP | $0.99 | ||
 | 295804 | 40 | PEDAL ARM BEARING | $66.99 | ||
| 338320 | 42 | SLEEVE | $2.49 | |||

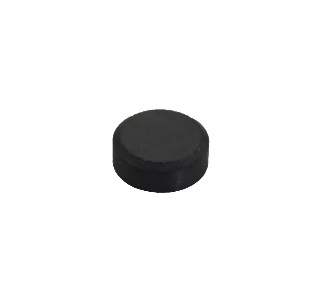

 | 113842 | 43 | MAGNET | $1.49 | ||
| 362836 | 44 | LEFT PEDAL ARM | $172.49 | |||
| 362850 | 45 | Left Roller Arm | $146.49 | |||
| 365948 | 46 | LEFT UPPER BODY LEG | $146.49 | |||
| 331059 | 47 | LEFT UPPER BODY ARM | $102.99 | |||
| 250210 | 48 | HAIRPIN COTTER PIN | $1.99 | |||
| 362870 | 49 | LEFT PEDAL | $138.49 | |||
 | 275907 | 50A | M10 LOCKNUT, CRANK | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 390204 | 51 | ROLLER / COVER FIXKIT | $199.99 | ||
| 362869 | 52 | RIGHT PEDAL | $138.49 | |||
 | 337966 | 53 | ROLLER ARM COVER | $5.49 | ||
 | 287202 | 54 | SMALL WAVE WASHER | $1.99 | ||
 | 347972 | 55 | SMALL AXLE COVER | $10.99 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
| 362842 | 58 | RIGHT PEDAL ARM | $267.49 | |||
| 362847 | 59 | RIGHT ROLLER ARM | $131.49 | |||
| 365947 | 60 | RIGHT UPPER BODY LEG | $146.49 | |||
| 331061 | 61 | RIGHT UPPER BODY ARM | $102.99 | |||
| 316467 | 62A | LEFT GRIP | $107.99 | |||
| 316468 | 62B | RIGHT GRIP | $80.99 | |||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 272391 | 63B | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 63C | LEFT PULSE WIRE | $17.49 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | Unavailable to order | |
| 335812 | 65 | RIGHT ARM FRONT COVER | $68.49 | |||
| 335813 | 66 | RIGHT ARM REAR COVER | $54.99 | |||
| 335810 | 67 | LEFT ARM FRONT COVER | $68.49 | |||
| 335811 | 68 | LEFT ARM REAR COVER | $54.99 | |||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
 | 316683 | 71 | DISC | $99.99 | ||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 362865 | 73 | LEFT SHIELD | $171.49 | |||
| 362866 | 74 | RIGHT SHIELD | $171.49 | |||
| 362864 | 75 | SHIELD COVER | $129.99 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
| 316841 | 77 | AXLE SPACER | $17.99 | Unavailable to order | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 335830 | 79 | FRONT CONSOLE COVER | $25.49 | |||
| 335829 | 80 | REAR CONSOLE COVER | $30.49 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82 | M8 X 13MM SCREW, PULLEY | $1.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 238278 | 84A | M10 LIFT ARM WASHER | $1.49 | |||
| 248342 | 84B | M10 WASHER | $1.99 | |||
| 310664 | 85 | M4 X 14MM SCREW | $2.99 | |||
| 310999 | 86 | M10 X 58MM HEX BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 208163 | 88 | IDLER SCREW | $1.99 | ||
 | 281150 | 89 | IDLER PIVOT SCREW | $4.49 | ||
 | 014033 | 90A | IDLER WASHER | $1.49 | ||
 | 340140 | 90B | M6 X 26MM WASHER | $1.49 | ||
 | 281149 | 91 | DRIVE BELT ADJUST SCREW | $6.49 | ||
| 248334 | 92 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 235322 | 94 | M5 WASHER | $2.49 | |||
 | 206321 | 95 | M8 X 19MM SCREW, NOTE | $3.49 | ||
 | 234732 | 96 | M8 X 37MM PTH SCRW,NOTE: | $4.49 | ||
 | 248349 | 97A | CRANK PVT CAP WSHR | $6.49 | ||
 | 223812 | 97B | M8 X 28MM WASHER | $1.99 | ||
 | 289434 | 98 | SNAP RING | $1.99 | ||
 | 232289 | 99 | M10 X 25MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 256446 | 102A | M8 LOCKNUT | $0.99 | ||
 | 012042 | 102B | M8 LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | SNAP MOUNT ONLY | $2.49 | ||
| 303479 | 106B | SNAP MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 242105 | 108 | M6 CRANK ARM SCREW | $1.99 | |||
| 208938 | 109 | M10 X 60MM BUTTON SCREW | $5.99 | |||
 | 362904 | 110 | MAIN WIRE | $69.99 | ||
 | 130853 | 111 | #8 X 1/2″ SCREW | $0.99 | ||
 | 313668 | 112 | STRAIN-RELIEF BUSHING | $9.49 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 322839 | 114 | M4 X 40MM SCREW | $1.49 | ||
| 300804 | 115 | CONTROLLER BRACKET | $29.99 | |||
| 362776 | 116 | DISC RING | $107.49 | |||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 347920 | 118 | Shield Cover Cap | NLA | Unavailable to order | ||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | SMALL FRAME BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
 | 313568 | 124 | M4X19MM RSW CLAMP SCREW | $0.99 | ||
 | 157600 | 125 | BUMPER | $1.99 | ||
 | 347975 | 126 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 369548 | 127 | TABLET HOLDER | $126.99 | |||
| 362852 | 128 | Left Pedal Plate | NLA | Unavailable to order | ||
| 362871 | 129 | LEFT PEDAL HANDLE | $25.99 | |||
 | 325993 | 130 | PEDAL PIN | $19.99 | ||
 | 321268 | 131 | PEDAL SPRING | $3.49 | ||
| 349611 | 132A | AXLE | $27.49 | |||
 | 197037 | 132B | M6X12MM LIFT MOTOR SCREW | $0.99 | ||
 | 194653 | 133 | M6 ACORN NUT | $1.99 | ||
| 362872 | 134 | RIGHT PEDAL HANDLE | $25.99 | |||
| 362855 | 135 | RIGHT PEDAL PLATE | $143.49 |
