Proform Cardiohiit Trnr Pro Elliptical – PFEL01415.5 / PFEL014155
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
144 Parts Available for Proform Cardiohiit Trnr Pro Elliptical - PFEL01415.5 / PFEL014155 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 378508 | 4 | Console Bracket | NLA | |||
| 401467 | 5A | Reset Console | $766.99 | |||
| 399183 | 5B | Console Reprogramming Thumb Drive | $106.99 | |||
 | 372664 | 6 | TABLET HOLDER | $96.99 | ||
| 398551 | 7 | Console Cover | $78.49 | |||
| 386965 | 8 | RIGHT STABILIZER | $289.99 | |||
| 386959 | 9 | LEFT STABILIZER | $185.99 | |||
| 379354 | 10 | RIGHT HANDLEBAR | $176.99 | |||
| 379355 | 11 | LEFT HANDLEBAR | NLA | |||

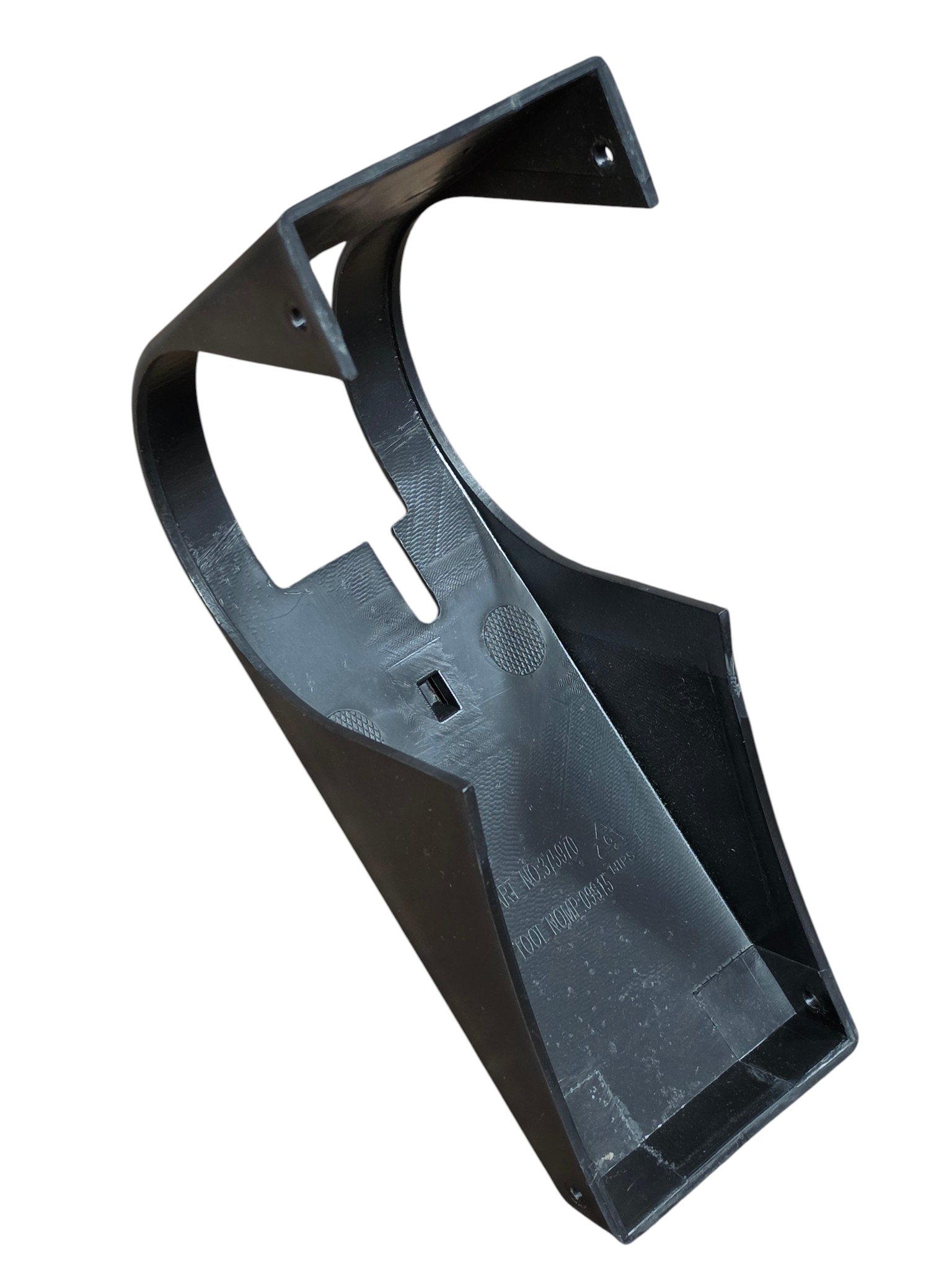

 | 375970 | 12 | SHIELD COVER | $42.99 | ||
| 379320 | 13A | LEFT PULSE GRIP | $91.49 | |||
| 397114 | 13B | RIGHT PULSE GRIP | $110.99 | |||
| 376769 | 14 | LEFT HANDLEBAR ARM | $165.49 | |||
| 376768 | 15 | RIGHT HANDLEBAR ARM | $165.49 | |||
| 375889 | 16 | Magnet Bracket | NLA | |||
| 375887 | 17A | IDLER BRACKET | $26.49 | |||
| 375928 | 17B | Idler Bushing | $1.99 | |||
| 376548 | 17C | IDLER | $65.49 | |||
| 373273 | 17D | Idler Axle | $17.99 | |||
| 150731 | 17E | IDLER RETAINER RING | $0.99 | |||

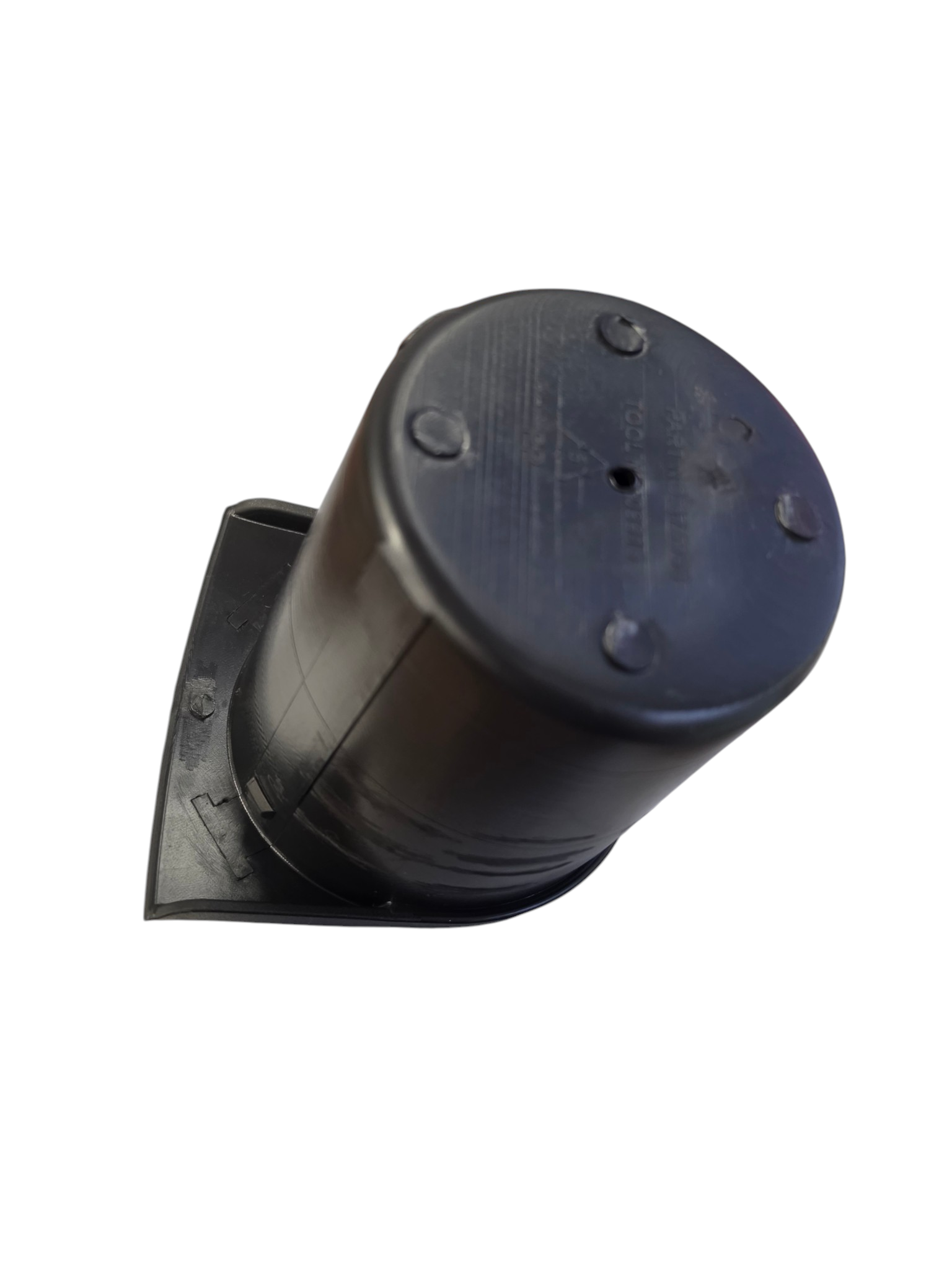

 | 375968 | 18 | ACCESSORY TRAY | $19.99 | ||
| 375860 | 19 | EXCHANGE AXLE | $79.99 | |||
| 375936 | 20 | MEDIUM PULLEY | $40.99 | |||
 | 375952 | 21 | Large Pulley | $69.99 | ||
| 382300 | 22A | RIGHT PEDAL PLATE | $116.49 | |||
| 375953 | 22B | RIGHT PEDAL | $151.49 | |||
| 375955 | 22C | RIGHT PEDAL INSERT | $73.49 | |||
| 375948 | 23A | Left Pedal | $151.99 | |||
 | 375951 | 23B | Left Pedal Plate Cover (Red Pedal Reflector) | $32.49 | ||
 | 375950 | 23C | Left Pedal Insert | $106.99 | ||

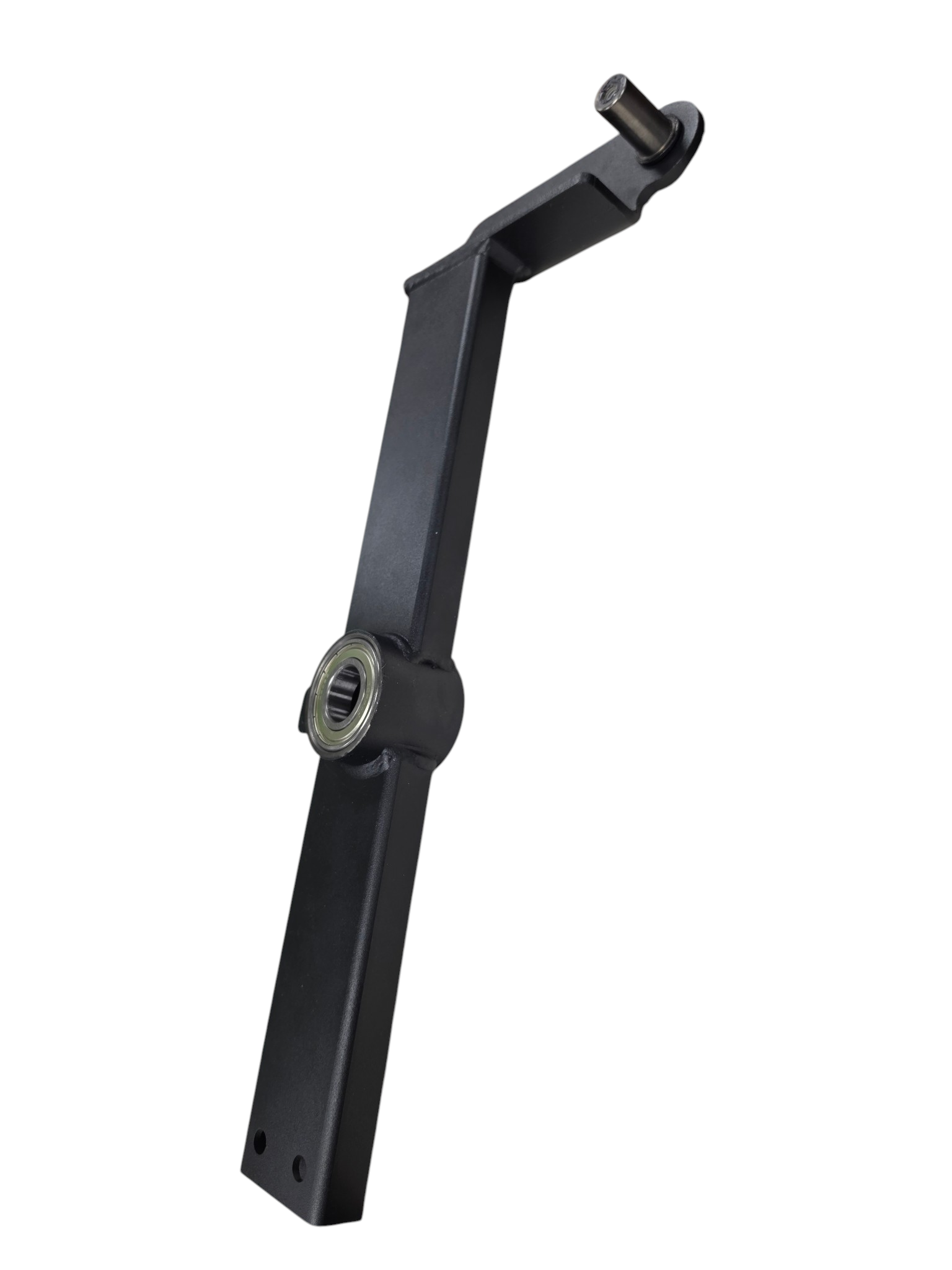

 | 376767 | 24 | RIGHT PEDAL LEG | $307.99 | ||

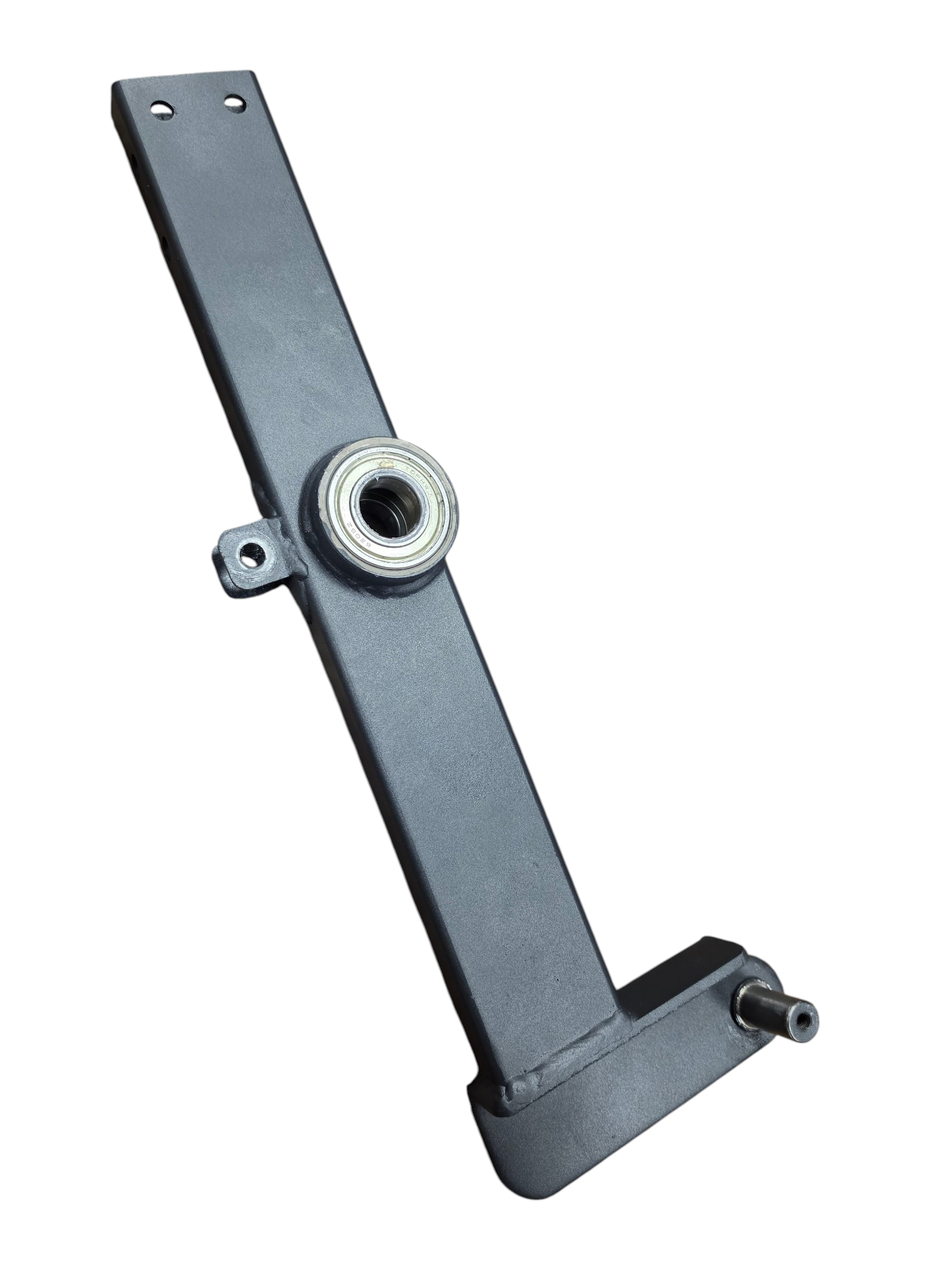

 | 376766 | 25 | LEFT PEDAL LEG | $269.49 | ||

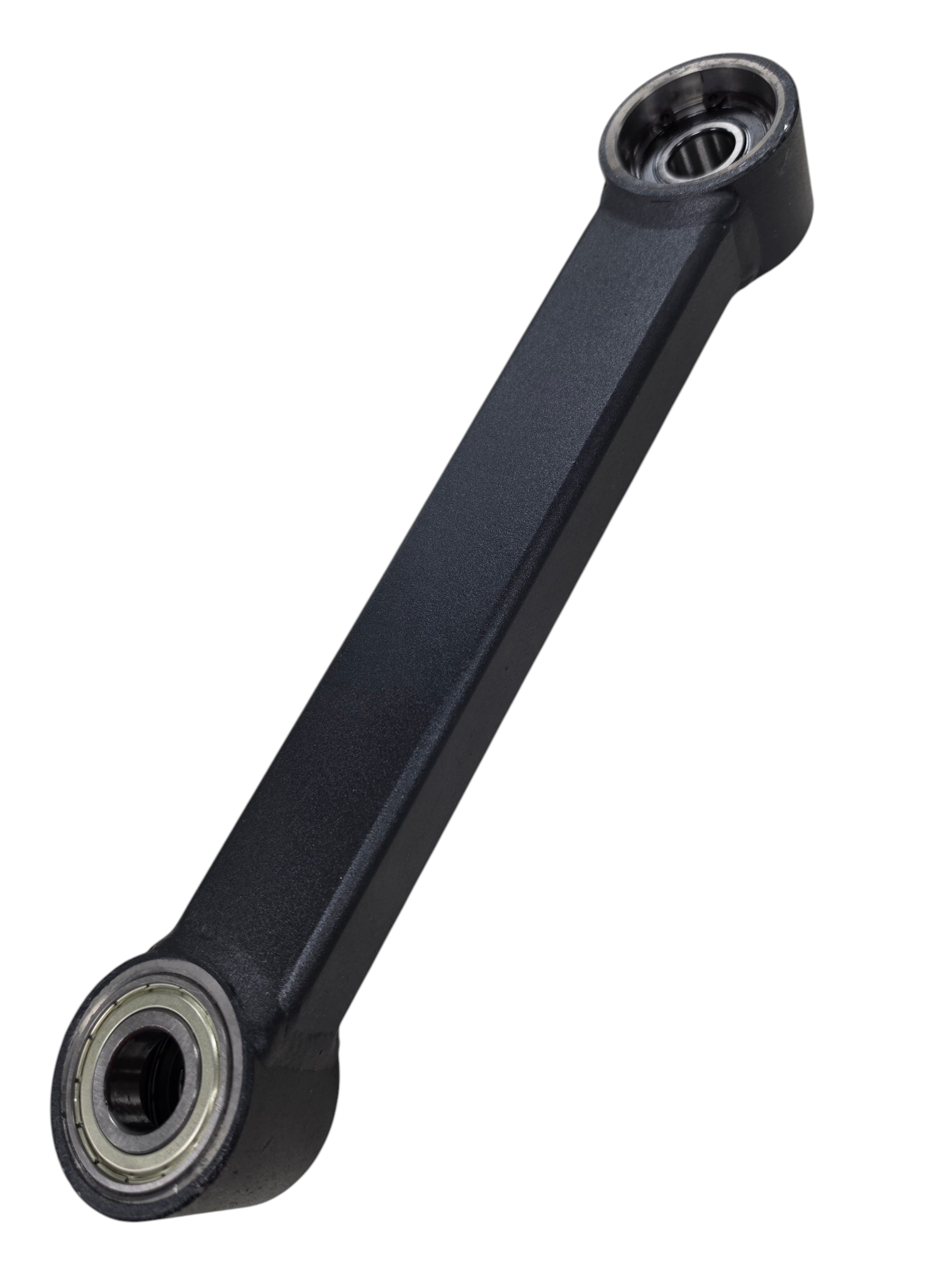

 | 386625 | 26 | CONNECTOR ARM | $190.49 | ||
| 375866 | 27 | Disc Axle | $196.49 | |||
 | 408855 | 28 | DRIVE BELT KIT (Set of 2) | $125.99 | ||
 | 223894 | 28 | 38″ BELT-USE W/9″ PULY | $59.99 | ||
| 375858 | 29 | CRANK ARM | $90.99 | |||
 | 375856 | 30 | CRANK | $134.49 | ||
| 376743 | 31 | BELT,V8,STD,41″L,J-SEC | NLA | |||
| 375932 | 32 | Disc for Fitness Equipment | $346.49 | |||
| 375927 | 33 | Disc Hub | $28.49 | |||
| 373268 | 34 | SPROCKET | $189.99 | |||
| 375868 | 35 | LINK ARM | $58.99 | |||
 | 241949 | 36 | RESISTANCE MOTOR | $99.99 | ||
 | 241954 | 37 | RESISTANCE DISC | $1.99 | ||
 | 304734 | 38 | RESISTANCE BLOCK | $32.99 | ||
 | 303952 | 39 | RESISTANCE BRACKET | $4.99 | ||
 | 264511 | 40 | POWER SWITCH | $32.99 | ||
| 375958 | 41 | SMALL PULLEY | $55.99 | |||
 | 131090 | 42 | CLAMP | $0.99 | ||
 | 375931 | 43 | KEY | $3.99 | ||
| 375962 | 44 | Magnet Cover | $43.99 | |||
| 375974 | 45 | Cover Bracket | $70.99 | |||
 | 375923 | 46 | Left Wheel Cover | $8.49 | ||
| 375975 | 47 | RIGHT MAGNET SHIELD | $35.99 | |||
| 375976 | 48 | Left Magnet Shield | $57.49 | |||
| 375961 | 49 | Disc Ring | $80.99 | |||
| 379373 | 50 | Left Shield | $240.99 | |||
| 379372 | 51 | RIGHT SHIELD | $256.99 | |||
| 375965 | 52 | Front Cover | $78.49 | |||
| 375966 | 53 | Rear Cover | $63.49 | |||

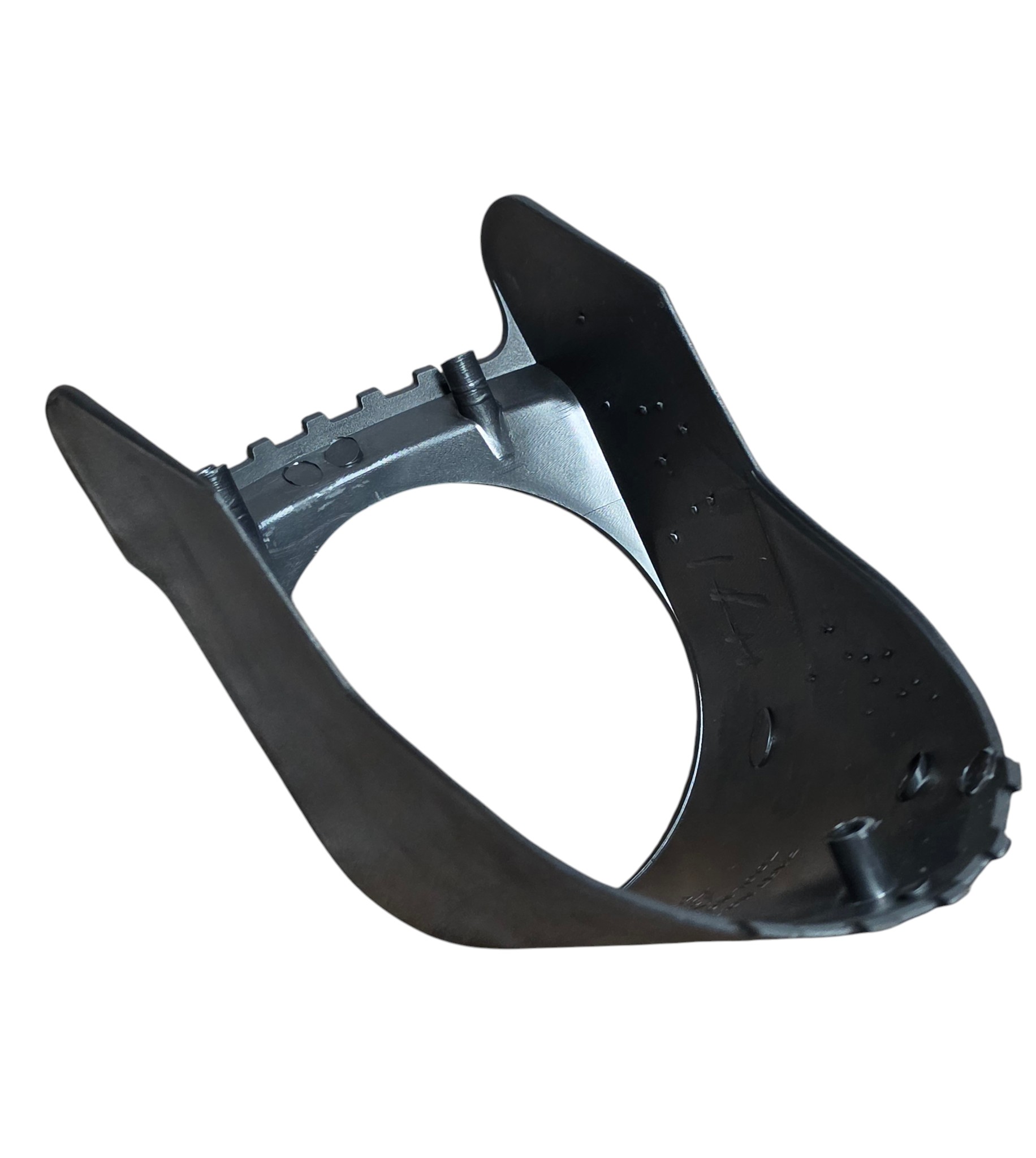

 | 375967 | 54 | ACCESSORY TRAY BASE | $24.99 | ||
 | 375925 | 55 | STABILIZER CAP | $14.99 | ||
 | 332578 | 56 | FOOT | $13.49 | ||
 | 375922 | 57 | WHEEL | $16.99 | ||
 | 375924 | 58 | RIGHT WHEEL COVER | $8.49 | ||
| 375971 | 59 | HANDLEBAR CAP | $5.99 | |||
| 377963 | 61 | Left Rear Handlebar Cover | NLA | |||
| 377961 | 62 | Front Handlebar Cover for ProForm LT | NLA | |||
| 377962 | 63 | RT REAR HANDLEBAR CVR | $16.99 | |||
| 377960 | 64 | RT FRONT HANDLEBAR CVR | $16.99 | |||
| 375969 | 65 | REAR PIVOT COVER | $19.99 | |||
| 376422 | 66 | FRONT PIVOT COVER | $22.49 | |||
| 377964 | 67 | BOSS | $9.49 | |||
 | 396209 | 68A | PULLEY COVER | $24.99 | ||
| 396274 | 68B | Lower Rear Shield Cover | $121.49 | |||
 | 237631 | 69 | LEVELING FOOT | $34.99 | ||
 | 139703 | 70 | SMALL BEARING | $33.49 | ||
| 218132 | 71 | MEDIUM BEARING | $60.49 | |||
| 300223 | 72 | LARGE BEARING | $71.99 | |||
| 375929 | 73 | BUSHING | $2.99 | |||
 | 259935 | 74 | LARGE SPACER | $5.99 | ||
 | 116014 | 75 | SMALL SPACER | $11.49 | ||
| 341554 | 76 | M10 JAM NUT | $1.99 | |||
| 222789 | 77 | CRANK WASHER | $3.99 | |||
 | 261150 | 78 | M8 WASHER | $2.20 | ||
| 249933 | 79 | M6 WASHER | $0.99 | |||
 | 150327 | 80 | M5 NUT | $1.99 | ||
| 375930 | 81 | M10 SHOULDER BOLT | $8.49 | |||
 | 322839 | 82 | M4 X 40MM SCREW | $1.49 | ||
 | 133333 | 83 | CLIP | $0.99 | ||
| 342082 | 84 | M6 X 14MM SCREW | $2.99 | |||
| 332268 | 85 | M5 X 16MM SCREW | $0.99 | |||
| 172677 | 86 | M3.5 X 12MM SCREW | $0.99 | |||
| 386639 | 87 | M8 X 16MM SCREW | $29.99 | |||
| 375972 | 88 | DISC SCREW | $18.99 | |||
 | 275907 | 89 | M10 LOCKNUT | $4.49 | ||
| 277730 | 90 | M10 X 55MM HEX BOLT | $8.99 | |||
| 356255 | 91 | AXLE SCREW | $2.49 | |||
 | 346533 | 92 | FLANGE | $4.49 | ||
| 371429 | 93 | STUD | $18.99 | |||
| 195561 | 94 | M10 X 55MM BOLT | $11.49 | |||
| 130302 | 95 | ADJUSTMENT SCREW | $26.49 | |||
 | 223089 | 96 | M8 X 15MM SCREW | $6.99 | ||
 | 347975 | 97 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 209659 | 98 | M8 X 30MM BOLT | $0.99 | |||
 | 256446 | 99 | M8 LOCKNUT | $0.99 | ||
| 265605 | 100 | M8 X 23MM SCREW | $9.49 | |||
| 380825 | 101 | M4 X 16MM FLAT HEAD SCREW | $2.49 | |||
| 387172 | 102 | M8 x 20mm Screw | $8.49 | |||
| 376465 | 103 | Cap Screw | $1.49 | |||
 | 378015 | 104 | M6 X 110MM SCREW | $5.49 | ||
 | 236321 | 105 | M8 X 25MM SCREW | $4.49 | ||
 | 195562 | 106 | M4 X 16MM SCREW | $1.99 | ||
| 251831 | 107 | M4 X 16MM ROUND HEAD SCRW | $1.99 | |||
 | 197037 | 108 | M6 X 12MM SCREW | $0.99 | ||
| 382359 | 109 | M8 X 86MM SCREW | $10.99 | |||
| 400743 | 110 | M10 X 20MM SCREW | $9.49 | |||
 | 276104 | 111 | #8X5/8″ MACHINE SCREW | $0.99 | ||
| 227701 | 112 | M10 SCREW | $2.49 | |||
 | 250961 | 113 | M4 X 19MM SCREW | $0.99 | ||
 | 213457 | 114 | M4 X 12MM SCREW | $1.99 | ||
 | 362904 | 115 | MAIN WIRE | $69.99 | ||
 | 372449 | 116 | REED SWITCH/WIRE | $23.49 | ||
| 399568 | 117 | LT PULSE WIRE | $48.99 | |||
 | 342275 | 118 | POWER CORD | $49.99 | ||

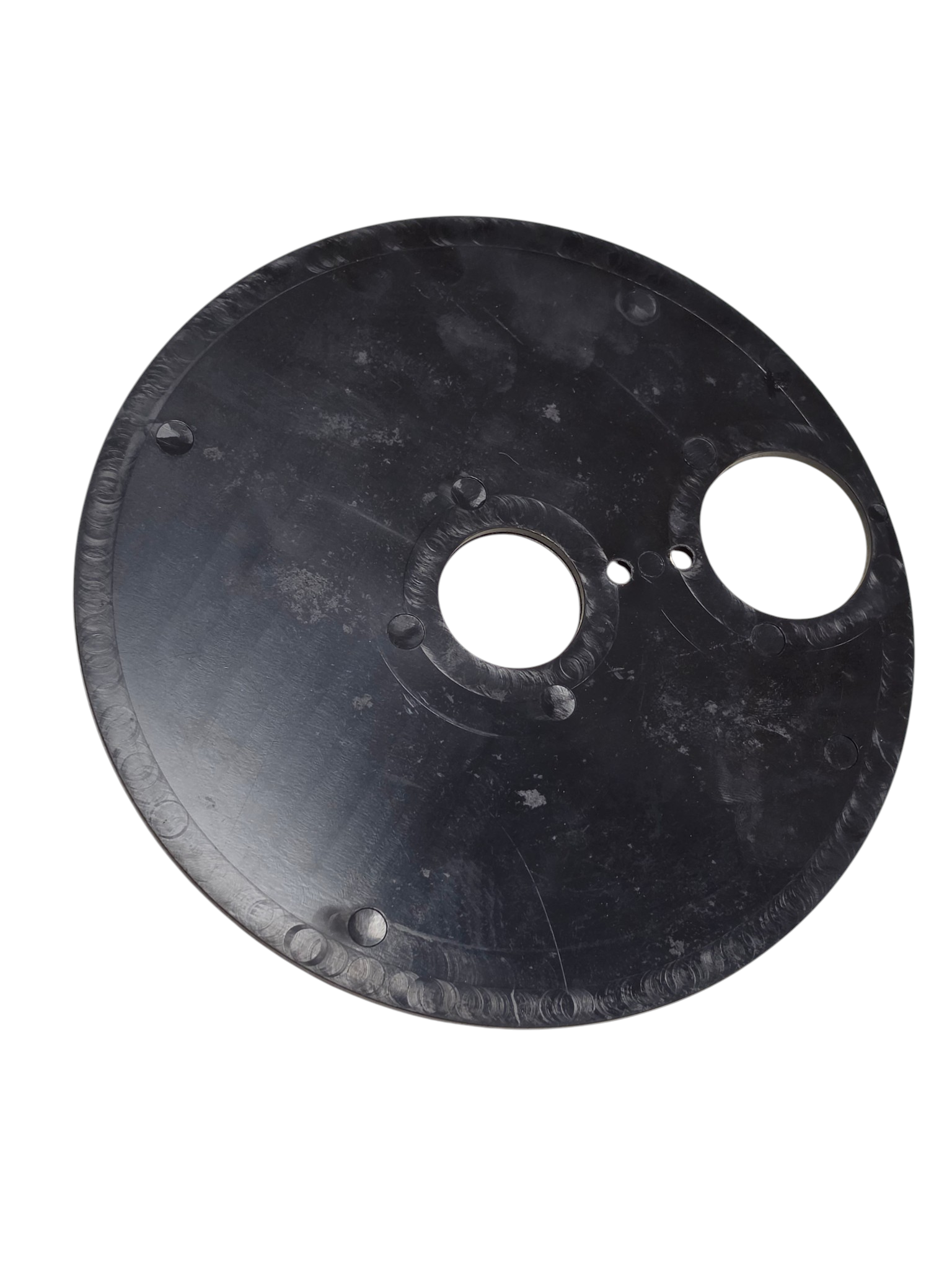

 | 375926 | 119 | CRANK COVER DISC | $24.99 | ||
| 391858 | 120 | SLANTED CAP | $24.99 | |||
 | 113842 | 121 | PULLEY MAGNET | $1.49 | ||
| 333432 | 122A | CONTROL BOARD | $146.49 | |||
| 300804 | 122B | CONTROLLER BRACKET | $29.99 | |||
| 364361 | 123 | CHEST HEART RATE MONITOR | $135.99 | |||
 | 313668 | 124 | STRAIN RELIEF,NOTE: | $9.49 | ||
| 399566 | 125 | RT PULSE WIRE | $43.99 | |||
| 380618 | 126 | SPRING | $60.49 | |||
| 383028 | 127 | Frame Spacer | $23.49 | |||
| 383029 | 128 | Disc Axle Washer | $8.99 | |||
| 386602 | 129 | SELF-ALIGNING BEARING | $50.99 | |||
 | 331026 | 130 | M8 SMALL WASHER | $3.99 | ||
| 386993 | 131 | SNAP RING | $13.49 | |||
| 378835 | TS12 | 6-Inch Wire Harness | $24.49 | |||
 | 102634 | TS13 | CNTRLR GRND WIRE | $3.49 | ||
| 163251 | TS14 | 10″ WHITE WIRE, M/F | $4.99 | |||
| 143112 | TS15 | 16″ BLUE WIRE, F/F | $5.49 |
