Proform 605 Zle Elliptical – PFEVEL98014.1 / PFEVEL980141
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
117 Parts Available for Proform 605 Zle Elliptical - PFEVEL98014.1 / PFEVEL980141 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 355788 | 4 | UPRIGHT | $199.49 | |||
| 348194 | 5 | ACCESSORY TRAY | $89.99 | |||
| 348195 | 6 | TRAY COVER | $67.49 | |||
| 348201 | 7 | TRAY INSERT | NLA | Unavailable to order | ||
| 355544 | 8 | Fitness Equipment Console | $306.99 | |||
 | 355981 | 9 | PULSE GRIP FRONT | $59.49 | ||
| 351813 | 10 | RAMP | $184.99 | |||
| 347842 | 11A | RIGHT TRACK | $123.99 | |||
| 317273 | 11B | TRACK FOAM TAPE | $13.49 | |||
| 355787 | 12 | Rear Stabilizer Cover | $64.49 | |||
| 351818 | 13 | Ramp Cover | $102.49 | |||
| 351747 | 14 | LEFT RAMP HANDLE INSERT | $29.49 | |||
| 351748 | 15 | Right Ramp Handle Insert | $29.49 | |||
| 351750 | 16 | BUTTON | $15.49 | |||
| 348629 | 17 | LEVER | $7.99 | |||
| 317272 | 18 | PIN SPRING | $3.49 | |||
| 342130 | 19 | PIN | $42.49 | |||
| 346959 | 20 | RAMP AXLE | $42.49 | |||
 | 348200 | 21 | STABILIZER CAP | $24.99 | ||
 | 148803 | 22 | WHEEL | $3.49 | ||
 | 299478 | 24 | HANDGRIP | $57.49 | ||
| 355786 | 25 | RIGHT UPPER BODY ARM | $135.99 | |||
| 351568 | 26 | RIGHT UPPER BODY LEG | $130.49 | |||
| 355785 | 27 | LEFT UPPER BODY ARM | $135.99 | |||
| 351567 | 28 | LEFT UPPER BODY LEG | $130.49 | |||
| 351749 | 29 | Disc for Fitness Equipment | $160.99 | |||
| 351814 | 30 | Shield Cover | $118.99 | |||
| 348193 | 31 | Upper Body Cover A | NLA | Unavailable to order | ||
| 348192 | 32 | UPPER BODY COVER B | $30.99 | |||
| 347841 | 33A | LEFT TRACK | NLA | Unavailable to order | ||
| 306635 | 34 | PLASTIC SPACER | $3.49 | |||
| 351817 | 35 | Right Shield | $161.99 | |||
| 351816 | 36 | Left Shield | $161.99 | |||
| 358092 | 37 | RIGHT PEDAL ARM | $212.49 | |||
| 358090 | 38 | Left Pedal Arm | $200.49 | |||
| 354691 | 39 | RIGHT ROLLER ARM | $177.99 | |||
| 354689 | 40 | LEFT ROLLER ARM | $177.99 | |||
| 348199 | 41 | Right Pedal Arm Cover A | NLA | Unavailable to order | ||
| 348198 | 42 | RIGHT PEDAL ARM COVER B | $25.99 | |||
| 348197 | 43 | LEFT PEDAL ARM COVER A | $27.49 | |||
| 348196 | 44 | LEFT PEDAL ARM COVER B | $25.99 | |||
| 347915 | 45 | PEDAL | $128.49 | |||
| 348190 | 47 | PEDAL ARM REAR CAP | $6.49 | |||
 | 340773 | 48 | ROLLER | $99.99 | ||
 | 121642 | 49 | 1.25″ ROUND ENDCAP | $1.49 | ||
| 350999 | 50 | CRANK ARM | NLA | Unavailable to order | ||
| 348404 | 51 | LARGE CRANK ARM SPACER | $9.49 | |||
| 277369 | 52 | PULLEY | $174.49 | |||
| 347463 | 53 | CRANK | $110.49 | |||
| 347329 | 54 | Crank Spacer | $1.99 | |||
 | 295804 | 55 | PEDAL ARM BEARING | $66.99 | ||
 | 237631 | 56 | LARGE LEVELING FOOT | $34.99 | ||
 | 290729 | 57 | PEDAL ARM BEARING ASSY | $43.49 | ||
 | 348389 | 58 | AXLE COVER | $9.99 | ||
 | 157600 | 59 | BUMPER | $1.99 | ||
| 307218 | 60 | REED SWITCH | $30.49 | |||
 | 193223 | 61 | RESISTANCE MOTOR | $99.99 | ||
 | 282277 | 62 | REED SWITCH CLAMP | $3.49 | ||
| 351572 | 63 | RAMP HANDLE | $53.49 | |||
 | 351156 | 64 | PEDAL ARM BUSHING | $20.99 | ||
 | 256295 | 65 | HANDLEBAR BUSHING (138574) | $4.99 | ||
 | 363093 | 66 | IDLER | $116.49 | ||
 | 362822 | 67A | EDDY MECHANISM | $185.99 | ||
 | 321678 | 67B | RESISTANCE CABLE | $46.49 | ||
| 352003 | 69 | KEY | $5.49 | |||
 | 346533 | 70 | FLANGE | $4.49 | ||
| 302254 | 71 | CRANK SCREW | $1.99 | |||
| 237952 | 72 | M4 LOCKNUT | $0.99 | |||
| 276108 | 73 | M4 BOLT | $13.49 | |||
| 310999 | 74 | M10 X 58MM HEX BOLT | $8.49 | |||
 | 281149 | 75 | DRIVE BELT ADJUST SCREW | $6.49 | ||
 | 281150 | 76 | IDLER PIVOT SCREW | $4.49 | ||
 | 014033 | 77 | IDLER WASHER | $1.49 | ||
 | 208163 | 78 | IDLER SCREW | $1.99 | ||
 | 204488 | 79 | M8X12MM CRANK PULLY SCREW | $3.49 | ||
| 285643 | 80 | RAMP BUSHING | $10.99 | |||
 | 143426 | 81 | RAMP BUSHING | $8.99 | ||
| 348397 | 82 | BUTTON AXLE | $5.99 | |||
| 348640 | 83 | E-RING | $0.99 | |||
| 348631 | 84 | M4 X 25MM BOLT,NOTE: | $2.49 | |||
 | 286527 | 85 | SNAP MOUNT ONLY | $2.49 | ||
 | 113842 | 86 | MAGNET | $1.49 | ||
| 214070 | 88 | M8 X 16MM SCREW | $6.49 | |||
 | 347975 | 89 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
| 246784 | 90 | M6 X 35MM SCREW | $0.99 | |||
| 342082 | 91 | M6 X 14MM SCREW | $2.99 | |||
 | 197037 | 92 | M6X12MM LIFT MOTOR SCREW | $0.99 | ||
| 326764 | 93 | Extension Wire | NLA | Unavailable to order | ||
 | 322839 | 94 | M4 X 40MM SCREW | $1.49 | ||
 | 224606 | 95 | M4 X 25MM SCREW | $0.99 | ||
| 348398 | 96 | LEVER AXLE | $5.99 | |||
 | 195562 | 97 | M4 X 16MM SCREW | $1.99 | ||
 | 213457 | 98 | M4 X 12MM SCREW | $1.99 | ||
| 248364 | 99 | M4 X 12MM BRIGHT SCREW | $0.99 | |||
 | 208320 | 100 | M4 X 10MM SCREW | $0.99 | ||
 | 275907 | 101 | M10 LOCKNUT, CRANK | $4.49 | ||
 | 148710 | 102 | M10 LOCKNUT | $2.49 | ||
 | 331026 | 103 | M8 X 23MM WASHER | $3.99 | ||
| 353576 | 104 | M10 X 115MM SCREW | $27.99 | |||
 | 208583 | 105 | M10 X 58MM BOLT | $5.99 | ||
| 244931 | 106 | M10 X 60MM SCREW | $15.49 | |||
| 248334 | 107 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 234732 | 108 | M8 X 37MM PTH SCRW,NOTE: | $4.49 | ||
| 270524 | 109 | M8 X 18MM BOLT | $4.99 | |||
 | 256446 | 110A | M8 LOCKNUT | $0.99 | ||
 | 333350 | 110B | M8 LOCKNUT | $1.99 | ||
| 130286 | 111 | M8 FLAT WASHER | $11.49 | |||
 | 290160 | 112 | POWER RECEPTACLE/WIRE | $35.99 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||

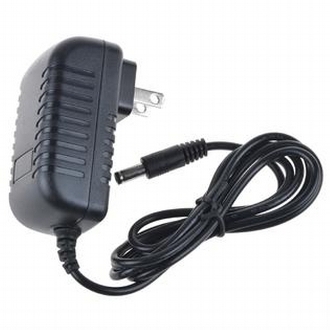

 | 348251 | 114 | POWER ADAPTER DRAWING | $19.99 | ||
| 322078 | 115 | LOWER WIRE | $74.49 | |||
| 349115 | 117 | Pulse Wire | NLA | Unavailable to order | ||
 | 224839 | 119 | PULSE SENSOR CAP | $1.99 | ||
| 358011 | 120 | PLASTIC BUSHING | $23.49 | |||
| 206588 | 121 | M6 x 62mm Screw | NLA | Unavailable to order | ||
| 361996 | 122 | RECEIVER/WIRE | $87.49 |
