Proform 400 Le Elliptical – PFEL04210.4 / PFEL042104
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
98 Parts Available for Proform 400 Le Elliptical - PFEL04210.4 / PFEL042104 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 299722 | 4A | Fitness Equipment Console | NLA | |||
| 299723 | 4B | Re-Programming Card | $85.49 | |||
| 283114 | 4D | Left Battery Door | NLA | |||
| 280935 | 5 | ACCESSORY TRAY | $27.49 | |||
| 280987 | 6 | Upper Body Leg | NLA | |||
 | 241954 | 7 | RSISTANCE MOTOR DISK | $1.99 | ||
| 281554 | 8 | LEFT UPPER BODY ARM | $120.49 | |||
| 281555 | 9 | RIGHT UPPER BODY ARM | $124.49 | |||
| 230444 | 10 | FOAM GRIP | NLA | |||
| 246303 | 11 | SMALL UPPER BODY ARM CAP | $0.99 | |||
 | 282740 | 12 | Left Pedal | NLA | ||
| 282741 | 13 | RIGHT PEDAL | $102.99 | |||
| 281573 | 14 | LEFT PEDAL ARM | $149.49 | |||
 | 280998 | 15 | PEDAL BRACKET | $47.49 | ||
| 280933 | 16 | FRONT UPRIGHT COVER | NLA | |||
 | 256295 | 17 | HANDLEBAR BUSHING | $4.99 | ||
| 305950 | 18 | Disc Cover | $73.99 | |||
 | 280931 | 19 | Pivot Cover A | NLA | ||
| 280936 | 20 | Front Leg Cover | NLA | |||
| 280937 | 21 | REAR LEG COVER | NLA | |||
| 280932 | 22 | Pivot Cover B | NLA | |||
| 343880 | 24 | CRANK | $103.99 | |||
| 305946 | 25 | RIGHT CRANK ARM | NLA | |||
| 305953 | 26 | Left Pedal Disc | $132.99 | |||
| 272391 | 28A | RIGHT PULSE WIRE | $31.99 | |||
| 272392 | 28B | LEFT PULSE WIRE | $17.49 | |||
 | 018030 | 29 | MEDIUM ROLLER | $19.49 | ||
 | 280950 | 30 | PEDAL ARM CAP | NLA | ||
| 281023 | 31 | SHOULDER BOLT | $17.99 | |||
 | 283133 | 32 | CONSOLE COVER | $27.99 | ||
 | 261150 | 33 | M8 WASHER | $2.20 | ||
| 183633 | 35 | M5 WASHER | $1.99 | |||
 | 304180 | 36 | SNAP RING | $0.99 | ||
| 299720 | 37 | TOP SHIELD COVER | $28.99 | |||
 | 139703 | 38 | CRANK BEARING | $33.49 | ||
| 283138 | 39 | HANDLEBAR | $89.99 | |||
| 256148 | 40 | SPACER | $6.49 | |||
 | 113842 | 41 | MAGNET | $1.49 | ||
| 281473 | 42 | Wire Harness | NLA | |||
 | 014033 | 43 | WASHER | $1.49 | ||
| 299724 | 44 | Left Shield | $146.99 | |||
| 299725 | 45 | RIGHT SHIELD | $132.49 | |||

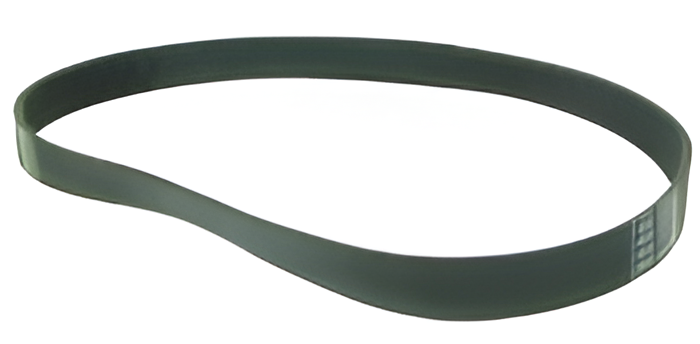

 | 306492 | 46 | DRIVE BELT | $67.49 | ||
| 280953 | 47 | LEVELING FOOT | $24.49 | |||
| 278591 | 48 | Stabilizer Cap | NLA | |||
| 281574 | 49 | RIGHT PEDAL ARM | $171.49 | |||
 | 280951 | 50 | WHEEL | $24.49 | ||
| 312441 | 51 | FLYWHEEL | $286.99 | |||
 | 363093 | 52A | IDLER | $116.49 | ||
 | 243374 | 52B | IDLER SNAP RING | $12.99 | ||
| 308028 | 53 | C-MAGNET | NLA | |||
 | 308036 | 54 | RESISTANCE MOTOR | $117.99 | ||
| 279645 | 55 | MOTOR BRACKET | $12.99 | |||
 | 304734 | 56 | RESISTANCE ROD | $43.49 | ||
 | 131090 | 57 | REED SWITCH CLIP | $0.99 | ||
 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
| 299726 | 59 | Rear Shield Cover | $76.49 | |||
| 281559 | 60 | KEY | $2.49 | |||
| 281558 | 61 | RT CRANK ARM NUT | $3.49 | |||
 | 199493 | 62 | M6 X 15MM SCREW | $4.62 | ||
 | 251978 | 63 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
 | 284116 | 64 | FLYWHEEL AXLE | $19.99 | ||
| 281148 | 65 | M6 X 65MM HEX SCREW | $3.49 | |||
 | 281150 | 66 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
| 252110 | 67 | M6 x 9mm Screw | NLA | |||
| 281557 | 68 | CRANK ARM SCREW | NLA | |||
 | 168267 | 69 | FAN SCREW | $0.99 | ||
| 281005 | 70 | REAR STABILIZER | $107.99 | |||
| 234286 | 71 | M6 X 8MM HEX SCREW | $0.99 | |||
 | 281149 | 72 | M10 X 50MM HEX SCREW | $6.49 | ||
| 281001 | 73 | Front Stabilizer | NLA | |||
| 254769 | 74 | M6 NUT | $1.49 | |||
| 383565 | 75 | M10 X 48MM PATCH SCREW | NLA | |||
| 153770 | 76 | M8 X 47MM BUTTON BOLT | $14.49 | |||
 | 256446 | 77 | M8 NUT | $0.99 | ||
 | 177034 | 78 | M10 SPLIT WASHER | $1.49 | ||
| 248334 | 79 | M10 X 19MM SCREW | $5.49 | |||
| 223168 | 80 | CAM SCREW | $5.99 | |||
| 310434 | 81 | M8 X 12MM SCREW | $2.49 | |||
| 242965 | 82 | M10 x 85mm Screw | NLA | |||
| 283304 | 83 | M5 X 7MM SCREW | $3.49 | |||
| 340823 | 84 | #10 X 16MM SCREW | NLA | |||
 | 247329 | 85 | M8 X 18MM BOLT | $2.99 | ||
| 277369 | 86 | PULLEY | $174.49 | |||
| 276024 | 87 | M3.5 X 12MM, NOTE: | $1.49 | |||
 | 208163 | 88 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 275248 | 89 | M4 X 48MM SCREW | $0.99 | ||
 | 013423 | 90 | #8 X 1/2″ SCREW | $0.99 | ||
 | 150327 | 91 | M5 NUT | $1.99 | ||
 | 013162 | 92A | BELLYPAN SCREW | $0.99 | ||
| 208817 | 92B | M4.2 X 13MM PAN HD SCREW | $0.99 | |||
| 284963 | 93A | LT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 284964 | 93B | RT PULSE GRIP ASSY W/WIRE | $68.49 | |||
 | 172638 | 94 | FLYWHEEL BEARING | $23.49 | ||
 | 223089 | 95 | LINKARM WHEEL BKT SCRW | $6.99 | ||
| 305942 | 96 | LEFT CRANK ARM | $123.49 | |||
| 305948 | 97 | CRANK ARM SPACER | $16.99 | |||
| 310739 | 98 | M8 X 10MM SCREW | $2.99 |
