PROFORM 390 E 23943.5 Elliptical
102 Parts Available for PROFORM 390 E 23943.5 Elliptical ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 283923 | 2 | UPRIGHT | $177.99 | |||
| 280934 | 3 | REAR UPRIGHT COVER | NLA | |||
| 280935 | 5 | ACCESSORY TRAY | $27.49 | |||
| 283912 | 6 | UPPER BODY LEG | $81.99 | |||
 | 241954 | 7 | RESISTANCE DISC | $1.99 | ||
| 283924 | 8 | Left Upper Body Arm | $124.49 | |||
| 230444 | 10 | FOAM GRIP | NLA | |||
| 246303 | 11 | 1 1/4″ ROUND ENDCAP | $0.99 | |||
| 283856 | 12 | LEFT PEDAL | $120.99 | |||
| 283858 | 13 | RIGHT PEDAL | NLA | |||
| 283926 | 14 | Left Pedal Arm | $160.49 | |||
| 280933 | 16 | FRONT UPRIGHT COVER | NLA | |||

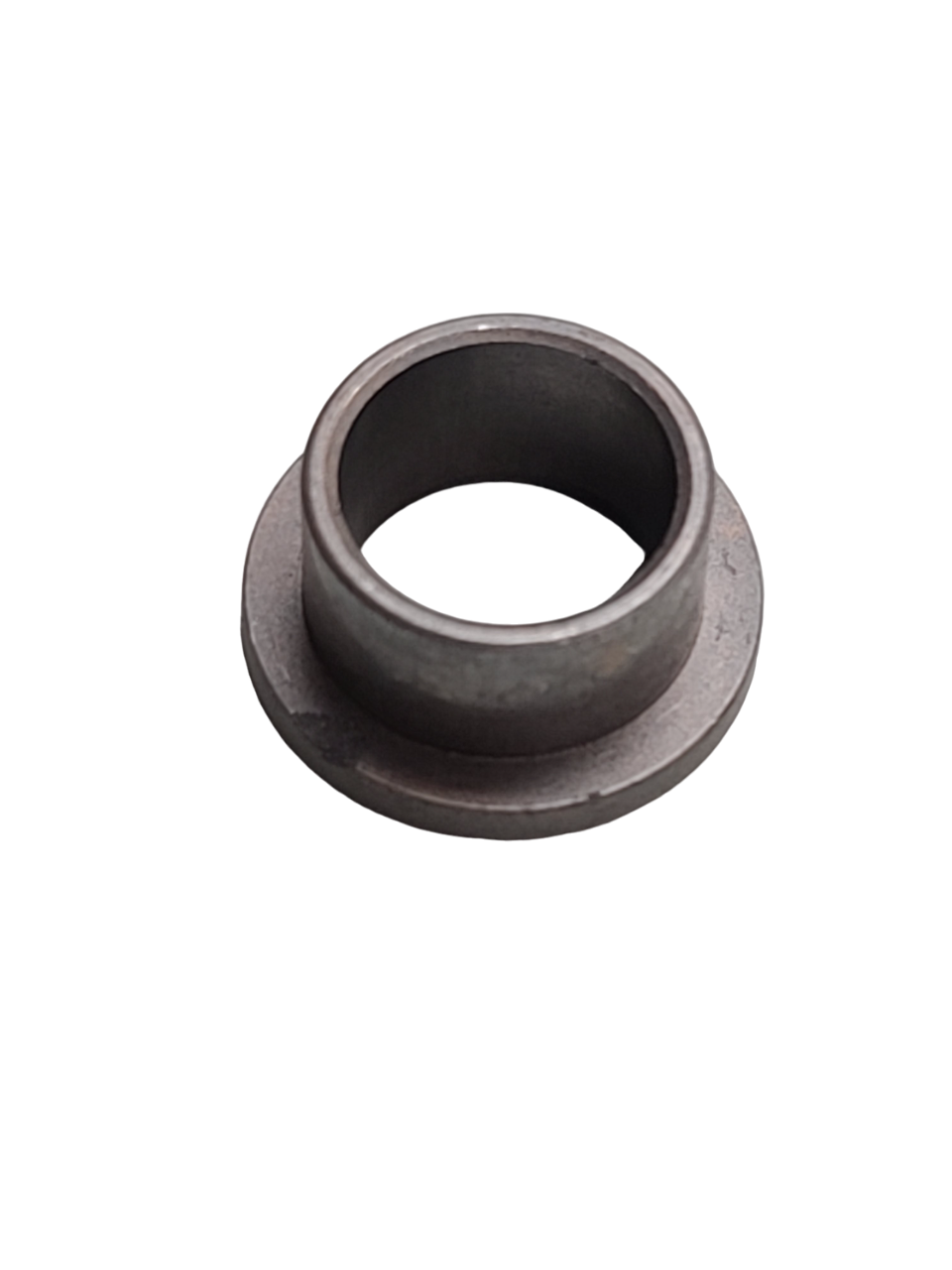

 | 256295 | 17 | HANDLEBAR BUSHING (138574) | $4.99 | ||
| 305958 | 18 | Disc Cover | $115.99 | |||
| 280937 | 21 | REAR LEG COVER | NLA | |||
| 316998 | 22 | PIVOT COVER A | $19.49 | |||
 | 281020 | 23 | PEDAL ARM BUSHING | $6.49 | ||
| 343880 | 24 | CRANK | $103.99 | |||
| 305946 | 25 | RIGHT CRANK ARM | NLA | |||
| 305956 | 27 | RIGHT/LEFT PEDAL DISC | $125.99 | |||
| 272391 | 28A | RIGHT PULSE GRIP WIRE | $31.99 | |||
| 272392 | 28B | LEFT PULSE GRIP WIRE | $17.49 | |||
 | 280950 | 30 | PEDAL ARM CAP | NLA | ||
| 281023 | 31 | SHOULDER BOLT | $17.99 | |||
 | 283133 | 32 | CONSOLE COVER | $27.99 | ||
 | 261150 | 33 | M8 WASHER | $2.20 | ||
 | 303952 | 34 | RESISTANCE BRACKET | $4.99 | ||
| 183633 | 35 | M5 WASHER | $1.99 | |||
 | 304180 | 36 | SNAP RING | $0.99 | ||
| 280929 | 37 | TOP SHIELD COVER | $25.49 | |||
 | 139703 | 38 | SMALL BEARING | $33.49 | ||
| 283909 | 39 | Handlebar | $69.49 | |||
| 256148 | 40 | SPACER | $6.49 | |||
 | 113842 | 41 | PULLEY MAGNET | $1.49 | ||
| 283921 | 44 | LEFT SHIELD | $185.99 | |||
| 283922 | 45 | RIGHT SHIELD | $185.99 | |||
 | 306492 | 46 | DRIVE BELT | $67.49 | ||
| 280953 | 47 | LEVELING FOOT | $24.49 | |||
| 283927 | 49 | RIGHT PEDAL ARM | $153.99 | |||
 | 280951 | 50 | WHEEL | $24.49 | ||
| 376499 | 51 | Flywheel | $270.49 | |||
 | 363093 | 52 | IDLER | $116.49 | ||
| 308028 | 53 | C-MAGNET | NLA | |||
 | 308036 | 54 | RESISTANCE MOTOR | $117.99 | ||
| 279645 | 55 | MOTOR BRACKET | $12.99 | |||
 | 304734 | 56 | RESISTANCE BLOCK | $32.99 | ||
 | 131090 | 57 | CLAMP | $0.99 | ||
 | 186070 | 58 | REED SWITCH/WIRE | $28.99 | ||
| 283933 | 59 | Rear Shield Cover | $113.99 | |||
| 281559 | 60 | KEY | $2.49 | |||
| 281558 | 61 | RT CRANK ARM NUT | $3.49 | |||
 | 199493 | 62 | M6 X 16MM TAPRD BTN SCREW | $4.62 | ||
 | 251978 | 63 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
| 376498 | 64 | Flywheel Axle | $21.99 | |||
| 281148 | 65 | MAGNET BRACKET BOLT | $3.49 | |||
 | 281150 | 66 | IDLER SCREW | $4.49 | ||
| 281557 | 68 | CRANK ARM SCREW | NLA | |||
 | 168267 | 69 | RESISTANCE MOTOR SCREW | $0.99 | ||
| 283916 | 70 | Rear Stabilizer | $75.49 | |||
| 234286 | 71 | MOTOR BRACKET SCREW | $0.99 | |||
 | 281149 | 72 | BELT ADJUSTMENT SCREW | $6.49 | ||
| 283915 | 73 | Front Stabilizer | $98.49 | |||
| 254769 | 74 | M6 LOCKNUT | $1.49 | |||
| 383565 | 75 | M10 X 48MM PATCH SCREW | NLA | |||
| 153770 | 76 | M8 X 45MM BUTTON SCREW | $14.49 | |||
 | 256446 | 77 | M8 LOCKNUT | $0.99 | ||
 | 177034 | 78 | M10 SPLIT WASHER | $1.49 | ||
| 248334 | 79 | M10 X 19MM PATCH SCREW | $5.49 | |||
 | 223168 | 80 | CAM SCREW | $5.99 | ||
| 310434 | 81 | M8 X 12MM SCREW | $2.49 | |||
| 283304 | 83 | M5 X 7MM SCREW | $3.49 | |||
| 340823 | 84 | #10 X 16MM SCREW | NLA | |||
 | 247329 | 85 | M8 X 18MM BOLT | $2.99 | ||
| 277369 | 86 | PULLEY | $174.49 | |||
 | 276024 | 87 | M3.5 X 12MM SCREW,NOTE | $1.49 | ||
 | 208163 | 88 | PIVOT SCREW | $1.99 | ||
 | 275248 | 89 | M4 X 48MM SCREW | $0.99 | ||
 | 150327 | 91 | M5 NUT | $1.99 | ||
 | 208817 | 92B | #8 X 5/8″ SCREW | $0.99 | ||
| 284963 | 93A | LT PULSE GRIP ASSY W/WIRE | $68.49 | |||
| 284964 | 93B | RT PULSE GRIP ASSY W/WIRE | $68.49 | |||
 | 172638 | 94 | FLYWHEEL BEARING | $23.49 | ||
 | 223089 | 95 | M8 X 15MM SCREW | $6.99 | ||
| 305942 | 96 | LEFT CRANK ARM | $123.49 | |||
| 305948 | 97 | CRANK ARM SPACER | $16.99 | |||
 | 310739 | 98 | M8 X 10MM BOLT | $2.99 | ||
 | 362905 | 99 | SMALL SNAP RING | $1.49 | ||
| 116926 | # | RELEASABLE WIRE TIE | $0.99 | |||
| 240351 | # | CABLE TIE | $0.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
 | 248512 | # | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 258868 | # | DECAL, GENERAL WARNING | $0.99 | |||
| 127597 | # | TREE FASTENER | $1.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
