GOLD”S GYM GG CYCLE TRAINER 390 R BIKE – GGEX61712.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
83 Parts Available for GOLD''S GYM GG CYCLE TRAINER 390 R BIKE - GGEX61712.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 337817 | 2 | REAR STABILIZER | $71.99 | |||
| 328617 | 3 | UPRIGHT | $77.99 | |||
| 298391 | 5 | SEAT FRAME | $120.49 | |||
| 362538 | 7 | EDDY MECHANISM | $391.49 | |||
 | 144985 | 8 | #8 X 5/8″ SCREW | $0.99 | ||
| 328613 | 9 | TOP SHIELD | $42.99 | |||
| 328597 | 10 | ACCESS DISC | $35.49 | |||
| 223882 | 11 | ADJUSTMENT KNOB | $52.99 | |||
| 328598 | 12 | SEAT | $83.49 | |||
| 267227 | 13 | PULLEY/CRANK | $141.99 | |||
| 296089 | 14 | FRONT STABILIZER | $73.99 | |||
 | 113842 | 16 | MAGNET | $1.49 | ||
| 328618 | 17 | LEFT SHIELD | $102.99 | |||
| 328619 | 18 | RIGHT SHIELD | $102.49 | |||
| 296105 | 19 | HANDLEBAR COVER | $28.49 | |||
| 223888 | 20 | FRONT FRAME BUSHING | $12.49 | |||
| 164675 | 21 | REED SWITCH/WIRE | $29.99 | |||
 | 131090 | 22 | REED SWITCH CLIP | $0.99 | ||

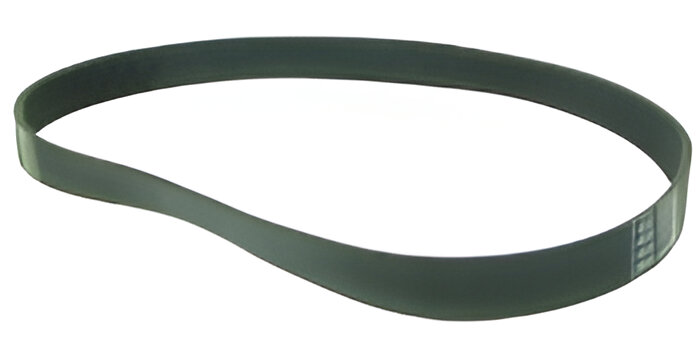

 | 298200 | 23 | DRIVE BELT | $125.99 | ||

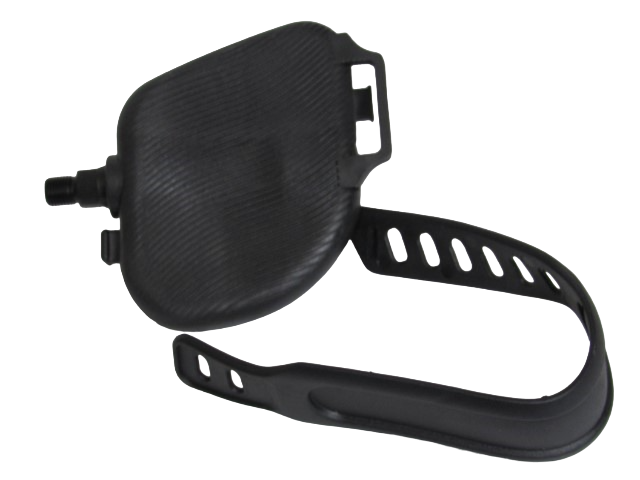

 | 374670 | 24 | LEFT PEDAL/STRAP | $102.46 | ||
| 346791 | 25 | IDLER | $55.99 | |||
 | 374671 | 26 | RIGHT PEDAL/STRAP | $117.99 | ||
 | 295560 | 27 | BEARING ASSEMBLY | $54.99 | ||
| 223891 | 28 | FRAME STOP | $1.99 | |||
 | 193223 | 29 | RESISTANCE MOTOR | $99.99 | ||
| 220675 | 30 | FOOT | $5.99 | |||
| 325713 | 31 | LOWER WIRE | $70.99 | |||
| 261279 | 32 | UPPER WIRE | $48.99 | |||
 | 281149 | 33 | M10 X 50MM HEX SCREW | $6.49 | ||
 | 224606 | 34 | M4 X 25MM SCREW | $0.99 | ||
| 249929 | 35 | M8 X 16MM PATCH SCREW | $2.49 | |||
| 014174 | 36 | M8 SPLIT WASHER | $1.99 | |||
 | 012042 | 37 | M8 LOCKNUT | $1.99 | ||
| 223125 | 38 | M8 X 65MM BUTTON BOLT | $7.49 | |||
| 298233 | 40 | M6 X 40MM SCREW | $3.49 | |||
 | 168267 | 41 | FAN SCREW | $0.99 | ||
| 223889 | 42 | REAR FRAME BUSHING | $11.49 | |||
| 296079 | 43 | REAR FRAME | $182.99 | |||
| 296095 | 44 | SEAT HANDLEBAR | $98.49 | |||
| 298413 | 45 | M6 X 25MM SCREW | $2.49 | |||
| 296098 | 47 | LEFT HANDLEBAR | $46.49 | |||
| 296100 | 48 | RIGHT HANDLEBAR | $46.49 | |||
| 191629 | 49 | WATER BOTTLE HOLDER | $28.99 | |||
| 282246 | 50A | PULSE WIRE | $56.49 | |||
| 297961 | 50B | PULSE GRIP ASSY | $51.99 | |||
| 263991 | 50C | WIRE CLAMP | $1.99 | |||
| 121642 | 51 | HANDRAIL TUBE CAP | $1.49 | |||
| 248364 | 52 | GROUND SCREW | $0.99 | |||
 | 193502 | 53 | M8 X 38MM SCREW | $4.49 | ||
 | 281150 | 54 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
| 298352 | 55 | UPPER PULSE WIRE | $25.49 | |||
| 298351 | 56 | LOWER PULSE WIRE | $61.49 | |||
 | 246285 | 57 | LEVELING FOOT | $10.99 | ||
| 328599 | 58 | BACKREST | $103.99 | |||
 | 208163 | 60 | M6 X 20MM HEX SCREW | $1.99 | ||
| 301390 | 61 | TREE FASTENER | $0.99 | |||
| 192725 | 62 | M4 X 16MM FLAT HEAD SCREW | $0.99 | |||
 | 148710 | 63 | M10 LOCKNUT | $2.49 | ||
 | 013162 | 64 | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
| 298153 | 65 | M3.8 X 20MM RND HEAD SCRW | $19.99 | |||
 | 013423 | 66 | LATCH PLATE SCREW | $0.99 | ||
| 298399 | 67 | M10 X 75MM BOLT/SCREW | $10.99 | |||
| 140206 | 68 | M10 FLAT WASHER | $1.99 | |||
| 251831 | 69 | M4 X 22MM SCREW | $1.99 | |||
 | 014033 | 70 | WASHER | $1.49 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 437942 | # | DECAL, GENERAL WARNING | $10.99 | |||
| 132315 | # | WIRE TIE | $3.49 | |||

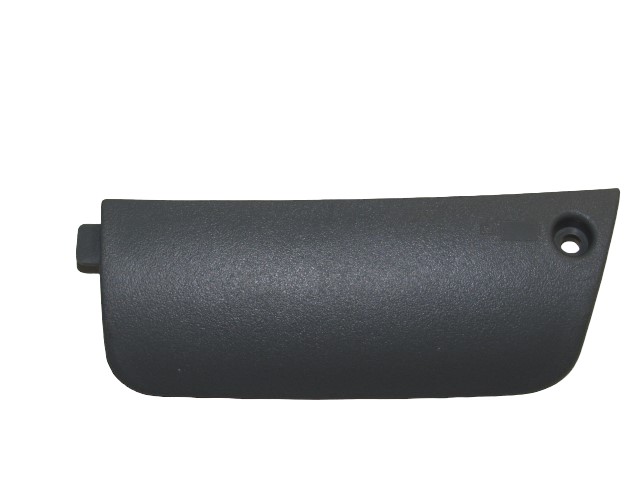

 | 328894 | # | CNSL BATTERY DOOR LEFT | $7.99 | ||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
| 119894 | # | HEX KEY | $2.49 | |||
 | 130853 | # | #8 X 12MM SCREW | $0.99 | ||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 330224 | # | DECAL,REWRK,OVERLAY SHEET | $61.49 | |||
| 328496 | # | 5 FRENCH DECALS ON 1SHEET | $87.99 | |||
 | 248512 | # | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 325573 | # | RESISTANCE CABLE | $23.99 | |||
| 338278 | # | USER’S MANUAL | $12.49 |
