WESLO CROSSWALK 5.2T WLTL31312.0 Treadmill
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
118 Parts Available for WESLO CROSSWALK 5.2T WLTL31312.0 Treadmill ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 234665 | 1 | M10 X 110MM BUTTON SCREW | $6.99 | |||
| 163979 | 2 | M10 X 58MM SCREW | $7.49 | |||
| 234275 | 3 | REED SWITCH SCREW | $0.99 | |||
 | 234235 | 4 | M4.2 X 16MM SCREW | $0.99 | ||
| 236808 | 5 | M8 STAR WASHER | $0.99 | |||
| 256841 | 6 | CAUTION DECAL | NLA | |||
| 236807 | 7 | M5 STAR WASHER | $0.99 | |||
| 128548 | 8 | M8 X 15MM SCREW | $2.99 | |||
| 207213 | 9 | M10 STAR WASHER | $1.49 | |||
| 234226 | 10 | M4.2 X 19MM SCREW | $0.99 | |||
| 240844 | 11 | FRAME SPACER | $1.99 | |||
| 334218 | 12 | CONSOLE BASE | $115.49 | |||
| 237809 | 13 | M6 X 58MM SCREW | $1.49 | |||
| 140206 | 14 | M10 FLAT WASHER | $1.99 | |||
 | 208603 | 15 | KEY/CLIP | $19.99 | ||
| 226956 | 17 | HAND GRIP | $8.99 | |||
 | 302022 | 18 | RESISTANCE ASSEMBLY | $72.99 | ||
| 234283 | 19 | BKT SCREW/PLATFORM SCREW | $1.49 | |||
| 241732 | 20 | M4.2 X 19MM WSHR HD SCRW | $0.99 | |||
| 237529 | 21 | M4.2 X 13MM GROUND SCREW | $0.99 | |||
| 334126 | 22 | HB,LT,LABBK | $32.99 | |||
 | 227199 | 23 | GROMMET | $2.49 | ||
| 234280 | 25 | FOOT RAIL SCREW | $0.99 | |||
| 241734 | 26 | M4.2 X 19MM TEK SCREW | $0.99 | |||
| 234274 | 27 | WALKING PLATFORM BOLT | $0.99 | |||
| 234284 | 28 | M4.2 X 13MM BLT GIDE SCRW | $0.99 | |||
 | 234285 | 29 | M6 X 70MM BOLT | $3.49 | ||
 | 295756 | 30 | MOTOR BOLT | $0.99 | ||
| 250549 | 31 | M8 X 102MM BOLT | $5.49 | |||
 | 014033 | 32 | WASHER | $1.49 | ||
| 334127 | 33 | HB,RT,LABBK | $48.99 | |||
 | 234288 | 34 | M8 X 20MM BOLT | $1.49 | ||
| 206320 | 35 | WHEEL BOLT | $4.49 | |||
| 234928 | 36 | REAR ROLLER STAR WASHER | $0.99 | |||
 | 186726 | 37 | POWER SWITCH | $22.49 | ||
| 234325 | 38 | M8 STAR WASHER | $1.49 | |||
| 297203 | 39 | UPRIGHT WIRE | $33.99 | |||
 | 234329 | 40 | INCLINE PIN | $6.99 | ||
| 241305 | 41 | #8 WSHR HD SCREWS | $0.99 | |||
| 237534 | 42 | M4.2 STAR WASHER | $0.99 | |||
 | 012142 | 43 | M6 LOCKNUT | $0.99 | ||
 | 012105 | 44 | M8 FLANGE NUT | $3.49 | ||
| 334139 | 45 | WHEEL HOUSING | $22.99 | |||
 | 012042 | 46 | M8 NYLON LOCKNUT | $1.99 | ||
 | 133333 | 47 | #8 HOOD CLIP | $0.99 | ||
| 358335 | 48 | STORAGE LATCH | $48.49 | |||
| 196829 | 49 | BELLY PAN GROMMET | $2.49 | |||
 | 138853 | 50 | BELLYPAN FASTENER | $0.99 | ||
| 334125 | 52 | BASE | $135.99 | |||
| 302017 | 53 | LEFT UPRIGHT | $159.99 | |||
| 302002 | 54 | RIGHT UPRIGHT | $159.99 | |||
 | 248571 | 55 | IDLER ROLLER | $166.49 | ||
 | 248569 | 56 | MOTOR BELT | $14.99 | ||
| 397391 | 57 | ELECTRONICS BRACKET | $61.49 | |||
| 234281 | 58 | M4.2 X 18MM SCREW | $8.49 | |||
| 234661 | 59 | MOTOR BRACKET | $58.99 | |||
| 334337 | 60 | LEFT IDLER ROLLER BRACKET | $24.99 | |||
| 334338 | 61 | RIGHT IDLER ROLLER BKT | $24.99 | |||
 | 113842 | 62 | MAGNET | $1.49 | ||

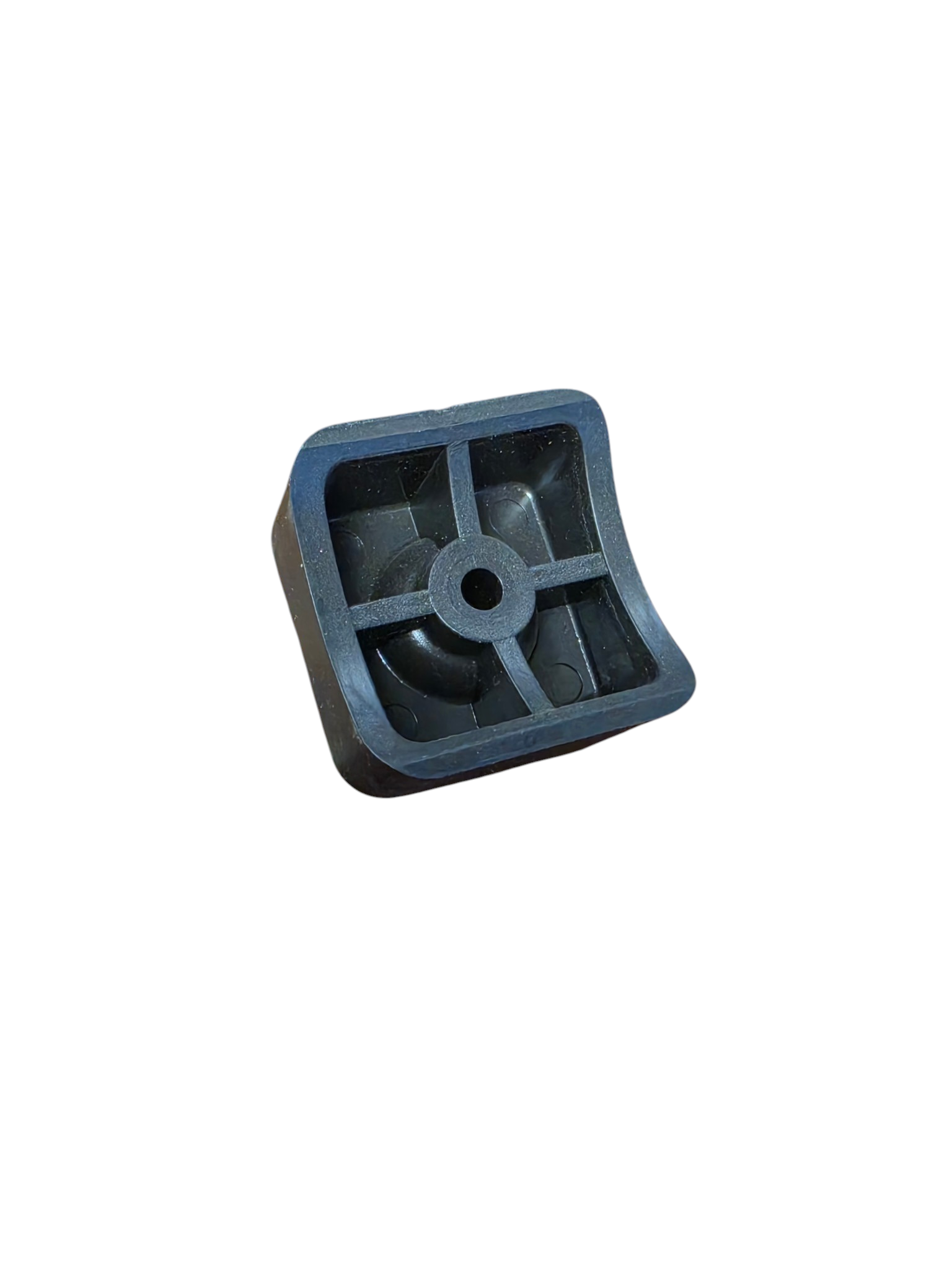

| 155030 | 63 | BASE PAD | $1.99 | |||
| 356449 | 64 | LATCH CATCH PLATE | $23.49 | |||
| 334339 | 65 | MOTOR HOOD | $93.99 | |||
| 334340 | 66 | BELLY PAN | $91.99 | |||
| 334134 | 67 | LEFT FOOT RAIL | $84.99 | |||
| 334520 | 68 | RIGHT FOOT RAIL | $84.99 | |||
| 236932 | 69 | WHEEL SPACER | $2.49 | |||
| 244269 | 70 | WHEEL | $6.99 | |||
| 297196 | 71 | DRIVE ROLLER/PULLEY | $144.99 | |||
 | 014172 | 72 | M8 SPLIT WASHER | $1.99 | ||
 | 148710 | 73 | M10 NUT | $2.49 | ||
| 104794 | 74 | FRAME CAP | $1.99 | |||
| 247147 | 75 | LONG FOOT RAIL SCREW | $0.99 | |||
 | 272801 | 76 | Walking Belt for Fitness Equipment | $101.49 | ||
| 131221 | 77 | BASE CAP | $1.49 | |||
| 334341 | 78 | PLATFORM CUSHION | $18.99 | |||
| 405692 | 79 | Drive Motor for ICON Fitness Part Number 302600 | $204.49 | |||
| 132315 | 80 | WIRE TIE | $3.49 | |||
| 016057 | 81 | 8″ CABLE TIE | $2.99 | |||
| 222790 | 82 | M8 X 52MM BOLT | $2.49 | |||
 | 131090 | 83 | REED SWITCH CLIP | $0.99 | ||
| 238292 | 84 | CONTROLLER SCREW | $0.99 | |||
| 236948 | 85 | M5 X 16MM SCREW | $0.99 | |||
| 302284 | 86 | OEM WALKING PLATFORM | $91.99 | |||
| 276497 | 88 | PULSE BAR | $59.99 | |||
 | 185207 | 89 | REED SWITCH | $27.49 | ||
 | 031229 | 90 | POWER CORD | $39.99 | ||
| 334342 | 91 | CONSOLE | $154.99 | |||
| 116926 | 92 | RELEASABLE CABLE TIE | $0.99 | |||
| 198640 | 93 | BELT GUIDE | $25.49 | |||
 | 227163 | 94 | UPPER BODY ARM ENDCAP | $1.49 | ||
| 334137 | 95 | INCLINE LEG | $43.99 | |||
| 234292 | 96 | M10 NUT INSERT | $8.49 | |||
| 236884 | 97 | DRIVE ROLLER WASHER | $15.99 | |||
 | 260685 | 98 | ISOLATOR | $24.49 | ||
 | 173169 | 99 | GROMMET | $0.99 | ||
 | 256446 | 100 | M8 NUT | $0.99 | ||
 | 014063 | 101 | 1/4″ WASHER | $0.99 | ||
| 241356 | 102 | M8 CAGE NUT | $2.99 | |||
| 126970 | 103 | 3/8″ X 3 1/2″ BOLT | $2.49 | |||
 | 013316 | 104 | 3/4″ SCREW | $0.99 | ||
 | 302007 | 105 | LEFT UPPER BODY ARM | $30.99 | ||
| 302008 | 106 | Right Upper Body Arm | $49.49 | |||
| 181248 | # | 6MM HEX KEY | $6.99 | |||
| 114012 | # | 4″ RED WIRE, M/F | $3.99 | |||
| 126146 | # | 4″ BLUE WIRE, 2F | $3.49 | |||
 | ARC14 | # | WALL ARC FILTER | $42.99 | ||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
 | 128457 | # | ALLEN WRENCH | $25.49 | ||
| 119894 | # | HEX KEY | $2.49 | |||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
| 258703 | # | 5MM HEX KEY, NOTE | $3.49 | |||
| 101896 | # | 4″ WHITE WIRE, M/F | $3.49 | |||
| 388490 | # | HARDWARE KIT NOTE: | $68.99 | |||
| 268476 | # | DECAL, GROUND WARNING | $0.99 |
