PROFORM STUDIO BIKE PRO – PFEX16718.7
116 Parts Available for PROFORM STUDIO BIKE PRO - PFEX16718.7 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 420522 | 2 | STBLZR,FR,BKMAT | $169.99 | |||
| 420585 | 3 | STBLZR,RR,BKMAT | $149.49 | |||
| 420223 | 4 | HANDLEBAR | $357.49 | |||
| 403058 | 5 | CONSOLE MOUNT | $145.49 | |||
| 434664 | 6A | CONSOLE | $659.49 | |||
| 403797 | 6B | REPROGRAM MODULE | $108.49 | |||
| 418676 | 7 | SADDLE POST | $110.49 | |||
| 403796 | 8 | SADDLE | $61.99 | |||
| 403348 | 9 | SADDLE ARM | $69.99 | |||

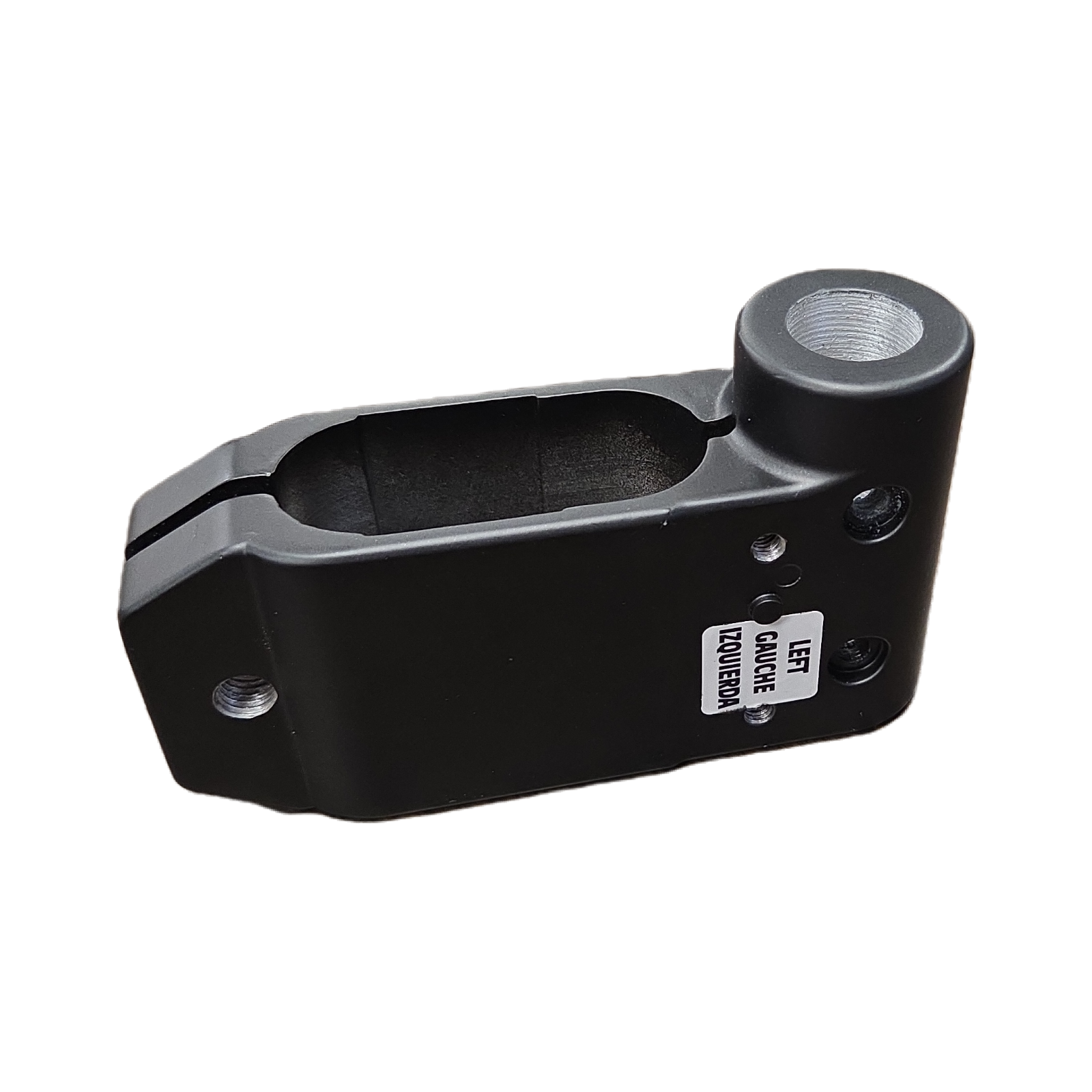

| 398757 | 10 | SADDLE CARRIAGE | $104.49 | |||
| 398986 | 11 | LEFT WEIGHT REST | $62.99 | |||

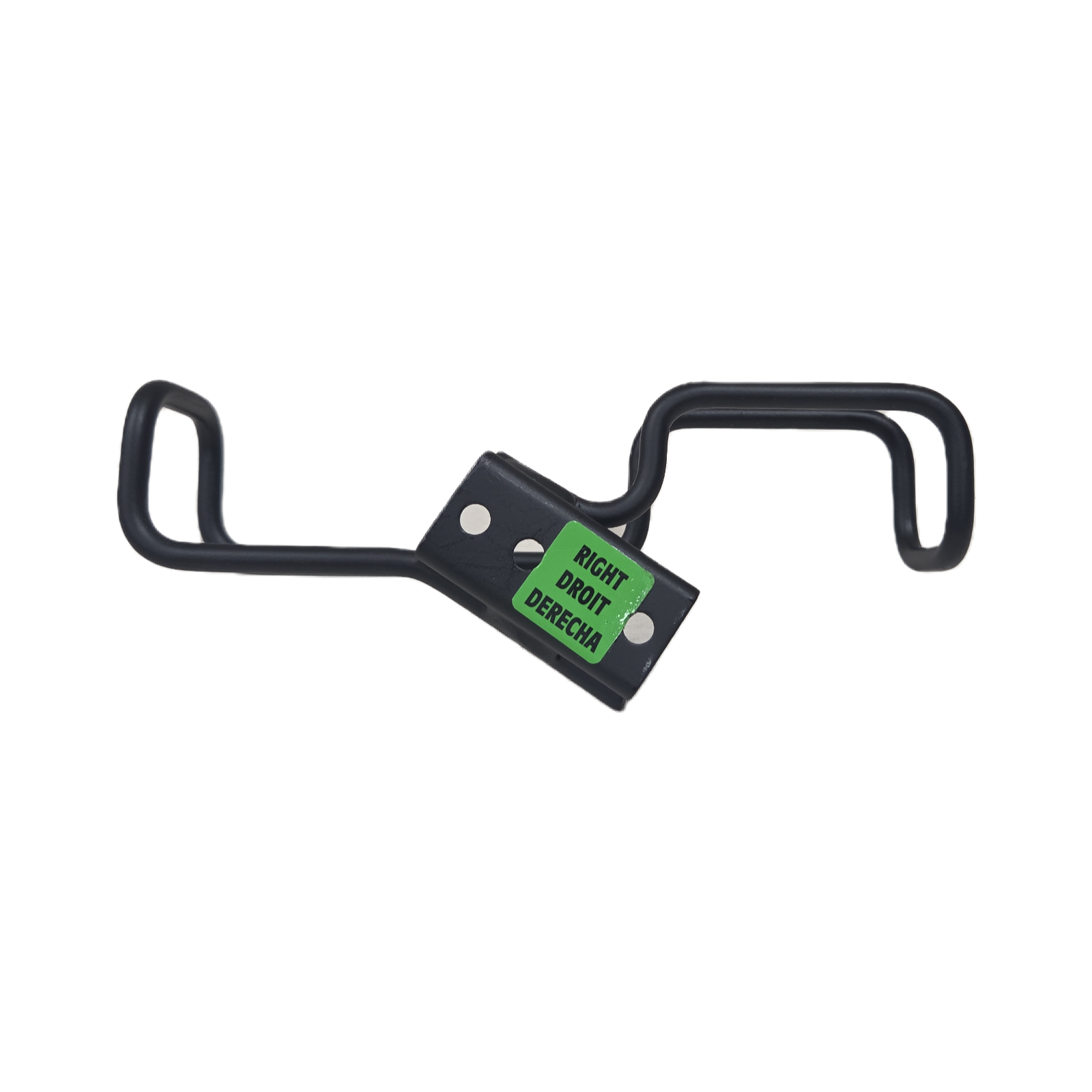

| 398985 | 12 | RIGHT WEIGHT REST | $62.99 | |||
| 372139 | 13 | CARRIAGE HANDLE | $60.49 | |||
| 398704 | 14 | ADJUSTMENT HANDLE | $73.49 | |||
| 403771 | 15 | WATER BOTTLE HOLDER | $43.99 | |||
 | 393598 | 16 | PEDAL SET, RT ASSY | $65.49 | ||
 | 393597 | 17 | PEDAL SET, LT ASSY | $65.49 | ||
 | 404964 | 18 | CRANK/RIGHT CRANK ARM | $124.99 | ||
 | 414785 | 19 | LEFT CRANK ARM (REPLACES # 404963) | $65.49 | ||
| 422729 | 20 | RESISTANCE CABLE | $58.49 | |||
| 414355 | 21 | RESISTANCE BRACKET | $70.99 | |||
| 398618 | 22 | RESISTANCE SPRING | $18.49 | |||
| 421576 | 23 | RESISTANCE MAGNET | $187.49 | |||
 | 411458 | 24 | Resistance Motor | $94.99 | ||
| 403173 | 25 | BRAKE KNOB | $57.49 | |||
| 403061 | 26 | CONSOLE BRACKET | $99.49 | |||
| 403085 | 27 | BRAKE SHAFT | $74.49 | |||
| 398918 | 28 | BRAKE SPRING | $14.99 | |||
| 398947 | 29 | BRAKE BRACKET | $106.99 | |||
| 398701 | 30 | BRAKE SPACER | $11.99 | |||
| 407400 | 31A | IDLER | $119.49 | |||
| 398990 | 31B | IDLER ARM | $75.49 | |||
| 376548 | 31C | IDLER | $65.49 | |||
| 373273 | 31D | Idler Axle | $17.99 | |||
| 375928 | 31E | Idler Bushing | $1.99 | |||
| 150731 | 31F | IDLER RETAINER RING | $0.99 | |||
| 398719 | 32 | COVER BRACKET | $41.99 | |||
| 398406 | 33 | RIGHT HUB COVER | $20.49 | |||
| 398403 | 34 | OUTER BELT COVER | $132.49 | |||
| 398402 | 35 | INNER BELT COVER | $130.99 | |||
| 398407 | 36 | IDLER COVER | $19.99 | |||
| 398408 | 37 | LEFT HUB COVER | $29.49 | |||
| 398716 | 38 | MOTOR COVER | $21.99 | |||
| 399126 | 39 | BRAKE COVER | $108.99 | |||
| 398016 | 40 | SADDLE POST SLEEVE | $68.49 | |||
| 398205 | 41 | HANDLEBAR SLEEVE | $34.49 | |||
 | 153209 | 42 | SPINDLE COVER | $3.49 | ||
| 317094 | 43 | SNAP RING | $2.99 | |||
 | 291606 | 44 | CRANK BEARING | $22.49 | ||
| 398881 | 45 | PULLEY | $125.49 | |||
 | 399111 | 46 | DRIVE BELT | $49.99 | ||
| 425460 | 47 | FLYWHEEL | $397.49 | |||
| 398413 | 48 | FLYWHEEL AXLE | $72.49 | |||
| 398412 | 49 | FLYWHEEL BEARING | $68.99 | |||
| 398414 | 50 | FLYWHEEL SPACER | $27.49 | |||
 | 219825 | 51 | WHEEL | $24.99 | ||
 | 306282 | 52 | FOOT | $4.99 | ||
 | 246285 | 53 | LEVELING FOOT | $10.99 | ||
| 320579 | 54 | STABILIZER CAP | $14.49 | |||
| 398899 | 55 | SADDLE POST CAP | $19.99 | |||
| 403064 | 56 | BRACKET MOUNT | $66.99 | |||
 | 411085 | 57 | REED SWITCH/WIRE | $25.99 | ||
 | 282277 | 58 | CLAMP | $3.49 | ||
| 398525 | 59 | HAND WEIGHT | $111.49 | |||
| 399086 | 60 | FLYWHEEL WASHER | $3.99 | |||
 | 133333 | 61 | CLIP | $0.99 | ||
 | 113842 | 62 | MAGNET | $1.49 | ||
 | 384942 | 63 | M8 X 20MM SCREW | $6.49 | ||
 | 333350 | 64 | M8 DECK MTG LOCKNUT | $1.99 | ||
| 385952 | 65 | M10 X 60MM SCREW | $28.49 | |||
 | 246700 | 66 | CRANK SCREW | $1.49 | ||
 | 148710 | 68 | M10 LOCKNUT | $2.49 | ||
 | 232289 | 69 | M10 X 25MM SCREW | $28.49 | ||
| 398984 | 70 | M6 BOLT SET | $18.49 | |||
| 398992 | 71 | IDLER WASHER | $9.49 | |||
| 392660 | 72 | M8 X 50MM BOLT | $3.49 | |||
| 398702 | 73 | M6 X 45MM SHOULDER SCREW | $20.99 | |||
| 373150 | 74 | M4 X 12MM SCREW | $0.99 | |||
| 135578 | 75 | M12 NYLON LOCKNUT | $6.99 | |||
| 400224 | 76 | M5 X 35MM BOLT | $17.49 | |||
| 400230 | 77 | M5 LOCKNUT | $21.99 | |||
| 398898 | 78 | BRAKE BUSHING | $19.99 | |||
| 197037 | 79A | M6 X 12MM SCREW | $0.99 | |||
| 262341 | 79B | M6 X 12MM SCREW | $3.49 | |||
 | 194878 | 80 | M4 X 19MM SCREW | $2.99 | ||
 | 195562 | 81 | M4 X 16MM SCREW | $1.99 | ||
| 411371 | 82 | FRAME WIRE | $29.49 | |||
| 222439 | 83 | THRUST WASHER | $2.49 | |||
 | 186819 | 84 | 1/2″ SCREW | $0.99 | ||
| 398405 | 85 | M12 NUT | $6.99 | |||
 | 339802 | 86 | POWER ADAPTER | $24.99 | ||
| 225357 | 88 | M4 X 25MM SELF-TAP SCREW | $1.49 | |||
 | 411086 | 89 | POWER RECEPTACLE/WIRE | $44.99 | ||
| 414784 | 90 | HANDLEBAR WIRE | $124.49 | |||
| 414809 | 91 | NECK WIRE | $73.99 | |||
 | 224113 | 92 | M8 X 18MM WASHER | $2.49 | ||
| 228822 | 93 | M8 X 80MM BOLT | $9.49 | |||
 | 392825 | 94 | INNER PIVOT DISC | $17.76 | ||
 | 392829 | 95 | OUTER PIVOT DISC | $34.99 | ||
| 392828 | 96 | UPPER/LOWER PIVOT DISC | $16.99 | |||
 | 392819 | 97 | CENTER PIVOT DISC | $9.49 | ||
| 399651 | 98 | ONE-WIRE GROMMET | $2.49 | |||
| 395580 | 99 | PLASTIC SPACER | $3.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
| 403548 | # | HARDWARE KIT NOTE: LITPAC | $118.49 | |||
| 412211 | # | 4MM ALLEN WRENCH | $44.99 | |||
| 412202 | # | 6MM ALLEN WRENCH | $53.99 | |||
| 307906 | # | 15MM-17MM COMBO WRENCH | $34.49 | |||
| 364584 | # | DECAL,WARNING,PINCH POINT | $44.99 | |||
| 364361 | # | CHEST PULSE STRAP | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 290295 | # | DECAL, NFW WARNING | $6.49 | |||
| 434610 | # | LITPAC, NOTE: | $206.99 | |||
| 411369 | TS8 | 30″ WIRE HARNESS | $63.99 |
