PROFORM STUDIO BIKE PRO – PFEX16718C.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
110 Parts Available for PROFORM STUDIO BIKE PRO - PFEX16718C.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 398005 | 2 | FRONT STABILIZER | $120.99 | |||
| 398001 | 3 | REAR STABILIZER | $328.49 | |||
| 420223 | 4 | HANDLEBAR | $357.49 | |||
| 403058 | 5 | CONSOLE MOUNT | $145.49 | |||
| 414729 | 6 | CONSOLE | $672.99 | |||
| 418676 | 7 | SADDLE POST | $110.49 | |||
| 403348 | 9 | SADDLE ARM | $69.99 | |||
| 427692 | 10 | SADDLE CARRIAGE | $96.49 | |||
| 427690 | 11 | LEFT WEIGHT REST | $71.99 | |||
| 427688 | 12 | RIGHT WEIGHT REST | $71.49 | |||
 | 372139 | 13 | CARRIAGE HANDLE | $60.49 | ||
 | 398704 | 14 | ADJUSTMENT HANDLE | $73.49 | ||
| 403771 | 15 | WATER BOTTLE HOLDER | $43.99 | |||
| 436589 | 16B | CLEAT ASSEMBLY | $81.49 | |||
 | 404964 | 18 | CRANK/RIGHT CRANK ARM | $124.99 | ||
 | 414785 | 19 | LEFT CRANK ARM (REPLACES # 404963) | $116.49 | ||
| 422729 | 20 | RESISTANCE CABLE | $58.49 | |||
| 414355 | 21 | RESISTANCE BRACKET | $70.99 | |||
| 398618 | 22 | RESISTANCE SPRING | $18.49 | |||
| 398157 | 23 | RESISTANCE MAGNET | $43.99 | |||

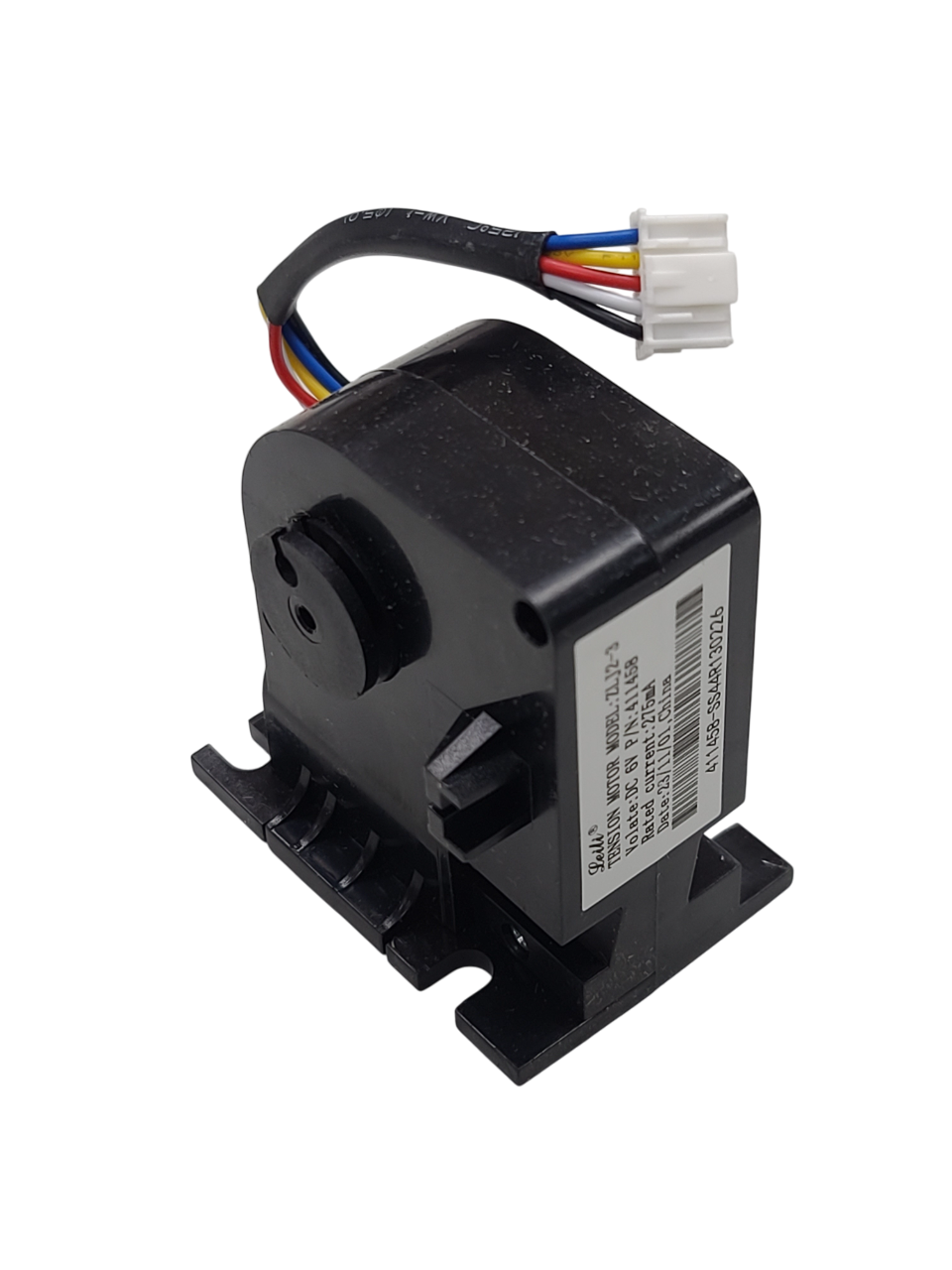

 | 411458 | 24 | RESISTANCE MOTOR | $94.99 | ||
| 403173 | 25 | BRAKE KNOB | $57.49 | |||
| 403061 | 26 | CONSOLE BRACKET | $99.49 | |||
| 403085 | 27 | BRAKE SHAFT | $74.49 | |||
| 398918 | 28 | BRAKE SPRING | $14.99 | |||
| 398947 | 29 | BRAKE BRACKET | $106.99 | |||
| 398701 | 30 | BRAKE SPACER | $11.99 | |||
 | 407400 | 31A | IDLER ASSEMBLY | $119.49 | ||
| 376548 | 31B | IDLER | $65.49 | |||
| 373273 | 31C | IDLER AXLE | $17.99 | |||
| 375928 | 31D | IDLER BUSHING | $1.99 | |||
| 150731 | 31E | IDLER RETAINING RING | $0.99 | |||
| 398992 | 31F | SMALL PIVOT SPACER | $9.49 | |||
| 398719 | 32 | COVER BRACKET | $41.99 | |||
 | 398406 | 33 | RIGHT HUB COVER | $20.49 | ||
 | 398403 | 34 | OUTER BELT COVER | $132.49 | ||
| 398402 | 35 | INNER BELT COVER | $130.99 | |||
 | 398407 | 36 | IDLER COVER | $19.99 | ||
 | 398408 | 37 | LEFT HUB COVER | $29.49 | ||
| 398716 | 38 | MOTOR COVER | $21.99 | |||
| 430477 | 39 | BRAKE COVER | $92.99 | |||
| 398016 | 40 | SADDLE POST SLEEVE | $68.49 | |||
| 429084 | 41 | HANDLEBAR SLEEVE | $39.99 | |||
 | 153209 | 42 | CRANK COVER | $8.99 | ||
| 317094 | 43 | SNAP RING | $2.99 | |||
 | 291606 | 44 | LARGE BEARING | $22.49 | ||
| 398881 | 45 | PULLEY | $125.49 | |||
 | 399111 | 46 | DRIVE BELT | $49.99 | ||
| 425460 | 47 | FLYWHEEL | $397.49 | |||
| 398413 | 48 | FLYWHEEL AXLE | $93.99 | |||
| 398412 | 49 | FLYWHEEL BEARING | $68.99 | |||
| 398414 | 50 | FLYWHEEL SPACER | $28.49 | |||
 | 219825 | 51 | WHEEL | $24.99 | ||
 | 306282 | 52 | BUMPER | $4.99 | ||
 | 246285 | 53 | LEVELING FOOT | $10.99 | ||
 | 320579 | 54 | STABILIZER CAP | $14.49 | ||
| 398899 | 55 | SADDLE POST CAP | $19.99 | |||
| 403064 | 56 | BRACKET MOUNT | $66.99 | |||
 | 411085 | 57 | REED SWITCH/WIRE | $25.99 | ||
 | 282277 | 58 | REED SWITCH CLAMP | $3.49 | ||
| 398525 | 59 | HAND WEIGHT | $111.49 | |||
| 399086 | 60 | FLYWHEEL WASHER | $6.49 | |||
 | 133333 | 61 | HOOD CLIP | $0.99 | ||
 | 113842 | 62 | MAGNET | $1.49 | ||
 | 384942 | 63 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 333350 | 64 | M8 LOCKNUT | $1.99 | ||
| 385952 | 65 | M10 X 60MM SCREW, NOTE: | $28.49 | |||
 | 246700 | 66 | CRANK SCREW | $1.49 | ||
| 403083 | 67 | BRAKE NUT | $12.49 | |||
 | 148710 | 68 | WHEEL NUT | $2.49 | ||
 | 232289 | 69 | M10 X 25MM PATCH SCREW | $28.49 | ||
| 398984 | 70 | M6 BOLT SET | $21.99 | |||
 | 262341 | 71 | M6 X 12MM SCREW | $3.49 | ||
 | 392660 | 72 | M8 X 50MM BOLT | $3.49 | ||
| 398702 | 73 | M6 X 51MM SHOULDER SCREW | $20.99 | |||
 | 213457 | 74 | M4 X 12MM ROUND HEAD SCRW | $1.99 | ||
| 400224 | 76 | M5 X 35MM BOLT | $17.49 | |||
| 400230 | 77 | M5 LOCKNUT | $21.99 | |||
| 398898 | 78 | BRAKE BUSHING | $19.99 | |||
 | 197037 | 79 | M6 X 12MM SCREW | $0.99 | ||
 | 194878 | 80 | M4 X 19MM SLF-TPPNG SCREW | $2.99 | ||
 | 195562 | 81 | M4 X 16MM SCREW | $1.99 | ||
| 411371 | 82 | FRAME WIRE | $122.49 | |||
| 222439 | 83 | THRUST WASHER | $2.49 | |||
 | 186819 | 84 | #8 X 0.5″ SCREW | $0.99 | ||
| 398405 | 85 | M12 NUT | $17.49 | |||
 | 339802 | 86 | POWER ADAPTER | $19.99 | ||
 | 373150 | 87 | M4 X 12MM BLUNT SCREW | $0.99 | ||
| 378126 | 88 | M4 X 19MM SCREW, NOTE: | $3.49 | |||
 | 411086 | 89 | POWER WIRE/RECEPTACLE | $44.99 | ||
| 414784 | 90 | HANDLEBAR WIRE | $124.49 | |||
| 414809 | 91 | MOUNT WIRE | $66.49 | |||
 | 224113 | 92 | M8 LARGE WASHER | $2.49 | ||
| 228822 | 93 | M8 X 80MM BTTN HEAD,NOTE: | $9.49 | |||

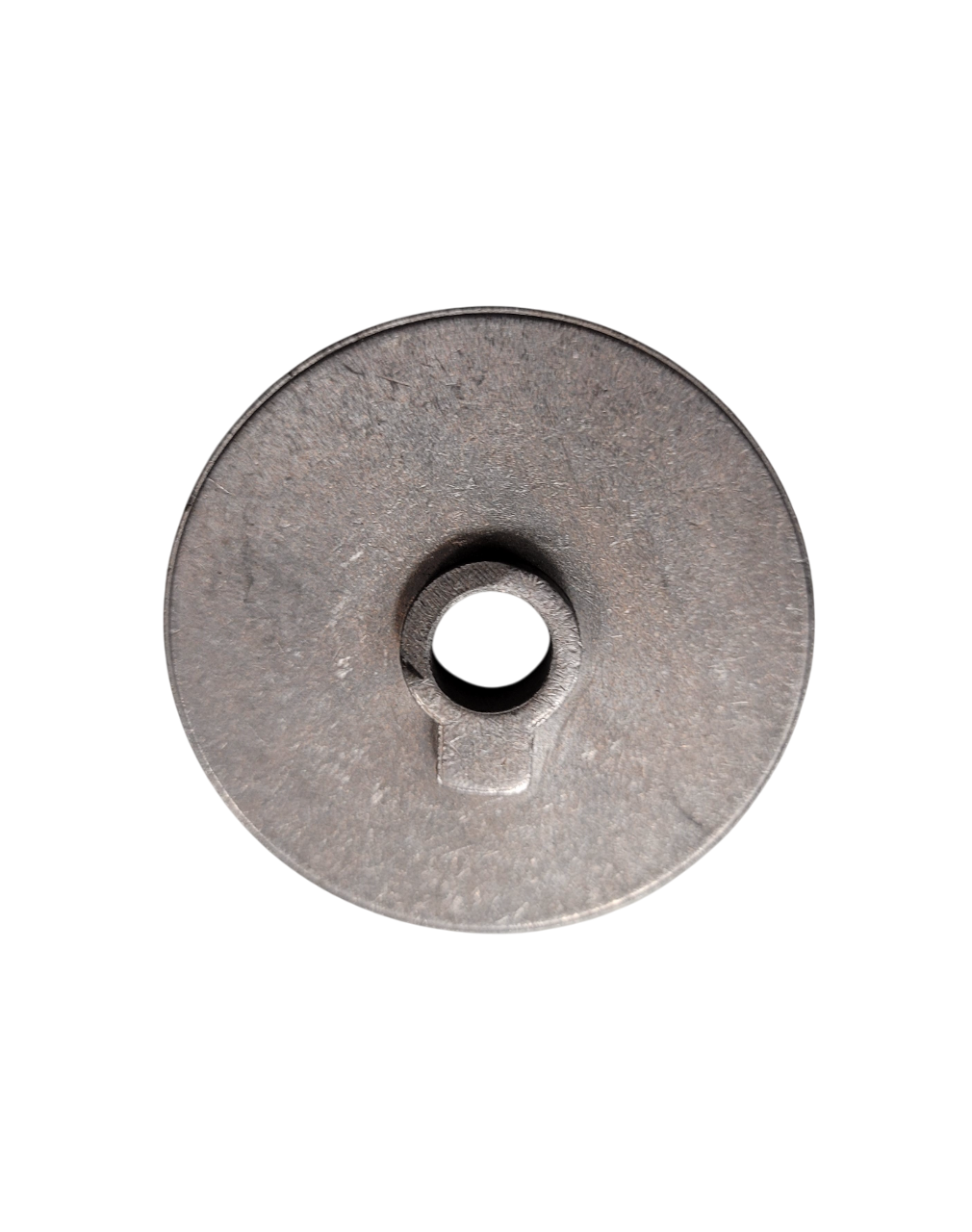

 | 392829 | 94 | OUTER PIVOT DISC | $34.99 | ||
 | 392825 | 95 | INNER PIVOT DISC | $17.76 | ||
| 392828 | 96 | UPPER/LOWER PIVOT DISC | $16.99 | |||

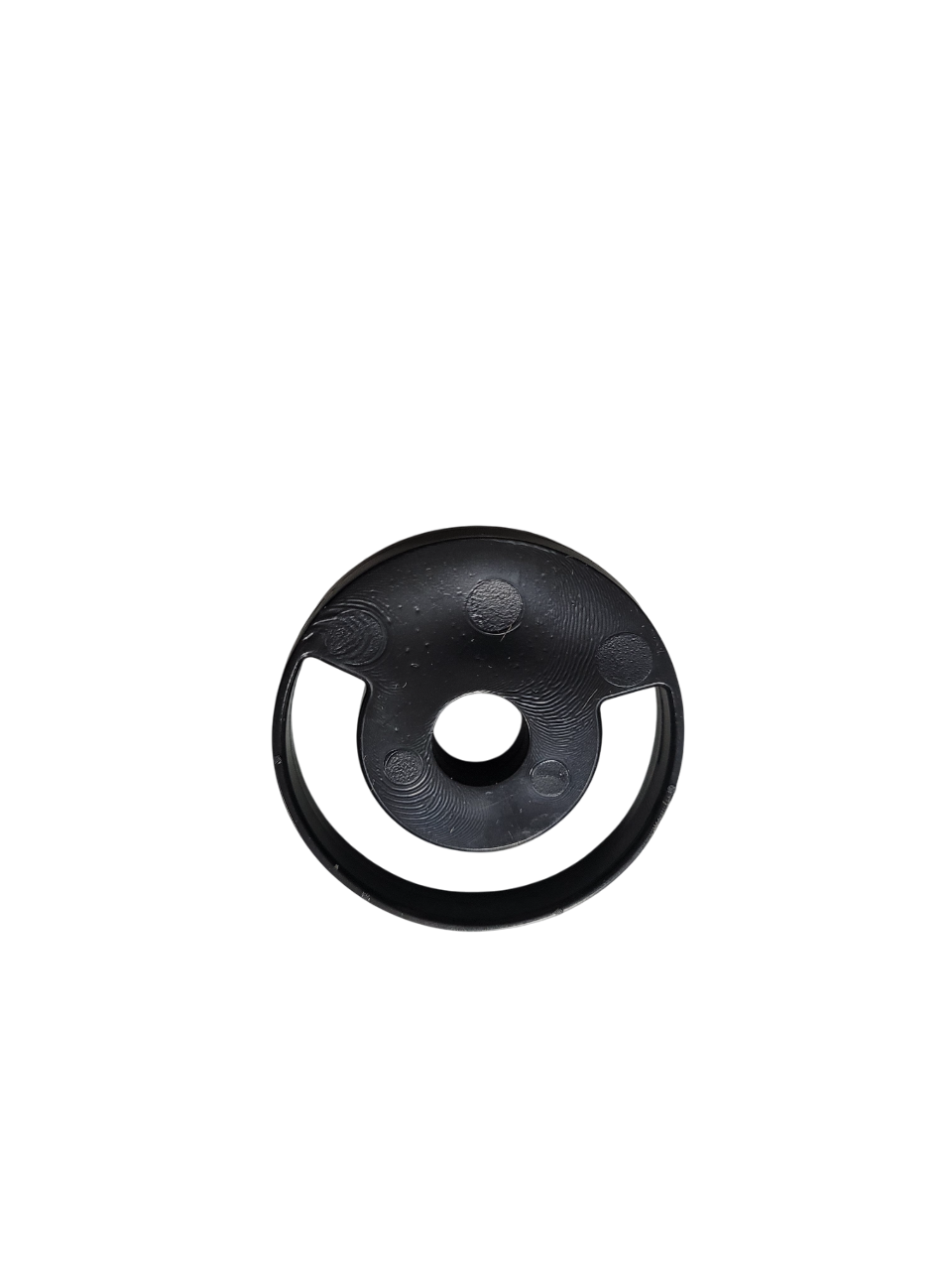

 | 392819 | 97 | CENTER PIVOT DISC | $9.49 | ||
| 399651 | 98 | WIRE PROTECTOR | $2.49 | |||
| 395580 | 99 | LARGE PIVOT SPACER | $3.49 | |||
| 116926 | # | CABLE TIE | $0.99 | |||
 | 437551 | # | ARM HEART RATE MONITOR | $194.99 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 299925 | # | WARNING DECAL | $11.49 | |||
| 412211 | # | 4MM ALLEN WRENCH | $44.99 | |||
| 412202 | # | 6MM ALLEN WRENCH | $53.99 | |||
| 307906 | # | 15MM-17MM COMBO WRENCH | $34.49 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 411369 | TS8 | 30″ WIRE HARNESS | $63.99 |
