Proform Sport 4.0 Treadmill – PFTL34616.0 / PFTL346160
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
38 Parts Available for Proform Sport 4.0 Treadmill - PFTL34616.0 / PFTL346160 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 186819 | 1 | #8 X 1/2″ SCREW | $0.99 | ||
 | 278652 | 2 | 3/8″ X 3 1/4″ SCREW | $19.99 | ||
 | 163045 | 3 | 3/8″ STAR WASHER | $0.99 | ||
 | 013322 | 4 | #8 X 3/4″ SCREW | $0.99 | ||
 | 013556 | 5 | 5/16″ X 3/4″ SCREW | $5.49 | ||
| 101630 | 6 | STAR WASHER | $0.99 | |||
| 315783 | 7 | 5/16″ X 3″ Screw | $4.49 | |||
 | 167049 | 8 | #10 X 3/4″ SCREW | $0.99 | ||
 | 195683 | 9 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
 | 012149 | 10 | 3/8″ NUT | $0.99 | ||
 | 319894 | 11 | M6 X 55MM SCREW | $6.49 | ||
 | 372033 | 12 | 3/8″ X 1 1/8″ BOLT | $5.49 | ||
 | 133333 | 13 | CLIP NUT | $0.99 | ||
 | 013607 | 14 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
| 179767 | 15 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 119425 | 16 | 3/8″ LOCKNUT | $0.99 | ||
 | 295756 | 17 | MOTOR SCREW | $0.99 | ||
| 136728 | 18 | #8 BELT GUIDE SCREW | $0.99 | |||
| 013500 | 19 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
 | 100427 | 20 | 5/16″ NUT | $0.99 | ||
 | 013576 | 21 | CROWN SCREW | $0.99 | ||
| 014157 | 22 | #8 STAR WASHER | $0.99 | |||
 | 014088 | 23 | #10 STAR WASHER | $1.49 | ||
| 265234 | 25 | 1/4″ X 1 1/4″ PATCH SCREW | $1.99 | |||
| 372093 | 26 | 1/2″ PLASTIC WASHER | $4.99 | |||
| 387290 | 27 | RAIL,DECK,ARPS,LT,W/DECALS | $67.49 | |||
| 387288 | 28 | ISLATR,FOAM,ARPS | $25.49 | |||
| 256841 | 29 | CAUTION DECAL | NLA | Unavailable to order | ||
 | 198639 | 30 | BELT GUIDE | $5.99 | ||
| 379928 | 31 | FRONT ROLLER/PULLEY | $116.99 | |||
 | 174320 | 32 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 239057 | 33 | CAP | $0.99 | |||
 | 013300 | 34 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 405697 | 35 | Drive Motor for ICON Fitness Part Number 328342 | $202.99 | |||
| 328342 | 35 | Part # 328342 | NLA | Unavailable to order | ||
 | 328333 | 36 | Part # 328333 | NLA | Unavailable to order | |
 | 405826 | 36 | CONTROLLER | $199.99 | ||
| 365327 | 37 | CNTRLR PLT&CLAMP BKT SET | $25.49 | |||
| 387292 | 39 | BRD,WLK,ARPS,W/RI | $198.49 | |||
 | 270359 | 40 | WALKING BELT | $114.99 | ||
| 387289 | 41 | RAIL,DECK,ARPS,RT,W/DECALS | $67.49 | |||
| 302602 | 42 | RLR,IDLER,ARPS,W/RI | $113.99 | |||
| 316434 | 43 | LEFT REAR FOOT | $24.49 | |||
| 132315 | 44 | ZIP TIE | $3.49 | |||
 | 260687 | 45 | MOTOR BELT | $61.99 | ||
| 316433 | 46 | RIGHT REAR FOOT | $24.49 | |||
| 213894 | 47 | SMALL WASHER | $0.99 | |||
| 387287 | 48 | HOOD,FRONT,ARPS | $88.99 | |||
 | 315689 | 49 | INCLINE MOTOR | $161.49 | ||
| 315067 | 50 | FRAME SPACER | $15.49 | |||
| 380931 | 51 | LIFT FRAME | $74.49 | |||
| 316431 | 52 | BELLY PAN | $147.99 | |||
 | 173169 | 53 | SQUARE GROMMET | $0.99 | ||
 | 031229 | 54 | POWER CORD | $39.99 | ||
 | 186726 | 55 | POWER SWITCH | $22.49 | ||
| 209008 | 56 | ACCESS DOOR | $1.99 | |||
| 387291 | 57 | CONSOLE | $259.95 | |||
| 315023 | 59 | Left Handrail | $45.49 | |||
| 348221 | 60 | Handrail Cap | $7.49 | |||
| 315065 | 61 | Console Crossbar | $68.99 | |||
 | 208603 | 62 | KEY/CLIP | $19.99 | ||
| 388848 | 63 | Wire Harness | ||||
| 315058 | 64 | RIGHT HANDRAIL | $27.99 | |||
| 315069 | 65 | 2 lb Hand Weight for Weider Fitness Equipment | $23.49 | |||
 | 184369 | 67 | M4 X 16MM MACHINE SCREW | $0.99 | ||

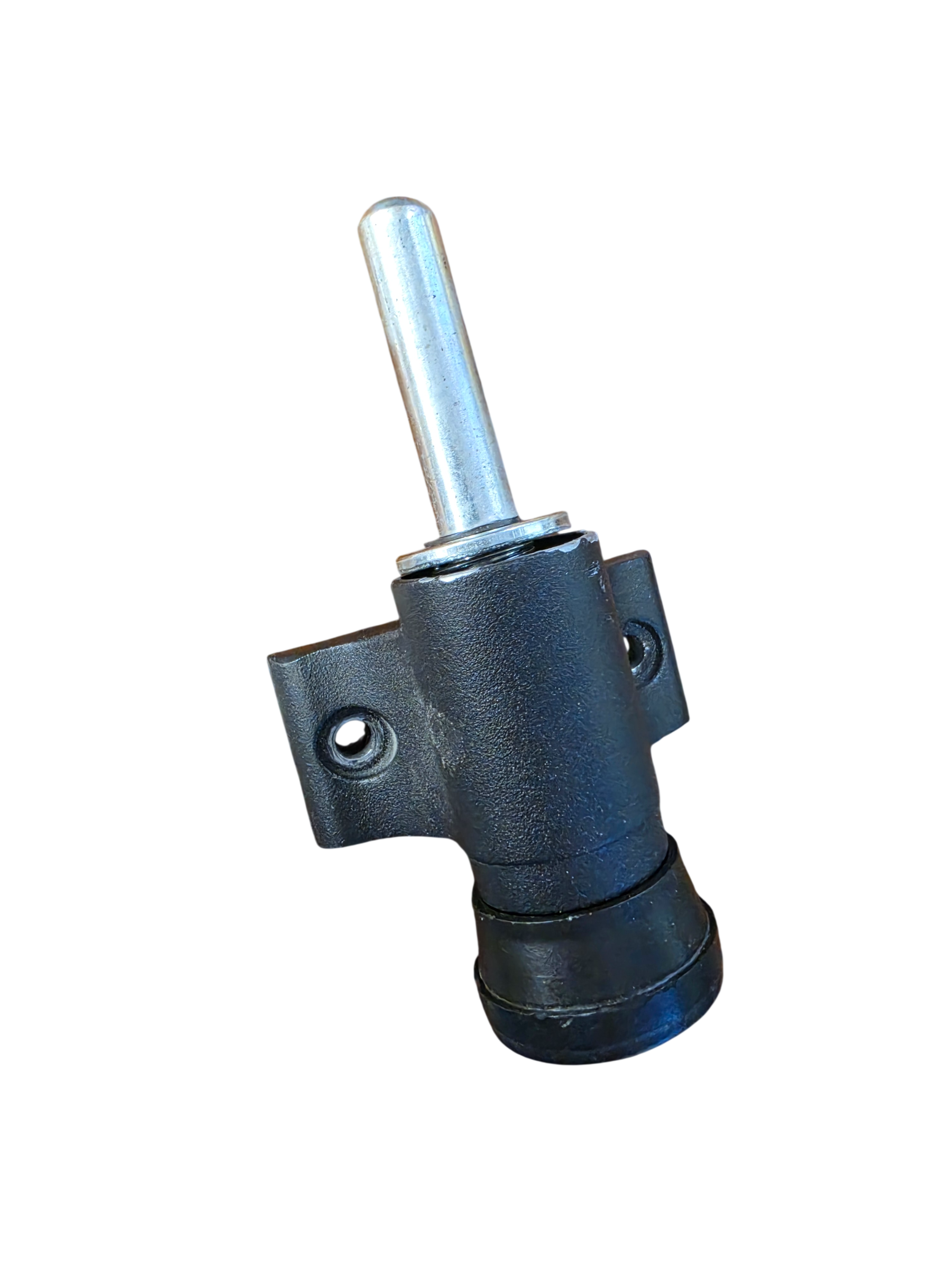

 | 358339 | 68 | LATCH ASSEMBLY | $61.99 | ||
| 254359 | 69 | DECAL, CAUTION, ENG/SPNSH | $12.99 | |||
 | 306715 | 70 | BASE CAP | $1.49 | ||
 | 307032 | 71 | BASE PAD | $3.99 | ||
 | 307031 | 72 | STABILIZER FOOT | $2.99 | ||
 | 227199 | 73 | GROMMET | $2.49 | ||
 | 139090 | 75 | WHEEL | $2.99 | ||
| 315068 | 77 | 1/2″ PIN | $7.99 | |||
 | 215822 | 78 | 4″ GRN WIRE | $5.99 | ||
 | 372092 | 80 | 3/8″ PLASTIC BUSHING | $4.99 | ||
 | 102973 | 81 | 3/8″ THRUST WASHER | $0.99 | ||
| 365328 | 83 | CONTROLLER CLAMP | $15.49 | |||
| 372094 | 84 | 9/32″ PLASTIC BUSHING | $4.99 | |||
 | 012142 | 85 | BRACKET SPACER | $0.99 | ||
| 276105 | 86 | M4.2 X 8MM SCREW | NLA | Unavailable to order | ||
 | 291486 | 87 | #8 X 5/8″ SCREW | $0.99 | ||
| 268476 | # | DECAL, GROUND WARNING | $0.99 | |||
| 240351 | # | 8″ WIRE TIE | $0.99 | |||
| 387017 | # | HARDWARE KIT NOTE: | $54.49 | Unavailable to order | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 045023 | # | 5/32″ ALLEN WRENCH, HEX | $1.99 | |||
 | 128457 | # | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 349816 | # | LATCH PLATE | $14.49 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 126146 | TS3 | 4″ BLUE WIRE,F/F | $3.49 | |||
| 114011 | TS4 | 4″ BLACK WIRE,M/F | $3.49 | |||
| 198084 | TS5 | 6″ RED WIRE, M/F | $3.99 | |||
| 211260 | TS9 | 12″ WIRE HRNS | $12.99 |
