PROFORM PREMIER 1300 TREADMILL – PETL15816.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
136 Parts Available for PROFORM PREMIER 1300 TREADMILL - PETL15816.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | CROWN SCREW | $0.99 | ||
 | 013322 | 2 | #8 X 3/4″ SCREW | $0.99 | ||
 | 349213 | 3 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 013484 | 4 | 5/16″ X1/2″ UPRIGHT SCREW | $1.99 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
 | 298484 | 6 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
 | 341768 | 7 | 3/8″ X 2 3/8″ SCREW | $8.99 | ||
| 013500 | 8 | 5/16″ X 1 1/2″ SCREW | $2.49 | |||
 | 167049 | 9 | #10 X 3/4″ SCREW | $0.99 | ||
 | 013423 | 10 | GROUND SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 12 | 5/16″ NUT | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 013607 | 14 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 364027 | 15 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 381122 | 17 | 3/8″ X 1 3/8″ BOLT | $2.99 | ||
| 397434 | 18 | CONSOLE FRAME | $146.99 | |||
| 136728 | 19 | #8 BELT GUIDE SCREW | $0.99 | |||
| 295759 | 20 | 5/16″ MOTOR BOLT | $2.49 | |||
| 315068 | 21 | 1/2″ PIN | $7.99 | |||
 | 372033 | 22 | 3/8″ X 1 1/8″ BOLT | $5.49 | ||
 | 307032 | 23 | BASE PAD | $3.99 | ||
| 014157 | 24 | #8 STAR WASHER | $0.99 | |||
 | 271383 | 25 | 5/16″ X 3/4″ PATCH BOLT | $2.49 | ||
 | 276104 | 26 | #8X5/8″ MACHINE SCREW | $0.99 | ||
| 375199 | 27 | Right Cupholder for GhostRider 2 | $71.49 | |||
| 261618 | 28 | 5/16″ X 2 1/4″ SCREW | $22.99 | |||
| 179767 | 29 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
| 349698 | 31 | FAN GRILL | $32.49 | |||
 | 114078 | 32 | LIFT SPACER | $2.49 | ||
 | 119425 | 33 | 3/8″ LOCKNUT | $0.99 | ||
| 138438 | 34 | #8 X 1/2″ PEDAL SCREW | $0.99 | |||
 | 359082 | 35 | ISOLATOR | $22.99 | ||
| 375198 | 36 | CNSL,CUPHOLDER,LT,GHOSTRIDER 2 | $71.49 | |||
| 334647 | 37 | FAN COVER | $27.99 | |||
 | 347756 | 38 | LATCH CROSSBAR | $54.49 | ||
| 359093 | 39 | CUSHION BOTTOM | $28.49 | |||
 | 348118 | 40 | REAR FOOT | $27.99 | ||
| 334694 | 41 | CONSOLE BRACKET | $1.49 | |||
| 413303 | 43 | WARNING DECAL | $3.99 | |||
| 380013 | 44 | WALKING PLATFORM | $240.49 | |||

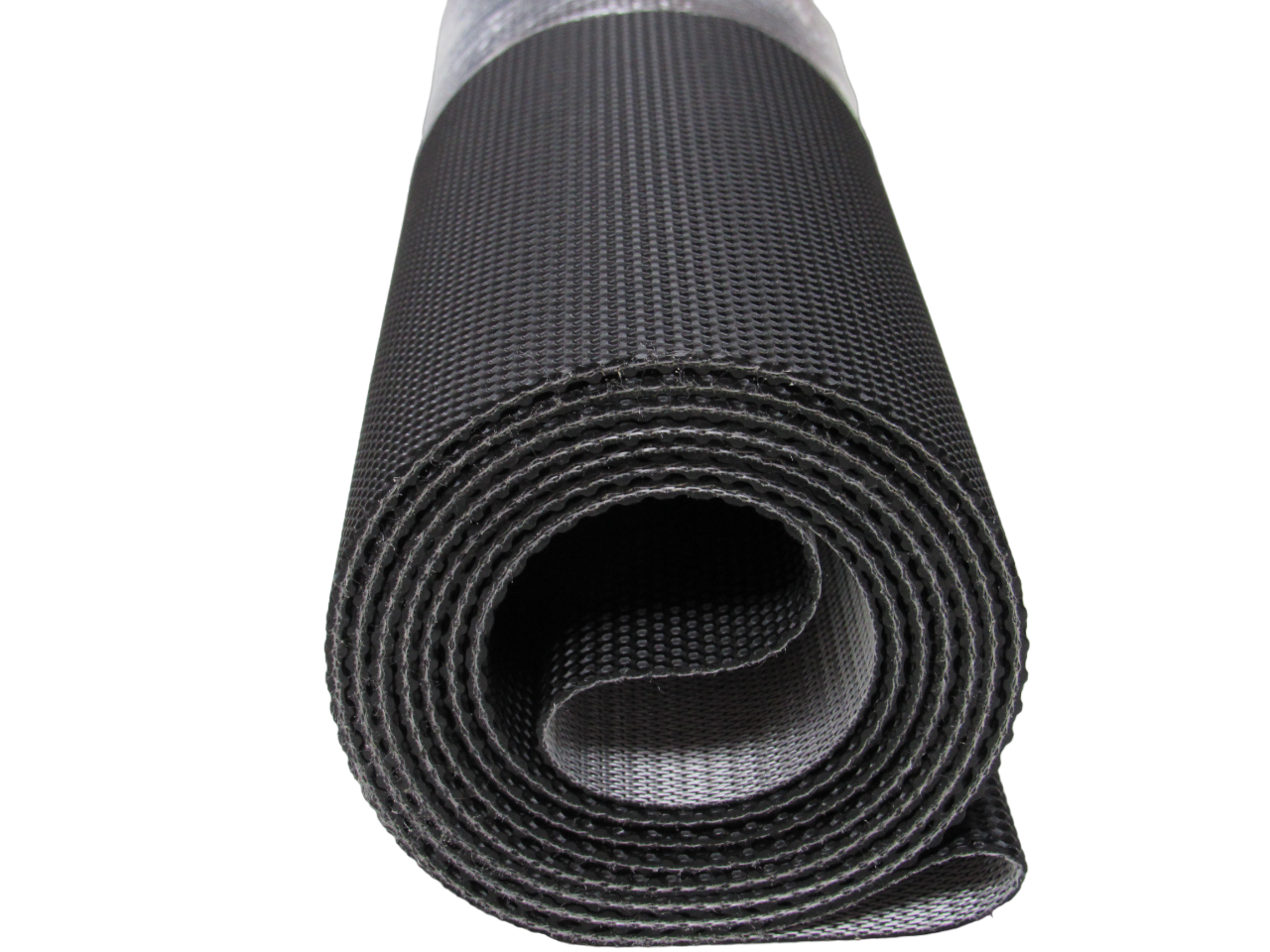

 | 380014 | 45 | WALKING BELT | $153.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 393579 | 47 | RIGHT REAR FOOT | $26.49 | ||
| 240351 | 48 | 8″ WIRE TIE | $0.99 | |||
 | 379596 | 49 | DRIVE ROLLER/PULLEY | $141.49 | ||
| 372094 | 50 | 9/32″ PLASTIC BUSHING | $4.99 | |||
 | 372092 | 51 | 3/8″ PLASTIC BUSHING | $4.99 | ||
 | 102973 | 52 | 3/8″ THRUST WASHER | $0.99 | ||
 | 388203 | 53 | STORAGE LATCH | $100.49 | ||
| 380019 | 54 | DRIVE MOTOR | $364.49 | |||
 | 379598 | 55 | MOTOR BELT | $49.99 | ||
 | 393577 | 57 | LEFT REAR FOOT | $25.99 | ||
 | 215822 | 58 | 4″ GRN WIRE | $5.99 | ||
 | 298474 | 59 | SMALL CUSHION | $1.99 | ||
| 349998 | 61 | IDLER ROLLER | $114.99 | |||
 | 181980 | 62 | 3/8″ X 1 1/2″ SCREW | $3.49 | ||
 | 181979 | 63 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
| 399471 | 64 | CONSOLE BASE | $154.49 | Unavailable to order | ||
 | 349793 | 65 | MOTOR HOOD | $131.49 | ||
 | 372697 | 66 | RIGHT INNER BASE COVER | $26.99 | ||
| 372093 | 67 | 1/2″ PLASTIC WASHER | $4.99 | |||
 | 133333 | 68 | CLIP NUT | $0.99 | ||
| 325789 | 69 | INCLINE MOTOR | $198.49 | |||
| 372381 | 70 | INCLINE FRAME | $139.49 | |||
| 343447 | 71 | FRAME SPACER | $6.49 | |||
| 382581 | 72 | CONTROLLER | $245.99 | |||
| 365328 | 73 | CONTROLLER CLAMP | $15.49 | |||
| 365332 | 74 | ELECTRONICS BRACKET | $33.49 | |||
| 250627 | 75 | POWER SWITCH | $16.49 | |||
 | 227199 | 77 | GROMMET | $2.49 | ||
| 348403 | 78 | BELLY PAN | $148.49 | |||
 | 334653 | 79 | LEFT HANDRAIL COVER | $18.99 | ||
| 379946 | 80A | CONSOLE | $756.49 | |||
| 355833 | 81 | UPRIGHT WIRE | $90.49 | |||
 | 372704 | 82 | LEFT BASE COVER | $51.49 | ||
 | 372703 | 83 | RIGHT BASE COVER | $26.99 | ||
 | 334921 | 84 | RIGHT BOTTOM HANDRAIL CVR | $18.99 | ||
 | 334919 | 85 | LEFT BOTTOM HANDRAIL CVR | $18.99 | ||
 | 335248 | 86 | LEFT HANDRAIL | $106.49 | ||
 | 335245 | 87 | RIGHT HANDRAIL | $106.49 | ||
| 375207 | 88 | CNSL,CUP,TRIM,GHOSTRIDER 12 | $51.99 | |||
| 375194 | 90 | UPRT,RT,STLGS | $108.49 | |||
| 252433 | 91 | DECAL, CAUTION, BASE LEG | $0.99 | |||
 | 334655 | 92 | RIGHT HANDRAIL COVER | $18.99 | ||
| 334652 | 93 | PULSE BAR BOTTOM | $142.49 | Unavailable to order | ||
| 374137 | 94 | BASE | $185.99 | |||
| 379723 | 95 | PULSE BAR | $104.49 | |||
| 161121 | 96 | #4 FAN SCREW | $0.99 | |||
 | 372591 | 97 | WHEEL | $7.49 | ||
 | 263710 | 98 | KEY | $19.99 | ||
| 132315 | 99 | ZIP TIE | $3.49 | |||
| 265234 | 100 | 1/4″ X 1 1/4″ PATCH SCREW | $1.99 | |||
| 375208 | 101 | FAN | $103.49 | |||
| 225696 | 102 | 1/4″ X 1 1/4″ SCREW | $1.49 | |||
 | 121576 | 103 | 1/4″ NUT | $2.49 | ||
 | 197404 | 104 | M5 WASHER | $1.99 | ||
 | 372664 | 105 | TABLET HOLDER | $96.99 | Unavailable to order | |
 | 372698 | 107 | LEFT INNER BASE COVER | $17.99 | ||
 | 131090 | 108 | CLAMP | $0.99 | ||
 | 378667 | 110 | REED SWITCH | $14.49 | ||
| 389952 | 111 | MOTOR BUSHING | $14.99 | |||
| 012152 | 112 | PHOTO SWITCH NUT | $0.99 | |||
| 210461 | 113 | FILTER | $163.49 | |||
| 225552 | 114 | MOTOR ISOLATOR | $3.99 | |||
| 242387 | 115 | RECEPTACLE | $15.49 | |||
 | 146427 | 116 | #8 X 1″ TEK SCREW | $0.99 | ||
 | 291486 | 117 | #8 X 5/8″ SCREW | $0.99 | ||
 | 186819 | 118 | #8 X 1/2″ SCREW | $0.99 | ||
| 357530 | # | 6″ GRN WIRE | $6.99 | |||
| 368152 | # | CAUTION DECAL, 6 LANG | $25.49 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 144079 | # | 6″ GRN/YEL WIRE,F/R | $4.49 | |||
| 279569 | # | DECAL, WLKBLT WARNING | $7.49 | |||
| 429182 | # | FERRITE CLAMP | $26.99 | |||
| 198089 | # | 6″ BLUE WIRE,F/F | $4.99 | |||
| 250472 | # | GROUND WIRE W/DECAL | $12.99 | |||
| 130424 | # | 4″ BLACK WIRE,F/F | $4.99 | |||
 | 128457 | # | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 198094 | # | 6″ BLUE WIRE, M/F | $4.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 379945 | # | HARDWARE KIT NOTE: | $117.49 | |||
| EXIF12 | # | IFIT WIRI ACCESSORY KIT | NLA | Unavailable to order | ||
| 136346 | # | 10″ WHITE WIRE,F/F | $5.99 | |||
| 268476 | # | DECAL, GROUND WARNING | $0.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 216117 | # | LIFT MOTOR WIRE HRNS | $16.99 | |||
| 198091 | # | 6″ WHITE WIRE, F/F | $4.99 | |||
| 334649 | # | CONSOLE RUBBER PAD | $28.49 | |||
| 368151 | # | WARNING DECAL,6 LANG | $99.49 | |||
 | 189813 | # | FILTER WIRE | $23.99 | ||
 | 286707 | # | LIFT MTR SENSOR KIT | $70.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 255997 | # | CONTROLLER GROUND WIRE | $32.99 | |||
| 223862 | # | 12″ CONSOLE GROUND WIRE | $8.99 |
