PROFORM POWER 1295I TREADMILL – PFTL11716.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
136 Parts Available for PROFORM POWER 1295I TREADMILL - PFTL11716.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | ST4.2 X 10MM SCREW | $0.99 | ||
 | 013322 | 2 | M4 X 19MM SCREW | $0.99 | ||
 | 349213 | 3 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 013484 | 4 | 5/16″ X 1/2″ SCREW | $1.99 | ||
 | 014088 | 5 | GROUND WASHER | $1.49 | ||
 | 298484 | 6 | 5/16″ BOLT,FLASH TM11-200 | $2.49 | ||
 | 341768 | 7 | 3/8″ X 2 3/8″ SCREW | $8.99 | ||
| 013500 | 8 | 5/16″ X 1 1/2″ BOLT | $2.49 | |||
 | 167049 | 9 | #10 X 3/4″ SCREW | $0.99 | ||
 | 013423 | 10 | #8 X 1/2″ SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 12 | IDLER PULLEY NUT | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 013300 | 14 | ST4.2 X 25MM SCREW | $0.99 | ||
 | 364027 | 15 | 1/4″ ROLLER SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 381122 | 17 | 3/8″ X 1 3/8″ BOLT | $2.99 | ||
| 335569 | 18 | CONSOLE FRAME | $107.99 | |||
| 136728 | 19 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 295758 | 20 | MOTOR MOUNTING SCREW | $3.49 | ||
| 315068 | 21 | INCLINE FRAME PIN | $7.99 | |||
 | 372033 | 22 | 3/8″ X 1″ SCREW | $5.49 | ||
 | 353072 | 23 | RIGHT FOOT PAD | $4.49 | ||
 | 130659 | 24 | #8 X 3/4″ TEK SCREW | $0.99 | ||
 | 295136 | 25 | 5/16″ X 3/4″ SCREW | $1.49 | ||
| 302314 | 26 | REAR ISOLATOR TOP | $6.99 | |||
| 372679 | 27 | RIGHT TRAY | $25.49 | Unavailable to order | ||
 | 150699 | 28 | 5/16″ X 2.5″ SCREW | $3.99 | ||
| 159986 | 29 | 3/8″ X 2″HEX HD BOLT,NOTE | $6.49 | |||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
| 349698 | 31 | FAN GRILL | $32.49 | |||
 | 114078 | 32 | LIFT MOTOR SPACER | $2.49 | ||
 | 119425 | 33 | 3/8″ LOCKNUT | $0.99 | ||
 | 186819 | 34 | #8X1/2″ WASHER HEAD SCREW | $0.99 | ||
| 301510 | 35 | ISOLATOR BOTTOM | $5.49 | |||
| 372678 | 36 | LEFT TRAY | $25.49 | Unavailable to order | ||
| 334647 | 37 | FAN COVER | $27.99 | |||
 | 347756 | 38 | LATCH CROSSBAR | $54.49 | ||
| 360739 | 39 | CUSHION | $41.99 | |||
| 230979 | 40 | HOOD POST | $5.49 | |||
| 334694 | 41 | CONSOLE BRACKET | $1.49 | |||
| 385673 | 42 | LEFT FOOT RAIL | $99.49 | |||
| 413303 | 43 | WARNING DECAL,ENGLISH | $3.99 | |||
| 361004 | 44 | WALKING PLATFORM | $193.49 | |||
 | 361795 | 45 | WALKING BELT | $169.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 316204 | 47 | RIGHT REAR FOOT | $12.49 | ||
| 240351 | 48 | ANCHORED TIE BLOCK | $0.99 | |||
| 368776 | 49 | DRIVE ROLLER/PULLEY | $141.49 | |||
| 372094 | 50 | 9/32″ PLASTIC BUSHING | $4.99 | |||
 | 372092 | 51 | 3/8″ BUSHING | $4.99 | ||
 | 102973 | 52 | 3/8″ THRUST WASHER | $0.99 | ||
 | 388203 | 53 | STORAGE LATCH | $100.49 | ||
| 405596 | 54 | Drive Motor for ICON Fitness 365901 | $365.49 | |||
 | 319256 | 55 | MOTOR BELT | $44.99 | ||
 | 316203 | 57 | LEFT REAR FOOT | $12.49 | Unavailable to order | |
 | 215822 | 58 | 4″ CONSOLE GROUND WIRE | $5.99 | ||
 | 298474 | 59 | PLATFORM GROMMET | $1.99 | ||
| 385672 | 60 | RIGHT FOOT RAIL | $99.49 | |||
| 312285 | 61 | IDLER ROLLER | $146.49 | |||
 | 181980 | 62 | 3/8″ X 1 3/4″ BOLT | $3.49 | ||
 | 181979 | 63 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
| 372979 | 64A | CONSOLE BASE | $101.49 | |||
| 334649 | 64B | CONSOLE RUBBER PAD | $28.49 | |||
| 370566 | 65 | MOTOR HOOD | $122.49 | |||
| 373829 | 66 | HOOD ACCENT | $61.99 | |||
| 372093 | 67 | INCLINE FRAME SPACER | $4.99 | |||
 | 133333 | 68 | CAP CLIP | $0.99 | ||
 | 223676 | 69 | INCLINE MOTOR | $164.49 | ||
| 372729 | 70 | INCLINE FRAME | $49.49 | |||
| 317148 | 71 | INCLINE FRAME INSERT | $7.49 | |||
| 400654 | 72 | CONTROLLER | $174.49 | |||
| 365829 | 73 | ELECTRONICS BRACKET | $12.99 | |||
 | 372698 | 74 | LEFT INNER BASE COVER | $17.99 | ||
 | 186726 | 75 | POWER SWITCH | $22.49 | ||
 | 031229 | 76 | POWER CORD | $39.99 | ||
 | 227199 | 77 | UPRIGHT WIRE GROMMET | $2.49 | ||

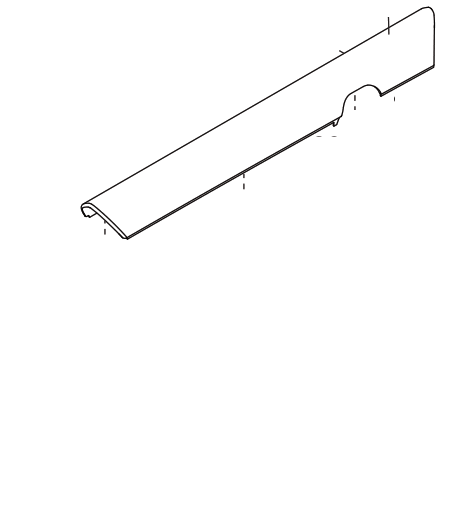

 | 334653 | 79 | LEFT HANDRAIL COVER | $18.99 | ||
| 385674 | 80A | CONSOLE | $495.49 | |||
| 385761 | 80B | CNSL REPROG CARD | $131.49 | |||
 | 351751 | 81 | UPRIGHT WIRE | $98.99 | ||
| 372700 | 82 | LEFT BASE COVER | $48.49 | |||
| 372699 | 83 | RIGHT BASE COVER | $48.49 | |||
 | 334921 | 84 | RIGHT BOTTOM HANDRAIL CVR | $18.99 | ||

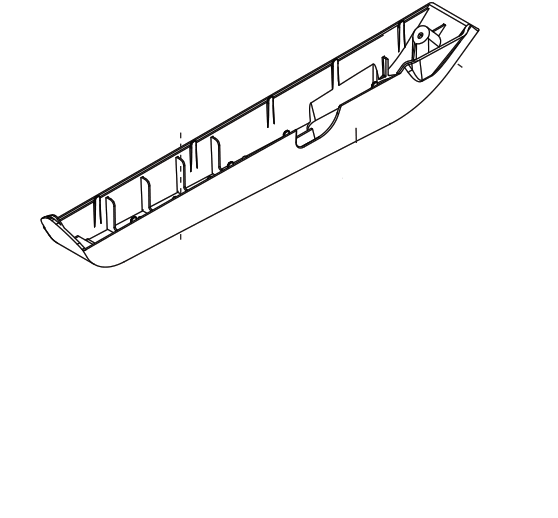

 | 334919 | 85 | LEFT BOTTOM HANDRAIL CVR | $18.99 | ||
 | 335248 | 86 | LEFT HANDRAIL | $106.49 | ||
 | 335245 | 87 | RIGHT HANDRAIL | $106.49 | ||
| 355293 | 88 | UPRIGHT CROSSBAR | $78.49 | |||
| 373825 | 89 | LEFT UPRIGHT | $120.49 | |||
| 373826 | 90 | RIGHT UPRIGHT | $120.49 | |||
| 252433 | 91 | CAUTION DECAL | $0.99 | |||

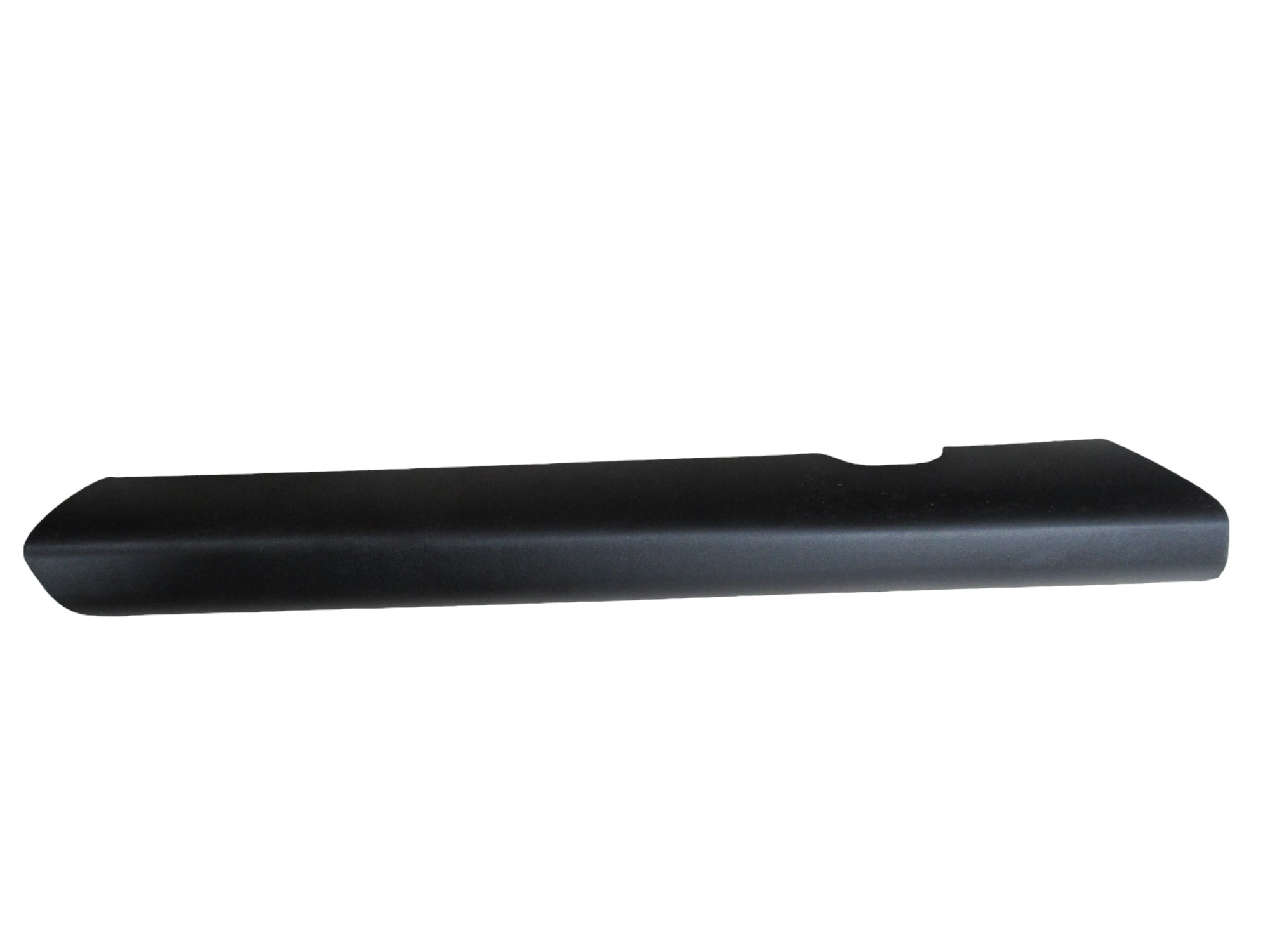

 | 334655 | 92 | RIGHT HANDRAIL COVER | $18.99 | ||
| 334652 | 93 | PULSE BAR BOTTOM | $142.49 | Unavailable to order | ||
| 373479 | 94 | BASE | $193.49 | |||
| 385615 | 95 | PULSE BAR | $93.49 | |||
| 161121 | 96 | #4 FAN SCREW | $0.99 | |||
 | 372591 | 97 | WHEEL | $7.49 | ||

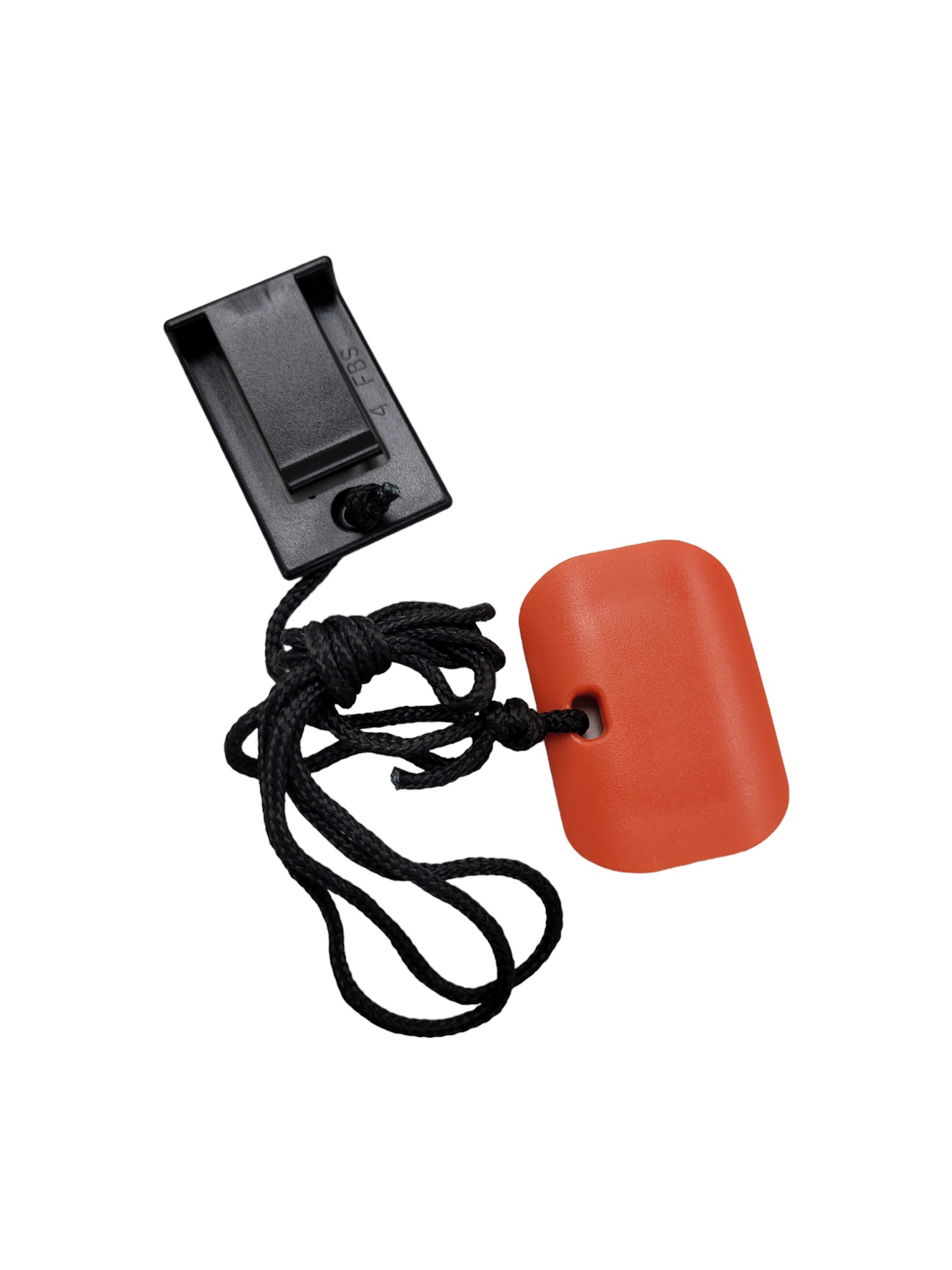

 | 335158 | 98 | KEY/CLIP | $24.99 | ||
| 132315 | 99 | WIRE TIE | $3.49 | |||
| 267888 | 100 | 1/4″ X 1 1/2″ SCREW | $2.99 | |||
| 375208 | 101 | FAN | $103.49 | |||
 | 013607 | 102 | #8 X 3/4″ TRUSS HEAD SCRW | $0.99 | ||
| 349159 | 103 | LEFT FRAME COVER | $17.49 | |||
| 349160 | 104 | RIGHT FRAME COVER | $17.49 | |||
 | 121576 | 105 | 1/4″ NUT | $2.49 | ||
| 360378 | 106 | CONTROLLER CLAMP | $10.99 | |||
| 128263 | 107 | #8 X 1 3/4″ SCREW | $0.99 | |||
 | 291486 | 108 | DECKRAIL SCREW | $0.99 | ||
 | 307032 | 109 | THICK BASE PAD | $3.99 | ||
 | 372664 | 110 | TABLET HOLDER | $96.99 | Unavailable to order | |
 | 372697 | 111 | RIGHT INNER BASE COVER | $26.99 | ||
| 301511 | 112 | LEFT FRONT ISOLATOR TOP | $8.49 | |||
 | 230327 | 114 | 1/4″ X 2 1/4″ SCREW | $19.49 | ||
 | 276104 | 115 | #8 X 5/8″ SCREW | $0.99 | ||
 | 173169 | 117 | POWER CORD GROMMET | $0.99 | ||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 116926 | # | 8″ CABLE TIE | $0.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
 | 128457 | # | HEX KEY | $25.49 | ||
| 158013 | # | FELT, HOOD | $0.99 | |||
| 331708 | # | BUMPON,HOOD COWLING | $0.99 | |||
| 373650 | # | HARDWARE KIT, NOTE: | $100.99 | |||
| 385671 | # | USER’S MANUALS | $23.99 | |||
| 371132 | # | 21″ CABLE TIE | $3.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
 | ARC14 | # | WALL ARC FILTER | |||
| 385670 | # | LITPAC, NOTE: | $121.49 | |||
 | 189813 | TS12 | FILTER WIRE | $23.99 | ||
| 101896 | TS3 | 4″ WHITE WIRE, M/F | $3.49 | |||
 | 102634 | TS4 | 8″ GREEN WIRE,F/R,CNTRLR | $3.49 | ||
| 191554 | TS7 | LIFT MOTOR WIRE HARNESS | $13.99 |
