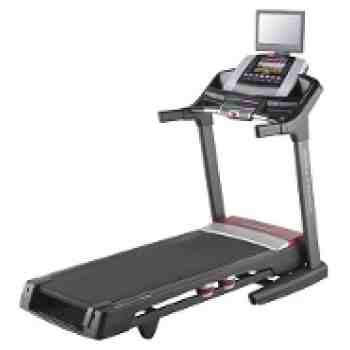

Proform Performance 1850 Treadmill – PFTL20511.5 / PFTL205115
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
84 Parts Available for Proform Performance 1850 Treadmill - PFTL20511.5 / PFTL205115 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013607 | 1A | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 013576 | 1B | CROWN SCREW | $0.99 | ||
 | 013322 | 2A | #8 X 3/4″ SCREW | $0.99 | ||
 | 013282 | 2B | SPRING SCREW | $0.99 | ||
 | 013544 | 3 | 3/8″ X 2″ BOLT | $3.99 | ||
 | 271278 | 4 | 5/16″ X 1 1/4″ BOLT | $2.99 | ||
 | 135711 | 5 | 5/16″ X 1″ FLAT HD SCREW | $1.99 | ||
 | 149072 | 6 | TENSION BOLT | $3.99 | ||
 | 135622 | 7 | 3/8″ X 2 3/4″ SCREW | $18.99 | ||
| 119994 | 8 | 1.25″ SCREW | $2.99 | |||
 | 167049 | 9 | #10 X 3/4″ SCREW | $0.99 | ||
 | 186819 | 10 | #8 X 1/2″ SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 012149 | 12 | 3/8″ NUT | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 013300 | 14A | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 130659 | 14B | #8 X 3/4″ BLACK SCREW | $0.99 | ||
 | 364027 | 15A | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
| 228465 | 15B | 1/4″ X 1 3/4″ SCREW | $2.49 | |||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 323680 | 17 | 3/8″ X 1 3/4″ WHEEL BOLT | $5.99 | ||
| 128263 | 18 | M4 X 42MM SCREW | $0.99 | |||
| 136728 | 19 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 295758 | 20 | 5/16″ DRIVE MOTOR SCREW | $3.49 | ||
| 301975 | 21 | 1/2″ X 2 1/4″ BOLT | $6.99 | |||
 | 301976 | 22 | 3/8″ X 1″ BOLT | $2.49 | ||
 | 298484 | 23 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
| 013028 | 25 | #8 X 1″ TRUSS HD SCREW | $0.99 | |||
| 159986 | 29 | TOP INCLINE BOLT | $6.49 | Unavailable to order | ||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
| 203451 | 31 | 5/16″ CAGE NUT | $3.99 | |||
 | 100553 | 32 | 1/2″ LOCKNUT | $1.49 | ||
 | 119425 | 33 | 3/8″ LOCKNUT | $0.99 | ||
 | 100427 | 34 | 5/16″ NUT | $0.99 | ||
| 014064 | 35 | 1/4″ EXTERNAL STAR WASHER | $0.99 | |||
 | 183246 | 36 | 1/4″ X 1/2″ SCREW | $1.49 | ||
| 301511 | 37 | LEFT FRONT ISOLATOR TOP | $8.49 | |||
| 302314 | 38 | REAR ISOLATOR TOP | $6.99 | |||
| 360739 | 39 | ISOLATOR | $41.99 | |||
| 301510 | 40 | ISOLATOR BOTTOM | $5.49 | |||
| 338641 | 42 | RAIL,DECK,ARPS,LT | $70.49 | |||
| 413303 | 43 | WARNING DECAL | $3.99 | |||
| 361005 | 44 | OEM WALKING PLATFORM | $186.99 | |||
 | 361799 | 45 | WALKING BELT | $171.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
| 240351 | 48 | 8″ WIRE TIE | $0.99 | |||
| 303466 | 49 | DRIVE ROLLER/PULLEY | $141.49 | |||
 | 131090 | 51 | CLAMP | $0.99 | ||
 | 157504 | 52 | REED SWITCH | $26.99 | ||
| 328330 | 54 | Part # 328330 | NLA | Unavailable to order | ||
| 405694 | 54 | DRIVE MOTOR | $269.99 | |||
 | 311589 | 55 | MOTOR BELT | $53.49 | ||
| 301343 | 57 | REAR FOOT | $11.99 | |||
 | 298474 | 59 | SMALL CUSHION | $1.99 | ||
| 338640 | 60 | RAIL,DECK,ARPS,RT | $70.49 | |||
 | 311588 | 61 | IDLER ROLLER | $114.99 | ||
| 335268 | 62 | FRAME ENDCAP | $70.99 | |||
 | 230327 | 63 | 1/4″ X 2 1/4″ SCREW | $19.49 | ||
 | 125819 | 64 | STANDOFF | $3.99 | ||
| 324470 | 65 | Front Hood with Decal | $117.99 | |||
| 324468 | 66 | Hood Cowling with Decal | $58.49 | |||
| 302527 | 67 | INCLINE FRAME SPACER | $1.49 | |||
| 348854 | 68 | UPRIGHT COAXIAL CABLE | $74.49 | |||
| 302634 | 69A | INCLINE MOTOR | $171.99 | |||
 | 114078 | 69B | LIFT SPACER | $2.49 | ||
| 191554 | 69C | 20″ INCLINE MTR WIRE HRNS | $13.99 | |||
 | 286707 | 69D | LIFT MTR SENSOR KIT | $70.49 | ||
| 300974 | 70 | INCLINE LEG | $103.49 | |||
| 311214 | 71 | FRAME SPACER | $13.49 | |||
 | 399610 | 72 | CONTROLLER | $185.99 | ||
| 302705 | 73 | CONTROLLER BRACKET | $12.49 | |||
| 230979 | 74 | BELLY PAN POST | $5.49 | |||
 | 186726 | 75 | POWER SWITCH | $22.49 | ||
 | 031229 | 76 | POWER CORD | $39.99 | ||
 | 173169 | 77 | SQUARE GROMMET | $0.99 | ||
| 310923 | 80 | CVR,UPRT,RT,BLK | $21.49 | |||
| 321582 | 81 | 75 inch Wiring Harness | $99.99 | |||
| 310934 | 82 | Left Base Cover | $50.49 | |||
| 324467 | 83 | Base Leg Cover with Decal | $0.99 | |||
| 301337 | 84 | HANDRAIL CAP | $3.49 | |||
| 310874 | 85 | LEFT HANDRAIL COVER | $6.99 | |||
| 310875 | 86 | RIGHT HANDRAIL COVER | $6.99 | |||
| 324464 | 87 | HB,ARPS,RT | $63.49 | |||
| 324465 | 88 | HB,ARPS,LT | $63.49 | |||
| 310928 | 89 | UPRT,LT,ARPS,W/DECAL | $130.49 | |||
| 324463 | 90 | UPRT,RT,ARPS,W/DECAL | $131.49 | |||
| 252433 | 91 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 301345 | 92 | CENTER FOOT | $2.99 | |||
| 302972 | 93 | Crossbar | NLA | Unavailable to order | ||
| 324462 | 94 | Base Upright Arms | $188.99 | |||
 | 310868 | 95 | RIGHT WHEEL CAP | $12.99 | ||
| 310867 | 96 | LEFT WHEEL CAP | $12.99 | |||
 | 139090 | 97 | WHEEL | $2.99 | ||
 | 303215 | 98 | KEY/CLIP | $24.99 | ||
| 132315 | 99 | ZIP TIE | $3.49 | |||
| 315184 | 100A | CHEST HEART RATE MONITOR | $98.99 | |||
| 315183 | 100B | CHEST PULSE STRAP | $12.49 | |||
| 361659 | 102 | POWER BOARD | $105.49 | |||
 | 296874 | 103B | CONSOLE FAN | $102.49 | ||
| 325396 | 103C | PULSE RECEIVER | $52.99 | |||
| 343149 | 103D | CNSL RE-PROG THUMB DR | $96.49 | |||
| 366706 | 103E | CNSL REPROG MIRCO SD CARD | $131.49 | |||
| 324466 | 104 | Console Support Arms | $114.99 | |||
 | 215822 | 105 | 4″ GRN WIRE | $5.99 | ||
| 243797 | 106 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
| 303188 | 107 | LEFT TRAY | NLA | Unavailable to order | ||
| 323911 | 109 | CNSL,BASE,HOPI 10,BLK | $89.49 | |||
 | 133333 | 111 | CLIP NUT | $0.99 | ||
 | 139968 | 112 | #10 X 3/4″ SCREW | $0.99 | ||
| 014073 | 113 | WASHER | $1.49 | |||
| 251429 | 115 | M4.2 X 12MM SCREW | $0.99 | |||
| 277561 | 116 | 1/4″ X 3/4″ BOLT | $1.99 | |||
| 324351 | 117 | CVR,TV,BLK | $7.49 | |||
| 324342 | 118 | BKT,TV MTG,LABBK | $76.99 | |||
| 330884 | 119 | ECA,LCD TV,ARPS,15.6″,W/TRIM | $461.99 | |||
| 330877 | 120 | TV TRIM | $7.49 | |||
| 324665 | 121 | ECA,REMOTE,KINGSTRONIC,PROFORM | NLA | Unavailable to order | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 348868 | # | 12″ TV CABLE | $49.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
 | 209460 | # | HEX KEY | $7.99 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 321490 | # | 12″ WIRE HRNS,4 WIRE,TV | $28.49 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 045023 | # | 5/32″ ALLEN WRENCH, HEX | $1.99 | |||
| 321489 | # | 12″ WIRE HRNS,5 WIRE,TV | $32.99 | |||
 | 189813 | # | FILTER WIRE | $23.99 | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
 | 128457 | # | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 324461 | # | Hardware Kit, Assembly Hardware and Parts | $84.99 | Unavailable to order | ||
 | 291486 | # | #8 X 5/8″ SCREW | $0.99 | ||
 | 102634 | # | 8″ GREEN WIRE | $3.49 | ||
| 348862 | # | COAXIAL EXTENSION CABLE | $71.49 |
