PROFORM HYBRID TRAINER PRO ELLIPTICAL – PFEL05815.5
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
136 Parts Available for PROFORM HYBRID TRAINER PRO ELLIPTICAL - PFEL05815.5 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 373024 | 2 | UPRIGHT | $122.99 | |||
| 372192 | 3 | Pivot Bracket | $120.99 | |||
| 372565 | 4A | CONSOLE (ALL-SMART) | $191.49 | Unavailable to order | ||
| 371542 | 4B | CNSL BATTERY DOOR | $15.49 | |||
| 203289 | 4C | #8 X 10MM SCREW | $0.99 | |||
| 372185 | 5 | FRONT STABILIZER | $72.49 | |||
| 372181 | 6 | REAR STABILIZER | $51.99 | |||
| 380841 | 7 | RIGHT UPPER BODY ARM | $95.99 | |||
| 372209 | 8 | RIGHT PIVOT LEG | $82.99 | |||
| 373025 | 9 | RIGHT PEDAL ARM | $119.99 | |||
| 380842 | 10 | LEFT UPPER BODY ARM | $39.99 | |||
| 372207 | 11 | LEFT PIVOT LEG | $77.49 | |||
| 373026 | 12 | LEFT PEDAL ARM | $119.99 | Unavailable to order | ||
| 372256 | 13 | PIVOT KNOB | $22.49 | |||
| 371624 | 14 | ACCESSORY TRAY | $17.49 | |||
| 372751 | 15 | GRIP | $13.49 | |||
| 271688 | 16 | PULSE SENSOR W/O WIRE | $60.99 | |||
| 371804 | 17 | WHEEL CAP | $2.49 | |||
| 371607 | 18 | CRANK COVER | $46.49 | |||
| 234664 | 19 | WHEEL BOLT | $5.49 | |||
| 372120 | 20 | WIRE COVER | $7.49 | |||
| 373126 | 21 | SIDE ACCESS COVER | $14.49 | |||
| 373022 | 22 | LEFT SHIELD | $96.49 | |||
| 373023 | 23 | RIGHT SHIELD | $99.99 | |||
| 372716 | 24 | CRANK ARM | $59.49 | |||
| 371500 | 26 | REAR ACCESS COVER | $7.49 | |||
| 372372 | 27 | BACKREST | $97.49 | |||
| 372752 | 28 | SEAT | $78.49 | |||
| 372734 | 29 | RIGHT SEAT HANDLEBAR | $25.49 | |||
| 220095 | 31 | 3/8″ X 1.5″ SCREW, NOTE: | $23.49 | |||
| 372443 | 33 | ADJUSTMENT HANDLE | $7.49 | |||
| 372000 | 34 | ADJUSTMENT LEVER | $41.49 | |||
| 372034 | 35 | BRAKE BLOCK | $4.49 | |||
| 372008 | 36 | BRAKE BUSHING | $21.49 | |||
| 372757 | 37 | BRAKE | $28.49 | |||
| 372010 | 38 | BRAKE SPACER | $0.99 | |||
| 358911 | 39 | UPPER ROLLER | $12.49 | |||
| 358910 | 40 | AXLE | $22.49 | |||
| 126166 | 41 | 26MM X 76MM INT ENDCAP | $6.99 | |||
| 371805 | 42 | STABILIZER CAP | $3.99 | |||
| 400937 | 43 | C-MAGNET | $104.49 | |||
 | 241949 | 44 | RESISTANCE MOTOR | $112.99 | ||
 | 304734 | 45 | RESISTANCE ARM | $32.99 | ||
 | 241954 | 46 | RESISTANCE DISC | $1.99 | ||
 | 303952 | 47 | RESISTANCE BRACKET | $4.99 | ||
| 299290 | 48 | PULLEY | $95.99 | |||
| 372309 | 50 | WELD SPACER | $0.99 | |||
 | 139703 | 51 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
| 372440 | 52 | BEARING SPACER | $0.99 | |||
| 372291 | 53 | CRANK COLLAR | $11.49 | |||
| 372203 | 54 | IDLER AXLE | $39.49 | |||
| 372254 | 55 | IDLER BOLT | $4.49 | |||
| 372250 | 56 | IDLER BUSHING | $2.99 | |||
| 372197 | 57 | IDLER BRACKET | $34.99 | |||
| 372257 | 58 | SMALL PULLEY | $28.49 | |||
| 373047 | 59 | FLYWHEEL | $109.49 | |||
 | 372087 | 60 | REED SWITCH/WIRE | $23.49 | ||
| 373028 | 61 | SEAT FRAME | $84.49 | |||
 | 237631 | 62 | LEVELING FOOT | $34.99 | ||
 | 282277 | 63 | REED SWITCH CLAMP | $3.49 | ||
 | 176559 | 64 | DRIVE BELT | $59.99 | ||

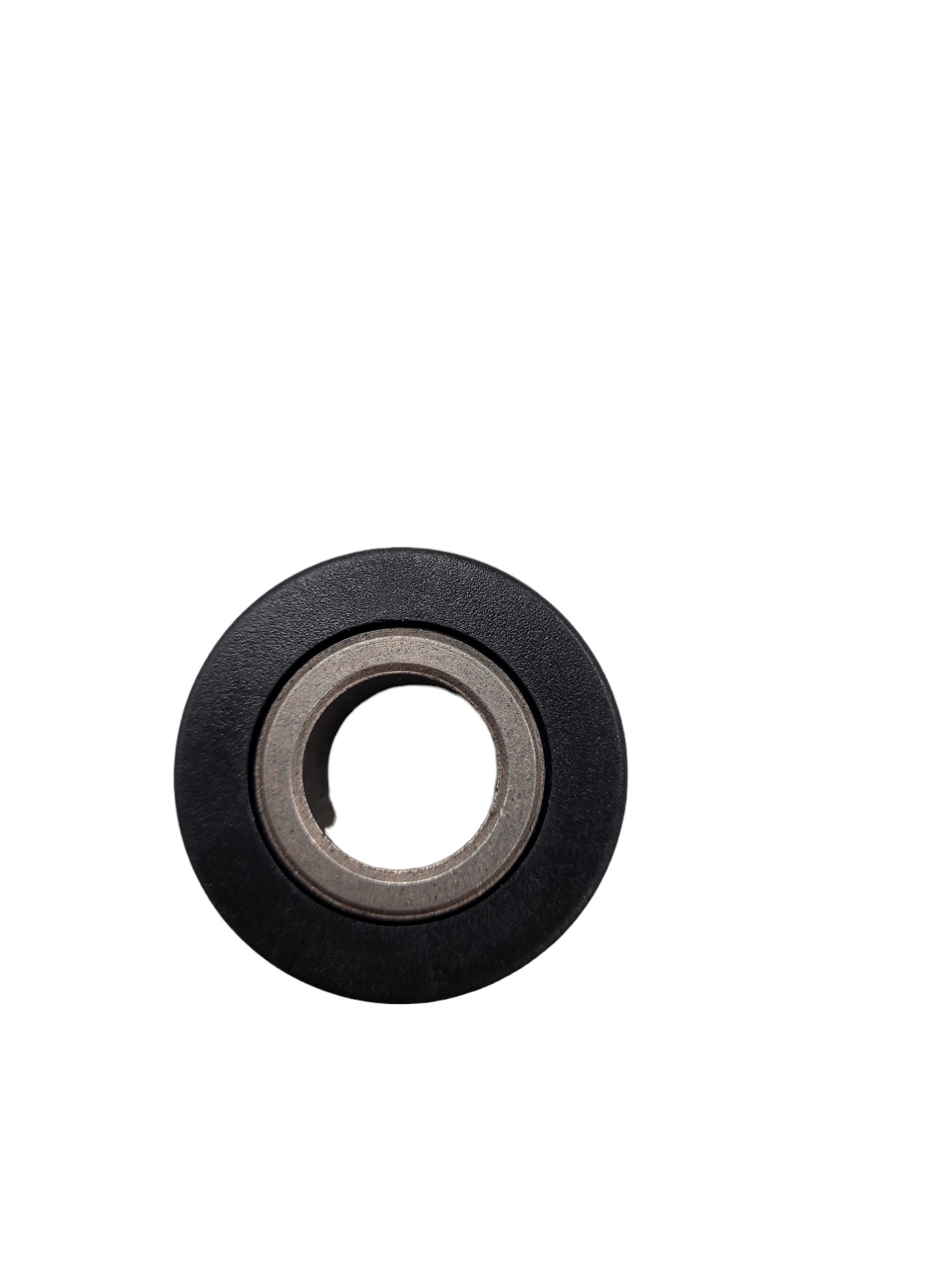

 | 332787 | 65 | PIVOT BUSHING | $20.49 | ||
| 372226 | 66 | LEFT CRANK BRACKET | $22.99 | |||
| 373103 | 67 | SET SCREW | $0.99 | |||
 | 333350 | 68 | M8 NUT | $1.99 | ||
 | 291494 | 69 | 5/16″ FLANGE SCREW | $17.49 | ||
| 372742 | 70 | RIGHT LARGE PEDAL | $62.99 | |||
| 372743 | 71 | LEFT LARGE PEDAL | $62.99 | |||
| 372744 | 72 | PEDAL INSERT | $21.49 | |||
| 372745 | 73 | PEDAL BASE | $25.99 | |||
| 372747 | 74 | RIGHT SMALL PEDAL | $29.99 | |||
| 372748 | 75 | LEFT SMALL PEDAL | $31.49 | |||
| 250420 | 76 | IDLER BOLT | $2.99 | |||
| 332701 | 78 | UPPER BODY ARM COVER | $14.49 | |||
 | 371082 | 79 | PIVOT SPACER | $34.99 | ||

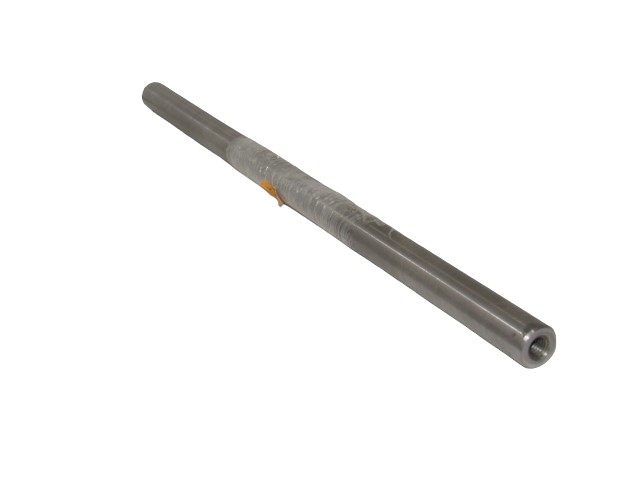

 | 332271 | 80 | AXLE | $73.99 | Unavailable to order | |
 | 121642 | 81 | 1.25″ SQ ENDCAP | $1.49 | ||
| 277311 | 82 | WHEEL | $3.49 | |||
 | 372122 | 83 | PIVOT COVER | $0.99 | ||
| 363285 | 84 | M4 X 20MM SCREW | $0.99 | |||
 | 157600 | 85 | BUMPER | $1.99 | ||
 | 347975 | 86 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
 | 331026 | 87 | M8 WASHER | $3.99 | ||
 | 150327 | 88 | M5 LOCKNUT | $1.99 | ||
| 368038 | 89 | M5 X 10MM SCREW | $0.99 | |||
 | 197404 | 91 | M5 WASHER | $1.99 | ||
| 373259 | 92 | M8 X 20MM SCREW | $3.99 | |||
| 372736 | 93 | LEFT SEAT HANDLEBAR | $25.49 | |||
 | 372406 | 94 | UPPER WIRE | $30.99 | ||
 | 234732 | 95 | M8 X 38MM SCREW | $4.49 | ||
| 234183 | 96 | LOWER WIRE HARNESS | $60.49 | |||
| 172117 | 97 | M6 X 18MM SCREW | $3.49 | |||
| 246784 | 98 | M6 X 35MM BOLT | $0.99 | |||
| 378278 | 99 | M10 X 55MM BOLT | $1.99 | |||
| 241734 | 100 | M4.2 X 19MM TEK SCREW | $0.99 | |||
| 372442 | 101 | M8 X 54MM SHOULDER SCREW | $3.49 | |||
 | 251830 | 102 | M8 X 38MM SCREW | $4.49 | ||
| 399152 | 103 | LEFT PULSE WIRE | $65.49 | |||
| 399154 | 104 | RIGHT PULSE WIRE | $27.49 | |||
 | 197037 | 105 | M6 X 12MM SCREW | $0.99 | ||
 | 204488 | 106 | M8 X 12MM SCREW | $3.49 | ||
| 371791 | 107 | PEDAL AXLE | $22.99 | |||
| 107428 | 108 | SIDESHIELD SCREW | $0.99 | |||
 | 234926 | 109 | OUTLET PLATE SCREW | $2.99 | ||
| 369795 | 110 | M10 LOCKNUT 12T | $0.99 | |||
| 130286 | 111 | M10 WASHER | $11.49 | |||
 | 014174 | 112 | M8 SPLIT WASHER | $1.99 | ||
| 378273 | 113 | M19 SNAP RING | $17.49 | |||
 | 370011 | 114 | SMALL SNAP RING | $0.99 | ||
 | 362430 | 115 | M4 X 16MM BLUNT SCREW | $3.49 | ||
| 378279 | 116 | M4 X 12MM SCREW | $0.99 | |||
 | 113842 | 117 | MAGNET | $1.49 | ||
| 373128 | 119 | LEFT PEDAL BRACE | $61.99 | |||
| 372718 | 120 | PEDAL BRACE BUSHING | $0.99 | |||
| 380917 | 121 | M10 X 103MM BOLT | $7.49 | |||
 | 268411 | 122 | M6 WASHER | $0.99 | ||
| 246785 | 123 | M6 X 15MM BUTTON SCREW | $3.49 | |||
| 318342 | 125 | WEIGHT SCREW | $0.99 | |||
 | 133333 | 126 | HOOD CLIP | $0.99 | ||
| 132315 | # | WIRE TIE | $3.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 116566 | # | PLASTIC TIE | $0.99 | |||
| 393338 | # | Hardware Kit | $118.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
 | 337717 | # | Power Adapter | $18.99 | ||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 166909 | # | SITE WARNING DECAL | $2.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
 | 104838 | # | GREASE | $8.49 | ||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
| 268986 | # | GRD, CABLE LOOM, 11″ BLK | $0.99 | |||
| 397676 | # | USER’S MANUAL | $23.99 |
