Proform Hybrid Trainer Elliptical – 23890.0 / 238900
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
201 Parts Available for Proform Hybrid Trainer Elliptical - 23890.0 / 238900 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 372580 | 2 | UPRIGHT | $126.99 | |||
| 372192 | 3 | Pivot Bracket | $120.99 | |||
| 181590 | 4 | WEIGHT BUMPER | ||||
 | 372328 | 4A | CONSOLE | $182.49 | ||
| 371542 | 4B | CNSL BATTERY DOOR | $15.49 | |||
| 233629 | 5 | WEIGHT GUIDE SPACER | $3.49 | |||
| 372185 | 5 | FRONT STABILIZER | $72.49 | |||
| 372181 | 6 | REAR STABILIZER | $51.99 | |||
| 233615 | 6 | Left Side Cover | $259.99 | |||
| 372582 | 7 | RIGHT UPPER BODY ARM | $47.99 | |||
| 233614 | 7 | RIGHT SIDE COVER | $275.99 | |||
| 372209 | 8 | RIGHT PIVOT LEG | $82.99 | |||
| 233862 | 8 | Frame Handle Pad | $42.49 | |||
| 372631 | 9 | RIGHT PEDAL ARM | $96.99 | |||
| 307476 | 9 | HANDLE | $25.49 | |||
| 372581 | 10 | LEFT UPPER BODY ARM | $47.99 | |||
| 233911 | 11 | WEIGHT GUIDE BUSHING | $2.99 | |||
| 372207 | 11 | LEFT PIVOT LEG | $77.49 | |||
| 233865 | 12 | WEIGHT PIN | ||||
| 372630 | 12 | LEFT PEDAL ARM | $96.99 | |||
| 372256 | 13 | PIVOT KNOB | $22.49 | |||
| 180340 | 13 | 20-Pound Weight | NLA | |||
| 371624 | 14 | ACCESSORY TRAY | $17.49 | |||
| 180342 | 14 | 10-Pound Weight | $192.99 | |||
| 200329 | 15 | FOAM GRIP | $81.99 | |||
| 233622 | 15 | TOP WEIGHT | $370.99 | |||
| 271688 | 16 | PULSE SENSOR | $60.99 | |||
| 235268 | 17 | SWIVEL ARM | $352.99 | |||
| 371804 | 17 | WHEEL CAP | $2.49 | |||
 | 153209 | 18 | SPINDLE COVER | $3.49 | ||
| 233627 | 18 | TRUNNION | $112.99 | |||
| 234664 | 19 | M10 X 80MM SCREW | $5.49 | |||
| 235124 | 19 | Left Arm | NLA | |||
| 235125 | 20 | Right Arm | NLA | |||
| 372120 | 20 | WIRE COVER | $7.49 | |||
| 233624 | 21 | 38MM X 14MM SPACER | $25.99 | |||
| 371499 | 21 | SIDE ACCESS COVER | $14.49 | |||
| 235130 | 22 | Counterweight | $383.49 | |||
| 372579 | 22 | LEFT SHIELD | $102.99 | |||
| 372578 | 23 | RIGHT SHIELD | $84.99 | |||
| 372286 | 24 | CRANK ARM | $59.49 | |||
| 372009 | 25 | PIVOT COVER | $1.99 | |||
| 233623 | 25 | 38mm x 30mm Spacer | $67.99 | |||
| 371928 | 26 | REAR ACCESS COVER | $5.49 | |||
| 233901 | 26 | 16mm x 23mm Spacer | $8.99 | |||

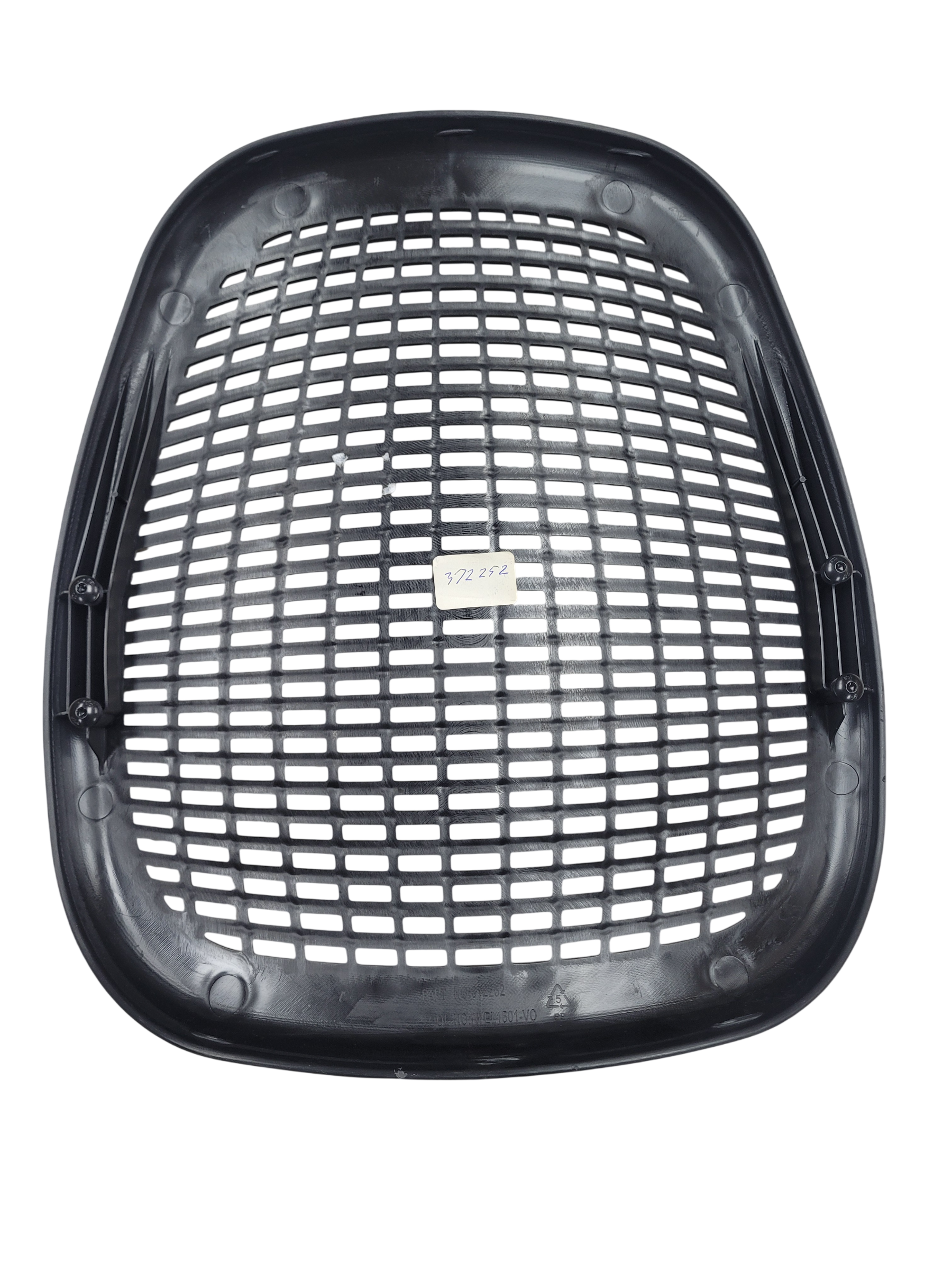

| 372252 | 27 | BACKREST | $59.99 | |||
| 233628 | 27 | 16mm x 42mm Spacer | $16.49 | |||
| 370844 | 28 | SEAT | $71.99 | |||
| 233633 | 28 | Pulley Plate | $22.49 | |||
| 372222 | 29 | SEAT HANDLEBAR | $22.99 | |||
| 235129 | 29 | Pulley Disc | $48.49 | |||
| 233914 | 30 | 10 Pound Weight Bushing | NLA | |||
| 372228 | 30 | Right Crank Bracket | NLA | |||
| 243656 | 31 | SEAT GRIP | $18.49 | |||
| 238947 | 31 | M8 ACORN NUT | $3.49 | |||
| 372239 | 32 | SEAT CARRIAGE | $58.49 | |||
| 233861 | 32 | Knob | NLA | |||
| 243728 | 33 | SEAT HANDLEBAR CAP | $3.49 | |||
| 372241 | 34 | SEAT CARRIAGE BRACKET | $14.49 | |||
| 186133 | 34 | 115mm Pulley | NLA | |||
| 372253 | 35 | SEAT CARRIAGE BUSHING | $6.49 | |||
 | 230475 | 35 | 3 1/2″ PULLEY | $70.99 | ||
| 233895 | 36 | Cable Cover | $31.49 | |||
| 371536 | 37 | CARRIAGE KNOB | $22.99 | |||
| 233896 | 37 | Cable Eye | $16.49 | |||
| 235269 | 38 | SHROUD | $401.99 | |||
| 013132 | 38 | M5 X 10MM SCREW | $0.99 | |||
| 233903 | 39 | Bungee Cord | NLA | |||
| 260939 | 39 | M6 X 10MM SCREW | $0.99 | |||
 | 199493 | 40 | M6 X 15MM SCREW | $4.62 | ||
| 197037 | 40 | M6 X 12MM SCREW | $0.99 | |||
| 182592 | 40 | Pivot Pulley Bearing | NLA | |||
| 233916 | 41 | TOP WEIGHT TOP BUSHING | $2.99 | |||
| 126166 | 41 | BACKREST FRAME ENDCAP | $6.99 | |||
| 233917 | 42 | TOP WEIGHT BOTTOM BUSHING | $1.49 | |||
| 371805 | 42 | STABILIZER CAP | $3.99 | |||
| 400937 | 43 | C-MAGNET | $104.49 | |||
| 233913 | 43 | 20-Pound Weight Bushing | $6.99 | |||
| 110944 | 44 | M10 NUT | $3.49 | |||
 | 241949 | 44 | RESISTANCE MOTOR | $99.99 | ||
 | 304734 | 45 | RESISTANCE ROD | $43.49 | ||
| 185387 | 45 | LINK ARM BEARING | $8.49 | |||
 | 241954 | 46 | RSISTANCE MOTOR DISK | $1.99 | ||
| 233907 | 46 | Inner C-Clip | $3.49 | |||
 | 303952 | 47 | HANDLE BRACKET | $4.99 | ||
| 233894 | 47 | COUPLER | NLA | |||
| 194883 | 48 | LIFT AXLE WASHER | NLA | |||
| 299290 | 48 | LARGE PULLEY | $95.99 | |||
| 233908 | 49 | Outer C-Clip | $4.49 | |||
| 372200 | 49 | CRANK | $55.99 | |||
| 372309 | 50 | WELD SPACER | $0.99 | |||
| 233637 | 50 | RUBBER FOOT | $25.99 | |||
| 132139 | 51 | M4 X 25MM SCREW | $0.99 | |||
 | 139703 | 51 | CRANK BEARING | $33.49 | ||
| 372440 | 52 | BEARING SPACER | $0.99 | |||
| 233912 | 52 | TOP WEIGHT BUMPER | $3.49 | |||
| 238898 | 53 | M5 x 25mm Screw | $1.49 | |||
| 372291 | 53 | CRANK COLLAR | $11.49 | |||
 | 014117 | 54 | STAR WASHER | $0.99 | ||
| 372203 | 54 | IDLER AXLE | $39.49 | |||
| 014086 | 55 | CROSSBAR WASHER | $0.99 | |||
| 372254 | 55 | IDLER BOLT | $4.49 | |||
| 238928 | 56 | Long Weight Guide Bushing | $2.99 | |||
| 372250 | 56 | IDLER BUSHING | $2.99 | |||
| 233947 | 57 | M10 x 128mm Button Head Screw | NLA | |||
| 372197 | 57 | IDLER BRACKET | $34.99 | |||
| 372257 | 58 | SMALL PULLEY | $28.49 | |||
 | 180009 | 58 | M10 X 88MM BUTTON SCREW | $16.99 | ||
| 372629 | 59 | FLYWHEEL | $89.99 | |||
| 135574 | 59 | M6 X 64MM BOLT | $5.49 | |||
 | 372087 | 60 | REED SWITCH/WIRE | $23.49 | ||
| 144524 | 61 | M10 X 52MM BUTTON BOLT | $18.49 | |||
| 372585 | 61 | Seat Frame | NLA | |||
 | 237631 | 62 | LEVELING FOOT | $34.99 | ||
 | 144985 | 62 | #8 X 5/8″ SCREW | $0.99 | ||
 | 282277 | 63 | CLAMP | $3.49 | ||
 | 176559 | 64 | DRIVE BELT | $59.99 | ||
| 237951 | 64 | M10 X 50MM BOLT | $5.49 | |||
| 194885 | 65 | M10 X 36MM BOLT | $6.49 | |||
 | 332787 | 65 | PIVOT BUSHING | $20.49 | ||
| 372226 | 66 | LEFT CRANK BRACKET | $22.99 | |||
| 373103 | 67 | SET SCREW | $0.99 | |||
| 191155 | 67 | M10 x 105mm SHC Screw | $15.49 | |||
| 207203 | 67 | M8 X 10MM SET SCREW | $1.99 | |||
| 135578 | 68 | M12 NYLON LOCKNUT | $6.99 | |||
 | 333350 | 68A | M8 DECK MTG LOCKNUT | $1.99 | ||
 | 148710 | 68B | M10 LOCKNUT | $2.49 | ||
| 233634 | 69 | Plastic Spacer | NLA | |||
 | 291494 | 69 | FLANGE SCREW | $2.49 | ||
| 233918 | 70 | Bungee Cord Attachment | NLA | |||
| 372584 | 70 | RIGHT PEDAL | $45.99 | |||
| 233948 | 71 | M12 x 38mm Button Head Screw | NLA | |||
| 372583 | 71 | LEFT PEDAL | $36.99 | |||
| 372247 | 72 | PEDAL PLATE | $61.99 | |||
| 238896 | 72 | M12 X 52MM BUTTON SCREW | $15.99 | |||
| 230158 | 73 | BUMPER | $8.49 | |||
| 238899 | 73 | M8 X 48MM BUTTON SCREW | $5.99 | |||
| 014073 | 74 | HANDRAIL WASHER | $1.49 | |||
| 372249 | 74 | PEDAL BRACE | $19.99 | |||
| 246303 | 75 | SMALL UPPER BODY ARM CAP | $0.99 | |||
| 194884 | 76 | M10 X 95MM BOLT | $18.49 | |||
| 250420 | 76 | M10 X 19MM BUTTON BOLT | $2.99 | |||
| 192210 | 77 | M10 X 60MM BOLT | $6.49 | |||
| 332701 | 78 | UPPER BODY COVER | $14.49 | |||
| 233898 | 78 | Cable Trap | NLA | |||
| 194746 | 79 | LARGE WASHER | $14.49 | |||
 | 371082 | 79 | PIVOT SPACER | $34.99 | ||
 | 332271 | 80 | PIVOT AXLE | $73.99 | ||
| 233919 | 80 | Magnetic Strip | $80.99 | |||
| 121642 | 81 | HANDRAIL TUBE CAP | $1.49 | |||
 | 014063 | 81 | ISOLATOR WASHER | $0.99 | ||
| 277311 | 82 | WHEEL | $3.49 | |||
| 344347 | 82 | ANKLE STRAP | $69.49 | |||
 | 372122 | 83 | PIVOT COVER | $0.99 | ||
| 233920 | 83 | Foot Spacer | $6.49 | |||
 | 362430 | 84 | M4 X 16MM SCREW | $3.49 | ||
| 233906 | 84 | M10 Lock Washer | $1.99 | |||
 | 157600 | 85 | BUMPER | $1.99 | ||
 | 347975 | 86 | M8 X 14MM SHOULDER SCREW | $10.99 | ||
 | 331026 | 87 | M8 RAMP PVT/WHEEL WASHER | $0.99 | ||
 | 150327 | 88 | M5 NUT | $1.99 | ||
| 368038 | 89 | M5 X 10MM SCREW | $0.99 | |||
| 234926 | 90 | M4 X 10MM BLUNT SCREW | $2.99 | |||
 | 197404 | 91 | M5 WASHER | $1.99 | ||
| 373259 | 92 | M8 X 20MM BOLT | $3.99 | |||
 | 113842 | 93 | MAGNET | $1.49 | ||
 | 372406 | 94 | UPPER WIRE | $30.99 | ||
 | 234732 | 95 | M8 X 38MM BOLT | $4.49 | ||
| 234183 | 96 | LOWER WIRE HARNESS | $60.49 | |||
| 172117 | 97 | M6 X 18MM SCREW | $3.49 | |||
| 246784 | 98 | M6 X 35MM SCREW | $0.99 | |||
| 378278 | 99 | M10 X 55MM BOLT | $1.99 | |||
 | 370011 | 100 | M8 SNAP RING | $0.99 | ||
| 372442 | 101 | M8 X 54MM SHOULDER SCREW | $3.49 | |||
| 251830 | 102 | M8 X 38MM BOLT | $4.49 | |||
| 399152 | 103 | LEFT PULSE WIRE | $65.49 | |||
| 372376 | 104 | Right Pulse Wire | NLA | |||
| 399154 | 104 | RIGHT PULSE WIRE | $27.49 | |||
| 378273 | 105 | M19 SNAP RING | $17.49 | |||
 | 204488 | 106 | M8 X 12MM SCREW | $3.49 | ||
| 372441 | 107 | M8 X 98MM BOLT | $6.49 | |||
| 360367 | 108 | M4 X 16MM BRIGHT SCREW | $0.99 | |||
| 378277 | 109 | M10 X 110MM SHOULDER BOLT | $5.49 | |||
| 014174 | 110 | M8 SPLIT WASHER | $1.99 | |||
 | 012142 | 111 | M6 NYLON LOCKNUT | $0.99 | ||
 | 133333 | 112 | BELLY PAN CLIP | $0.99 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
 | 104838 | # | LUBE, GREASE | $8.49 | ||
| 116566 | # | 15 1/2″ WIRE TIE | $0.99 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 132315 | # | WIRE TIE | $3.49 | |||
| 016057 | # | CABLE TIE | $2.99 | |||
| 393338 | # | Hardware Kit | $118.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 268986 | # | 11″ CABLE GUARD, BLK | $0.99 | |||
| 166909 | # | DECAL, SITE WARNING | $2.49 | |||
 | 337717 | # | Power Adapter | $28.99 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 |
