PROFORM ENDURANCE 920 E ELLIPTICAL – PFEL51016.4
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
169 Parts Available for PROFORM ENDURANCE 920 E ELLIPTICAL - PFEL51016.4 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331296 | 2 | REAR STABILIZER | $138.99 | |||
| 376234 | 3 | RAMP | $192.99 | |||
 | 385362 | 4 | UPRIGHT | $192.49 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 401598 | 7A | CONSOLE | $530.49 | |||
| 397222 | 7B | CONSOLE REPROG.DEVICE | $106.99 | |||
| 385663 | 7C | CNSL FAN | $111.99 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 372664 | 9 | TABLET HOLDER | $96.99 | ||
| 385339 | 10 | Ramp Cover | $141.99 | |||
| 320496 | 11 | INCLINE MOTOR | $156.49 | |||
| 331259 | 12 | INCLINE MOTOR ARM | $72.49 | |||
 | 320336 | 14 | SMALL ROLLER | $8.49 | ||
| 385338 | 15 | Rear Stabilizer Cover | $78.49 | |||
 | 371314 | 16A | TRACK | $18.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||
| 320335 | 17 | LARGE FRAME BUSHING | $16.99 | |||
| 338325 | 18 | CRANK | $102.99 | |||
| 277369 | 19 | PULLEY | $174.49 | |||
| 384925 | 20 | CRANK ARM | $155.49 | |||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332581 | 23 | M10X15MM FLAT HEAD SCREW | $6.49 | |||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
| 195975 | 26 | M10 X 42MM BOLT | $12.49 | |||
 | 125819 | 27 | PLASTIC STAND-OFF | $3.99 | ||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
 | 416695 | 31 | CONTROLLER | $161.49 | ||
 | 264511 | 32 | POWER SWITCH | $32.99 | ||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | FRONT WHEEL | $3.49 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 372087 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 131090 | 39 | REED SWITCH CLIP | $0.99 | ||
 | 295804 | 40 | FRAME BEARING | $66.99 | ||
| 362905 | 41 | EDDY MECH SNAP RING | $1.49 | |||
| 338320 | 42 | SLEEVE | $2.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
 | 385178 | 44 | Left Pedal Arm | $184.99 | ||
| 380033 | 45 | LEFT ROLLER ARM | $285.99 | |||
| 385457 | 46 | LEFT UPPER BODY LEG | $133.99 | |||
| 385340 | 47 | LEFT UPPER BODY ARM | $144.99 | |||
| 250210 | 48 | HAIRPIN COTTER PIN | $1.99 | |||
| 385335 | 49 | Pedal | $162.99 | |||
 | 275907 | 50A | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 385370 | 52A | LT PEDAL HANDLE | $23.49 | |||
| 385372 | 52B | RT PEDAL HANDLE | $23.49 | |||
 | 384941 | 53 | AXLE COVER | $9.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 385260 | 58 | RIGHT PEDAL ARM | $166.49 | |||
| 380020 | 59 | RIGHT ROLLER ARM | $176.49 | |||
| 385373 | 60 | RIGHT UPPER BODY LEG | $133.99 | |||
| 385341 | 61 | RIGHT UPPER BODY ARM | $144.99 | |||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 399157 | 63B | PULSE WIRE | $59.99 | |||
| 384800 | 64 | PEDAL ARM AXLE | $43.49 | |||
| 384834 | 65 | RIGHT ARM FRONT COVER | $53.49 | |||
| 384828 | 66 | RIGHT ARM REAR COVER | $48.99 | |||
| 384816 | 67 | LEFT ARM FRONT COVER | $51.99 | |||
| 384822 | 68 | LEFT ARM REAR COVER | $46.49 | |||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
| 384458 | 71 | DISC RING | $68.49 | |||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 385366 | 73 | Left Shield | $140.49 | |||
| 385367 | 74 | RIGHT SHIELD | $126.49 | |||
| 385365 | 75 | SHIELD COVER | $122.99 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
 | 133333 | 77 | CLIP | $0.99 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 385137 | 79 | FRONT CONSOLE COVER | $29.99 | |||
| 385136 | 80 | REAR CONSOLE COVER | $54.49 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 191032 | 82A | M8X13MM,PULLEY CRANK SCRW | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 248342 | 84 | M10 WASHER | $1.99 | |||

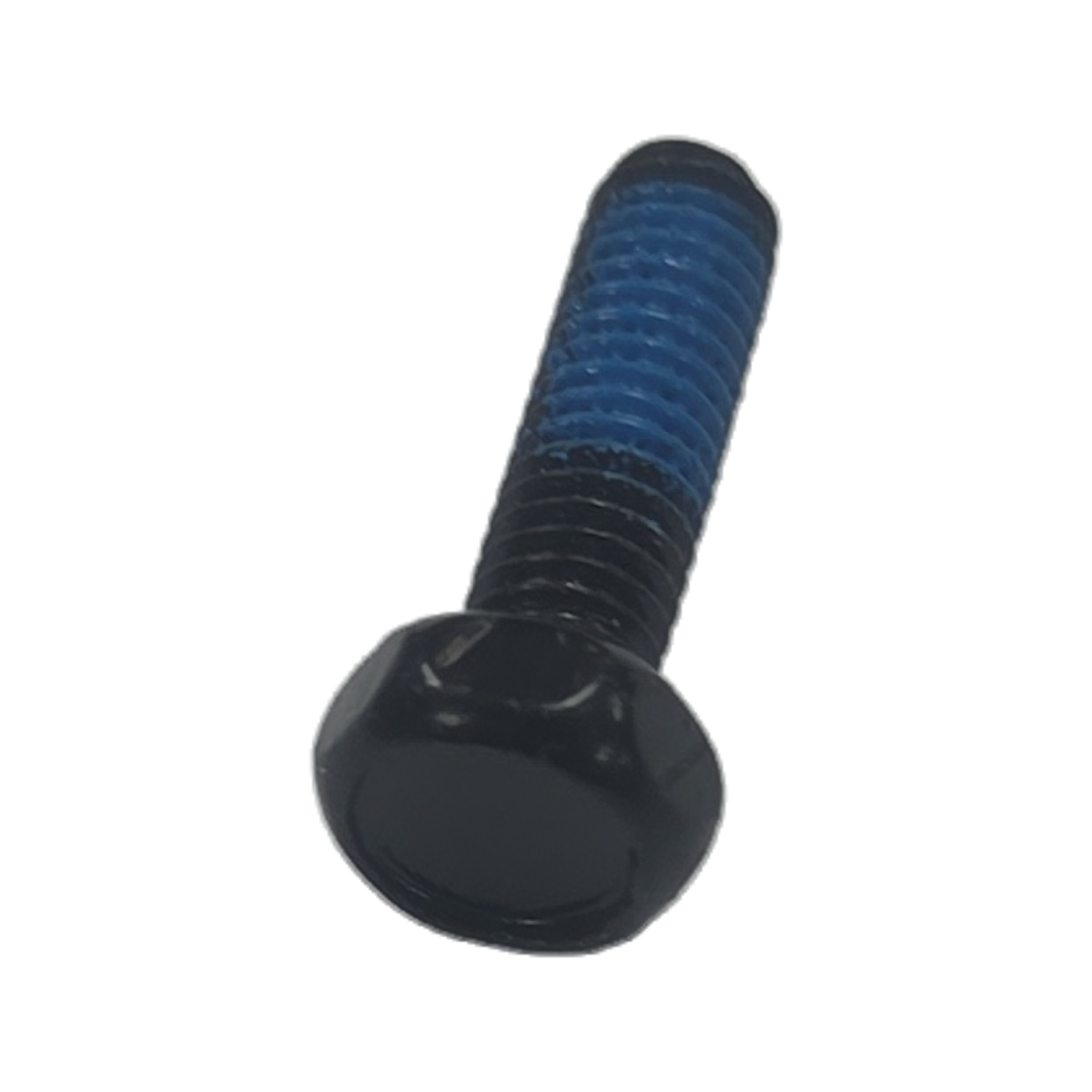

| 310664 | 85 | M4 X 14MM SCREW | $2.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
 | 208163 | 89 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 340140 | 90 | M6 CRANK ARM WASHER | $1.49 | ||
 | 281149 | 91 | M10 X 50MM HEX SCREW | $6.49 | ||
| 248334 | 92 | M10 X 19MM SCREW | $5.49 | |||
 | 168267 | 93 | FAN SCREW | $0.99 | ||
| 235322 | 94 | M5 WASHER | $2.49 | |||
 | 206321 | 95A | M8 X 19MM SCRW, NOTE: OM | $3.49 | ||
 | 223089 | 95B | LINKARM WHEEL BKT SCRW | $6.99 | ||
| 251830 | 96 | M8 X 38MM BOLT | $4.49 | |||
| 368057 | 97 | M8 WASHER | $0.99 | |||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
 | 232289 | 99 | M10 X 25MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | CABLE TIE/BELLYPAN SCREW | $0.99 | ||
 | 194878 | 101B | M4 X 19MM SCREW | $2.99 | ||
 | 195562 | 101C | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102 | M8 LOCKNUT | $1.99 | ||
| 262341 | 103 | M6 X 12MM SCREW | $3.49 | |||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | MUSHROOM FASTENER/SCREW | $2.49 | ||
| 303479 | 106B | COVER MOUNT SCREW | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 242105 | 108 | M6 X 13MM SCREW | $1.99 | |||
| 208938 | 109 | M10 X 60MM BOLT | $5.99 | |||
| 362904 | 110 | MAIN WIRE | $69.99 | |||
| 184369 | 111 | TABLET HOLDER SCREW | $0.99 | |||
 | 313668 | 112 | POWER CORD GROMMET | $9.49 | ||
 | 119199 | 113 | DRIVE BELT | $59.99 | ||
| 300804 | 115 | CONTROLLER BRACKET | $29.99 | |||
 | 316683 | 116 | DISC | $99.99 | ||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 320382 | 118 | SHIELD COVER CAP | $40.99 | |||
 | 342275 | 119A | POWER CORD | $49.99 | ||
| 317411 | 119B | POWER CORD,FCA | $82.99 | |||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | FRAME BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
| 386630 | 124 | SMALL LEVELING FOOT | $7.99 | |||
 | 157600 | 125 | BUMPER | $1.99 | ||
 | 384942 | 126 | M8 X 20MM SCREW | $6.49 | ||
 | 250961 | 127 | M4.2 X 19MM SCREW | $0.99 | ||
| 238278 | 128 | LIFT ARM WASHER | $1.49 | |||
 | 384931 | 129 | SMALL ARM BEARING | $43.99 | ||
| 377962 | 130 | RT REAR HANDLEBAR CVR | $16.99 | |||
| 377960 | 131 | RT FRONT HANDLEBAR CVR | $16.99 | |||
| 377964 | 134 | BOSS | $9.49 | |||
 | 378015 | 135 | M6 X 110MM SCREW | $5.49 | ||
| 349611 | 136 | PEDAL AXLE | $27.49 | |||
| 195728 | 137 | M10 FLANGE NUT | $3.49 | |||
| 384801 | 138 | BEARING SPACER | $24.99 | |||
 | 337966 | 139 | LARGE AXLE COVER | $5.49 | ||
 | 223812 | 140 | M8 WASHER | $1.99 | ||
| 331242 | 141 | GROMMET | $6.49 | |||
| 384939 | 142A | LT PEDAL PLATE | $113.49 | |||
| 385170 | 142B | RT PEDAL PLATE | $113.49 | |||
 | 325993 | 143 | PEDAL PIN | $19.99 | ||
| 321268 | 144 | PEDAL SPRING | $3.49 | |||
| 387819 | 145 | M6 WASHER | $1.49 | |||
 | 194653 | 146 | M6 ACORN NUT | $1.99 | ||
| 197037 | 147 | M6 X 12MM SCREW | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 234276 | # | M4 GROUND SCREW | $0.99 | |||
| 330224 | # | DECAL,REWRK,OVERLAY SHEET | $61.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 328496 | # | 5 FRENCH DECALS ON 1SHEET | $87.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 266083 | # | DECAL, WARNING | $6.49 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 320643 | TS4 | 26″ WHITE WIRE,M/F | $34.99 | |||
| 320644 | TS5 | 30″ BLUE WIRE,F/F | $25.49 | |||
| 142711 | TS6 | GROUND WIRE | $2.49 | |||
| 302754 | TS7 | LIFT MOTOR WIRE HRNS | $27.49 | |||
| 324737 | TS8 | 20″ CNTRLR/RESIST WIRE | $30.49 |
