PROFORM CX5I TREADMILL – PFTL5981.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
89 Parts Available for PROFORM CX5I TREADMILL - PFTL5981.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 224019 | 1 | DRIVE BELT (REPLACES 118016) | $19.99 | ||
| 112825 | 2 | PULLEY/FLYWHEEL/FAN | $80.49 | |||
| 120867 | 3 | MOTOR TENSION NUT | $2.49 | |||

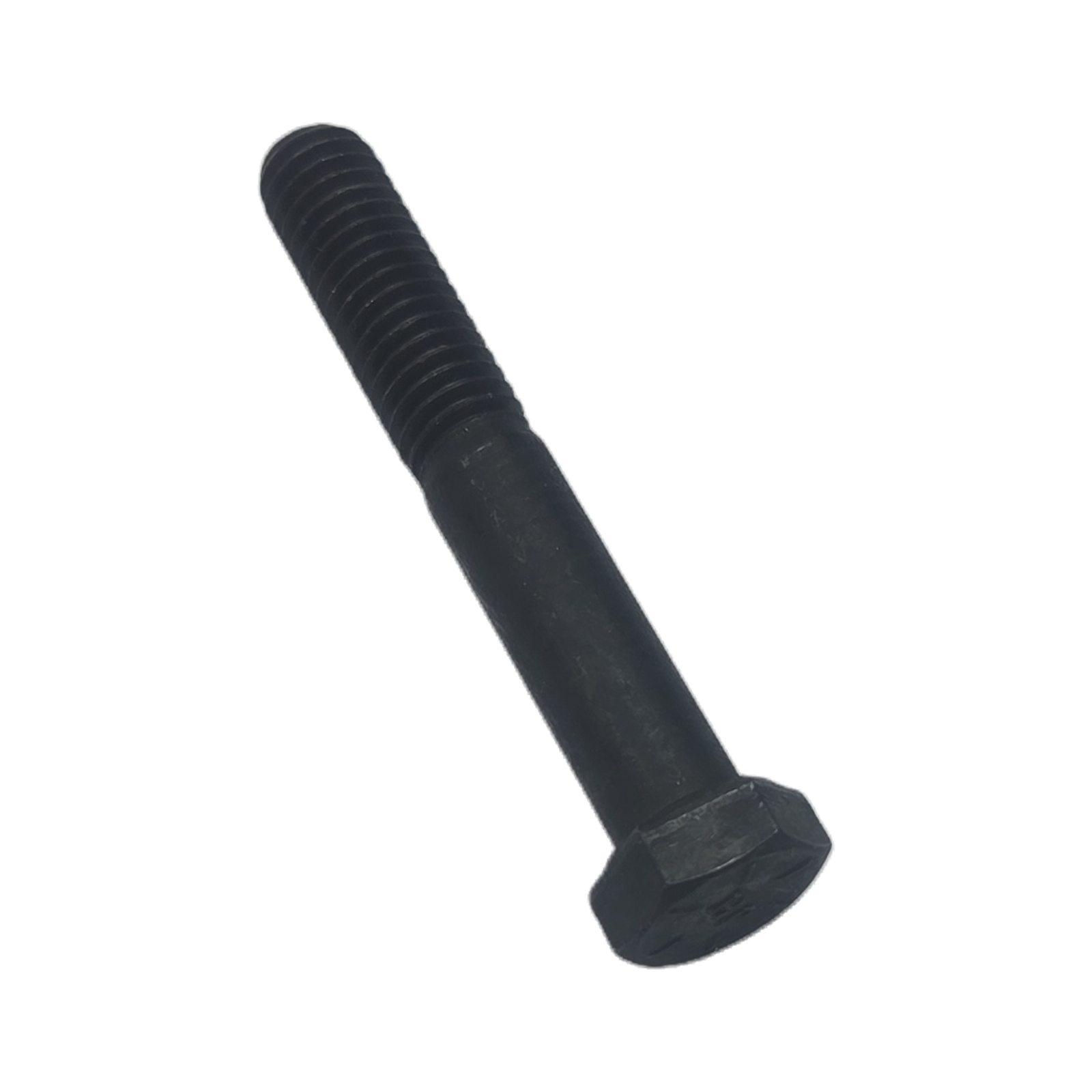

| 174804 | 5 | 3/8″ X 2 1/2″ BOLT | $3.49 | |||
| 158644 | 8 | STOP BRACKET | $2.99 | |||
| 159109 | 11 | LOCK PIN | $38.99 | |||
| 156273 | 13 | PIN CLIP | $0.99 | |||
 | 119425 | 15 | NUT | $0.99 | ||
| 180917 | 16 | GROUND/CHOKE SCREW | $0.99 | |||
| 148101 | 18 | SHORT HOOD BRACKET | $0.99 | |||
| 252433 | 20 | CAUTION DECAL, NOTE: | $0.99 | |||
 | 157504 | 21 | REED SWITCH | $26.99 | ||
| 175832 | 25 | ELECTRONICS BRACKET | $5.49 | |||
 | 109382 | 26 | CIRCUIT BREAKER | $15.99 | ||
 | 173169 | 28 | POWER CORD PLATE | $0.99 | ||
| 119994 | 32 | 1.25″ SCREW | $2.99 | |||
 | 012090 | 37 | 1/4″ NYLON LOCK NUT | $0.99 | ||
| 013443 | 38 | MOTOR BOLT | $0.99 | |||
| 013028 | 39 | ENDCAP SCREW | $0.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 128272 | 44 | PLATFORM SCREW | $0.99 | |||
 | 013576 | 46 | #8 X 1/2″ AB SCREW | $0.99 | ||
 | 138853 | 47 | BACKREST FASTENER | $0.99 | ||
| 116927 | 53 | CABLE TIE CLAMP | $0.99 | |||
| 116926 | 54 | RELEASABLE TIE | $0.99 | |||
 | 173063 | 55 | WALKING BELT W/FASTENERS | $135.49 | ||
 | 157096 | 59 | REAR FOOT | $4.49 | ||
 | 013282 | 60 | SPRING SCREW | $0.99 | ||
| 114261 | 61 | GROUND WIRE | $5.99 | |||
| 174144 | 62 | SMALL PLATE | $4.49 | |||
 | 157004 | 64 | REAR ENDCAP | $79.99 | ||
 | 105444 | 65 | REAR ROLLER ADJ BOLT | $0.99 | ||
| 155353 | 67 | LATCH DECAL | $64.99 | |||
| 100691 | 68 | PLATFORM SCREW | $0.99 | |||
 | 013322 | 69 | #8 X 3/4″ SCREW | $0.99 | ||
| 126038 | 74 | MOTOR TENSION BOLT | $2.49 | |||
 | 013162 | 76 | SAFETY COVER SCREW | $0.99 | ||
 | 169403 | 77 | STORAGE LATCH | $6.99 | ||
| 176015 | 80 | WIRE COVER | NLA | |||
 | 014117 | 81 | STAR WASHER | $0.99 | ||
| 176597 | 82 | UPRIGHT | $195.99 | |||
| 132449 | 83 | INCLINE LEG PIVOT BOLT | $1.99 | |||
| 177910 | 84 | MOTOR TENSION WASHER | $0.99 | |||
| 013601 | 86 | 3/8″ X 2″ SCREW | $8.99 | |||
| 179075 | 88 | CONSOLE ASSEMBLY | NLA | |||
| 147596 | 93 | BOOK HOLDER | NLA | |||
| 165009 | 95 | WHEEL | $2.49 | |||
| 167775 | 96 | INCLINE MOTOR SHIELD | $7.99 | |||
 | 157600 | 97 | BASE PAD | $1.99 | ||
| 134808 | 98 | TRIM GUARD | $21.49 | |||
 | 129004 | 99 | 1″ GROMMET | $1.99 | ||
| 131221 | 102 | HANDRAIL CAP | $1.49 | |||
| 185582 | 106 | CHOKE | $76.99 | |||
| 136728 | 107 | BELT GUIDE SCREW | $0.99 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
| 127860 | # | FASTENER | $0.99 | |||
| 153458 | # | GROUND WIRE | $2.99 | |||
| 123898 | # | 8″ WHITE WIRE, 2M/1F | $12.49 | |||
 | 161411 | . | BASE PAD SPACER | $0.99 | ||
 | 119038 | . | SAFETY KEY/CLIP | $5.49 | ||
 | 013300 | . | FINGER GUARD SCREW | $0.99 | ||
| 176662 | . | HARDWARE KIT | $17.49 | |||
| 126650 | . | BASE PAD | $0.99 | |||
 | 014063 | . | M6 LARGE WASHER | $0.99 | ||
| 119445 | . | 1.25″ SCREW | $0.99 | |||
| 016057 | . | 8″ CABLE TIE | $2.99 | |||
| 181325 | . | USER’S MANUAL | NLA |
