PROFORM CROSSWALK 590LS TREADMILL – 29962.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
87 Parts Available for PROFORM CROSSWALK 590LS TREADMILL - 29962.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 224019 | 1 | DRIVE BELT (REPLACES 118016) | $19.99 | ||
| 112825 | 2 | PULLEY/FLYWHEEL/FAN | $80.49 | |||
| 120867 | 3 | MOTOR TENSION NUT | $2.49 | |||
| 174804 | 5 | 3/8″ X 2 1/2″ BOLT | $3.49 | |||
| 158644 | 8 | STOP BRACKET | $2.99 | |||
| 159109 | 11 | LOCK PIN | $38.99 | |||
| 156273 | 13 | PIN CLIP | $0.99 | |||
 | 119425 | 15 | 3/8″ LOCKNUT | $0.99 | ||
| 136728 | 16 | #8 BELT GUIDE SCREW | $0.99 | |||
| 148101 | 18 | SHORT HOOD BRACKET | $0.99 | |||
| 252433 | 20 | CAUTION DECAL | $0.99 | |||
 | 157504 | 21 | REED SWITCH | $26.99 | ||
| 175832 | 25 | ELECTRONICS BRACKET | $5.49 | |||
 | 109382 | 26 | CIRCUIT BREAKER | $15.99 | ||
 | 173169 | 28 | POWER CORD GROMMET | $0.99 | ||
| 180917 | 29 | GROUND/CHOKE SCREW | $0.99 | |||
| 119994 | 32 | 1.25″ SCREW | $2.99 | |||
 | 012090 | 37 | 1/4″ NUT | $0.99 | ||
| 013443 | 38 | MOTOR BOLT | $0.99 | |||
| 013028 | 39 | #8 X 1″ TRUSS HD SCREW | $0.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 128272 | 44 | TOP ISOLATOR BOLT | $0.99 | |||
 | 013576 | 46 | #8 X 1/2″ SCREW | $0.99 | ||
 | 138853 | 47 | PLASTIC FASTENER | $0.99 | ||
| 116927 | 53 | TIE HOLDER CLAMP | $0.99 | |||
| 116926 | 54 | RELEASABLE CABLE TIE | $0.99 | |||
 | 173063 | 55 | WALKING BELT W/FASTENERS | $135.49 | ||
 | 157096 | 59 | REAR FOOT | $4.49 | ||
 | 013282 | 60 | SPRING SCREW | $0.99 | ||
| 114261 | 61 | GROUND WIRE | $5.99 | |||
| 174144 | 62 | SMALL PLATE | $4.49 | |||
 | 157004 | 64 | REAR ENDCAP | $79.99 | ||
 | 105444 | 65 | REAR ROLLER ADJ BOLT | $0.99 | ||
| 155353 | 67 | LATCH DECAL | $64.99 | |||
| 100691 | 68 | PLATFORM SCREW | $0.99 | |||
 | 013316 | 69 | #10 X 3/4″ SCREW | $0.99 | ||
| 126038 | 74 | MOTOR TENSION BOLT | $2.49 | |||
 | 013162 | 76 | REED SWITCH CLAMP SCRW | $0.99 | ||
 | 169403 | 77 | STORAGE LATCH | $6.99 | ||
| 176015 | 80 | WIRE COVER | NLA | |||
 | 014117 | 81 | STAR WASHER | $0.99 | ||
| 013547 | 83 | INCLINE LEG/MOTOR BOLT | $0.99 | |||
| 177910 | 84 | MOTOR TENSION WASHER | $0.99 | |||
| 013601 | 86 | 3/8″ X 2″ BOLT, NOTE: | $8.99 | |||
| 179075 | 88 | CONSOLE ASSEMBLY | NLA | |||
| 147596 | 93 | BOOK HOLDER | NLA | |||
| 165009 | 95 | WHEEL | $2.49 | |||
| 167775 | 96 | INCLINE MOTOR SHIELD | $7.99 | |||
 | 157600 | 97 | BASE FOOT | $1.99 | ||
| 134808 | 98 | TRIM GUARD | $21.49 | |||
 | 129004 | 99 | ROUND GROMMET | $1.99 | ||
| 131221 | 102 | HANDRAIL CAP | $1.49 | |||
| 185582 | 106 | CHOKE | $76.99 | |||
| 126970 | 107 | 3 1/2″ BOLT | $2.49 | |||
 | 014132 | 108 | 3/8″ WASHER | $0.99 | ||
| 105500 | 109 | FOAM GRIP | NLA | |||
| 126644 | 111 | RESISTANCE BOLT | $3.99 | |||

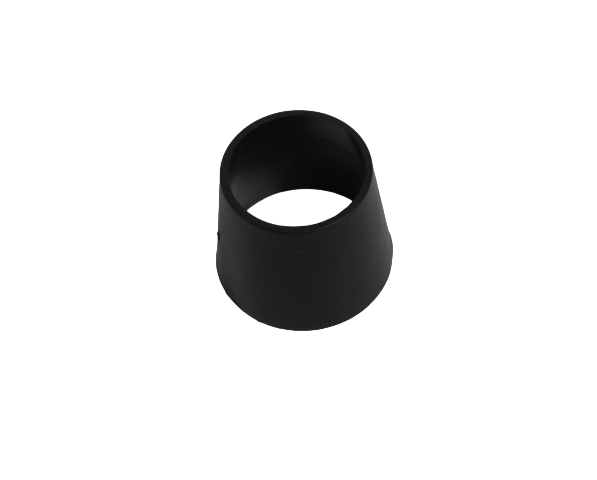

 | 126827 | 113 | RESISTANCE SLEEVE | $4.49 | ||
 | 128005 | 116 | SPRING WASHER | $0.99 | ||
 | 102973 | 117 | 3/8″ THRUST WASHER | $0.99 | ||
 | 106896 | 118 | THRUST BEARING | $4.49 | ||
 | 013322 | 120 | #8 X 3/4″ SCREW | $0.99 | ||
| 127860 | # | FASTENER | $0.99 | |||
| 153458 | # | GROUND WIRE | $2.99 | |||
| 181430 | # | TECH SHEET | $0.99 | |||
| 123898 | # | 8″ WHITE WIRE, 2M/1F | $12.49 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 119445 | . | 1.25″ SCREW | $0.99 | |||
| 126650 | . | BUMPER | $0.99 | |||
| 182738 | . | USER’S MANUAL | $7.99 | |||
 | 013300 | . | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 161411 | . | BASE FOOT SPACER | $0.99 | ||
 | 119038 | . | KEY/CLIP | $5.49 | ||
 | 014063 | . | 1/4″ FLAT WASHER | $0.99 | ||
| 016057 | . | 8″ CABLE TIE | $2.99 | |||
| 176662 | . | HARDWARE KIT | $17.49 |
