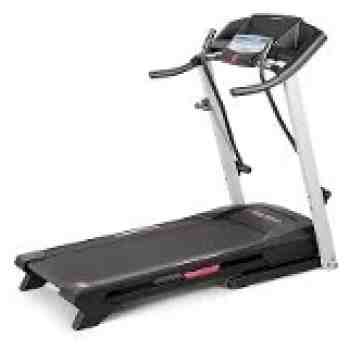

Proform Crosswalk 397 Treadmill - 24843.4 / 248434

Proform Crosswalk 397 Treadmill – 24843.4 / 248434

Brand: ProForm

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

98 Parts Available for Proform Crosswalk 397 Treadmill - 24843.4 / 248434 ↓

Part #	Diagram #	Title	Price
186819	1	#8 X 1/2″ SCREW	$0.99
278652	2	3/8″ X 3 1/4″ SCREW	$19.99
163045	3	3/8″ STAR WASHER	$0.99
013322	4	#8 X 3/4″ SCREW	$0.99
271383	5	5/16″ X 3/4″ PATCH SCREW	$2.49
101630	6	STAR WASHER	$0.99
013028	7	#8 X 1″ SCREW	$0.99
293636	8	1 1/2″SDRAIL CVR SCRW,BTM	$0.99
195683	9	3/8″ X 2 1/2″ BOLT	$16.49
013576	10	#8 X 1/2″ SCREW	$0.99
319894	11	M6 X 55MM SCREW	$6.49
301976	12	3/8″ X 1″ BOLT	$2.49
133333	13	#8 CLIP	$0.99
013607	14	#8 X 3/4″ SCREW	$0.99
179767	15	3/8″ X 1 3/4″ BOLT	$61.49
119425	16	3/8″ JAM NUT	$0.99
295756	17	1/4″ MOTOR BOLT	$0.99
136728	18	#8 X 7/16″ SCREW	$0.99
298484	19	5/16″ X 1 3/4″ BOLT	$2.49
100427	20	5/16″ NUT	$0.99
131221	21	HANDRAIL ENDCAP	$1.49
014157	22	#8 STAR WASHER	$0.99
014063	23	1/4″ FLAT WASHER	$0.99
283997	24	LIFT FRAME SPACER	$1.99
265234	25	1/4″ X 1 1/4″ SCREW	$1.99
236884	26	PLASTIC WASHER (A)	$15.99
316510	27	LEFT FOOT RAIL	Contact for Pricing
413303	29	WARNING DECAL	$3.99
198639	30	BELT GUIDE	$5.99
315693	31	DRIVE ROLLER/PULLEY	$163.49
013316	33	BELT GUIDE SCREW	$0.99
316570	34A	RIGHT UPPER BODY ARM	$62.99	Unavailable to order
405705	35	Drive Motor for ProForm 339461	$202.99
339461	35	Part # 339461	Contact for Pricing
339463	36	Part # 339463	Contact for Pricing
409603	36	CONTROLLER	$190.99
365327	37	CNTRLR PLT&CLAMP BKT SET	$25.49
315692	39	WALKING PLATFORM	$193.49
270359	40	WALKING BELT	$123.99
248571	42	IDLER ROLLER	$166.49
316434	43	LEFT REAR FOOT	$24.49
243797	45	CONSOLE CLAMP	$26.99	Unavailable to order
316433	46	RIGHT REAR FOOT	$24.49
215822	47	CONSOLE GROUND WIRE	$5.99
315689	49	INCLINE MOTOR	$161.49
315067	50	FRAME SPACER	$15.49
328889	51	LIFT FRAME	$134.49
316431	52	BELLY PAN	$147.99
173169	53	POWER CORD GROMMET	$0.99
031229	54	POWER CORD	$39.99
186726	55	POWER SWITCH	$22.49
316505	56	1/4″ X 3 1/2″ SCREW	$6.99
316879	57	Fitness Equipment Console	$202.99
346407	58	CONSOLE BASE – Discontinued – Console Assembly – See Picture	$149.49
316507	59	LEFT HANDRAIL	$70.99
316391	61	CONSOLE CROSSBAR	$60.49
260830	62	KEY/CLIP	$29.99
316548	63	UPRIGHT WIRE	$86.99	Unavailable to order
316508	64	RIGHT HANDRAIL	$70.99
227163	65	UPPER BODY ARM INSERT	$1.49
316395	66	LEFT UPRIGHT	$138.99
358339	67	STORAGE LATCH ASSEMBLY	$61.99
252433	69	WARNING DECAL	$0.99
306715	70	BASE CAP	$1.49
307032	71	FRONT BASE PAD	$3.99
307031	72	BASE PAD	$2.99
227199	73	GROMMET	$2.49
316876	74	Base	$194.49
139090	75	WHEEL	$2.99
315068	77	3/8″ PIN	$7.99
013300	78	#8X3/4″ WASHER HEAD SCREW	$0.99
174320	80	3/8″ X 1 1/2″ BOLT	$2.99
132315	81	WIRE TIE	$3.49
240351	#	PLASTIC TIE	$0.99
339413	#	Literature Packet with Hardware Kit	$130.99
116926	#	RELEASABLE CABLE TIE	$0.99
016057	#	8″ CABLE TIE	$2.99
215823	#	AUDIO WIRE	$11.99
219168	#	1 TUBE LUBE KIT	$18.99
114011	#	4″ BLACK WIRE M/F	$3.49
260687	#	MOTOR BELT	$61.99
263228	#	CONTROLLER GROUND WIRE	$4.99
339412	#	USER’S MANUAL	$12.49
146119	#	FLOOR MAT	$79.99
286707	#	INCLN MTR SENSOR WIRE KIT	$70.49
219170	#	3 TUBE LUBE KIT	$39.49
356520	#	ACCESSORY KIT	$62.49
211260	#	LIFT MOTOR WIRE HARNESS	$12.99
255589	#	DRIVE BELT	$52.99
128457	#	ALLEN WRENCH,3/16-7/32	$25.49
198084	#	6″ RED WIRE, M/F, DR MTR	$3.99
268476	#	DECAL, GROUND WARNING	$0.99
226956	#	HAND GRIP	$8.99
045023	#	5/32″ ALLEN WRENCH	$1.99
126146	#	4″ BLUE WIRE, 2F	$3.49
316438	#	HWKIT, INCLUDED IN LITPAC	$73.99
123945	#	TECH SHEET,ENVELOPE	$0.99
012142	#	M6 NUT	$0.99
