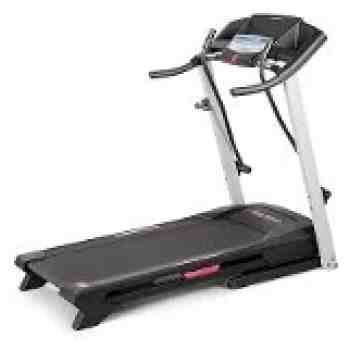

Proform Crosswalk 397 Treadmill - 24843.3 / 248433

Proform Crosswalk 397 Treadmill – 24843.3 / 248433

Brand: ProForm

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

96 Parts Available for Proform Crosswalk 397 Treadmill - 24843.3 / 248433 ↓

Part #	Diagram #	Title	Price
186819	1	#8X1/2″ WSHR HD SCREW	$0.99
278652	2	3/8″ X 3 1/4″ SCREW	$19.99
163045	3	3/8″ STAR WASHER	$0.99
013322	4	#8 X 3/4″ SCREW	$0.99
271383	5	5/16″ X 3/4″ PATCH BOLT	$2.49
101630	6	STAR WASHER	$0.99
013028	7	#8 X 1″ TRUSS HD SCREW	$0.99
293636	8	#10 X 1 1/2″ SCREW	$0.99
195683	9	3/8″ X 2 1/2″ BOLT	$16.49
013576	10	#8 X 1/2″ SCREW	$0.99
319894	11	M6 X 55MM SCREW	$6.49
301976	12	3/8″ X 1″ BOLT	$2.49
133333	13	CLIP	$0.99
013607	14	#8X3/4″ TRUSS HD SCREW	$0.99
179767	15	3/8″X1 3/4″ HEX HEAD BOLT	$61.49
119425	16	3/8″ JAM NUT	$0.99
295756	17	1/4″ MOTOR SCRW,NOTE: OM	$0.99
136728	18	#8 X 7/16″ SCREW	$0.99
298484	19	5/16″X1 3/4″ SHLDR BOLT	$2.49
100427	20	5/16″ NUT	$0.99
131221	21	HANDRAIL CAP	$1.49
014157	22	#8 STAR WASHER	$0.99
014063	23	1/4″ FLAT WASHER	$0.99
283997	24	LIFT FRAME SPACER	$1.99
265234	25	1/4″ X 1 1/4″ SCREW	$1.99
236884	26	ROLLER WASHER	$15.99
316510	27	LEFT FOOT RAIL	NLA
413303	29	LATCH WARNING DECAL	$3.99
198639	30	BELT GUIDE	$5.99
315693	31	DRIVE ROLLER/PULLEY	$163.49
013316	33	#10 X 3/4″ SCREW	$0.99
316570	34A	RIGHT UPPER BODY ARM	$62.99
405705	35A	Drive Motor for ProForm 339461	$202.99
260687	35B	MOTOR BELT	$61.99
409603	36	Controller for Icon Fitness Part Number 339463	$190.99
365327	37	CNTRLR PLT&CLAMP BKT SET	$25.49
315692	39	WALKING PLATFORM	$193.49
270359	40	WALKING BELT	$114.99
248571	42	IDLER ROLLER	$166.49
316434	43	LEFT REAR FOOT	$24.49
243797	45	CONSOLE CLAMP	$0.99
316433	46	RIGHT REAR FOOT	$24.49
215822	47	CONSOLE GROUND WIRE	$5.99
315689	49	INCLINE MOTOR	$161.49
315067	50	FRAME SPACER	$15.49
328889	51	Lift Frame	$134.49
316431	52	BELLY PAN	$147.99
173169	53	POWER CORD GROMMET	$0.99
031229	54	POWER CORD	$39.99
186726	55	POWER SWITCH	$22.49
316505	56	1/4″ X 3 1/2″ SCREW	$6.99
316879	57	Fitness Equipment Console	$202.99
346407	58	CONSOLE BASE – Discontinued – Console Assembly – See Picture	$149.49
316507	59	LEFT HANDRAIL	$70.99
316391	61	CONSOLE CROSSBAR	$60.49
260830	62	KEY/CLIP	$29.99
316548	63	UPRIGHT WIRE	$86.99
316508	64	RIGHT HANDRAIL	$70.99
227163	65	UPPER BODY ARM ENDCAP	$1.49
316395	66	LEFT UPRIGHT	$138.99
358339	68	LATCH ASSEMBLY	$61.99
252433	69	CAUTION DECAL	$0.99
306715	70	BASE CAP	$1.49
307032	71	BASE PAD	$3.99
307031	72	STABILIZER FOOT	$2.99
227199	73	GROMMET	$2.49
316876	74	Base	$194.49
139090	75	WHEEL	$2.99
315068	77	3/8″ PIN	$7.99
013300	78	#8 X 3/4″ TEK SCREW	$0.99
174320	80	3/8″ X 1 1/2″ BOLT	$2.99
132315	81	WIRE TIE	$3.49
012111	83	M6 NUT	$1.49
360378	84	CONTROLLER CLAMP	$10.99
356449	85	LATCH CATCH PLATE	$23.49
123945	#	TECH SHEET ENVELOPE	$0.99
012142	#	M6 LOCKNUT	$0.99
339397	#	LITPAC, NOTE:	$224.49
045023	#	5/32″ ALLEN WRENCH	$1.99
215823	#	AUDIO WIRE	$11.99
016057	#	8″ CABLE TIE	$2.99
339396	#	USER’S MANUAL	$12.49
126146	#	4″ BLUE WIRE,F/F	$3.49
219168	#	1 TUBE LUBE KIT	$18.99
114011	#	4″ BLACK WIRE, M/F	$3.49
128457	#	3/16-7/32″ ALLEN WRENCH	$25.49
226956	#	HAND GRIP	$8.99
286707	#	LIFT MTR SENSOR KIT	$70.49
146119	#	FLOOR MAT	$79.99
316438	#	HWKIT, INCLUDED IN LITPAC	$73.99
356520	#	ACCESSORY KIT	$62.49
211260	#	12″ WIRE HRNS	$12.99
263228	#	CONTROLLER GROUND WIRE	$4.99
198084	#	6″ RED WIRE, M/F	$3.99
219170	#	3 TUBE LUBE KIT	$39.49
