Proform Crosswalk 397 Treadmill - 24843.0 / 248430

Proform Crosswalk 397 Treadmill – 24843.0 / 248430

Brand: ProForm

Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here

110 Parts Available for Proform Crosswalk 397 Treadmill - 24843.0 / 248430 ↓

Part #	Diagram #	Title	Price
186819	1	#8X1/2″ WSHR HD SCREW	$0.99
278652	2	3/8″ X 3 1/4″ SCREW	$19.99
163045	3	3/8″ STAR WASHER	$0.99
013322	4	#8 X 3/4″ SCREW	$0.99
271383	5	5/16″ X 3/4″ PATCH BOLT	$2.49
101630	6	STAR WASHER	$0.99
013028	7	#8 X 1″ TRUSS HD SCREW	$0.99

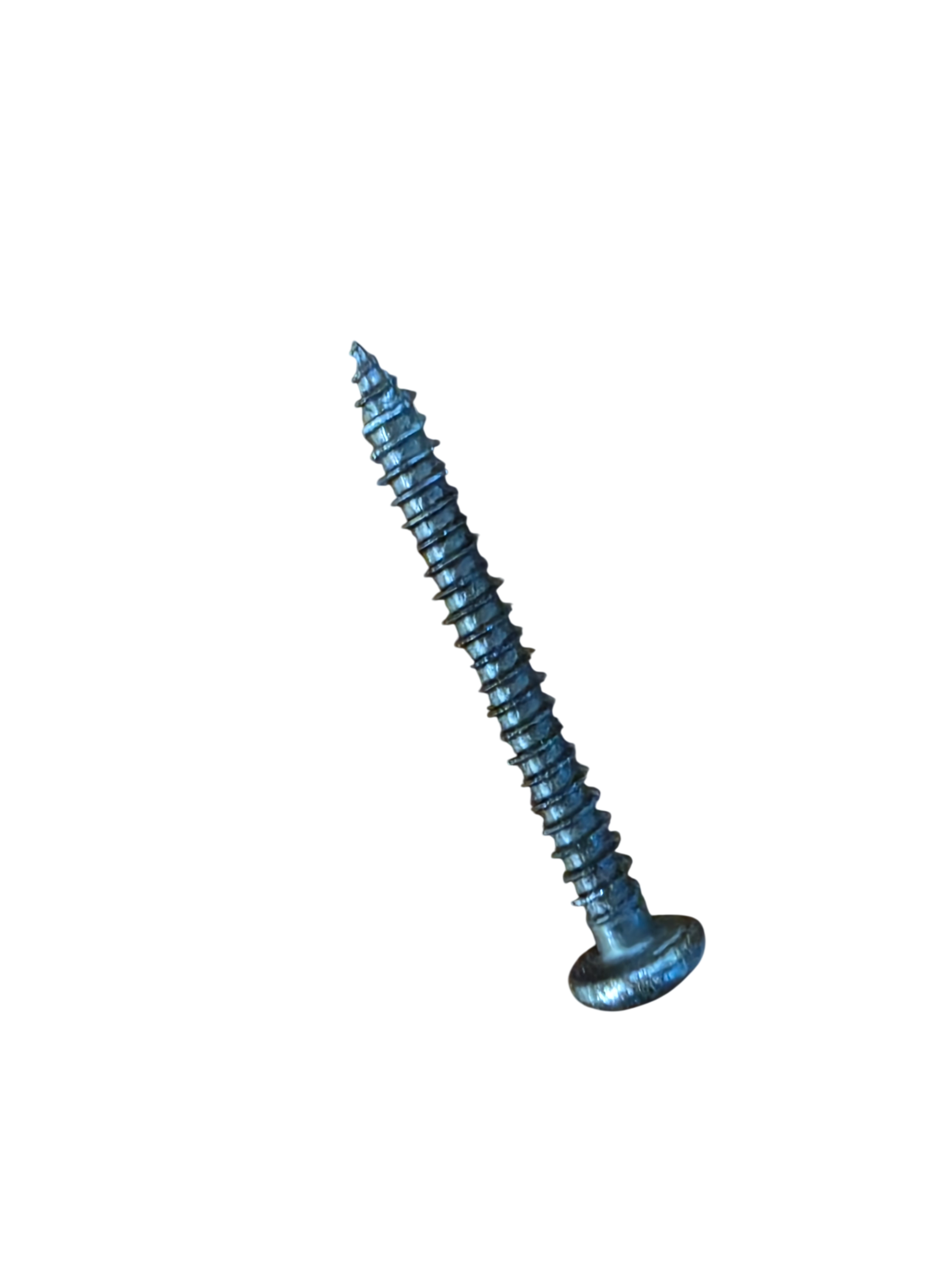

293636	8	#10 X 1 1/2″ SCREW	$0.99
195683	9	3/8″ X 2 1/2″ BOLT	$16.49
319894	11	M6 X 55MM SCREW	$6.49
301976	12	3/8″ X 1″ BOLT	$2.49
133333	13	CLIP	$0.99
013607	14	#8X3/4″ TRUSS HD SCREW	$0.99
179767	15	3/8″X1 3/4″ HEX HEAD BOLT	$61.49
119425	16	3/8″ JAM NUT	$0.99
295756	17	1/4″ MOTOR SCRW,NOTE: OM	$0.99
136728	18	#8 X 7/16″ SCREW	$0.99
298484	19	5/16″X1 3/4″ SHLDR BOLT	$2.49
100427	20	5/16″ NUT	$0.99
131221	21	HANDRAIL CAP	$1.49
014157	22	#8 STAR WASHER	$0.99
014063	23	1/4″ FLAT WASHER	$0.99
283997	24	LIFT FRAME SPACER	$1.99
265234	25	1/4″ X 1 1/4″ SCREW	$1.99
236884	26	ROLLER WASHER	$15.99
316510	27	LEFT FOOT RAIL	NLA
413303	29	LATCH WARNING DECAL	$3.99
198639	30	BELT GUIDE	$5.99
315693	31	DRIVE ROLLER/PULLEY	$163.49
113842	32	PULLEY MAGNET	$1.49
157504	33	REED SWITCH	$26.99
131090	34	CLAMP	$0.99
405691	35	DRIVE MOTOR	$204.49
297197	35	Part # 297197	NLA
266118	36	Part # 266118	NLA
409596	36	Controller for Icon Fitness 266118	$190.99
365327	37	CNTRLR PLT&CLAMP BKT SET	$25.49
315692	39	WALKING PLATFORM	$193.49
270359	40	WALKING BELT	$114.99
248571	42	IDLER ROLLER	$166.49
316434	43	LEFT REAR FOOT	$24.49
128457	44	3/16-7/32″ ALLEN WRENCH	$25.49
045023	45	5/32″ ALLEN WRENCH	$1.99
316433	46	RIGHT REAR FOOT	$24.49
215822	47	CONSOLE GROUND WIRE	$5.99
315689	49	INCLINE MOTOR	$161.49
315067	50	FRAME SPACER	$15.49
317486	51	Lift Frame	$112.49
316431	52	BELLY PAN	$147.99
173169	53	POWER CORD GROMMET	$0.99
031229	54A	POWER CORD	$39.99
251086	54B	POWER CORD,FCA	$39.99
186726	55	POWER SWITCH	$22.49
316505	56	1/4″ X 3 1/2″ SCREW	$6.99
316879	57	Fitness Equipment Console	$202.99

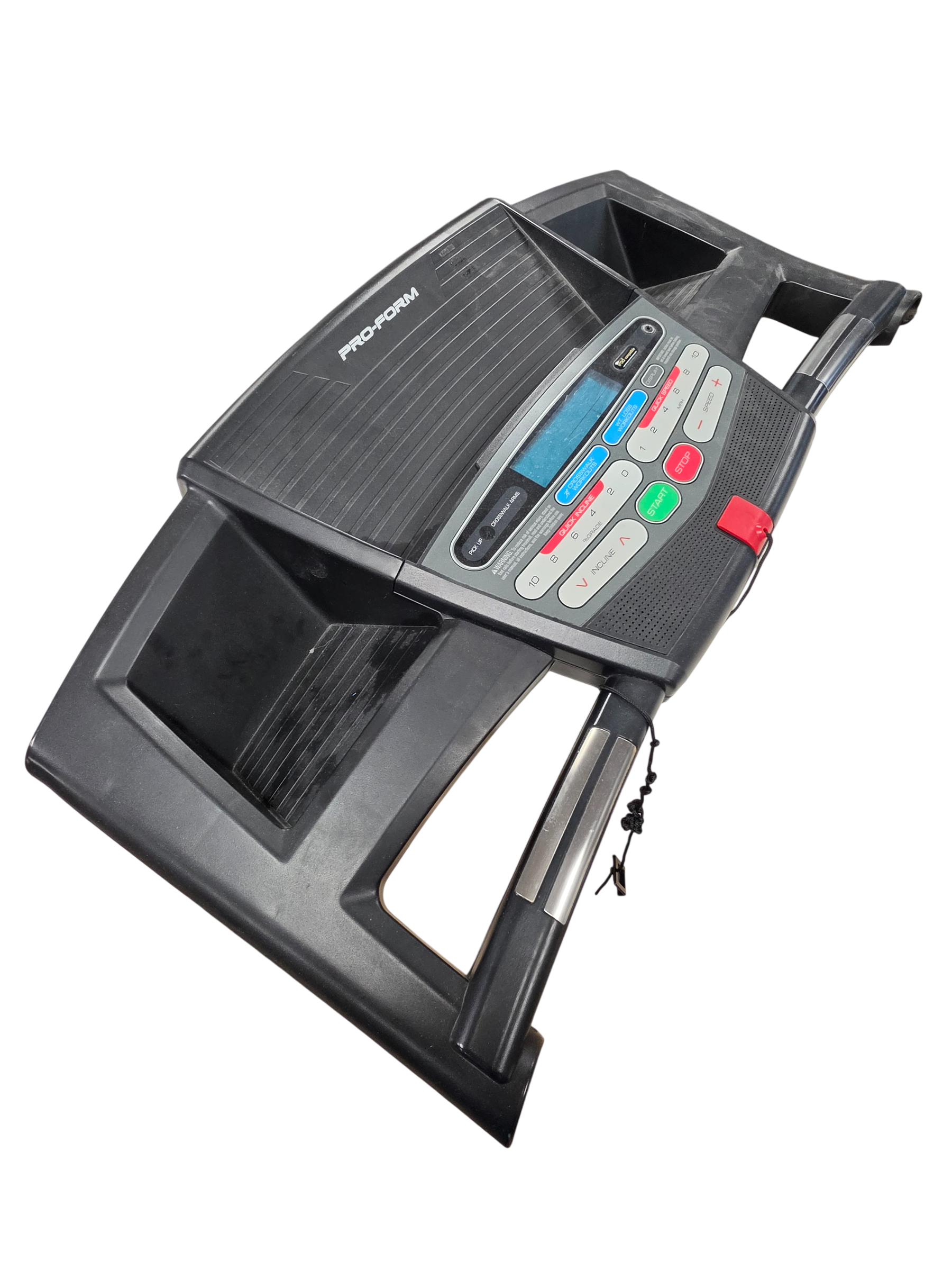

346407	58	CONSOLE BASE – Discontinued – Console Assembly – See Picture	$149.49
316507	59	LEFT HANDRAIL	$70.99
316391	61	CONSOLE CROSSBAR	$60.49
260830	62	KEY/CLIP	$29.99
316548	63	UPRIGHT WIRE	$86.99
316508	64	RIGHT HANDRAIL	$70.99
227163	65	UPPER BODY ARM ENDCAP	$1.49
316395	66	LEFT UPRIGHT	$138.99
358339	67	LATCH ASSEMBLY	$61.99
252433	69	CAUTION DECAL	$0.99
306715	70	BASE CAP	$1.49
307032	71	BASE PAD	$3.99
307031	72	STABILIZER FOOT	$2.99
227199	73	GROMMET	$2.49
316876	74	Base	$194.49
139090	75	WHEEL	$2.99
315068	77	3/8″ PIN	$7.99
013300	78	#8 X 3/4″ TEK SCREW	$0.99
132315	81	WIRE TIE	$3.49
243797	83	CONSOLE CLAMP	$0.99
316570	85A	RIGHT UPPER BODY ARM	$62.99
013316	86	#10 X 3/4″ SCREW	$0.99
326411	#	DECAL,REWRK,SHEET 5	$66.49
215823	#	AUDIO WIRE	$11.99
260687	#	MOTOR BELT	$61.99
316990	#	LITPAC, NOTE:	$153.49
146119	#	FLOOR MAT	$79.99
123945	#	TECH SHEET ENVELOPE	$0.99
211260	#	12″ WIRE HRNS	$12.99
316991	#	USER’S MANUAL	$17.49
219168	#	1 TUBE LUBE KIT	$18.99
286707	#	LIFT MTR SENSOR KIT	$70.49
219170	#	3 TUBE LUBE KIT	$39.49
356520	#	ACCESSORY KIT	$62.49
219896	#	ACCESSORY KIT,FCA	NLA
330165	#	DECAL,REWRK,OVERLAY SHEET	$112.99
316438	#	HWKIT, INCLUDED IN LITPAC	$73.99
263228	#	CONTROLLER GROUND WIRE	$4.99
198084	#	6″ RED WIRE, M/F	$3.99
268476	#	DECAL,GROUND WARNING	$0.99
337616	#	USER’S MANUAL, FCA	$12.49
226956	#	HAND GRIP	$8.99
114011	#	4″ BLACK WIRE, M/F	$3.49
126146	#	4″ BLUE WIRE,F/F	$3.49
012142	#	M6 LOCKNUT	$0.99
