Proform Crosswalk 397 Treadmill – 24843.0 / 248430
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
33 Parts Available for Proform Crosswalk 397 Treadmill - 24843.0 / 248430 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 186819 | 1 | #8 X 1/2″ SCREW | $0.99 | ||
 | 278652 | 2 | 3/8″ X 3 1/4″ SCREW | $19.99 | ||
 | 163045 | 3 | 3/8″ STAR WASHER | $0.99 | ||
 | 013322 | 4 | #8 X 3/4″ SCREW | $0.99 | ||
 | 271383 | 5 | 5/16″ X 3/4″ PATCH BOLT | $2.49 | ||
| 101630 | 6 | STAR WASHER | $0.99 | |||
| 013028 | 7 | #8 X 1″ TRUSS HD SCREW | $0.99 | |||
 | 293636 | 8 | #10 X 1 1/2″ SCREW | $0.99 | ||
 | 195683 | 9 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
 | 319894 | 11 | M6 X 55MM SCREW | $6.49 | ||
 | 301976 | 12 | 3/8″ X 1″ BOLT | $2.49 | ||
 | 133333 | 13 | CLIP NUT | $0.99 | ||
 | 013607 | 14 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
| 179767 | 15 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 119425 | 16 | 3/8″ LOCKNUT | $0.99 | ||
 | 295756 | 17 | MOTOR SCREW | $0.99 | ||
| 136728 | 18 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 298484 | 19 | 5/16″ X 1 3/4″ BOLT | $2.49 | ||
 | 100427 | 20 | 5/16″ NUT | $0.99 | ||
| 131221 | 21 | HANDRAIL CAP | $1.49 | |||
| 014157 | 22 | #8 STAR WASHER | $0.99 | |||
 | 014063 | 23 | 1/4″ FLAT WASHER | $0.99 | ||
| 283997 | 24 | LIFT FRAME SPACER | $1.99 | |||
| 265234 | 25 | 1/4″ X 1 1/4″ PATCH SCREW | $1.99 | |||
| 236884 | 26 | ROLLER WASHER | $15.99 | |||
| 316510 | 27 | LEFT FOOT RAIL | NLA | Unavailable to order | ||
| 413303 | 29 | WARNING DECAL | $3.99 | |||
 | 198639 | 30 | BELT GUIDE | $5.99 | ||
| 315693 | 31 | DRIVE ROLLER/PULLEY | $163.49 | |||
 | 113842 | 32 | MAGNET | $1.49 | ||
 | 157504 | 33 | REED SWITCH | $26.99 | ||

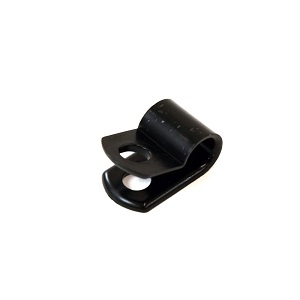

 | 131090 | 34 | CLAMP | $0.99 | ||
| 405691 | 35 | DRIVE MOTOR | $204.49 | |||
| 297197 | 35 | Part # 297197 | NLA | Unavailable to order | ||
| 266118 | 36 | Part # 266118 | NLA | Unavailable to order | ||
| 409596 | 36 | Controller for Icon Fitness 266118 | $190.99 | |||
| 365327 | 37 | CNTRLR PLT&CLAMP BKT SET | $25.49 | |||
| 315692 | 39 | WALKING PLATFORM | $193.49 | |||
 | 270359 | 40 | WALKING BELT | $114.99 | ||
 | 248571 | 42 | IDLER ROLLER | $166.49 | ||
| 316434 | 43 | LEFT REAR FOOT | $24.49 | |||
 | 128457 | 44 | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 045023 | 45 | 5/32″ ALLEN WRENCH, HEX | $1.99 | |||
| 316433 | 46 | RIGHT REAR FOOT | $24.49 | |||
 | 215822 | 47 | 4″ GRN WIRE | $5.99 | ||
 | 315689 | 49 | INCLINE MOTOR | $161.49 | ||
| 315067 | 50 | FRAME SPACER | $15.49 | |||
| 317486 | 51 | Lift Frame | $112.49 | |||
| 316431 | 52 | BELLY PAN | $147.99 | |||
 | 173169 | 53 | SQUARE GROMMET | $0.99 | ||
 | 031229 | 54A | POWER CORD | $39.99 | ||
| 251086 | 54B | POWER CORD,FCA | $39.99 | ||
 | 186726 | 55 | POWER SWITCH | $22.49 | ||
 | 316505 | 56 | 1/4″ X 3 1/2″ SCREW | $6.99 | ||
| 316879 | 57 | Fitness Equipment Console | $202.99 | |||
 | 346407 | 58 | CONSOLE BASE – Discontinued – Console Assembly – See Picture | $149.49 | ||
| 316507 | 59 | LEFT HANDRAIL | $70.99 | |||
| 316391 | 61 | CONSOLE CROSSBAR | $60.49 | |||
 | 260830 | 62 | KEY/CLIP | $29.99 | ||
| 316548 | 63 | UPRIGHT WIRE | $86.99 | Unavailable to order | ||
| 316508 | 64 | RIGHT HANDRAIL | $70.99 | |||
 | 227163 | 65 | UPPER BODY ARM ENDCAP | $1.49 | ||
| 316395 | 66 | LEFT UPRIGHT | $138.99 | |||
 | 358339 | 67 | LATCH ASSEMBLY | $61.99 | ||
| 252433 | 69 | DECAL, CAUTION, BASE LEG | $0.99 | |||
 | 306715 | 70 | BASE CAP | $1.49 | ||
 | 307032 | 71 | BASE PAD | $3.99 | ||
 | 307031 | 72 | STABILIZER FOOT | $2.99 | ||
 | 227199 | 73 | GROMMET | $2.49 | ||
| 316876 | 74 | Base | $194.49 | |||
 | 139090 | 75 | WHEEL | $2.99 | ||
| 315068 | 77 | 1/2″ PIN | $7.99 | |||
 | 013300 | 78 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 132315 | 81 | ZIP TIE | $3.49 | |||
| 243797 | 83 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
 | 316570 | 85A | RIGHT UPPER BODY ARM | $62.99 | Unavailable to order | |
 | 013316 | 86 | #10 X 3/4″ SCREW | $0.99 | ||
| 326411 | # | DECAL,REWRK,SHEET 5 | $66.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
 | 260687 | # | MOTOR BELT | $61.99 | ||
| 316990 | # | LITPAC, NOTE: | $153.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 211260 | # | 12″ WIRE HRNS | $12.99 | |||
| 316991 | # | USER’S MANUAL | $17.49 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 286707 | # | LIFT MTR SENSOR KIT | $70.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 219896 | # | ACCESSORY KIT,FCA | NLA | Unavailable to order | ||
| 330165 | # | DECAL,REWRK,OVERLAY SHEET | $112.99 | |||
| 316438 | # | HWKIT, INCLUDED IN LITPAC | $73.99 | |||
| 263228 | # | CONTROLLER GROUND WIRE | $4.99 | |||
| 198084 | # | 6″ RED WIRE, M/F | $3.99 | |||
| 268476 | # | DECAL, GROUND WARNING | $0.99 | |||
| 337616 | # | USER’S MANUAL, FCA | $12.49 | |||
| 226956 | # | HAND GRIP | $8.99 | |||
| 114011 | # | 4″ BLACK WIRE,M/F | $3.49 | |||
| 126146 | # | 4″ BLUE WIRE,F/F | $3.49 | |||
 | 012142 | # | BRACKET SPACER | $0.99 |
