PROFORM CR610 TREADMILL – PFTL5581.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
85 Parts Available for PROFORM CR610 TREADMILL - PFTL5581.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 184711 | 1 | MOTOR BELT | $49.99 | |||
| 120867 | 3 | MOTOR TENSION NUT | $2.49 | |||
| 174804 | 5 | 3/8″ X 2.5″ SCREW | $3.49 | |||
| 012152 | 6 | #8 NUT | $0.99 | |||
| 158644 | 8 | STOP BRACKET | $2.99 | |||
| 242812 | 10A | 3LB HAND WEIGHT KIT | NLA | |||
 | 157209 | 11 | REAR FOOT SPACER | $2.99 | ||
 | 174320 | 14 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
 | 119425 | 15 | 3/8″ JAM NUT | $0.99 | ||
| 136728 | 16 | #8 X 7/16″ SCREW | $0.99 | |||
 | 125819 | 17 | PLASTIC STAND-OFF | $3.99 | ||
| 148101 | 18 | SHORT HOOD BRACKET | $0.99 | |||
| 151903 | 20 | WARNING DECAL | NLA | |||
 | 157504 | 21 | REED SWITCH | $26.99 | ||
| 134690 | 23 | 8″ WIRE HARNESS | $7.49 | |||
| 238748 | 25 | ELECTRONICS BRACKET | $23.49 | |||
 | 109382 | 26 | CIRCUIT BREAKER | $15.99 | ||
 | 173169 | 28 | POWER CORD GROMMET | $0.99 | ||
| 104621 | 30 | SMALL SCREW | $0.99 | |||
| 119994 | 32 | 3/8″ X 1 1/4″ SCREW | $2.99 | |||
| 184697 | 34 | UPRIGHT WIRE HARNESS | $66.99 | |||
 | 014063 | 36 | WASHER | $0.99 | ||
 | 012090 | 37 | 1/4″ NUT | $0.99 | ||
| 013443 | 38 | MOTOR BOLT | $0.99 | |||
| 013028 | 39 | #8 X 1″ SCREW | $0.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 128272 | 44 | TOP ISOLATOR BOLT | $0.99 | |||
| 179079 | 45 | ISOLATOR | $23.99 | |||
 | 013576 | 46 | #8 X 1/2″ SCREW | $0.99 | ||
 | 138853 | 47 | ISOLATOR FASTENER | $0.99 | ||
| 116927 | 53 | CABLE TIE CLAMP | $0.99 | |||
| 116926 | 54 | RELEASABLE CABLE TIE | $0.99 | |||

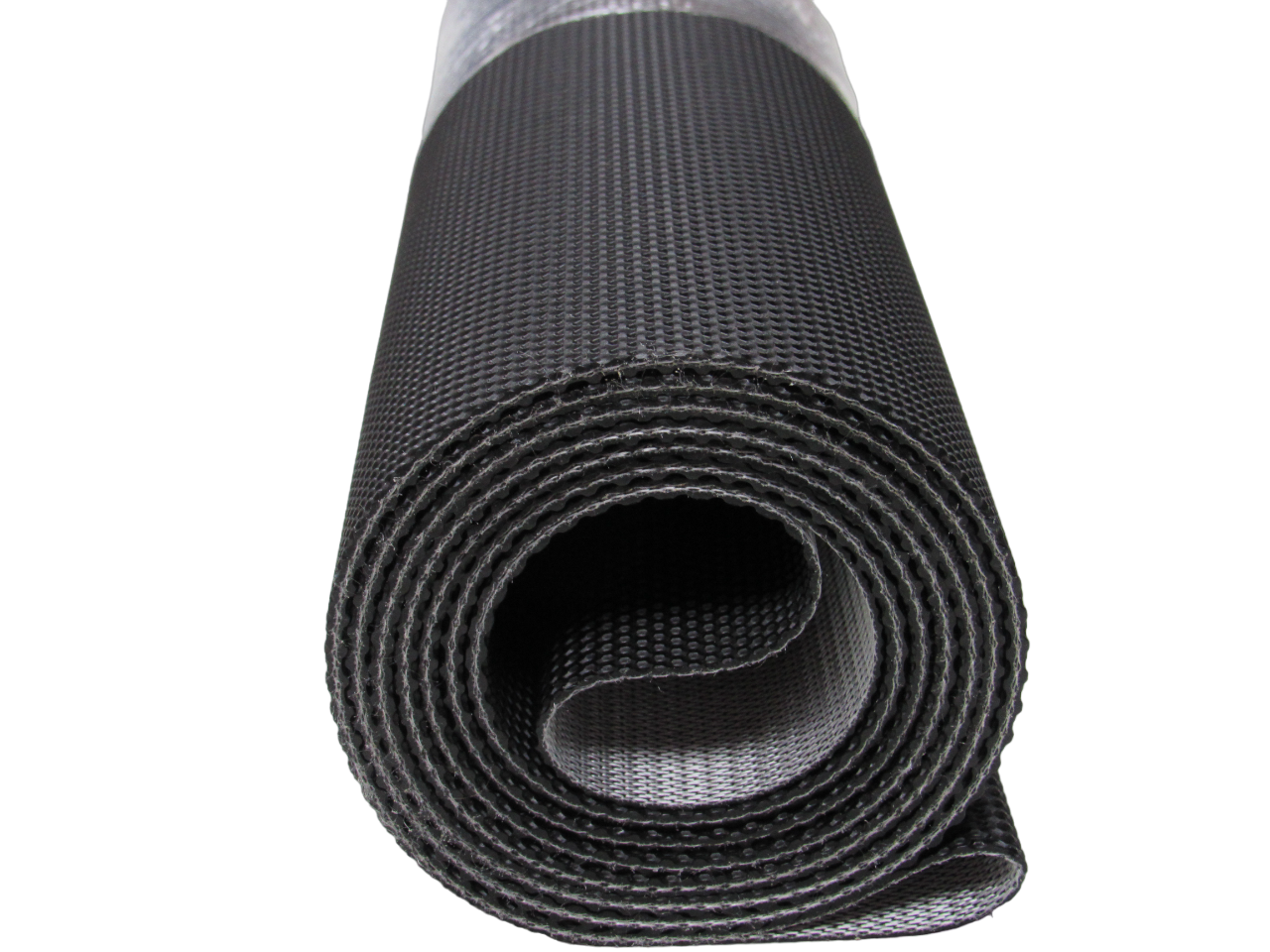

| 184703 | 55 | WALKING BELT W/FASTENERS | $125.49 | |||
 | 157096 | 59 | REAR FOOT | $4.49 | ||
 | 013282 | 60 | SIDESHIELD SCREW | $0.99 | ||
 | 013423 | 62 | M4 X 19MM BRIGHT SCREW | $0.99 | ||
 | 157004 | 64 | REAR ENDCAP | $79.99 | ||
 | 105444 | 65 | REAR ROLLER ADJ BOLT | $0.99 | ||
| 155353 | 67 | LATCH DECAL | $64.99 | |||
| 100691 | 68 | REAR PLATFORM SCREW | $0.99 | |||
 | 013529 | 69 | 1 1/2″ SCREW | $0.99 | ||
| 016057 | 72 | 8″ CABLE TIE | $2.99 | |||
| 154964 | 73 | FRAME GUIDE | NLA | |||
| 126038 | 74 | MOTOR TENSION BOLT | $2.49 | |||
| 014157 | 78 | #8 STAR WASHER | $0.99 | |||
| 119445 | 79 | FRONT HOOD SCREW | $0.99 | |||
 | 014117 | 81 | UPRIGHT STAR WASHER | $0.99 | ||
| 132449 | 83 | INCLINE LEG PIVOT BOLT | $1.99 | |||
| 102372 | 88 | MOTOR TENSION WASHER | $0.99 | |||
| 104626 | 89 | REED SWITCH SCREW | $0.99 | |||
| 165009 | 95 | WHEEL | $2.49 | |||
| 167775 | 96 | INCLINE MOTOR SHIELD | $7.99 | |||
 | 157600 | 97 | BUMPER | $1.99 | ||
 | 102955 | 98 | PHOTO SWITCH | $15.49 | ||
 | 129004 | 99 | UPRIGHT GROMMET | $1.99 | ||
| 126911 | 102 | 20″ WIRE HARNESS | $8.99 | |||
| 185582 | 106 | CHOKE | $76.99 | |||
| 207753 | 107 | 5/16 X 3.5″ SCREW | $4.49 | |||
 | 014132 | 108 | 3/8″ WASHER | $0.99 | ||
| 134761 | 111 | TRIM GUARD | $14.49 | |||
| 102959 | 113 | SILVER SCREW | $0.99 | |||
| 176392 | 116 | CONSOLE BASE BOTTOM | $48.99 | |||
| 108874 | 117 | UPRIGHT ENDCAP | $5.99 | |||
| 174144 | 121 | SMALL PLATE | $4.49 | |||
 | 112083 | # | 8″ BLUE WIRE, 2F | $4.49 | ||
| 114261 | # | GROUND WIRE, 8″, GREEN | $5.99 | |||
| 101896 | # | 4″ WHITE WIRE, M/F | $3.49 | |||
| 174953 | # | TECH SHEET | $0.99 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
| 114012 | # | 4″ RED WIRE, M/F | $3.99 | |||
| 127860 | # | FASTENER | $0.99 | |||
| 156429 | # | PULSE WIRE | NLA | |||
| 109407 | # | 4″ BLACK WIRE, 2F | $3.99 | |||
| 102246 | # | 8″ WHITE WIRE, 2F | $4.49 | |||
| 126146 | # | 4″ BLUE WIRE, 2F | $3.49 | |||
| 153458 | # | GROUND WIRE | $2.99 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 013300 | . | SCREW | $0.99 | ||
| 126650 | . | BASE LEG PAD | $0.99 | |||
| 171469 | . | HARDWARE KIT | $7.99 | |||
 | 161411 | . | BASE PAD SPACER | $0.99 | ||
 | 119038 | . | KEY/CLIP | $5.49 | ||
 | 013162 | . | #8 X 1/2″ TEK SCREW | $0.99 | ||
| 174882 | . | USER’S MANUAL | NLA |
