Proform Coachlink T9.0 Treadmill – PFTL97718.3 / PFTL977183
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
121 Parts Available for Proform Coachlink T9.0 Treadmill - PFTL97718.3 / PFTL977183 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013423 | 1 | #8 X 1/2″ SCREW | $0.99 | ||
 | 341768 | 2 | 3/8″ X 2 1/4″ SCREW | $8.99 | ||
 | 181979 | 3 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
 | 174320 | 4 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
 | 203283 | 5 | 5/16″ X 2″ SCREW | $2.99 | ||
 | 163045 | 6 | 3/8″ STAR WASHER | $0.99 | ||
 | 014149 | 7 | 5/16″ STAR WASHER | $0.99 | ||
 | 014088 | 8 | #10 STAR WASHER | $1.49 | ||
 | 167049 | 9 | #10 X 3/4″ SCREW | $0.99 | ||
 | 013576 | 10 | WEIGHT RACK SCREW | $0.99 | ||
 | 013322 | 11A | #8 X 3/4″ SCREW | $0.99 | ||
 | 013607 | 11B | FRAME GUIDE SCREW | $0.99 | ||
| 393393 | 12 | RIGHT HANDRAIL BOTTOM | $28.49 | |||
 | 264255 | 13 | 5/16″ X 3/4″ BOLT | $1.99 | ||
| 393394 | 14 | LEFT HANDRAIL BOTTOM | $28.49 | |||
| 319894 | 15 | M6 X 55MM SCREW, NOTE: | $6.49 | |||
| 372033 | 16 | 3/8″ X 1 1/8″ BOLT | $5.49 | |||
| 265234 | 17 | 1/4″ X 1 1/2″ SCREW | $1.99 | |||
| 013492 | 18 | 1″ SCREW | $0.99 | |||
 | 291486 | 19 | #8 X 5/8″ SCREW | $0.99 | ||
| 179767 | 20 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
 | 346519 | 21 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 295756 | 22 | MOTOR BOLT | $0.99 | ||
| 136728 | 23 | SCREW | $0.99 | |||
| 184369 | 24 | TABLET HOLDER SCREW | $0.99 | |||
 | 142622 | 25 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 393655 | 26 | TABLET HOLDER | $88.49 | |||
 | 186819 | 27 | #8 X 1/2″ WSHR HD SCREW | $0.99 | ||
| 013028 | 28 | #8 X 1″ SCREW | $0.99 | |||
| 213894 | 29 | REAR PLATFORM WASHER | $0.99 | |||
| 014157 | 30 | #8 STAR WASHER | $0.99 | |||
| 398033 | 31A | CONSOLE (ARGON) | $364.49 | |||
| 385663 | 31B | CNSL FAN | $111.99 | |||
 | 102973 | 32 | 3/8″ WASHER | $0.99 | ||
 | 121576 | 33 | 1/4″ NUT | $2.49 | ||
 | 012142 | 34 | M6 LOCKNUT | $0.99 | ||
 | 133333 | 35 | #8 HOOD CLIP | $0.99 | ||
 | 119425 | 36 | 3/8″ NUT | $0.99 | ||
 | 195683 | 37 | 3/8″ X 2 1/2″ BOLT | $16.49 | ||
| 398140 | 38 | LEFT FOOT RAIL | $142.49 | |||
| 398141 | 39 | RIGHT FOOT RAIL | $142.49 | |||
| 398401 | 40 | PLATFORM CUSHION | $75.49 | |||
| 413303 | 41 | LATCH WARNING DECAL | $3.99 | |||
| 392552 | 42 | REAR ROLLER | $136.99 | |||
| 398037 | 43 | BRD,WLK,ARPS,W/DECAL&RI | $0.99 | |||
| 400529 | 44 | WALKING BELT | $134.49 | |||
| 198640 | 45 | BELT GUIDE | $25.49 | |||
| 400267 | 46 | FRONT ROLLER/PULLEY | $355.49 | |||
| 315068 | 47 | 3/8″ PIN | $7.99 | |||
| 372094 | 48 | 9/32″ FRAME/LIFT BSHG | $4.99 | |||
| 393318 | 49 | ELECTRONICS BRACKET | $11.99 | |||
| 240351 | 50 | WIRE TIE | $0.99 | |||
| 349816 | 51 | LATCH CATCH | $14.49 | |||
| 399309 | 53 | MOTOR BELT | $38.99 | |||
| 393452 | 55 | RIGHT REAR FOOT | $34.99 | |||
| 393453 | 56 | LEFT REAR FOOT | $39.99 | |||
| 398142 | 57 | MOTOR HOOD | $134.49 | |||
| 398144 | 58 | HOOD ACCENT | $172.99 | |||
| 372093 | 59 | INCLINE FRAME SPACER | $4.99 | |||
 | 372092 | 60 | 3/8″ PLASTIC BUSHING | $4.99 | ||
| 395713 | 61 | INCLINE MOTOR | $157.99 | |||
| 343447 | 62 | FRAME SPACER | $6.49 | |||
| 395737 | 63 | INCLINE FRAME | $130.99 | |||
 | 114078 | 64 | INCLINE MOTOR SPACER | $2.49 | ||
| 399954 | 65 | CONTROLLER | $193.49 | |||
 | 031229 | 66 | POWER CORD | $39.99 | ||
 | 173169 | 67 | GROMMET | $0.99 | ||
 | 186726 | 68 | POWER SWITCH | $22.49 | ||
| 393456 | 69 | BELLY PAN | $89.49 | |||
 | 393392 | 70 | LEFT HANDRAIL COVER | $22.49 | ||
 | 393391 | 71 | RIGHT HANDRAIL COVER | $22.49 | ||
| 393258 | 72 | HANDRAIL | $78.99 | |||
| 393316 | 73 | CONSOLE FRAME | $124.99 | |||
| 393387 | 74 | CONSOLE BASE | $136.99 | |||
| 393472 | 75 | PULSE CROSSBAR | $128.49 | |||
 | 215822 | 76 | PULSE GROUND WIRE | $5.99 | ||
| 397879 | 77 | UPRIGHT CROSSBAR | $109.99 | |||
| 398145 | 78 | LEFT UPRIGHT | $229.99 | |||
| 398146 | 79 | RIGHT UPRIGHT | $226.49 | |||
| 394672 | 80 | UPRIGHT WIRE | $79.49 | |||
 | 227199 | 81 | GROMMET | $2.49 | ||
| 306715 | 82 | BASE CAP | $1.49 | |||
 | 307032 | 83 | BASE PAD | $3.99 | ||
| 307031 | 84 | BASE PAD 1/4″ THICK | $2.99 | |||
| 393390 | 85 | LEFT TRAY | $27.99 | |||
| 393389 | 86 | RIGHT TRAY | $27.99 | |||
| 252433 | 87 | BASE LEG DECAL | $0.99 | |||
| 395519 | 88 | BASE | $316.99 | |||
| 397888 | 90 | UPRIGHT TRAY | $153.99 | |||
| 397908 | 91 | LEFT FRAME COVER | $112.99 | |||
| 397906 | 92 | RIGHT FRAME COVER | $112.99 | |||
| 398979 | 93 | DRIVE MOTOR BRACKET | $97.99 | |||

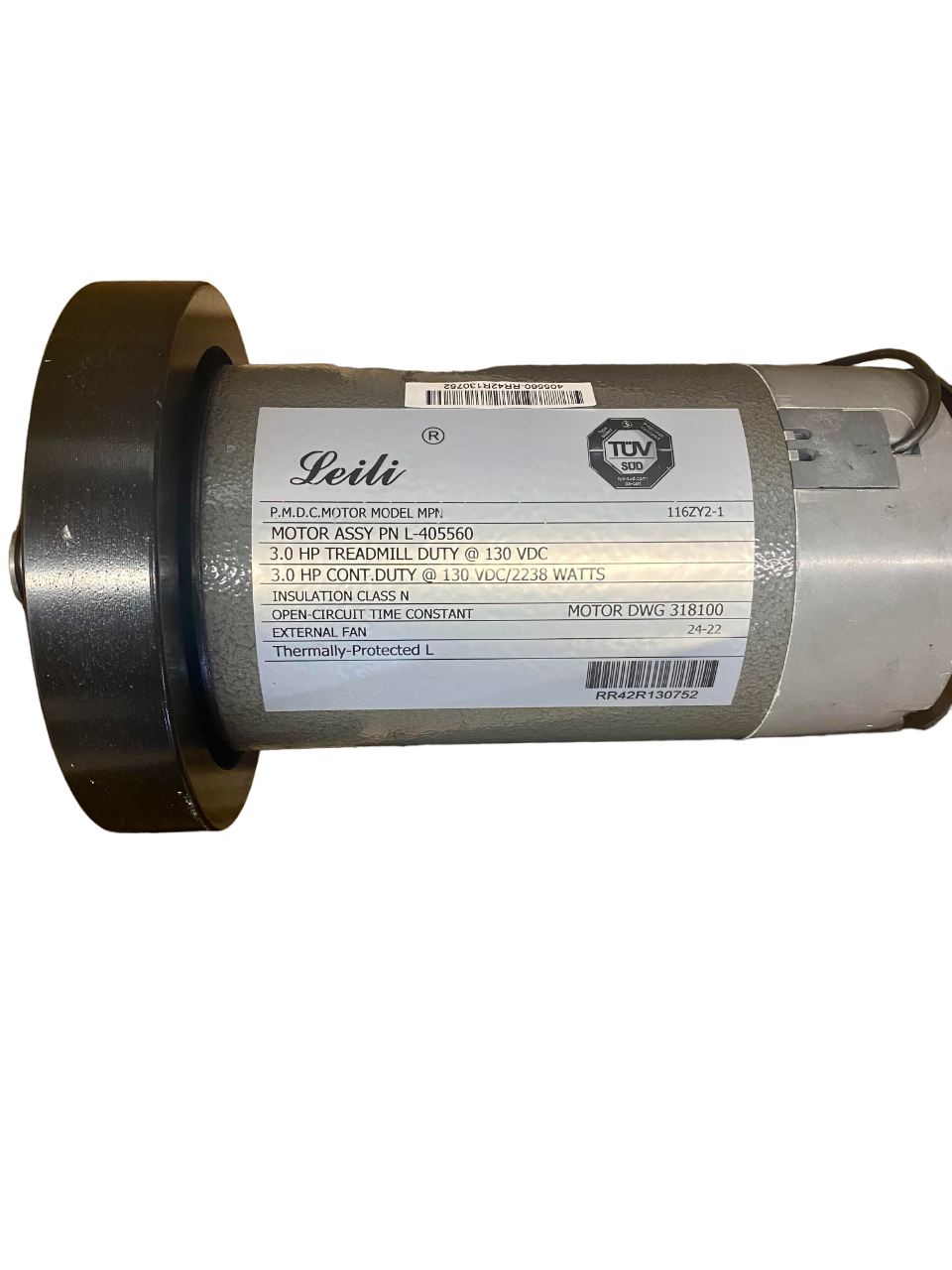

 | 405580 | 94 | Drive Motor | $237.49 | ||
 | 139090 | 95 | WHEEL | $2.99 | ||
 | 208603 | 96 | KEY/CLIP | $19.99 | ||
| 132315 | 97 | WIRE TIE | $3.49 | |||
| 250549 | 99 | M8 X 102MM BOLT | $5.49 | |||
 | 234288 | 100 | M8 X 20MM BOLT | $1.49 | ||
| 234325 | 101 | M8 STAR WASHER | $1.49 | |||
 | 012105 | 102 | M8 FLANGE NUT | $3.49 | ||
| 399776 | # | Literature Packet for ProForm PFTL977183 Treadmill | $129.99 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 268476 | # | DECAL, GROUND WARNING | $0.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | RELEASABLE CABLE TIE | $0.99 | |||
| 397974 | # | Hardware Kit, Assembly Hardware and Parts | $132.99 | |||
 | 286707 | # | INCLN MOTOR SENSOR KIT | $70.49 | ||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 128457 | # | ALLEN WRENCH | $25.49 | ||
 | ARC14 | # | WALL ARC FILTER | $42.99 | ||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 118201 | TS11 | 8″ RED WIRE, M/F | $4.49 | |||
| 141995 | TS12 | 8″ BLACK WIRE, M/F | $4.49 | |||
| 153403 | TS13 | 4″ BLUE WIRE, M/F | $3.99 | |||
| 126146 | TS14 | 4″ BLUE WIRE, 2F | $3.49 | |||
 | 102634 | TS3 | 8″ GREEN WIRE, F/R | $3.49 | ||
| 211260 | TS6 | 12″ WIRE HARNESS | $12.99 |
