PROFORM CARBON E7 ELLIPTICAL – PFEL99524.0
170 Parts Available for PROFORM CARBON E7 ELLIPTICAL - PFEL99524.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 393285 | 2 | REAR STABILIZER | $148.99 | |||
| 393826 | 3 | ACCESS COVER | $59.49 | |||
| 451836 | 4 | UPRIGHT | $357.99 | |||
 | 250961 | 5 | M4.2 X 19MM SCREW | $0.99 | ||
| 347381 | 6 | FRONT STABILIZER | $118.49 | |||
| 451798 | 7A | CONSOLE | $434.49 | |||
| 411549 | 7B | CONSOLE FAN | $55.49 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
| 406048 | 9 | CRANK BEARING SLEEVE | $29.99 | |||
| 394393 | 10 | REAR RAMP COVER | $68.49 | |||
| 349845 | 11A | INCLINE MOTOR | $165.99 | |||
 | 286707 | 11B | INCLN SENSOR WIRE KIT | $70.49 | ||
| 397058 | 12 | INCLINE MOTOR ARM | $119.99 | |||
| 397379 | 13 | RAMP ARM | $95.99 | |||
 | 287322 | 14 | SMALL BUSHING | $10.99 | ||
| 452046 | 15 | REAR STABILIZER COVER | $114.49 | |||
 | 393286 | 16 | TRACK | $99.99 | ||
 | 264511 | 17 | POWER SWITCH | $32.99 | ||
 | 428353 | 18 | CRANK | $149.49 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 428356 | 20 | CRANK ARM | $192.49 | |||
 | 299478 | 21 | GRIP | $57.49 | ||
| 393287 | 22 | IDLER | $120.99 | |||
 | 157600 | 23 | BUMPER | $1.99 | ||
| 273032 | 24 | SMALL LEVELING FOOT | $17.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 148710 | 26A | M10 LOCKNUT | $2.49 | ||
 | 275907 | 26B | M10 LOCKNUT,CRNK ARM CLMP | $4.49 | ||
| 248342 | 27A | M10 WASHER | $1.99 | |||
| 130286 | 27B | M10 X 28MM WASHER | $11.49 | |||
| 364320 | 28A | EDDY MECHANISM | $372.99 | |||
| 352967 | 28B | RESISTANCE CABLE | $39.49 | |||
| 393278 | 29 | RIGHT PEDAL | $114.95 | |||
 | 348200 | 30 | STABILIZER CAP | $17.49 | ||
 | 373258 | 31 | M10 X 20MM HEX SCREW | $5.49 | ||
| 416364 | 32 | ROLLER ARM BEARING SLEEVE | $18.49 | |||
 | 237631 | 33 | LEVELING FOOT | $34.99 | ||
 | 148803 | 34 | FRONT WHEEL | $3.49 | ||
 | 133333 | 35 | CLIP | $0.99 | ||
 | 353545 | 36 | M6 X 19MM WASHER | $1.49 | ||
| 393306 | 37 | ACCESSORY TRAY | $129.99 | |||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | CLAMP | $3.49 | ||
 | 277016 | 40 | BEARING | $62.49 | ||
| 397079 | 41 | UPPER RAMP COVER | $43.99 | |||
| 394384 | 42 | SLEEVE | $28.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 442309 | 44 | LEFT PEDAL ARM | $254.99 | |||
| 380033 | 45 | LEFT ROLLER ARM | $285.99 | |||
| 451838 | 46 | LEFT UPPER BODY LEG | $178.99 | |||
| 393290 | 47 | LEFT UPPER BODY ARM | $108.49 | |||
 | 313668 | 48 | POWER CORD GROMMET | $9.49 | ||
| 393280 | 49 | LEFT PEDAL | $144.49 | |||
| 367635 | 50 | M4 X 12MM SELF-TAP SCREW | $6.49 | |||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 451936 | 52 | LEFT PEDAL HANDLE | $46.49 | |||
 | 337966 | 53 | LARGE AXLE COVER | $5.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
| 442307 | 56 | ROLLER ARM BUSHING | $63.99 | |||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 442313 | 58 | RIGHT PEDAL ARM | $254.99 | |||
| 380020 | 59 | RIGHT ROLLER ARM | $176.49 | |||
| 451837 | 60 | RIGHT UPPER BODY LEG | $178.99 | |||
| 393291 | 61 | RIGHT UPPER BODY ARM | $108.49 | |||
| 428358 | 62 | INNER ARM BEARING | $64.99 | |||
| 421101 | 63 | HANDLEBAR GRIP | $39.49 | |||
| 450926 | 64 | PEDAL ARM AXLE | $76.49 | |||
| 393304 | 65 | RIGHT ARM FRONT COVER | $40.99 | |||
| 393305 | 66 | RIGHT ARM REAR COVER | $47.99 | |||
| 393302 | 67 | LEFT ARM FRONT COVER | $40.99 | |||
| 393303 | 68 | LEFT ARM REAR COVER | $47.99 | |||
| 420057 | 69 | RIGHT LEG OUTER COVER | $98.99 | |||
| 420239 | 70 | LEFT LEG OUTER COVER | $93.99 | |||
| 393297 | 71 | DISC | $139.49 | |||
| 420240 | 72 | LEFT LEG INNER COVER | $93.99 | |||
| 417668 | 73 | LEFT SHIELD | $170.99 | |||
| 417712 | 74 | RIGHT SHIELD | $183.49 | |||
| 434484 | 75 | CENTER SHIELD COVER | $67.49 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
 | 428362 | 77 | CRANK COVER | $21.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 383085 | 79 | FRONT CONSOLE COVER | $54.49 | |||
| 394579 | 80 | REAR CONSOLE COVER | $66.99 | |||
| 393307 | 81 | LOWER TRAY COVER | $54.49 | |||
 | 383382 | 82 | M8 X 13MM SCREW | $0.99 | ||
| 420056 | 83 | RIGHT LEG INNER COVER | $98.99 | |||
| 234276 | 84 | M4 GROUND SCREW | $0.99 | |||
| 416446 | 85 | LEFT PEDAL PLATE | $137.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | M6 X 20MM SHOULDER SCREW | $4.49 | ||
 | 208163 | 89 | M6 X 20MM HEX SCREW | $1.99 | ||
| 450958 | 90 | PIVOT GUIDE | $21.49 | |||
| 397183 | 91 | DRIVE BELT ADJUST SCREW | $43.99 | |||
| 227701 | 92 | M10 X 25MM SCREW | $2.49 | |||
| 351856 | 94 | MOTOR ARM SPACER | $1.99 | |||
 | 206321 | 95 | M8 X 19MM SCRW, NOTE: OM | $3.49 | ||
| 451150 | 96 | M8 X 41MM SCREW | $10.99 | |||
 | 223812 | 97 | M8 WASHER | $1.99 | ||
 | 224113 | 98 | M8 X 18MM WASHER | $2.49 | ||
| 445808 | 99 | UPRIGHT GROMMET | $1.99 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 362430 | 101A | M4 X 16MM SCREW | $3.49 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 256446 | 102 | M8 NUT | $0.99 | ||
| 262286 | 103A | M6X12MM RAMP LIFT SCREW | $6.49 | |||
| 262341 | 103B | M6 X 12MM SCREW | $3.49 | |||
| 353576 | 104 | M10 X 115MM SCREW | $15.49 | |||
| 441909 | 105 | M4 X 25MM SCREW,NOTE: | $0.99 | |||
| 393300 | 106 | LOWER RAMP COVER | $41.99 | |||
 | 394383 | 107 | CRANK SPACER | $28.49 | ||
| 277731 | 108 | M6 X 12MM HEX SCREW | $1.49 | |||
| 208583 | 109 | WHEEL BOLT | $5.99 | |||
| 451807 | 110 | MAIN WIRE | $137.99 | |||
| 400130 | 111 | M10 X 158MM BOLT | $26.49 | |||
| 378126 | 112 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 416695 | 114 | CONTROLLER | $161.49 | ||
 | 125819 | 115 | PLASTIC STAND-OFF | $3.99 | ||
| 451935 | 116 | DISC RING | $135.99 | |||
| 393829 | 117 | FRONT SHIELD COVER | $66.99 | |||
| 426262 | 118 | REAR SHIELD COVER | $104.49 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
 | 384942 | 120 | M8 X 20MM SCREW | $6.49 | ||
 | 237616 | 121A | FRAME BUSHING | $4.99 | ||

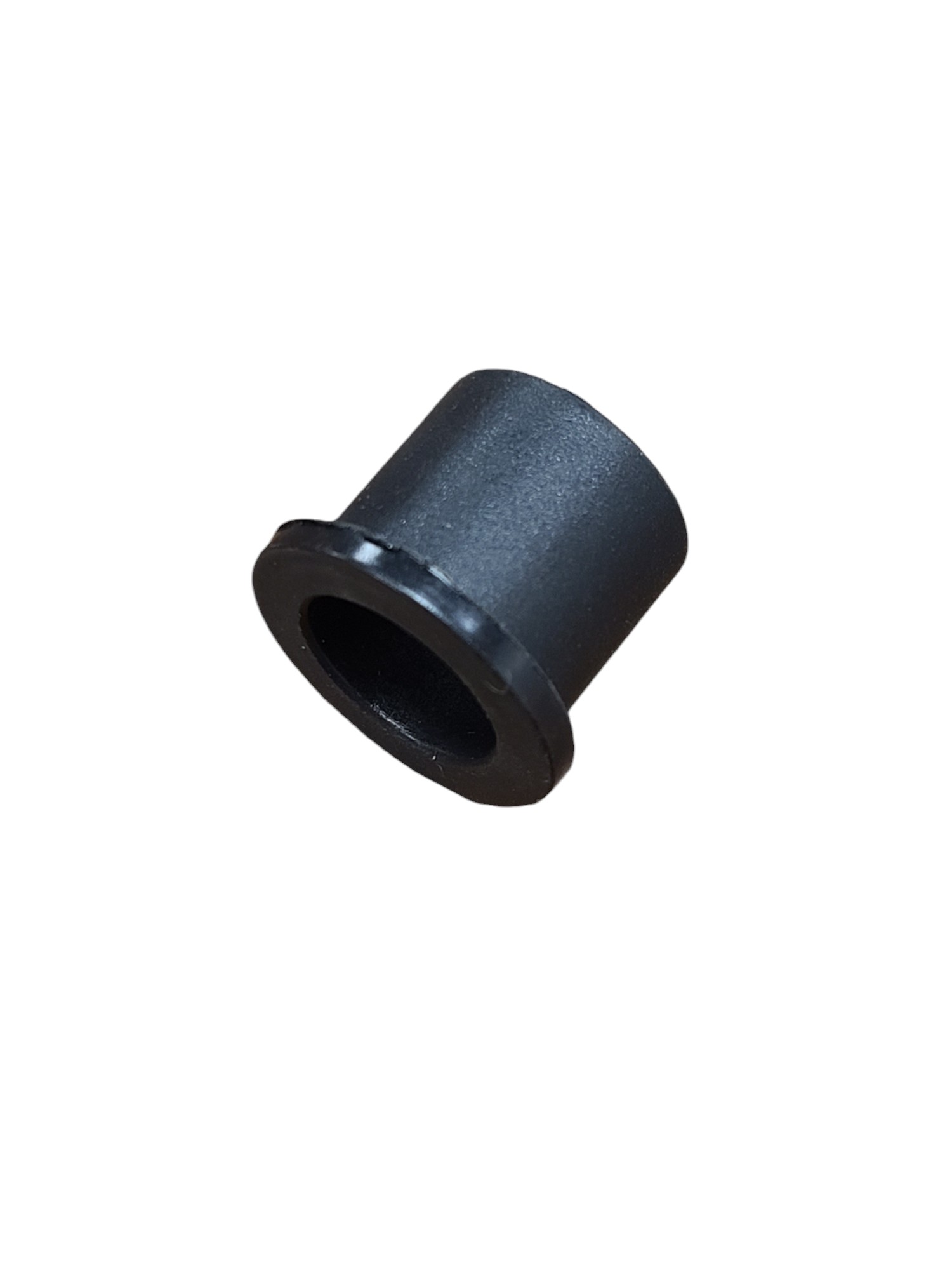

 | 397523 | 121B | PLASTIC FRAME BUSHING | $26.49 | ||
| 350182 | 122 | M10 X 48MM BOLT | $9.49 | |||
| 428360 | 123 | OUTER ARM BEARING | $64.99 | |||
| 412525 | 124 | M4 X 16MM MACHINE SCREW | $6.49 | |||
 | 325993 | 125 | PEDAL PIN | $19.99 | ||
 | 224606 | 126 | M4 X 25MM SCREW | $0.99 | ||
| 451841 | 127 | DISC BRACKET | $63.99 | |||
| 394385 | 128 | LONG BUMPER | $23.49 | |||
 | 281801 | 129 | M8 WASHER | $7.49 | ||
 | 213457 | 130 | M4 X 12MM SCREW | $1.99 | ||
| 394132 | 131 | ADHESIVE TAPE | $22.99 | |||
| 451937 | 132 | RIGHT PEDAL HANDLE | $46.49 | |||
| 252795 | 133 | M10 SPLIT WASHER | $0.99 | |||
| 321268 | 134 | PEDAL SPRING | $3.49 | |||
 | 340140 | 135 | M6 CRANK ARM WASHER | $1.49 | ||
| 249930 | 136 | M8 X 20MM SCREW | $2.99 | |||
 | 194653 | 137 | M6 ACORN NUT | $1.99 | ||
| 249933 | 138 | M6 WASHER | $0.99 | |||
| 416445 | 139 | RIGHT PEDAL PLATE | $137.99 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 451832 | # | LITPAC, NOTE: | $317.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 1000083 | # | USER’S MANUAL,SP8 | $54.49 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
| 364361 | # | CHEST PULSE STRAP | $135.99 | |||
| 236006 | # | DCL,SURGE WRNG,ENG/SPNSH | $3.99 | |||
| 437551 | # | ARM HEART RATE MONITOR | $194.99 | |||
| 450416 | # | PHILLIPS SCREW DRIVER | $76.99 | |||
| 451125 | # | TOOL KIT, NOTE: | $111.99 | |||
| 450574 | # | 5MM ALLEN WRENCH, T-HNDL | $64.99 | |||
| 451844 | # | HARDWARE KIT, NOTE: | $120.99 | |||
| 450575 | # | 6MM ALLEN WRENCH, T-HNDL | $92.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 450422 | # | 13MM COMBO WRENCH | $63.99 | |||
| 116926 | # | RELEASABLE TIE | $0.99 | |||
| 450417 | # | 16MM COMBO WRENCH | $64.99 | |||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 437942 | # | DECAL, GENERAL WARNING | $10.99 | |||
| 270274 | TS4 | 18″ WHITE WIRE, F-M | $5.99 | |||
| 203981 | TS5 | 18″ BLUE WIRE, F/F | $6.49 | |||
| 320978 | TS6 | CONTROLLER GROUND WIRE | $5.49 | |||
| 351172 | TS7 | 20″ CNCTLR/LIFT MTR WIRE | $50.99 | |||
| 324737 | TS8 | 20″ CNTRLR/RESIST WIRE | $30.49 |
