PROFORM CARBON E10 ELLIPTICAL – PFEL99521.4
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
171 Parts Available for PROFORM CARBON E10 ELLIPTICAL - PFEL99521.4 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 393285 | 2 | REAR STABILIZER | $148.99 | |||
 | 393826 | 3 | ACCESS COVER | $59.49 | ||
| 438782 | 4A | UPRIGHT | $370.49 | |||
| 331242 | 4B | GROMMET | $6.49 | |||
 | 250961 | 5 | M4 X 19MM SCREW | $0.99 | ||
| 347381 | 6 | FRONT STABILIZER | $192.49 | |||
| 437953 | 7A | CONSOLE | $599.99 | |||
| 411549 | 7B | CONSOLE FAN | $55.49 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 406048 | 9 | CRANK BEARING SLEEVE | $29.99 | ||
| 394393 | 10 | REAR RAMP COVER | $68.49 | |||
| 349845 | 11A | INCLINE MOTOR | $165.99 | |||
 | 286707 | 11B | INCLINE MTR SENSOR WIRE | $70.49 | ||
| 397058 | 12 | INCLINE MOTOR ARM | $159.99 | |||
| 397379 | 13 | RAMP ARM | $95.99 | |||
| 349894 | 14 | RAMP ARM SPACER | $8.99 | |||
| 437956 | 15 | REAR STABILIZER COVER | $122.99 | |||
 | 393286 | 16 | TRACK | $99.99 | ||
 | 264511 | 17 | POWER SWITCH | $32.99 | ||
 | 428353 | 18 | CRANK | $149.49 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 428356 | 20 | CRANK ARM | $192.49 | |||
 | 421101 | 21 | HANDLEBAR GRIP | $39.49 | ||
| 393287 | 22 | IDLER | $120.99 | |||
 | 157600 | 23 | FOOT/BUMPER | $1.99 | ||
| 273032 | 24 | SMALL LEVELING FOOT | $17.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
 | 148710 | 26A | M10 LOCKNUT | $2.49 | ||
 | 275907 | 26B | M10 CRANK ARM LOCKNUT | $4.49 | ||
| 248342 | 27A | M10 X 25MM WASHER | $1.99 | |||
| 316836 | 27B | RAMP AXLE | $54.99 | |||
| 364320 | 28A | EDDY MECHANISM | $372.99 | |||
| 352967 | 28B | RESISTANCE CABLE | $39.49 | |||
 | 413564 | 28C | EDDY MECHANISM SCREW | $4.99 | ||
 | 393278 | 29 | RIGHT PEDAL | $114.95 | ||
 | 348200 | 30 | STABILIZER CAP | $24.99 | ||
| 250420 | 31A | M10 X 19MM SCREW | $2.99 | |||
| 331822 | 31B | M10 X 16MM PATCH SCREW | $4.49 | |||
 | 416364 | 32 | ROLLER ARM BEARING SLEEVE | $16.99 | ||
 | 237631 | 33 | LEVELING FOOT | $34.99 | ||
 | 148803 | 34 | WHEEL | $24.99 | ||
 | 133333 | 35 | CLIP NUT | $0.99 | ||
 | 014033 | 36 | M6 WASHER | $1.49 | ||
 | 393306 | 37 | ACCESSORY TRAY | $129.99 | ||
 | 372449 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 282277 | 39 | CLAMP | $3.49 | ||
 | 277016 | 40 | FRAME BEARING | $62.49 | ||
| 397079 | 41 | UPPER RAMP COVER | $43.99 | |||
| 394384 | 42 | SLEEVE | $28.49 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 442309 | 44 | LEFT PEDAL ARM | $254.99 | |||
| 380033 | 45 | LEFT ROLLER ARM | $285.99 | |||
| 420241 | 46 | LEFT UPPER BODY LEG | $171.99 | |||
| 393290 | 47 | LEFT UPPER BODY ARM | $108.49 | |||
 | 313668 | 48 | STRAIN-RELIEF BUSHING | $9.49 | ||
| 393280 | 49 | LEFT PEDAL | $144.49 | |||
| 367635 | 50 | M4 X 12MM SELF-TAP SCREW | $6.49 | |||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 397098 | 52 | LEFT PEDAL HANDLE | $22.49 | |||
 | 337966 | 53 | ROLLER ARM COVER | $5.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
| 442307 | 56 | ROLLER ARM BUSHING | $63.99 | |||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 442313 | 58 | RIGHT PEDAL ARM | $254.99 | |||
| 380020 | 59 | RIGHT ROLLER ARM | $176.49 | |||
| 419468 | 60 | RIGHT UPPER BODY LEG | $194.99 | |||
| 393291 | 61 | RIGHT UPPER BODY ARM | $108.49 | |||
 | 299478 | 63 | GRIP | $57.49 | ||
 | 384800 | 64 | PEDAL ARM AXLE | $43.99 | ||
| 393304 | 65 | RIGHT ARM FRONT COVER | $64.99 | |||
| 393305 | 66 | RIGHT ARM REAR COVER | $47.99 | |||
| 393302 | 67 | LEFT ARM FRONT COVER | $64.99 | |||
| 393303 | 68 | LEFT ARM REAR COVER | $47.99 | |||
| 420057 | 69 | RIGHT LEG OUTER COVER | $98.99 | |||
 | 420239 | 70 | LEFT LEG OUTER COVER | $107.49 | ||
| 393297 | 71 | DISC | $139.49 | |||
 | 420240 | 72 | LEFT LEG INNER COVER | $93.99 | ||
| 403251 | 73 | LEFT SHIELD | $140.49 | |||
| 403252 | 74 | RIGHT SHIELD | $140.49 | |||
| 434484 | 75 | CENTER SHIELD COVER | $67.49 | |||
| 363319 | 76 | LEFT PEDAL ARM SIDE CAP | $17.49 | |||
 | 428362 | 77 | CRANK COVER | $21.49 | ||
 | 386629 | 78 | KEY | $9.49 | ||
| 394579 | 79 | REAR CONSOLE COVER | $66.99 | |||
| 383085 | 80 | FRONT CONSOLE COVER | $54.49 | |||
 | 393307 | 81 | LOWER TRAY COVER | $54.49 | ||
 | 191032 | 82A | M8 X 16MM SCREW | $1.99 | ||
 | 383382 | 82B | M8 X 13MM SCREW | $0.99 | ||
| 420056 | 83 | RIGHT LEG INNER COVER | $98.99 | |||
| 234276 | 84 | M4.2 X 10MM SCREW | $0.99 | |||
| 416446 | 85 | LEFT PEDAL PLATE | $137.99 | |||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 363320 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | |||
 | 281150 | 88 | M6 X 20MM SHLDR SCRW,NOTE | $4.49 | ||
 | 208163 | 89 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 353545 | 90 | M6 X 19MM WASHER | $3.49 | ||
| 397183 | 91 | DRIVE BELT ADJ SCREW | $51.99 | |||
 | 227701 | 92 | M10 X 25MM SCREW | $2.49 | ||
 | 168267 | 93 | M4 X 12MM FLANGE SCREW | $0.99 | ||
| 351856 | 94 | MOTOR ARM SPACER | $1.99 | |||
 | 206321 | 95A | M8 X 19MM PATCH SCREW | $3.49 | ||
 | 249930 | 95B | M8 X 20MM SCREW | $2.99 | ||
| 013226 | 96 | M8 X 45MM BOLT | $5.99 | |||
 | 223812 | 97 | M8 X 28MM WASHER | $1.99 | ||
 | 224113 | 98 | M8 WASHER | $2.49 | ||
| 428358 | 99 | INNER ARM BEARING | $64.99 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 362430 | 101A | M4 X 16MM SCREW | $3.49 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 256446 | 102A | M8 JAM NUT | $0.99 | ||
 | 012042 | 102B | M8 LOCKNUT | $1.99 | ||
| 262286 | 103A | M6X12MM RAMP LIFT SCREW | $6.49 | |||
 | 262341 | 103B | M6 X 12MM SCREW | $3.49 | ||
| 347127 | 104 | M10 X 114MM SCREW | $21.49 | |||
| 441909 | 105 | M4 X 25MM SCREW,NOTE: | $0.99 | |||
| 393300 | 106 | LOWER RAMP COVER | $41.99 | |||
 | 394383 | 107 | CRANK SPACER | $28.49 | ||
 | 174108 | 108 | M6 X 13MM BUTTON SCREW | $5.99 | ||
 | 208583 | 109 | M10 X 58MM BOLT | $5.99 | ||
| 416413 | 110 | UPPER WIRE | $104.49 | |||
 | 400130 | 111 | M10 X 158MM BOLT | $26.99 | ||
| 378126 | 112 | M4 X 19MM SELF-TAP SCREW | $3.49 | |||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 416695 | 114 | CONTROLLER | $161.49 | ||
 | 125819 | 115 | PLASTIC STAND-OFF | $3.99 | ||
| 403641 | 116A | DISC RING | $126.49 | |||
| 372972 | 116B | M5 CRANK COVER WASHER | $0.99 | |||
| 393829 | 117 | FRONT SHIELD COVER | $66.99 | |||

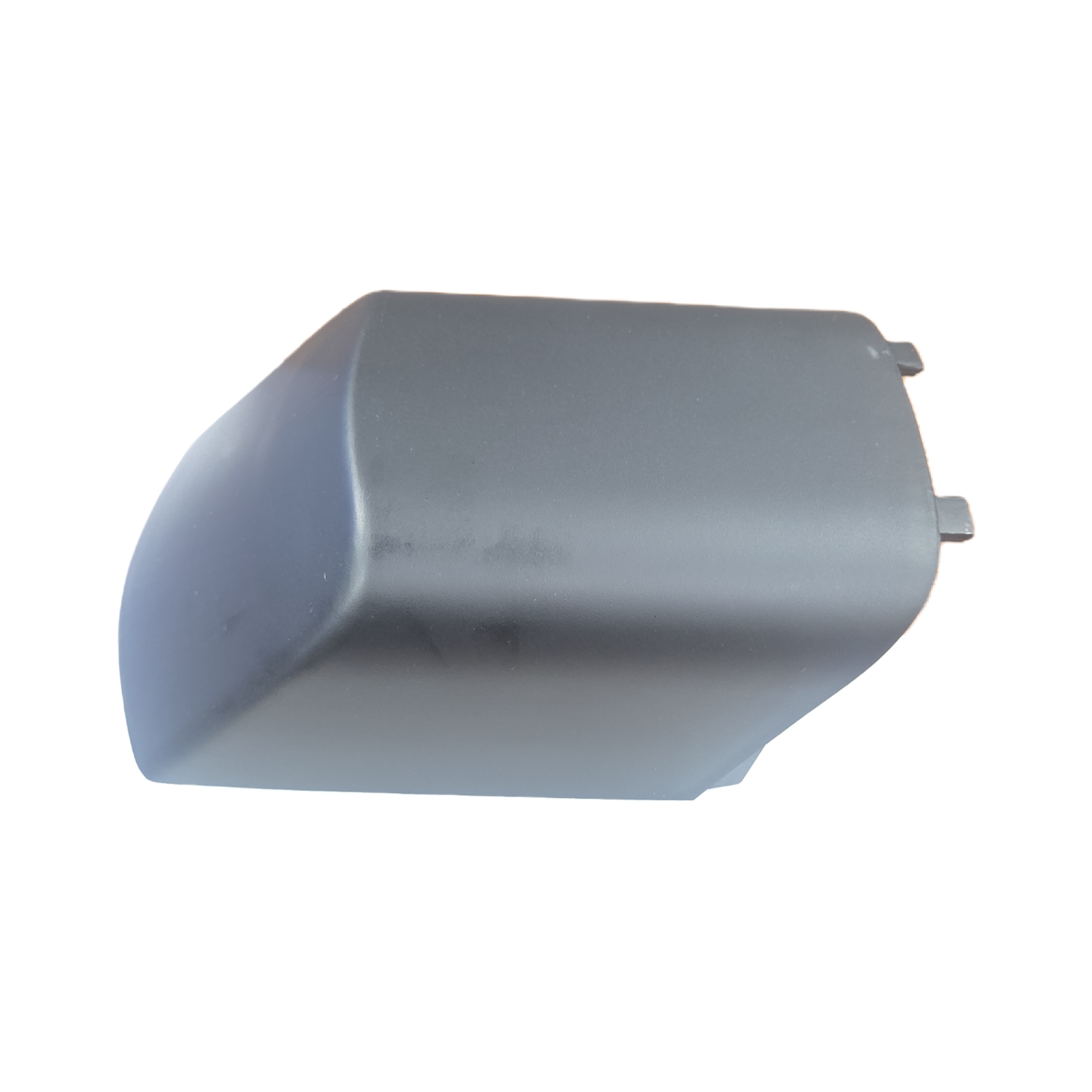

 | 393827 | 118 | REAR SHIELD COVER | $92.49 | ||
 | 342275 | 119 | POWER CORD | $49.99 | ||
 | 384942 | 120 | M8 X 20MM SCREW | $6.49 | ||
 | 237616 | 121A | BRASS BUSHING | $4.99 | ||
 | 397523 | 121B | PLASTIC FRAME BUSHING | $26.49 | ||
 | 287322 | 121C | M8 X 16MM WASHER | $10.99 | ||
| 350182 | 122 | M10 X 48MM BOLT | $9.49 | |||
| 428360 | 123 | OUTER ARM BEARING | $64.99 | |||
 | 184369 | 124 | M4X16MM TABLET HLDR SCREW | $0.99 | ||
 | 325993 | 125 | PEDAL PIN | $19.99 | ||
| 273353 | 126 | M4 X 38MM SCREW,NOTE | $0.99 | |||
| 397074 | 127 | DISC BRACKET | $43.99 | |||
| 394385 | 128 | LONG BUMPER | $23.49 | |||
 | 281801 | 129 | M8 WASHER | $7.49 | ||
 | 213457 | 130 | M4 X 12MM SCREW | $1.99 | ||
| 394132 | 131 | ADHESIVE TAPE | $22.99 | |||
| 397099 | 132 | RIGHT PEDAL HANDLE | $22.49 | |||
| 252795 | 133 | M10 SPLIT WASHER | $0.99 | |||
 | 321268 | 134 | SPRING | $3.49 | ||
 | 340140 | 135 | M6 WASHER | $1.49 | ||
| 130286 | 136 | M10 LARGE WASHER | $11.49 | |||
 | 194653 | 137 | M6 ACORN NUT | $1.99 | ||
| 249933 | 138 | M6.5 WASHER | $0.99 | |||
| 416445 | 139 | RIGHT PEDAL PLATE | $137.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 132315 | # | WIRE CLAMP | $3.49 | |||
 | 437551 | # | HEART RATE ARM BAND | $194.99 | ||
| 410314 | # | TABLET HOLDER | $117.49 | |||
| 416077 | # | HARDWARE KIT, NOTE: | $154.49 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 297256 | # | ASSEMBLY TOOL, 6MM HEX | $13.49 | |||
| 116926 | # | 8″ 50 LB CABLE TIE | $0.99 | |||
| 236006 | # | DECAL,SURGE WARNING,EN/SP | $3.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 364361 | # | IFIT HEART RATE MONITOR | $135.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 270274 | TS4 | 18″ WHITE WIRE, M/F | $5.99 | |||
| 203981 | TS5 | 018″ BLUE WIRE | $40.49 | |||
| 320978 | TS6 | 018″ GREEN WIRE | $5.49 | |||
| 351172 | TS7 | 20″ CNCTLR/LIFT MTR WIRE | $50.99 | |||
| 324737 | TS8 | 20″ WIRE HRNS, RESIST MTR | $30.49 |
