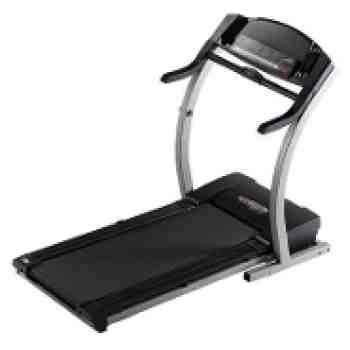

PROFORM C 1250 TREADMILL – DRTL1172.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
93 Parts Available for PROFORM C 1250 TREADMILL - DRTL1172.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 154848 | 3 | HOOD SCREW | $0.99 | ||
 | 149072 | 5 | TENSION BOLT | $3.99 | ||
| 158693 | 6 | FRAME PIVOT SPACER | $3.49 | |||
 | 113842 | 7 | PULLEY MAGNET | $1.49 | ||
| 162135 | 8 | FRONT ROLLER/PULLEY | $139.49 | |||
 | 119425 | 9 | 3/8″ JAM NUT | $0.99 | ||
 | 157504 | 10 | REED SWITCH | $26.99 | ||
 | 014117 | 14 | STAR WASHER | $0.99 | ||
| 238664 | 17 | IDLER ARM | NLA | |||
 | 170287 | 18 | MOTOR PULLEY V-BELT | NLA | ||
| 181983 | 20 | PULLEY BOLT | $5.99 | |||
 | 100427 | 21 | 5/16″ NUT | $0.99 | ||
| 160830 | 22 | IDLER PIVOT BOLT | $4.49 | |||
| 195167 | 23 | HOOD | $109.49 | |||
| 142276 | 24 | INCLINE MOTOR BOLT | $1.99 | |||
 | 125819 | 25 | STANDOFF | $3.99 | ||
 | 013423 | 27 | #8 X 1/2″ CONSOLE SCREW | $0.99 | ||
| 173957 | 28 | BALL DETENT | $2.99 | |||
| 178300 | 30 | ELECTRONICS PLATE | NLA | |||
| 157365 | 31 | MOTOR/CONTROLLER WIRE | $7.99 | |||
| 119445 | 33 | 1.25″ SCREW | $0.99 | |||
 | 014063 | 34 | 1/4″ FLAT WASHER | $0.99 | ||
| 012096 | 35 | 1/4″ SEAT NUT | $0.99 | |||
| 181469 | 38 | BELLY PAN | $103.49 | |||
| 180917 | 39 | GROUND/CHOKE SCREW | $0.99 | |||
 | 109382 | 41 | CIRCUIT BREAKER | $15.99 | ||
 | 031229 | 42 | POWER CORD | $39.99 | ||
| 136728 | 45 | #8 X 7/16″ SCREW | $0.99 | |||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
| 128272 | 53 | TOP ISOLATOR BOLT | $0.99 | |||
| 100691 | 54 | PLATFORM SCREW | $0.99 | |||
| 172822 | 55 | AUDIO NUT | NLA | |||
| 120630 | 56 | SCREW | $0.99 | |||
 | 102634 | 57 | CNTRLR GRND WIRE | $3.49 | ||
 | 174490 | 58 | REAR ENDCAP | $82.49 | ||
 | 105444 | 59 | REAR ROLLER ADJ BOLT | $0.99 | ||
| 155353 | 60 | LATCH DECAL | $64.99 | |||
 | 144809 | 62 | REAR ROLLER | $161.49 | ||
| 161884 | 65 | LEFT FOAM GRIP | $69.49 | |||
 | 100076 | 71 | LARGE SPRING | $2.49 | ||
| 014073 | 77 | WASHER | $1.49 | |||
 | 150699 | 78 | HANDRAIL BOLT | $3.99 | ||
 | 149217 | 79 | 2″ X 3″ INNER ENDCAP | $4.49 | ||
| 013028 | 80 | #8 X 1″ TRUSS HD SCREW | $0.99 | |||
| 158925 | 87 | CONSOLE BACK SCREW | $0.99 | |||
| 116926 | 89 | RELEASABLE WIRE TIE | $0.99 | |||
| 116927 | 91 | TIE HOLDER CLAMP | $0.99 | |||
| 016057 | 92 | 8″ CABLE TIE | $2.99 | |||
 | 135621 | 93 | 3/8″ X 4 1/2″ BOLT | $12.99 | ||
 | 135622 | 94 | 3/8″ X 2 3/4″ SCREW | $18.99 | ||
| 052012 | 95 | FRONT WHEEL | $5.99 | |||
 | 158716 | 96 | RIGHT ENDCAP INSERT | $28.49 | ||
 | 129004 | 97 | ROUND GROMMET | $1.99 | ||
 | 012149 | 101 | 3/8″ NUT | $0.99 | ||
| 151903 | 104 | WARNING DECAL | NLA | |||
 | 173169 | 109 | POWER CORD GROMMET | $0.99 | ||
 | 013576 | 111 | #8 X 1/2″ SCREW | $0.99 | ||
 | 157646 | 113 | 12″ IFIT AUDIO JACK WIRE | $22.99 | ||
 | 176005 | 114 | WALKING BELT W/FASTENERS | $165.49 | ||
| 158743 | 115 | CHEST PULSE WIRE | $27.99 | |||
| 158643 | 116 | EXTENSION WIRE | $15.49 | |||
| 173906 | 117 | HAND WEIGHT | $60.49 | |||
| 173766 | 118 | ENDCAP SPACER | $1.99 | |||
| 125214 | 121 | #8 X 2″ SCREW | $0.99 | |||
| 131538 | 123 | TAPE,HOOD COWLING | $4.99 | |||
 | 227298 | 125 | IDLER ARM SPRING | $2.49 | ||
| 178152 | 126 | MOTOR BOLT | $2.99 | |||
| 163869 | 127 | MOTOR ISOLATOR | $4.99 | |||
| 122812 | 128 | MOTOR TENSION WASHER | $0.99 | |||
| 159986 | 130 | TOP INCLINE BOLT | $6.49 | |||
| 163870 | 131 | MOTOR BUSHING | $1.49 | |||
| 165224 | # | INCLN/UPRT GROUND WIRE | $3.99 | |||
| 114261 | # | GROUND WIRE | $5.99 | |||
| 192417 | # | HOOD DECAL | NLA | |||
| 192414 | # | TECH SHEET | $0.99 | |||
| 102246 | # | 8″ WHITE WIRE, 2F | $4.49 | |||
| 109407 | # | 4″ BLACK WIRE,2 FEMALE | $3.99 | |||
 | 219550 | # | FRONT ROLLER BUSHING | $0.99 | ||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 142711 | # | 4″ GREEN WIRE F/R | $2.49 | ||
| 126146 | # | 4″ BLUE WIRE,F/F | $3.49 | |||
| 153501 | . | LOCK KNOB SLEEVE | NLA | |||
 | 013300 | . | #8 X 3/4″ TEK SCREW | $0.99 | ||
| 167079 | . | IFIT.COM WIRE | $19.49 | |||
| 126650 | . | BUMPER | $0.99 | |||
 | 158332 | . | IFIT.COM JACK | $5.99 | ||
| 192416 | . | USER’S MANUAL | $5.99 | |||
 | 157600 | . | BASE FOOT | $1.99 | ||
 | 161411 | . | BASE FOOT SPACER | $0.99 | ||
 | 013162 | . | REED SWITCH SCREW | $0.99 | ||
 | 119038 | . | KEY/CLIP | $5.49 |
