PROFORM ACTIVATOR V5 – PFVB11988.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
57 Parts Available for PROFORM ACTIVATOR V5 - PFVB11988.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 264013 | 1 | LOWER UPRIGHT | $203.49 | |||
| 263911 | 2 | PLATFORM COVER | $245.99 | |||
| 261611 | 4 | PLATFORM PLATE | $106.49 | |||
| 263978 | 5 | BASE | $334.99 | |||
| 264878 | 6 | VIBRATION PLATFORM | $178.49 | |||
| 263909 | 7 | STOP BUTTON | $9.49 | |||
| 263910 | 8 | START BUTTON | $3.99 | |||
| 264011 | 9 | CONTROLLER BOX | $87.99 | |||
| 263913 | 11 | CONTROLLER COVER | $25.99 | |||
| 261475 | 16 | PLATFORM ENDCAP | $11.49 | |||
 | 109231 | 18 | RECEPTACLE | $18.49 | ||
| 250627 | 19 | POWER SWITCH | $16.49 | |||
| 268393 | 20 | M10 X 55MM PATCH SCREW | $11.49 | |||
| 101630 | 21 | STAR WASHER | $0.99 | |||
| 261479 | 22 | SPRING | $2.49 | |||
| 276311 | 23 | M8 X 16MM SCREW | $3.99 | |||
| 268398 | 24 | M10 X 46MM FLAT HEAD SCRW | $9.49 | |||
 | 209659 | 25 | M8 X 30MM SCREW | $0.99 | ||
 | 195562 | 26 | M4 X 16MM SCREW | $1.99 | ||
| 245941 | 27 | M4.2 X 12MM SCREW | $1.49 | |||

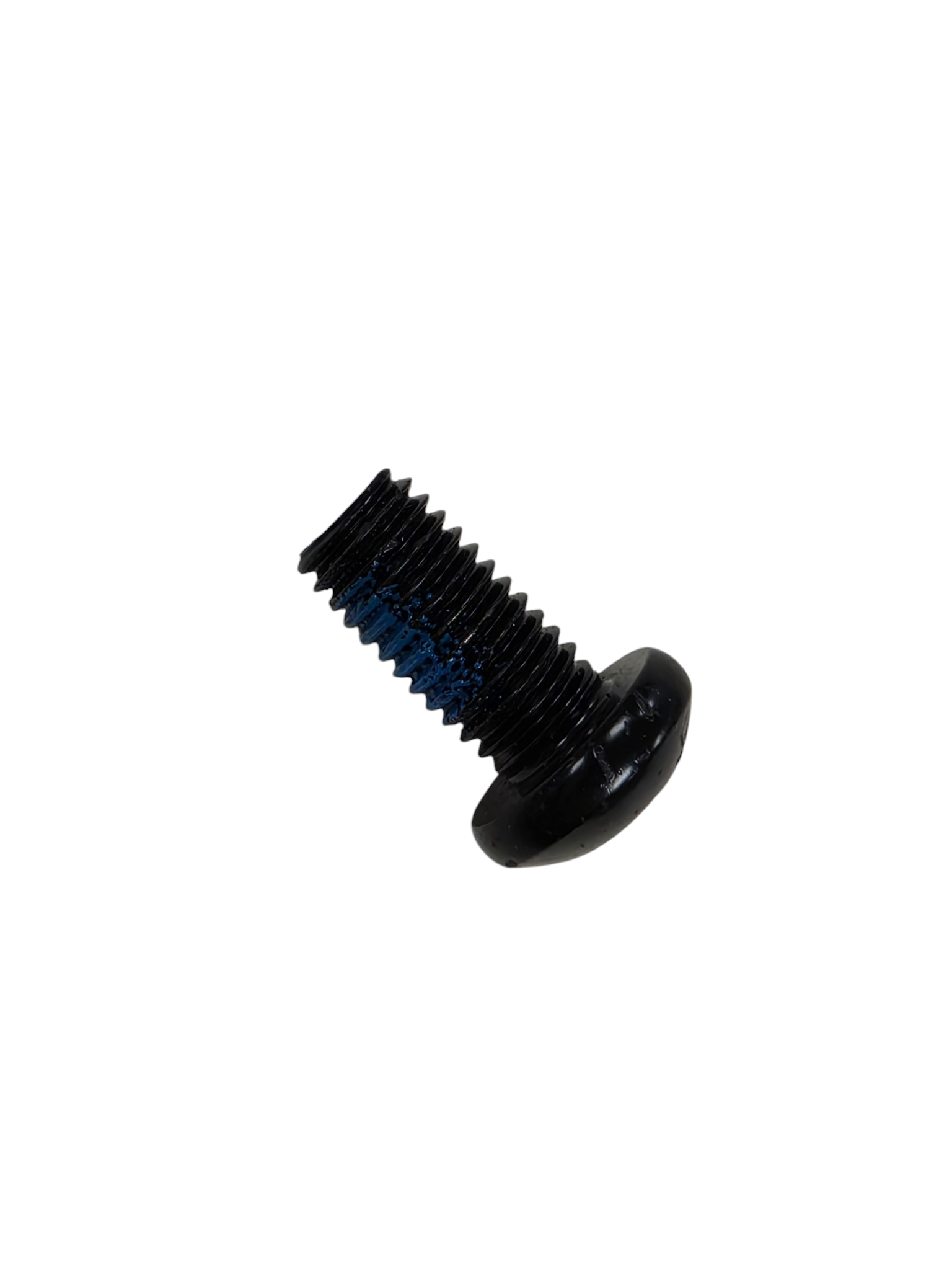

 | 262188 | 28 | M10 X 20MM PATCH SCREW | $2.49 | ||
| 261610 | 30 | WHEEL | $28.49 | |||
 | 208320 | 31 | M4 X 10MM SCREW | $0.99 | ||
 | 148710 | 32 | M10 LOCKNUT | $2.49 | ||
| 195070 | 33 | M10 X 114MM BOLT | NLA | Unavailable to order | ||
| 247444 | 34 | M10 X 35MM BOLT | $6.99 | |||
| 263984 | 35 | WHEEL BRACKET | $22.99 | |||
| 263985 | 36 | UPPER UPRIGHT | $136.99 | |||
| 268400 | 37 | M10 X 62MM PATCH SCREW | $13.99 | |||
| 112006 | 38 | M10 SPLIT WASHER | $0.99 | |||
| 263982 | 39 | HANDLEBAR | NLA | Unavailable to order | ||
 | 227199 | 40 | GROMMET | $2.49 | ||
| 260013 | 41 | GROUND WIRE | $25.99 | |||
 | 013423 | 42 | GROUND SCREW | $0.99 | ||
| 263949 | 43 | WIRE HARNESS | $48.49 | |||
| 204595 | 44 | M10 X 68MM BOLT | $12.49 | |||
 | 250961 | 45 | M4 X 19MM SCREW | $0.99 | ||
| 242419 | 46 | M8 WASHER | $0.99 | |||
 | 014174 | 47 | M8 SPLIT WASHER | $1.99 | ||
| 261482 | 48 | FRAME COVER | $13.99 | |||
| 265294 | 50 | MOTOR COVER | $128.49 | |||
| 263929 | 51 | SWITCH WIRE HARNESS | $57.49 | |||
| 263981 | # | TECH SHEET | $4.49 | |||
| 261724 | # | LOWER WIRE HARNESS | $27.99 | |||
| 267621 | # | COPPER PLATE | $15.49 | |||
| 132315 | # | ZIP TIE | $3.49 | |||
| 273386 | # | IFIT DEMO CARD | $110.49 | |||
| 116926 | # | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 198074 | # | WIRE 12″ JUMPER, WHITE | $5.49 | |||
| 267620 | # | CUSTOM WASHER | $7.99 | |||
| 253213 | # | DECAL, MAX WEIGHT | $8.49 | |||
| 198080 | # | WIRE 12″ JUMPER, BLACK | NLA | Unavailable to order | ||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 254456 | # | 10″ G/Y WIRE | $8.49 | |||
| 190907 | # | WIRE 8″ JUMPER, GRN | NLA | Unavailable to order | ||
| 253229 | # | DECAL, GENERAL WARNING | $17.49 | |||
| 045021 | # | 6MM ALLEN WRENCH | $7.49 |
