PROFORM 965 CT TREADMILL – PFTL69618.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
121 Parts Available for PROFORM 965 CT TREADMILL - PFTL69618.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | ST4.2 X 10MM SCREW | $0.99 | ||
 | 013322 | 2 | M4.2 X 20MM SELFTAP SCREW | $0.99 | ||
 | 349213 | 3 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||

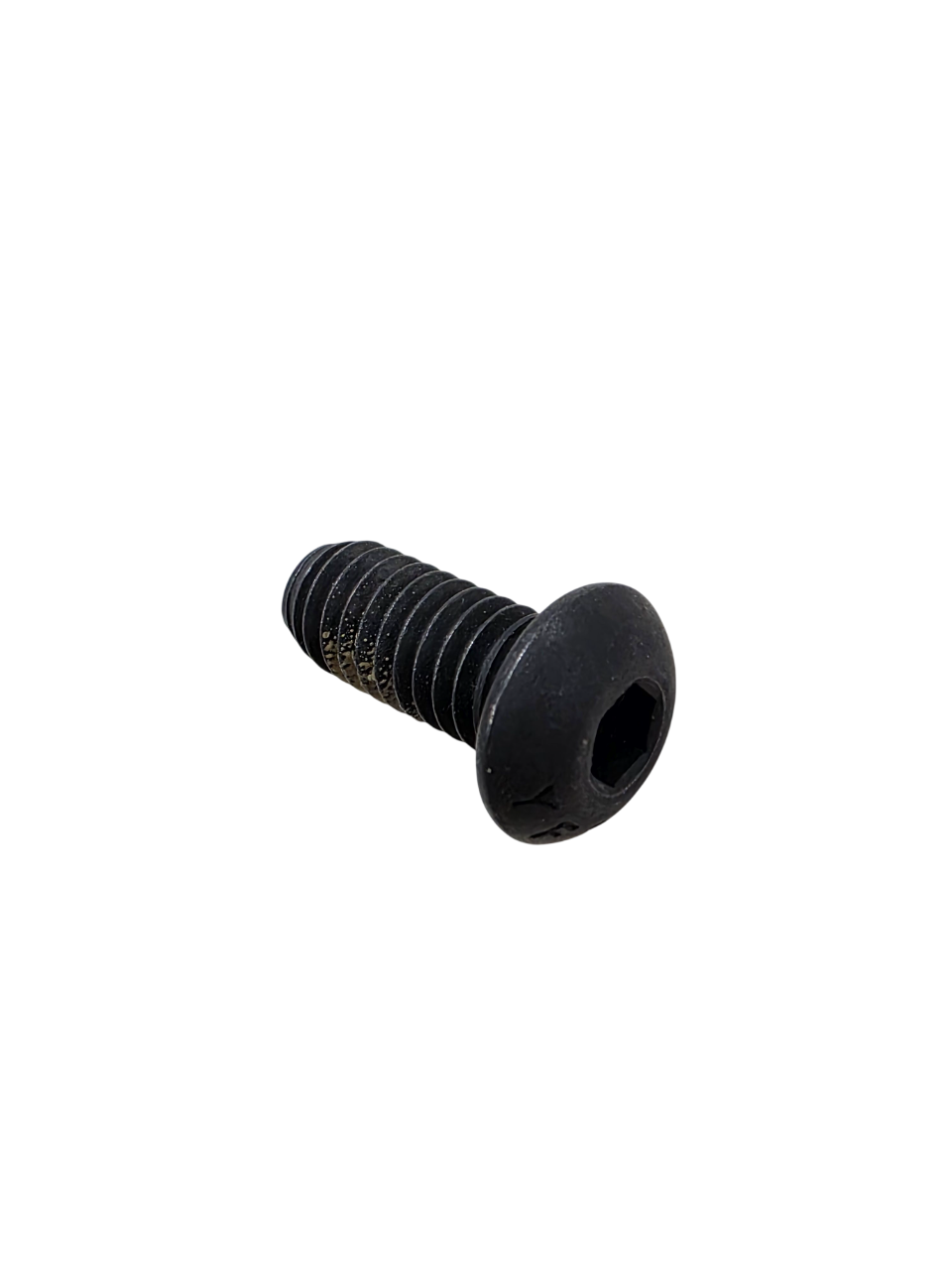

 | 271383 | 4 | 5/16″ X 5/8″ SCREW | $2.49 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
 | 298484 | 6 | 5/16″ BOLT,FLASH TM11-200 | $2.49 | ||
 | 341768 | 7 | 3/8″ X 2 3/8″ BOLT | $8.99 | ||
 | 276104 | 8 | #8 X 5/8″ MACHINE SCREW | $0.99 | ||
 | 167049 | 9 | M4 X 20MM SELF-TAP SCREW | $0.99 | ||
 | 186819 | 10 | #8X1/2″ WASHER HEAD SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 12 | 5/16″ NYLON JAM NUT | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 372697 | 14 | RIGHT INNER BASE COVER | $26.99 | ||
 | 364027 | 15 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 381122 | 17 | 3/8″ WHEEL BOLT,NOTE:OM | $2.99 | ||
| 360232 | 18 | CONSOLE FRAME | $93.99 | |||
| 136728 | 19 | #8 BELT GUIDE SCREW | $0.99 | |||
| 400038 | 20 | 5/16″ MOTOR SCREW | $3.49 | |||
| 315068 | 21 | 3/8″ PIN | $7.99 | |||
 | 372033 | 22 | 3/8″ X 1 1/8″ SCREW | $5.49 | ||
| 372094 | 23 | 9/32″ PLASTIC BUSHING | $4.99 | |||
| 014157 | 24 | #8 STAR WASHER | $0.99 | |||
 | 291486 | 25 | #8 X 5/8″ SCREW | $0.99 | ||
 | 013607 | 26 | GROUND SCREW | $0.99 | ||
 | 360514 | 27 | RIGHT TRAY | $53.99 | ||
 | 150699 | 28 | 5/16″ X 2 1/2″ SCREW | $3.99 | ||
| 179767 | 29 | 3/8″ X 1 3/4″ BOLT | $61.49 | |||
 | 152478 | 30 | FLAT WASHER | $0.99 | ||
| 265234 | 31 | 1/4″ X 1 1/4″ BOLT | $1.99 | |||
 | 114078 | 32 | INCLINE MOTOR SPACER | $2.49 | ||
 | 119425 | 33 | 3/8″ LOCK JAM NUT | $0.99 | ||
 | 102973 | 34 | THRUST WSHR FOR CNTR PULY | $0.99 | ||
 | 121576 | 35 | SPRING NUT | $2.49 | ||
 | 360515 | 36 | LEFT TRAY | $53.99 | ||
 | 372092 | 37 | 3/8″ PLASTIC BUSHING | $4.99 | ||
 | 347756 | 38 | LATCH CROSSBAR | $54.49 | ||
| 388005 | 39 | ISOLATOR | $14.99 | |||
 | 348118 | 40 | REAR FOOT | $27.99 | ||
| 313881 | 41 | TRAY | $57.99 | |||
| 403574 | 42 | LEFT FOOT RAIL | $70.99 | |||
| 413303 | 43 | LATCH WARNING DECAL | $3.99 | |||
| 396523 | 44 | WALKING PLATFORM | $182.49 | |||
 | 396524 | 45 | WALKING BELT | $122.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
 | 393579 | 47 | RIGHT REAR FOOT | $26.49 | ||
| 240351 | 48 | WIRE TIE | $0.99 | |||
| 396525 | 49 | DRIVE ROLLER/PULLEY | $157.99 | |||
 | 146427 | 50 | 1″ TEK SCREW NOTE: | $0.99 | ||
 | 372591 | 51 | WHEEL | $7.49 | ||
| 132315 | 52 | TIE | $3.49 | |||
 | 388203 | 53 | STORAGE LATCH | $100.49 | ||
| 405688 | 54A | DRIVE MOTOR | $278.99 | |||
| 242900 | 54B | MOTOR PLATE | $4.49 | |||
| 396521 | 55 | MOTOR BELT | $60.49 | |||
 | 393577 | 57 | LEFT REAR FOOT | $25.99 | ||
 | 215822 | 58 | CONSOLE GROUND WIRE | $5.99 | ||
 | 298474 | 59 | RUBBER CUSHION | $1.99 | ||
| 403575 | 60 | RIGHT FOOT RAIL | $77.49 | |||
| 396526 | 61 | IDLER ROLLER | $112.49 | |||
 | 181980 | 62 | TOP INCLINE MOTOR BOLT | $3.49 | ||
 | 181979 | 63 | BOTTOM INCLINE MOTOR BOLT | $3.49 | ||
| 360510 | 64 | CONSOLE BASE | $136.99 | |||
 | 349793 | 65 | MOTOR HOOD | $131.49 | ||
 | 173169 | 66 | GROMMET | $0.99 | ||
| 372093 | 67 | INCLINE FRAME SPACER | $4.99 | |||
 | 133333 | 68 | HOOD CLIP | $0.99 | ||
 | 315578 | 69 | INCLINE MOTOR | $167.99 | ||
| 372381 | 70 | INCLINE FRAME | $139.49 | |||
| 343447 | 71 | FRAME SPACER | $6.49 | |||
 | 391566 | 72 | CONTROLLER | $203.49 | ||
| 365328 | 73 | CONTROLLER CLAMP | $15.49 | |||
| 315047 | 74 | CONTROLLER PLATE | $2.49 | |||
 | 186726 | 75 | POWER SWITCH | $22.49 | ||
 | 031229 | 76 | POWER CORD | $39.99 | ||
 | 227199 | 77 | UPRIGHT WIRE GROMMET | $2.49 | ||
| 347853 | 78 | BELLY PAN | $118.49 | |||
| 396487 | 79A | LEFT INCLN CNTRL PANEL | $31.99 | |||
| 370741 | 79B | LEFT HANDRAIL COVER | $22.99 | |||
| 396488 | 80 | CONSOLE | $396.49 | Unavailable to order | ||
 | 349102 | 81 | UPRIGHT WIRE | $47.99 | ||
 | 372704 | 82 | LEFT BASE COVER | $51.49 | ||
 | 372703 | 83 | RIGHT BASE COVER | $26.99 | ||
 | 197404 | 84 | M5 WASHER | $1.99 | ||
| 396486 | 85A | RIGHT SPEED CNTRL PANEL | $31.99 | |||
| 370742 | 85B | RIGHT HANDRAIL COVER | $22.99 | |||
| 370733 | 86 | HANDRAIL | $69.49 | Unavailable to order | ||
| 370744 | 87 | LEFT BOTTOM HANDRAIL CVR | $31.99 | |||
| 370745 | 88 | RIGHT BOTTOM HANDRAIL CVR | $31.99 | |||
| 403576 | 89 | LEFT UPRIGHT | $133.49 | |||
| 403577 | 90 | RIGHT UPRIGHT | $134.49 | |||
| 252433 | 91 | CAUTION DECAL | $0.99 | |||
| 243797 | 92 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
 | 360512 | 93 | PULSE CROSSBAR | $112.49 | ||
| 374137 | 94 | BASE | $185.99 | |||
| 395715 | 95 | ISOLATOR | $45.49 | |||
| 225696 | 96 | 1/4″ X 1 1/4″ BOLT | $1.49 | |||
 | 347877 | 97 | KEY | $25.99 | ||
| 398874 | 98 | TABLET HOLDER | $83.99 | |||
 | 307032 | 99 | THICK BASE PAD | $3.99 | ||
 | 372698 | 100 | LEFT INNER BASE COVER | $17.99 | ||
 | 264255 | 101 | 5/16″ X 3/4″ BOLT | $1.99 | ||
| 392201 | 102 | UPRIGHT CROSSBAR | $97.99 | |||
| 403543 | # | USERS MANUAL | Contact for Pricing | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 116926 | # | TIE | $0.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
 | ARC14 | # | WALL ARC FILTER | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 286707 | # | INCLN MTR SENSOR WIRE KIT | $70.49 | ||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 128457 | # | ALLEN WRENCH | $25.49 | ||
| 403544 | # | HARDWARE KIT | Contact for Pricing | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
 | 102634 | TS03 | CONTROLLER GROUND WIRE | $3.49 | ||
| 372089 | TS10 | RIGHT PULSE WIRE | $14.99 | |||
| 372090 | TS11 | LEFT PULSE WIRE | $14.99 |
