PROFORM 800LX TREADMILL – PFTL81405.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
93 Parts Available for PROFORM 800LX TREADMILL - PFTL81405.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013322 | 2 | SCREW | $0.99 | ||
| 220097 | 4 | LEFT TOP HANDGRIP | NLA | |||
| 220098 | 5 | LEFT BOTTOM HANDGRIP | NLA | |||
| 201377 | 6 | RIGHT TOP HANDGRIP | NLA | |||
| 201378 | 7 | RIGHT BOTTOM HANDGRIP | NLA | |||
 | 188015 | 8 | CONSOLE FAN | $46.49 | ||
 | 013423 | 10 | LATCH PLATE SCREW | $0.99 | ||
| 413303 | 11 | WARNING DECAL | $3.99 | |||
| 100691 | 12 | REAR DECK SCREW | $0.99 | |||

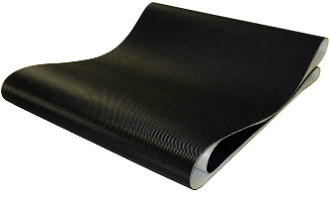

 | 239330 | 14 | WALKING BELT | NLA | ||
| 013244 | 18 | SCREW | $0.99 | |||
 | 167261 | 19 | ISOLATOR | $28.49 | ||
| 128272 | 20 | PLATFORM BOLT, FRONT | $0.99 | |||
 | 013300 | 21 | 3/4″ SCREW | $0.99 | ||
| 212885 | 22 | CONSOLE WIRE HARNESS | $33.49 | |||
 | 226635 | 23 | FRONT ROLLER | $193.49 | ||
| 195476 | 24 | MAGNET | $16.49 | |||
| 157337 | 27 | FRAME PIVOT SPACER | NLA | |||
| 124963 | 28 | FRAME PIVOT WASHER | $0.99 | |||
 | 149072 | 29 | LATCH SHOCK BOLT, UPPER | $3.99 | ||
 | 100427 | 30 | IDLER ARM NUT | $0.99 | ||
| 241325 | 31 | HOOD | $112.49 | |||
 | 162866 | 33 | PULLEY BOLT | $1.49 | ||
| 013581 | 34 | INCLINE PIVOT BOLT | $1.99 | |||
| 238657 | 36 | IDLER ARM | $23.99 | |||
 | 227298 | 37 | IDLER ARM SPRING | $2.49 | ||
 | 014132 | 38 | M10 FLAT WASHER | $0.99 | ||
 | 198595 | 40 | MOTOR BELT | $23.99 | ||
 | 293895 | 41 | DRIVE MOTOR | $269.99 | ||
 | 185207 | 42 | REED SWITCH | $27.49 | ||
| 216626 | 44 | REED SWITCH CLIP | $0.99 | |||
| 220122 | 45 | HOOD BRACKET | $0.99 | |||
| 200747 | 46 | GROUND WIRE | $3.49 | |||
| 220789 | 47 | LIFT FRAME | $149.99 | |||
| 259500 | 48 | MOTOR BOLT | $2.99 | |||
| 156429 | 49 | PULSE WIRE EXTENSION | NLA | |||
 | 189813 | 50 | FILTER WIRE | $23.99 | ||
| 220121 | 51 | CONTROLLER PLATE | $16.99 | |||
| 014157 | 52 | STAR WASHER | $0.99 | |||
| 159986 | 53 | LIFT MOTOR BOLT | $6.49 | |||
 | 186819 | 54 | 1/2″ SCREW | $0.99 | ||
| 204635 | 55 | POWER CORD ASSEMBLY | $64.49 | |||
| 205256 | 58 | PULSE BAR | NLA | |||
| 171364 | 60 | KEY/CLIP | $16.99 | |||
| 218454 | 61 | UPRIGHT WIRE HARNESS | $65.99 | |||
| 220096 | 62 | BOOK HOLDER | $120.49 | |||
 | 013316 | 63 | ENDCAP BRACKET SCREW | $0.99 | ||
| 216221 | 64 | FRONT RIGHT ENDCAP | NLA | |||
| 216220 | 65 | FRONT LEFT ENDCAP | NLA | |||
 | 130659 | 66 | BELLY PAN SCREW | $0.99 | ||
| 172496 | 68 | M4 X 30MM SCREW | $2.99 | |||
| 242874 | 69 | CONSOLE FRAME | $155.99 | |||
 | 013206 | 74 | REAR ROLLER ADJ BOLT | $21.49 | ||
 | 014063 | 76 | ISOLATOR WASHER | $0.99 | ||
| 201356 | 77 | U-NUT | $8.49 | |||
| 045023 | 79 | 5/32″ ALLEN WRENCH | $1.99 | |||
| 239639 | 80 | CONSOLE BASE | $123.99 | |||
| 252924 | 85 | CONSOLE BACK | $101.99 | |||
| 191593 | 89 | LATCH SLEEVE | NLA | |||
| 166492 | 91 | FRAME PIVOT BOLT | $2.49 | |||
| 215158 | 95 | ACCESS DOOR | $1.99 | |||
| 203936 | 101 | CAUTION DECAL | NLA | |||
| 116926 | 105 | RELEASABLE TIE | $0.99 | |||
| 116927 | 106 | TIE CLAMP | $0.99 | |||
| 016057 | 107 | 8″ CABLE TIE | $2.99 | |||
| 224091 | # | HOOD DECAL | $28.49 | |||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 219170 | # | 3 TUBE LUBE KIT | $39.49 | |||
 | 186726 | # | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
| 208275 | # | WIRELESS WORKOUT-CD STAND | $1081.49 | |||
| 195941 | # | SMALL “PROFORM”CNSL DECAL | NLA | |||
 | 112083 | # | 8″ BLUE WIRE, 2F | $4.49 | ||
| 218308 | # | LATCH PIN | $9.49 | |||
| 224090 | # | TECH SHEET | $0.99 | |||
| 228061 | # | RETAINING RING KIT | $3.49 | |||
 | 157600 | # | BUMPER | $1.99 | ||
| 205855 | # | CD STAND – CD | $25.49 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 201129 | # | WHEEL HOUSING | NLA | |||
 | 219168 | # | LUBE KIT, 1 TUBE | $18.99 | ||
| 150148 | . | WHEEL BOLT | $4.49 | |||
 | 014149 | . | 5/16″ STAR WASHER | $0.99 | ||
 | 208603 | . | KEY/CLIP ASSEMBLY | $19.99 | ||
 | 158332 | . | JACK | $5.99 | ||
| 224093 | . | USER’S MANUAL, VER.O | $7.49 | |||
| 220594 | . | HARDWARE KIT | $40.99 | |||
| 167079 | . | WIRE | $19.49 | |||
| 013496 | . | 5/16 X 1″ BUTTON SCRW | $1.99 | |||
 | 119425 | . | LOCK NUT | $0.99 | ||
 | 128457 | . | ALLEN WRENCH | $25.49 | ||
| 187855 | . | FRONT WHEEL | $6.49 | |||
 | 146427 | . | #8 X 1″ TEK SCREW | $0.99 |
