PROFORM 520I TREADMILL – PFTL5982.3
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
81 Parts Available for PROFORM 520I TREADMILL - PFTL5982.3 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 119425 | 3 | 3/8″ LOCKNUT | $0.99 | ||
| 186689 | 4 | MOTOR BELT | $51.49 | |||
| 187286 | 9 | HOLE PLUG | $2.99 | |||
| 120867 | 14 | MOTOR TENSION NUT | $2.49 | |||
| 122812 | 15 | MOTOR TENSION WASHER | $0.99 | |||
 | 012149 | 16 | 3/8″ NUT | $0.99 | ||
 | 157504 | 18 | REED SWITCH | $26.99 | ||
| 159986 | 19 | TOP INCLINE BOLT | $6.49 | Unavailable to order | ||
| 104478 | 22 | AXLE WASHER | $0.99 | |||
 | 186819 | 24 | #8 X 1/2″ SCREW | $0.99 | ||
 | 241697 | 25 | Controller | $189.99 | ||
 | 408938 | 25 | Motor Control Board | $179.99 | ||
| 200022 | 26 | FILTER WIRE | $27.49 | |||
| 136728 | 27 | #8 BELT GUIDE SCREW | $0.99 | |||
| 188096 | 34 | HANDRAIL EXTENSION | $12.99 | |||
 | 013322 | 37 | #8 X 3/4″ SCREW | $0.99 | ||
 | 162866 | 45 | REAR WALKING BOARD SCREW | $1.49 | ||
| 177598 | 46 | CROSSBAR | $25.49 | |||
 | 013162 | 47 | REED SWITCH CLAMP SCRW | $0.99 | ||
| 014157 | 48 | #8 STAR WASHER | $0.99 | |||
| 192037 | 49 | UPRIGHT WIRE HARNESS | $114.49 | |||
| 142276 | 52 | INCLINE MOTOR BOLT | $1.99 | |||
| 156899 | 53 | WARNING DECAL | $3.49 | |||
| 124123 | 56 | WHEEL BOLT | $3.49 | |||
| 165009 | 58 | WHEEL | $2.49 | |||
 | 031229 | 61 | POWER CORD | $39.99 | ||
 | 173169 | 62 | SQUARE GROMMET | $0.99 | ||
 | 186726 | 65 | POWER SWITCH | $22.49 | ||
| 172822 | 66 | AUDIO NUT | NLA | Unavailable to order | ||
| 223372 | 67 | ISOLATOR BRACKET COVER | $6.49 | |||
 | 157646 | 69 | 12″ IFIT AUDIO JACK WIRE | $22.99 | ||
| 013438 | 70 | CROSSBAR BOLT | $1.49 | |||
| 117544 | 71 | LOWER UPRIGHT ENDCAP | $0.99 | |||
| 192352 | 72 | ISOLATOR KIT | $24.99 | |||
 | 198639 | 73 | BELT GUIDE | $5.99 | ||
| 196713 | 74A | ISOLATOR ASSEMBLY | $24.49 | |||
| 199238 | 74B | ISOLATOR W/BKT & SCREWS | $42.49 | |||
| 128272 | 75 | TOP ISOLATOR BOLT | $0.99 | |||
 | 173063 | 77 | WALKING BELT W/FASTENERS | $135.49 | ||
| 196324 | 78 | FRONT ROLLER/PULLEY | $137.49 | |||
 | 155623 | 79 | 7″ GRN WIRE | $3.99 | ||
| 016057 | 81 | 8″ CABLE TIE | $2.99 | |||
| 116927 | 83 | TIE HOLDER CLAMP | $0.99 | |||
| 116926 | 84 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 177587 | 85 | PULSE WIRE | NLA | Unavailable to order | ||
| 177320 | 88 | RIGHT REAR FOOT | $3.99 | Unavailable to order | ||
| 196717 | 89 | MOTOR CONTROLLER WIRE | NLA | Unavailable to order | ||
 | 105444 | 91 | REAR ROLLER ADJ BOLT | $0.99 | ||
 | 014063 | 92 | 1/4″ FLAT WASHER | $0.99 | ||
| 180622 | 96 | LEFT REAR ENDCAP | $24.49 | |||
| 164320 | 97 | LATCH DECAL | $6.49 | |||
 | 013423 | 98 | GROUND SCREW | $0.99 | ||
 | 113842 | 101 | MAGNET | $1.49 | ||
 | 133333 | 102 | CLIP NUT | $0.99 | ||
 | 013492 | 105 | 1/4″ ISLATR SCREW | $0.99 | ||
| 153458 | 106 | GROUND WIRE | $2.99 | |||
 | 154848 | 107 | HOOD SCREW | $0.99 | ||
| 225214 | # | CD, 10K, INT | $103.49 | |||
| 137825 | # | BLUE WIRE | $4.49 | |||
| 225212 | # | CD, 5K, BEG | $103.49 | |||
| 225209 | # | CD, MARATHON, INT | $103.49 | |||
| 206197 | # | LITERATURE PACKET | NLA | Unavailable to order | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 127860 | # | FASTENER | $0.99 | |||
| 118201 | # | 8″ RED WIRE,M/F | $4.49 | |||
| 141995 | # | 8″ BLACK WIRE, M/F | $4.49 | |||
| 126146 | # | 4″ BLUE WIRE,F/F | $3.49 | |||
 | 219550 | # | FRONT ROLLER BUSHING | $0.99 | ||
| 196530 | # | TECH SHEET | $0.99 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||

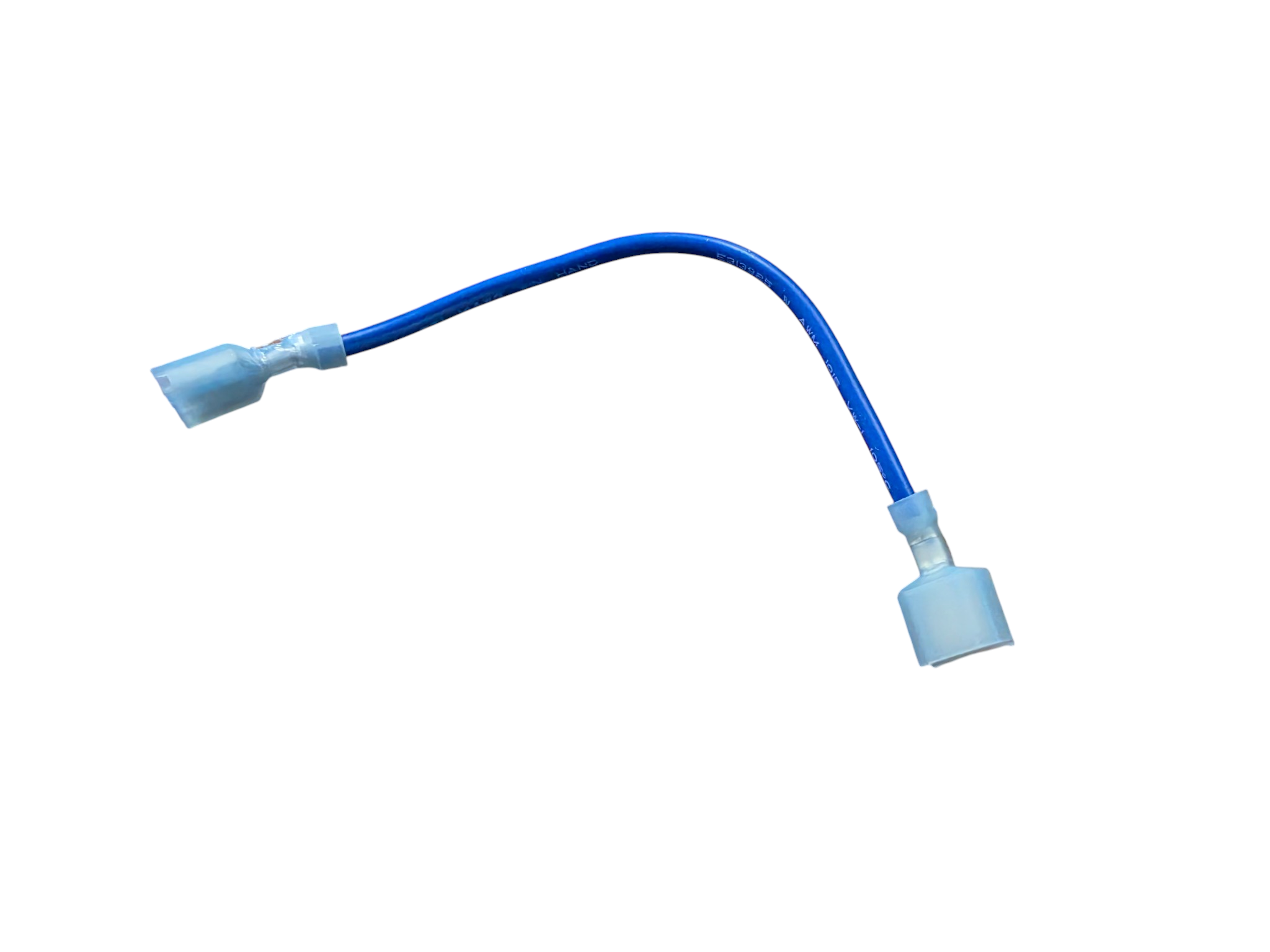

 | 153403 | # | 4″ BLUE WIRE,MF | $3.99 | ||
 | 146427 | . | #8 X 1″ TEK SCREW | $0.99 | ||
 | 158332 | . | IFIT.COM JACK | $5.99 | ||
 | 013576 | . | CROWN SCREW | $0.99 | ||
| 167079 | . | IFIT.COM WIRE | $19.49 | |||
 | 013300 | . | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 204500 | . | USER’S MANUAL | NLA | Unavailable to order | ||
 | 119038 | . | KEY/CLIP | $5.49 | ||
 | 128457 | . | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
 | 157600 | . | BUMPER | $1.99 |
