PROFORM 510 E ELLIPTICAL – PFEL05811.6
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
82 Parts Available for PROFORM 510 E ELLIPTICAL - PFEL05811.6 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 328780 | 2 | REAR STABILIZER | $126.49 | |||
| 321752 | 3 | RAMP | $191.49 | |||
| 329341 | 4 | UPRIGHT | $172.49 | |||
 | 194878 | 5 | M4 X 20MM SCREW | $2.99 | ||
| 328772 | 6 | FRONT STABILIZER | $132.49 | |||
| 321745 | 7A | CONSOLE | $285.99 | |||
| 321746 | 7B | CNSL REPROG MODULE | $189.99 | |||
| 325914 | 8 | LEFT HANDLEBAR | $65.49 | |||
| 325910 | 9 | RIGHT HANDLEBAR | $65.49 | |||
| 321748 | 10 | RAMP COVER | $120.49 | |||
| 316736 | 11 | LEFT LATCH HANDLE | $28.99 | |||
| 316735 | 12 | RIGHT LATCH HANDLE | $26.49 | |||
| 321742 | 13 | LATCH BUTTON | $9.49 | |||
| 316731 | 14 | LATCH BRACKET | $9.99 | |||
| 321756 | 15 | REAR STABILIZER COVER | $76.49 | |||
| 317273 | 16C | TRACK FOAM TAPE | $13.49 | |||
| 316805 | 17 | LATCH PIN | $40.99 | |||
| 338325 | 18 | CRANK | $102.99 | |||
| 277369 | 19 | PULLEY | $174.49 | |||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
 | 157600 | 23 | BASE FOOT | $1.99 | ||
 | 386630 | 24 | SMALL LEVELING FOOT | $19.99 | ||
 | 371887 | 25 | RESISTANCE MTR,W/TCD CBL | $105.99 | ||
 | 275907 | 26 | M10 LOCKNUT | $4.49 | ||
| 248342 | 27 | M10 WASHER | $1.99 | |||
| 362821 | 28A | FLYWHEEL/MECHANISM | $265.99 | |||
| 328774 | 30 | STABILIZER CAP | $19.99 | |||
| 248334 | 31 | M10 X 20MM SCREW | $5.49 | |||
| 235322 | 32 | M5 LARGE WASHER | $2.49 | |||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $24.99 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 316753 | 37 | ACCESSORY TRAY | $41.49 | |||
 | 224385 | 37 | Wave Washer | $1.99 | ||
| 307218 | 38 | REED SWITCH/WIRE | $30.49 | |||

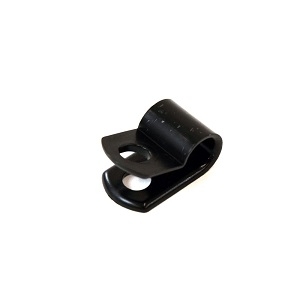

 | 131090 | 39 | REED SWITCH CLAMP | $0.99 | ||
 | 295804 | 40 | FRAME BEARING | $66.99 | ||
| 346386 | 41 | MECHANISM SPACER | $23.99 | |||
| 338320 | 42 | SLEEVE | $4.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 320376 | 44 | LEFT PEDAL ARM | $187.99 | |||
| 320379 | 45 | LEFT ROLLER ARM | $140.49 | |||
| 322142 | 48 | SPRING | $11.99 | |||
| 328856 | 49 | PEDAL | $123.49 | |||
 | 237616 | 50 | FRAME BUSHING | $4.99 | ||
 | 390204 | 51 | ROLLER / COVER FIXKIT | $199.99 | ||
| 316748 | 52 | PEDAL ARM CAP | $7.99 | |||
 | 321737 | 53 | LARGE AXLE COVER | $6.49 | ||
 | 287202 | 54 | 16MM WAVE WASHER | $1.99 | ||
| 348635 | 55 | SMALL AXLE COVER | $40.49 | |||
 | 308523 | 56 | ROLLER ARM BUSHING | $19.99 | ||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 320377 | 58 | RIGHT PEDAL ARM | $205.99 | |||
| 320378 | 59 | RIGHT ROLLER ARM | $140.49 | |||
| 329359 | 60 | RIGHT UPPER BODY LEG | $138.99 | |||
| 328853 | 61 | RIGHT UPPER BODY ARM | $65.49 | |||
 | 299478 | 62 | GRIP | $57.49 | ||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 272391 | 63B | RIGHT SENSOR WIRE | $31.99 | |||
| 272392 | 63C | LEFT SENSOR WIRE | $17.49 | |||
 | 316835 | 64 | PEDAL ARM AXLE | $43.49 | ||
| 317177 | 67 | LEFT ARM FRONT COVER | $60.49 | |||
 | 334735 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 334733 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
| 321736 | 71 | DISC | $120.49 | |||
| 321751 | 74 | RIGHT SHIELD | $177.49 | |||
| 321749 | 75 | SHIELD COVER | $132.49 | |||
| 321741 | 76 | LEFT PEDAL ARM SIDE CAP | $9.49 | |||
| 316841 | 77 | AXLE SPACER | $17.99 | |||
 | 386629 | 78 | KEY | $9.49 | ||
| 316749 | 79 | FRONT CONSOLE COVER | $42.49 | |||
| 316750 | 80 | REAR CONSOLE COVER | $28.99 | |||
| 316752 | 81 | REAR UPRIGHT COVER | $61.99 | |||
 | 191032 | 82 | M8 X 16MM SCREW | $1.99 | ||
| 334736 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 316836 | 84 | RAMP AXLE | $54.99 | |||
 | 310664 | 85 | M4 X 14MM SCREW | $2.99 | ||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
| 321740 | 87 | RIGHT PEDAL ARM SIDE CAP | $9.49 | |||
 | 208163 | 88 | M6 X 20MM HEX SCREW | $1.99 | ||
 | 281150 | 89 | M6 X 20MM SHLDR SCRW,NOTE | $4.49 | ||
 | 014033 | 90A | M6 WASHER | $1.49 | ||
 | 340140 | 90B | M6 X 26MM WASHER | $1.49 | ||
 | 281149 | 91 | M10 X 50MM HEX SCREW | $6.49 | ||
 | 232289 | 92 | M10 X 25MM SCREW | $28.49 | ||
 | 168267 | 93 | FAN SCREW | $0.99 | ||
| 012152 | 94 | #8 NUT | $0.99 | |||
 | 206321 | 95 | M8 X 19MM SCREW | $3.49 | ||
 | 234732 | 96 | M8 X 38MM BOLT | $4.49 | ||
 | 223812 | 97 | M8 WASHER, NOTE | $1.99 | ||
 | 289434 | 98 | 5/8″ SNAP RING | $1.99 | ||
| 306635 | 99 | PLASTIC SPACER | $3.49 | |||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101 | 1/2″ CONSOLE SCREW | $0.99 | ||
 | 012042 | 102 | M8 NYLON LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 252795 | 105 | M10 SPLIT WASHER | $0.99 | |||
 | 286527 | 106A | FOOT RAIL SNAP | $2.49 | ||
| 303479 | 106B | SCREW, COVER MOUNT | $3.99 | |||
 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
 | 174108 | 108 | M6 X 16MM SCREW | $5.99 | ||
| 208938 | 109 | M10 X 60MM BOLT | $5.99 | |||
| 322061 | 110 | UPPER WIRE | $98.49 | |||
 | 290160 | 111 | POWER RECEPTACLE/WIRE | $35.99 | ||
 | 313568 | 112 | M4 X 19MM SELF-TAP SCRW | $0.99 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
 | 322839 | 114 | M4 X 40MM SCREW | $1.49 | ||
| 172496 | 115 | CONSOLE BACK SCREW | $2.99 | |||
| 316751 | 117 | FRONT UPRIGHT COVER | $50.49 | |||
| 321743 | 118 | SHIELD COVER CAP | $30.49 | |||
 | 248512 | 119 | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 317272 | # | PIN SPRING | $3.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 320622 | # | DECAL, RIGHT RAMP ANGLE | $62.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 132315 | # | CABLE TIE | $3.49 | |||
| 320621 | # | DECAL, LEFT RAMP ANGLE | $62.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 234276 | # | M4 X 10MM SCREW | $0.99 | |||
| EXIF12 | # | IFIT WIFI ACCESSORY KIT | NLA | Unavailable to order | ||
| 116926 | # | 50LB CABLE TIE | $0.99 | |||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
 | 104838 | # | LUBE, GREASE | $8.49 | ||
| 258869 | # | DECAL, GENERAL WARNING | $4.99 | |||
| 345251 | # | USER’S MANUAL | $33.49 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
