PROFORM 505 CST TREADMILL – PFTL60910.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
100 Parts Available for PROFORM 505 CST TREADMILL - PFTL60910.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013322 | 1A | #8 X 3/4″ SCREW | $0.99 | ||
 | 013576 | 1B | CROWN SCREW | $0.99 | ||
| 013324 | 2 | #10X3/4″ SCREW, PULSE BAR | $0.99 | |||
 | 135711 | 3 | 5/16″ X 1″ FLAT HD SCREW | $1.99 | ||
 | 183025 | 4 | 5/16″ X 1″ SCREW | $7.49 | ||
 | 146427 | 5 | #8 X 1″ TEK SCREW | $0.99 | ||
 | 266622 | 6 | 3/8″X1 3/4″ SCREW, NOTE | $40.49 | ||
 | 215482 | 7 | 3/8″ X 4″ SCREW | $6.49 | ||
 | 013544 | 8 | 3/8″ X 2″ BOLT | $3.99 | ||
| 277149 | 9 | 1/4″ X 1″ BOLT | $1.49 | |||
 | 012149 | 10 | 3/8″ NUT | $0.99 | ||
 | 163045 | 11 | 3/8″ STAR WASHER | $0.99 | ||
 | 014088 | 12 | #10 STAR WASHER | $1.49 | ||
 | 014149 | 13 | 5/16″ STAR WASHER | $0.99 | ||
 | 142622 | 14 | 3/8″ X 1 1/2″ SCREW | $2.99 | ||
 | 013300 | 15 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
| 125214 | 16 | #8 X 2″ SCREW | $0.99 | |||
 | 013607 | 18 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
 | 013529 | 19 | #8 X 1 1/2″ SCREW, NOTE: | $0.99 | ||
 | 162866 | 20 | REAR WALKING BOARD SCREW | $1.49 | ||
 | 227191 | 21 | 5/16″ X 3 5/8″ BOLT | $2.49 | ||
 | 145509 | 22 | 3/8″ X 1″ BOLT | $2.49 | ||
 | 013492 | 23 | 1/4″ ISLATR SCREW | $0.99 | ||
 | 305744 | 24 | SINGLE IDLER ROLLER BOLT | $5.99 | ||
| 179767 | 25 | 3/8″ 1 3/4″ BOLT | $61.49 | |||
 | 174320 | 26 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 141225 | 27 | INCLINE PIVOT BOLT | $12.99 | |||
 | 186819 | 28 | #8 X 1/2″ SCREW | $0.99 | ||
 | 013423 | 29 | GROUND SCREW | $0.99 | ||
 | 295756 | 31 | MOTOR SCREW | $0.99 | ||
| 136728 | 32 | #8 BELT GUIDE SCREW | $0.99 | |||
| 014129 | 33 | 1/4″ FLAT WASHER | $0.99 | |||
 | 014126 | 34 | TRACK WASHER | $0.99 | ||
 | 119425 | 35 | 3/8″ LOCKNUT | $0.99 | ||
 | 136012 | 36 | WALKING BOARD NUT | $0.99 | ||
 | 133333 | 37 | CLIP NUT | $0.99 | ||
| 203451 | 38 | 5/16″ CAGE NUT | $3.99 | |||
| 301161 | 39 | FOOT RAIL DECAL | $9.99 | |||
| 301808 | 40 | LEFT FOOT RAIL | $62.99 | Unavailable to order | ||
| 413303 | 41 | WARNING DECAL | $3.99 | |||
 | 198639 | 43 | BELT GUIDE | $5.99 | ||
 | 266762 | 44 | WALKING PLATFORM | $172.49 | ||
| 252928 | 45 | FRONT FRAME ENDCAP | $1.49 | |||
 | 251133 | 46 | FRAME SPACER | $1.49 | ||
 | 113842 | 47 | MAGNET | $1.49 | ||
| 273189 | 48 | DRIVE ROLLER/PULLEY | $150.49 | |||
 | 262854 | 49 | WALKING BELT | $135.99 | ||
 | 215822 | 52 | 4″ GRN WIRE | $5.99 | ||
| 284929 | 53 | #8 X 1″ SCREW | $0.99 | Unavailable to order | ||
 | 249525 | 60 | REAR ROLLER | $132.49 | ||
 | 128457 | 61 | 3/16-7/32″ ALLEN WRENCH | $25.49 | ||
| 306743 | 63 | HOOD ACCENT | NLA | Unavailable to order | ||
| 282897 | 64 | LIFT FRAME | $127.99 | |||
| 156526 | 65 | LIFT FRAME GROUND WIRE | $2.99 | |||
 | 264179 | 66 | DRIVE BELT | $44.99 | ||
 | 286075 | 67 | DRIVE MOTOR ASSEMBLY | $219.99 | ||
 | 102634 | 68 | 8″ GREEN WIRE | $3.49 | ||
 | 031229 | 69 | POWER CORD | $39.99 | ||
 | 173169 | 70 | SQUARE GROMMET | $0.99 | ||
 | 186726 | 71 | POWER SWITCH | $22.49 | ||
 | 398063 | 72 | OEM CONTROLLER (301811) (259522) | $189.99 | ||
 | 165798 | 73 | REED SWITCH | $19.49 | ||
 | 131090 | 74 | CLAMP | $0.99 | ||
| 240351 | 76 | 8″ WIRE TIE | $0.99 | |||
| 016057 | 77 | 8″ CABLE TIE | $2.99 | |||
| 116566 | 78 | 15 1/2″ CABLE TIE | $0.99 | |||
| 116926 | 79 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 282910 | 81 | HANDRAIL CAP | $5.99 | |||
| 296049 | 82 | LEFT HANDRAIL | $60.49 | |||
| 296050 | 83 | RIGHT HANDRAIL | $60.49 | |||
| 300602 | 84 | LEFT UPRIGHT | $149.99 | |||
| 300603 | 85 | RIGHT UPRIGHT | $149.99 | |||
| 284023 | 86 | RIGHT UPRIGHT COVER | $17.49 | |||
| 301810 | 87 | UPRIGHT WIRE | $74.49 | |||
| 301284 | 88 | LEFT BASE COVER | $20.99 | |||
| 251437 | 89 | BASE ENDCAP | $1.49 | |||
 | 157600 | 90 | BUMPER | $1.99 | ||
| 301285 | 91 | RIGHT BASE COVER | $20.99 | |||
| 252433 | 92 | DECAL, CAUTION, BASE LEG | $0.99 | |||
 | 201563 | 93 | INCLINE MOTOR WIRE | $12.49 | ||
 | 161411 | 94 | BASE FOOT SPACER | $0.99 | ||
| 301806 | 95 | BASE | $169.49 | |||
 | 139090 | 96 | WHEEL | $2.99 | ||
| 231224 | 97 | INCLINE MOTOR | $142.49 | |||
 | 208603 | 99 | KEY/CLIP | $19.99 | ||
| 132315 | 100 | ZIP TIE | $3.49 | |||
| 045023 | 104 | 5/32″ ALLEN WRENCH, HEX | $1.99 | |||
| 243797 | 105 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
| 301059 | 106 | CONSOLE BASE | $100.49 | |||
| 296052 | 107 | CROSSBAR | $70.99 | |||
| 264420 | 108 | ACCESS DOOR | $1.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 301813 | # | USER’S MANUAL | NLA | Unavailable to order | ||
| 014064 | # | 1/4″ EXTERNAL STAR WASHER | $0.99 | |||
| 137825 | # | BLUE WIRE | $4.49 | |||
 | 286707 | # | LIFT MTR SENSOR KIT | $70.49 | ||
| 305050 | # | TECH SHEET | $0.99 | |||
| 312579 | # | CUPHOLDER INSERT, LT | $11.49 | |||
| 285985 | # | MODULE HOUSING | $50.99 | |||
| 326411 | # | DECAL,REWRK,SHEET 5 | $66.49 | |||
| 330165 | # | DECAL,REWRK,OVERLAY SHEET | $112.99 | |||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||

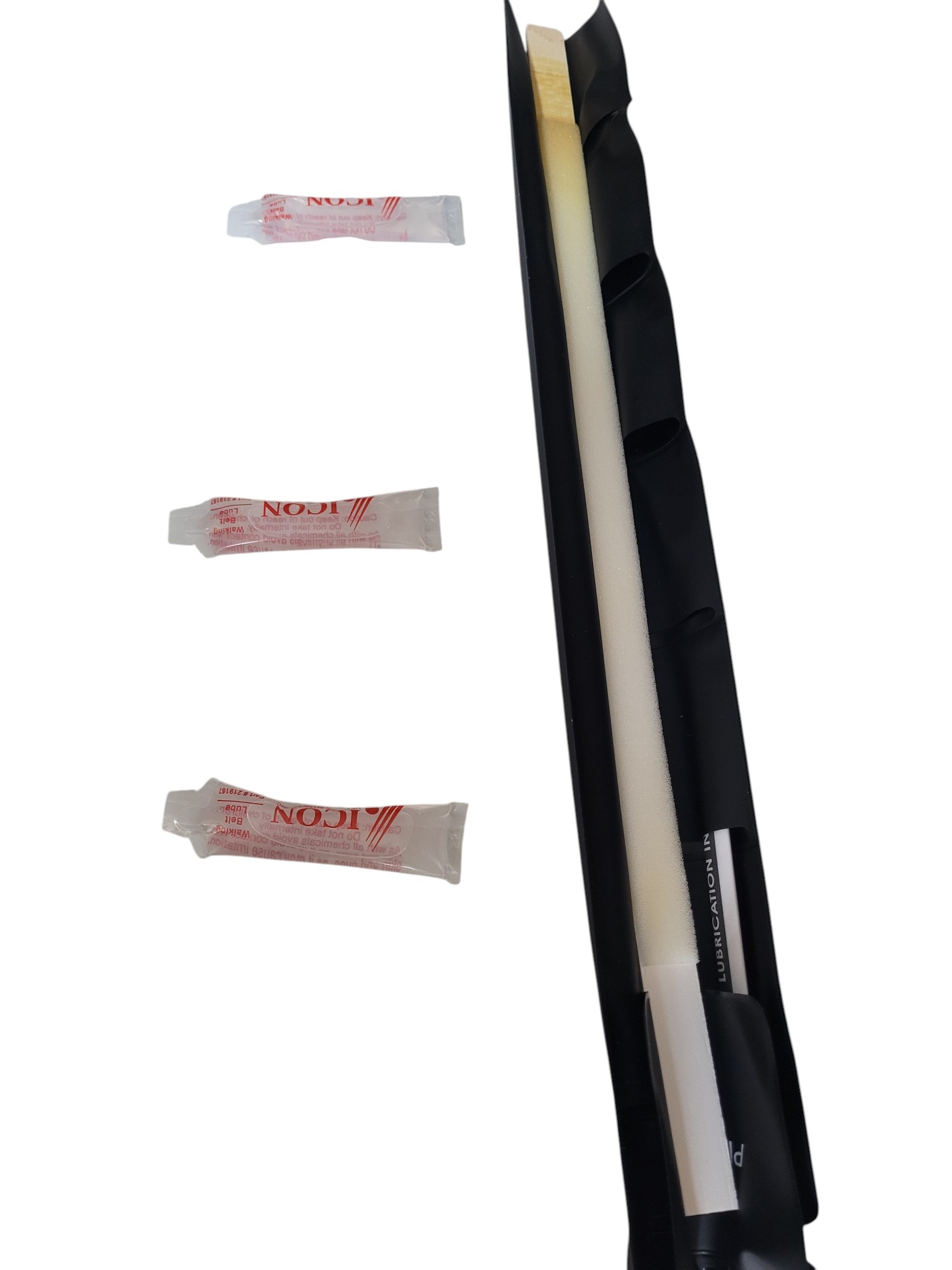

 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| EXIF12 | # | IFIT WIRI ACCESSORY KIT | NLA | Unavailable to order | ||
| 302349 | # | CNSL RE-PROGRAMMNG MODULE | $189.99 | |||
| 312580 | # | CUPHOLDER INSERT, RT | $11.49 | |||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 198085 | # | 12″ RED WIRE, M/F | $5.49 | |||
| 163253 | # | 10″ BLACK WIRE, M/F | $4.99 | |||
| 343661 | # | USER’S MANUAL,SPNSH,SP3 | NLA | Unavailable to order | ||
| 268476 | # | DECAL, GROUND WARNING | $0.99 | |||
| 118204 | # | 8″ BLUE WIRE, M/F | $4.49 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 | |||
| 338155 | # | USER’S MANUAL, FCA | NLA | Unavailable to order |
