PROFORM 500 F ELLIPTICAL – PFEL54907.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
45 Parts Available for PROFORM 500 F ELLIPTICAL - PFEL54907.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 259504 | 4 | CONSOLE | $196.49 | |||
| 253927 | 6 | WATER BOTTLE HOLDER | $26.99 | |||
 | 237631 | 9 | LEVELING FOOT | $34.99 | ||
| 243224 | 10 | FLYWHEEL | $289.49 | |||
| 254989 | 12 | IDLER | $65.99 | |||
| 255072 | 13 | PULLEY | $91.99 | |||
| 253737 | 14 | CRANK | $58.99 | |||
 | 139703 | 15 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
 | 193223 | 16 | RESISTANCE MOTOR | $99.99 | ||
 | 113842 | 18 | MAGNET | $1.49 | ||
 | 256295 | 19 | HANDLEBAR BUSHING (138574) | $4.99 | ||
 | 131090 | 20 | REED SWITCH CLIP | $0.99 | ||
| 253740 | 31 | CRANK ARM | $72.49 | |||
| 234017 | 50 | KEY | $2.49 | |||
| 242105 | 51 | M6 X 16MM SCREW | $1.99 | |||
| 248342 | 52 | M10 WASHER | $1.99 | |||
| 214070 | 53 | M8 X 16MM BOLT | $6.49 | |||
 | 248349 | 54 | M8 X 25MM WASHER | $6.49 | ||
 | 014174 | 55 | M8 SPLIT WASHER | $1.99 | ||
 | 143742 | 56 | LARGE SNAP RING | $3.99 | ||
 | 251978 | 57 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
 | 213457 | 59 | M4 X 12MM ROUND HEAD SCRW | $1.99 | ||
| 206677 | 61 | M6 X 25MM SCREW | $0.99 | |||
| 171347 | 62 | ADJUSTMENT NUT | $0.99 | |||
| 245109 | 63 | IDLER BSHG, OM HAS WSHR | $2.99 | |||
| 179369 | 64 | 3/8″ AXLE NUT | $0.99 | |||
| 240451 | 65 | M8 X 50MM BUTTON SCREW | $0.99 | |||
 | 213148 | 66 | WAVE WASHER | $6.49 | ||
| 183870 | 67 | M8 X 35MM BOLT | $2.49 | |||
 | 012042 | 68 | WALK BOARD TO FRAME NUT | $1.99 | ||
 | 204489 | 71 | WAVE WASHER | $0.99 | ||
 | 195562 | 72 | M4 X 16MM SCREW | $1.99 | ||
| 242434 | 73 | WIRE HARNESS | $69.49 | |||
 | 121204 | 74 | M4 X 30MM BUTTON SCREW | $0.99 | ||
 | 250961 | 75 | M4 X 19MM SCREW | $0.99 | ||
| 125214 | 76 | REAR FOOT SCREW | $0.99 | |||
 | 208855 | 77 | COVER SCREW | $2.99 | ||

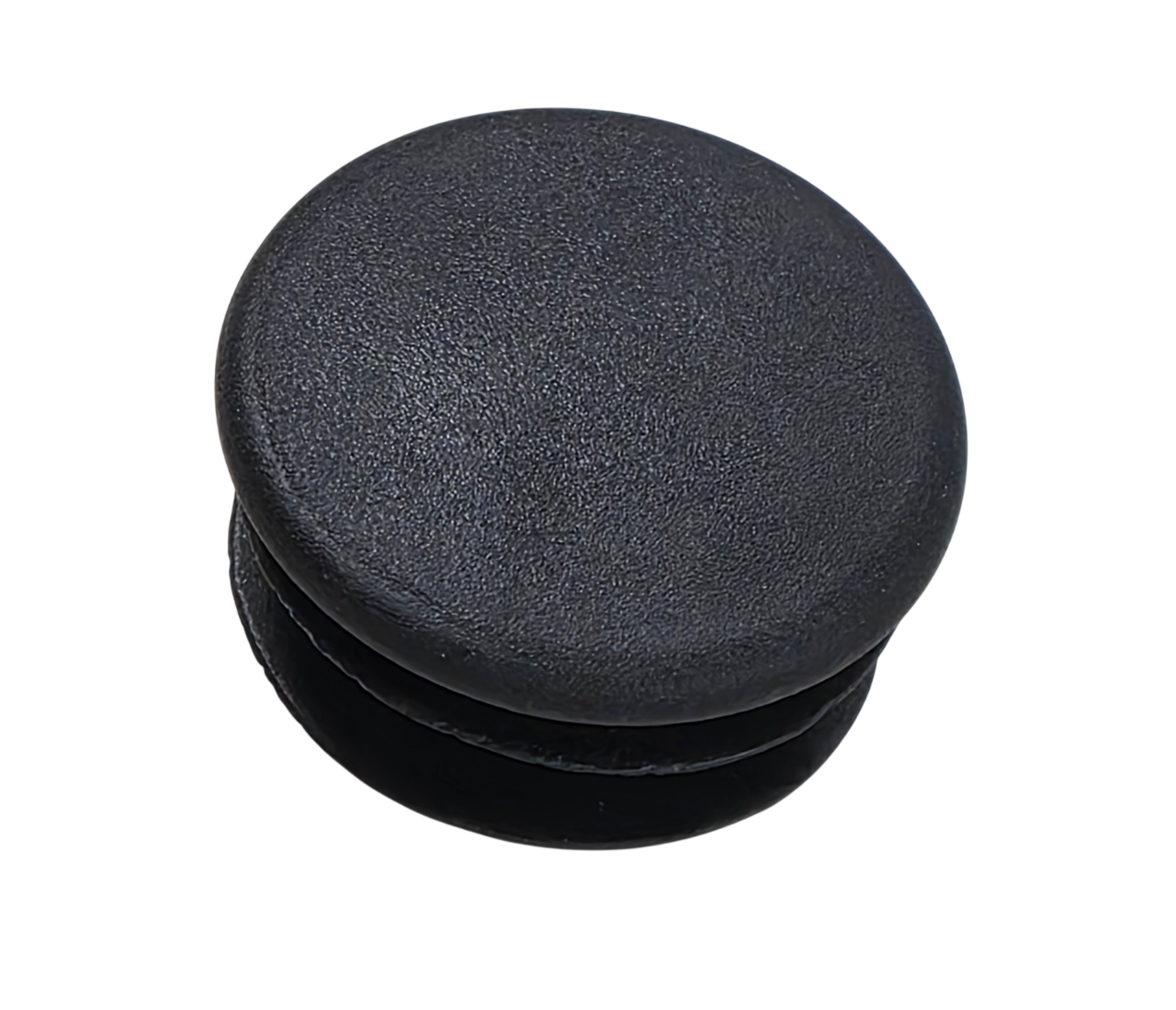

 | 234639 | 78 | 57MM ROUND INNER CAP | $9.99 | ||
| 237632 | 79 | FOAM GRIP | $11.49 | Unavailable to order | ||
 | 144335 | 80 | BELT | $59.99 | ||
| 258869 | # | DECAL, GENERAL WARNING | $4.99 | |||
 | 248512 | # | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
 | 104838 | # | LUBE GREASE | $8.49 | ||
 | 208320 | # | M4 X 10MM SCREW | $0.99 | ||
| 255052 | # | USER’S MANUAL | $12.99 |
