Proform 400 Spx Bike – PFEX02817C.0 / PFEX02817C0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
66 Parts Available for Proform 400 Spx Bike - PFEX02817C.0 / PFEX02817C0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 144681 | 2 | M8 FLANGE NUT | $0.99 | |||
| 281874 | 3 | M8 Washer | $3.49 | |||
| 393356 | 4 | FRONT STABILIZER | $125.49 | |||
| 393357 | 5 | REAR STABILIZER | $118.49 | |||
| 363335 | 6 | SADDLE POST | $69.99 | |||
| 317155 | 8 | WATER BOTTLE HOLDER | $25.99 | |||
 | 393358 | 10 | Console Bracket | $15.99 | ||
| 363367 | 13 | M10 Flange Nut | $1.99 | |||
| 363343 | 14 | #8 X 20MM SCREW | $3.49 | |||
 | 309114 | 15 | Adjustment Knob | $26.49 | ||
 | 356462 | 16 | BRAKE PAD ASSEMBLY | $28.99 | ||
| 266106 | 17 | M5 LOCKNUT | $4.49 | |||
| 310014 | 18 | M5 Washer | $0.99 | |||
| 397511 | 19 | M5 x 30mm Bolt | $3.99 | |||
| 355390 | 20 | Magnetic Resistance System | $5.99 | |||
| 356463 | 21 | Brake Bracket | $22.99 | |||
| 363366 | 22 | M10 WASHER | $0.99 | |||
| 393326 | 23 | Brake Cover | $29.49 | |||

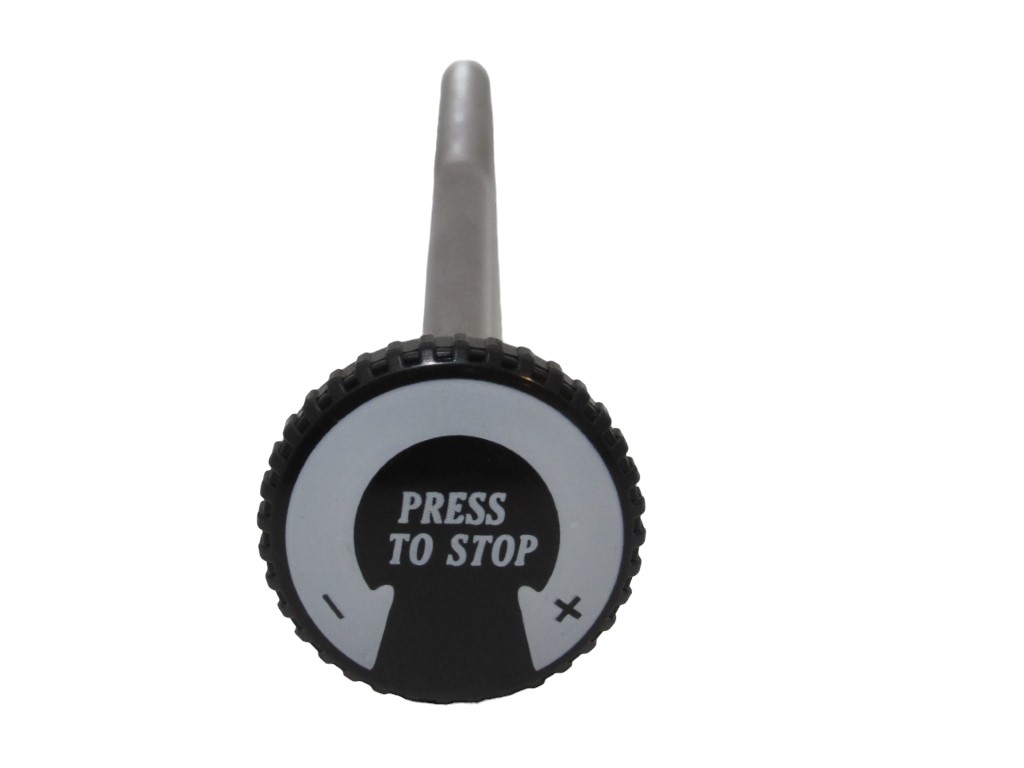

 | 363353 | 24 | Resistance Knob | $35.49 | ||
| 318053 | 25 | Carriage Sleeve | $17.49 | |||
| 363355 | 26 | SPRING | $3.49 | |||
| 310608 | 27 | Brake Cover Spacer | $5.49 | |||
| 310623 | 28 | RESISTANCE SPACER | $19.99 | |||
| 318087 | 29 | Carriage Cap | $5.49 | |||
| 355386 | 30 | Equipment Clamp | $7.49 | |||
| 363361 | 32 | SADDLE CARRIAGE | $73.99 | |||
| 363362 | 33 | 3/8″ Nut | $4.49 | |||
| 393363 | 37 | Flywheel | $320.99 | |||
| 363369 | 38 | M4.8 X 12mm Screw | $0.99 | |||
| 393327 | 39 | OUTER CHAIN GUARD | $59.99 | |||
| 363371 | 40 | Drive Chain | $49.99 | |||
| 393329 | 41 | Chain Guard Cover | $29.49 | |||
| 393328 | 42 | Inner Chain Guard | $15.99 | |||
| 363374 | 43 | M5.5 X 15mm Screw | $3.99 | |||
| 363755 | 44 | BRAKE BRACKET PAD | $15.99 | |||
| 318063 | 45 | Crank Cap | $6.49 | |||
| 310618 | 46 | CRANK SCREW, NOTE: OM | $7.49 | |||
| 393322 | 47 | LEFT CRANK ARM | $44.99 | |||
| 308855 | 48 | CRANK HUB | $102.99 | |||
| 393323 | 49 | RIGHT CRANK ARM/SPROCKET | $79.49 | |||
| 363382 | 51 | Frame Sleeve | $14.49 | |||
| 393361 | 52 | WHEEL | $22.99 | |||
| 012022 | 53 | M6 LOCKNUT | $0.99 | |||
| 012150 | 54 | M8 NUT | $0.99 | |||
| 308852 | 55 | Leveling Foot | $11.99 | |||
| 239424 | 56 | M8 x 40mm Bolt | $1.99 | |||
| 161748 | 57 | 3/8″ Nut | $3.99 | |||
| 376344 | 58 | CONSOLE | $75.99 | |||
| 369511 | 59 | Reed Switch/Wire | $19.99 | |||

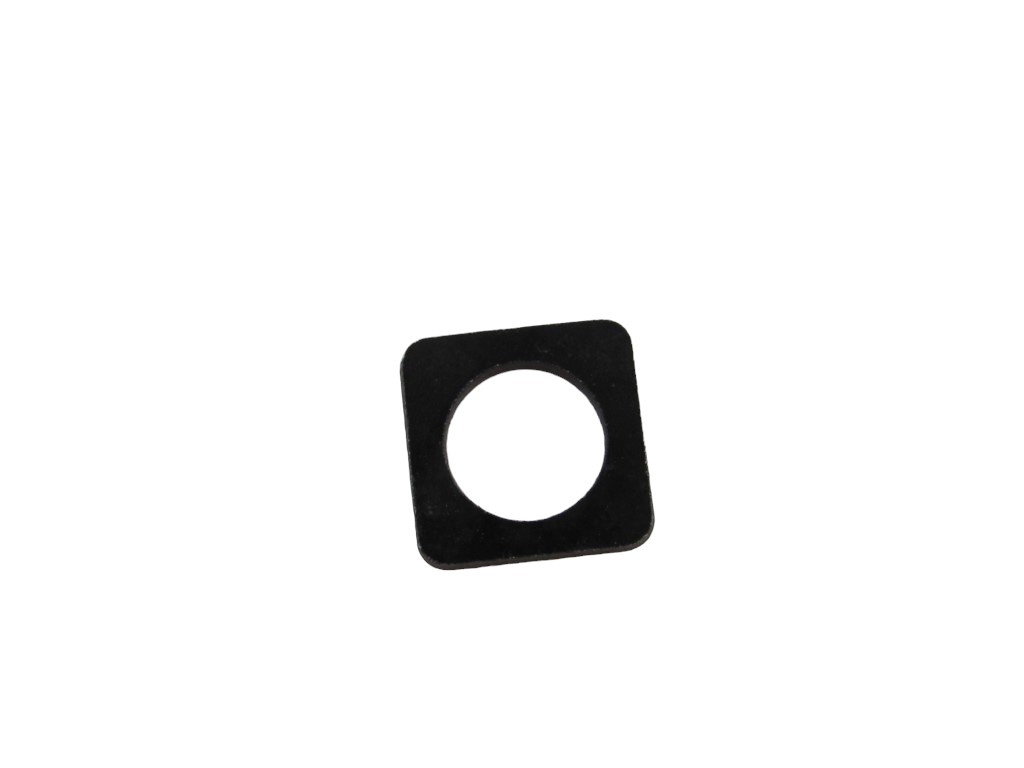

 | 363354 | 61 | SQUARE SPACER | $2.49 | ||
| 300328 | 62 | M6 X 12MM WASHER | $0.99 | |||
| 397510 | 63 | Console Bracket Screw | $3.49 | |||
| 355389 | 64 | Equipment Clip | $20.49 | |||
| 301333 | # | DECAL, MAX WT WARNING,FCA | $7.49 | |||
| 290295 | # | DECAL, NFW WARNING | $6.49 | |||
| 299149 | # | DECAL.CAUTION, PDL BRAKNG | $6.99 | |||
| 291547 | # | TOOL, WRENCH /PHILLIPS | $10.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 |
