Proform 380E Treadmill – PFTL39508.1 / PFTL395081
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
88 Parts Available for Proform 380E Treadmill - PFTL39508.1 / PFTL395081 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 234226 | 1 | M4.2 X 19MM SCREW | $0.99 | |||
| 257433 | 2 | M4.2 X 25MM SCREW | $0.99 | |||
| 206586 | 5 | M10 X 96MM BOLT | $14.49 | |||
| 153274 | 6 | M8 X 25MM BUTTON SCREW | $3.49 | |||
 | 014117 | 7 | STAR WASHER | $0.99 | ||
| 207213 | 8 | M10 STAR WASHER | $1.49 | |||
| 122812 | 9 | MOTOR TENSION WASHER | $0.99 | |||
| 236808 | 10 | SHAFT EXTERNAL STAR WSHR | $0.99 | |||
 | 013300 | 11 | #8 X 3/4″ WSHR HEAD SCREW | $0.99 | ||
 | 013322 | 12A | #8 X 3/4″ SCREW | $0.99 | ||
 | 013576 | 12B | CROWN SCREW | $0.99 | ||
 | 013607 | 13 | #8X3/4″ TRUSS HD SCREW | $0.99 | ||
| 252832 | 15 | M8 X 90MM SCREW | $5.49 | |||
 | 182860 | 16 | M10 X 30MM BOLT | $2.99 | ||
 | 234285 | 17 | M6 X 70MM BOLT | $3.49 | ||
 | 181980 | 18 | 3/8″ X 1 1/2″ SCREW | $3.49 | ||
 | 174320 | 19 | 3/8″ X 1 1/2″ BOLT | $2.99 | ||
| 013438 | 20 | CROSSBAR BOLT | $1.49 | |||
| 206318 | 21 | M6 X 45MM BOLT | $2.49 | |||
 | 186819 | 22 | #8 X 1/2″ SCREW | $0.99 | ||
| 247450 | 23 | M5.5 X 25″ SCREW, NOTE: | NLA | Unavailable to order | ||
 | 117332 | 25 | 3/8″ X 3/4″ SCREW | $4.49 | ||
| 101263 | 26 | MOTOR PIVOT BOLT | $4.99 | |||
| 223086 | 27 | M10 X 50MM BUTTON SCREW | $4.49 | |||
| 136728 | 28 | #8 BELT GUIDE SCREW | $0.99 | |||
 | 014126 | 29 | TRACK WASHER | $0.99 | ||
 | 014063 | 30 | 1/4″ FLAT WASHER | $0.99 | ||
 | 119425 | 31 | 3/8″ LOCKNUT | $0.99 | ||
| 120867 | 32 | MOTOR TENSION NUT | $2.49 | |||
 | 148710 | 33 | M10 LOCKNUT | $2.49 | ||
| 181248 | 34 | 6MM ALLEN WRENCH | $6.99 | |||
| 144681 | 35 | M8 FLANGE NUT | $0.99 | |||
 | 012149 | 36 | 3/8″ NUT | $0.99 | ||
 | 133333 | 37 | CLIP NUT | $0.99 | ||
| 241356 | 38 | CAGE NUT | $2.99 | |||
| 271091 | 39 | LEFT FOOT RAIL | $42.99 | |||
| 268783 | 40 | PLATFORM CUSHION | $26.49 | |||
| 198640 | 41 | BELT GUIDE | $25.49 | |||
 | 113842 | 42 | MAGNET | $1.49 | ||
 | 262729 | 43 | MOTOR BELT | $32.99 | ||
| 258914 | 44 | DRIVE ROLLER/PULLEY | $131.49 | |||
| 268784 | 46 | BRD,WLK,ARPS | $154.49 | |||
| 271092 | 47 | RIGHT FOOT RAIL | $42.99 | |||
| 413303 | 49 | WARNING DECAL | $3.99 | |||
 | 252378 | 50 | REAR ROLLER BRACKET PLATE | $0.99 | ||
| 268431 | 51 | LEFT FOOT | $20.49 | |||
 | 165798 | 54 | REED SWITCH | $19.49 | ||
 | 131090 | 55 | CLAMP | $0.99 | ||
 | 141173 | 56 | LIFT FRAME SPACER | $3.49 | ||
| 155433 | 57 | LIFT FRAME/RLR GRND WIRE | $2.49 | |||
| 297197 | 60 | Part # 297197 | NLA | Unavailable to order | ||
| 405691 | 60 | DRIVE MOTOR | $204.49 | |||
| 240351 | 62 | 8″ WIRE TIE | $0.99 | |||
| 267196 | 63 | LIFT FRAME | $148.99 | |||
| 258703 | 64 | 5MM HEX KEY | $3.49 | |||
 | 031229 | 65 | POWER CORD | $39.99 | ||

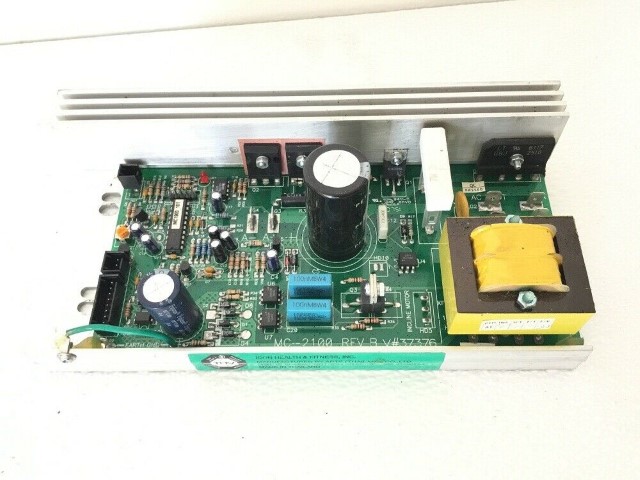

 | 408944 | 66 | Fitness Equipment Controller Board | $179.99 | ||
 | 173169 | 67 | SQUARE GROMMET | $0.99 | ||
 | 186726 | 68 | POWER SWITCH | $22.49 | ||
| 119894 | 71 | 4MM ALLEN WRENCH | $2.49 | |||
 | 161411 | 74 | BASE FOOT SPACER | $0.99 | ||
| 104794 | 75 | FRAME CAP | $1.99 | |||
| 200747 | 76 | GROUND WIRE | $3.49 | Unavailable to order | ||
| 258588 | 77 | WIRE HARNESS | NLA | Unavailable to order | ||
 | 157600 | 81 | BUMPER | $1.99 | ||
| 251437 | 82 | BASE ENDCAP | $1.49 | |||
| 252433 | 84 | DECAL, CAUTION, BASE LEG | $0.99 | |||
| 268786 | 85 | BASE | $228.99 | |||
| 234223 | 86 | WHEEL | $2.99 | |||
| 268772 | 89 | LEFT HANDRAIL | $71.99 | |||
| 268774 | 90 | RIGHT HANDRAIL | $63.49 | |||
| 241683 | 91 | HANDRAIL CAP | NLA | Unavailable to order | ||
| 132315 | 92 | ZIP TIE | $3.49 | |||
 | 208603 | 93 | KEY/CLIP | $19.99 | ||
| 116926 | 94 | 8″ RELEASABLE CABLE TIE | $0.99 | |||
| 016057 | 95 | 8″ CABLE TIE | $2.99 | |||
| 194526 | 96 | 8″ GREEN WIRE, F/RING | $3.49 | |||
| 116566 | 97 | 15 1/2″ CABLE TIE | $0.99 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
 | 356520 | # | MAINTENANCE KIT | $62.49 | ||
| 198081 | # | 6″ BLUE WIRE, M/F | $3.99 | |||
 | 112083 | # | 8″ BLUE WIRE, F/F | $4.49 | ||
| 198084 | # | 6″ RED WIRE, M/F | $3.99 | |||
 | 189813 | # | FILTER WIRE | $23.99 | ||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
| 198087 | # | 6″ BLACK WIRE JMPR, M/F | $4.49 | |||
| 198071 | # | 6″ BLUE WIRE, 2F | $3.99 | |||
| 123945 | # | TECH SHEET ENVELOPE | $0.99 |
