Proform 250I Elliptical – PFEL03916.0 / PFEL039160
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
17 Parts Available for Proform 250I Elliptical - PFEL03916.0 / PFEL039160 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 385106 | 2 | UPRIGHT | $87.99 | |||
| 380326 | 3 | RIGHT UPPER BODY ARM | $40.99 | |||
| 380327 | 4 | LEFT UPPER BODY ARM | $65.99 | |||
| 380329 | 5 | RIGHT UPPER BODY LEG | $51.49 | |||
| 245845 | 5 | SEAT POST | $120.99 | |||
| 380328 | 6 | LEFT UPPER BODY LEG | $51.49 | |||
| 246034 | 6 | Fitness Equipment Console | NLA | Unavailable to order | ||
| 380333 | 7 | RIGHT ROLLER ARM | $91.99 | |||
| 380332 | 8 | LEFT ROLLER ARM | $91.99 | |||
 | 241949 | 8 | RESISTANCE MOTOR | $112.99 | ||
| 012012 | 9 | CRANK NUT | $10.99 | |||
| 380331 | 9 | RIGHT PEDAL ARM | $108.99 | |||
| 380330 | 10 | LEFT PEDAL ARM | $108.99 | |||
| 231745 | 10A | PILLOW BLOCK | $30.49 | Unavailable to order | ||
 | 385104 | 11 | TRACK | $161.99 | Unavailable to order | |
| 245843 | 11 | Adjustment Knob | NLA | Unavailable to order | ||
| 245849 | 12 | SEAT | $75.49 | |||
| 380335 | 12 | FRONT STABILIZER | $67.99 | |||
| 208495 | 13 | Pulley/Crank | NLA | Unavailable to order | ||
| 363315 | 13 | CRANK ARM | $131.99 | |||
| 245847 | 14 | REAR STABILIZER | $68.49 | |||
| 365426 | 14 | CRANK | $105.49 | |||
| 327627 | 15 | PULLEY | $100.49 | |||
| 251831 | 15 | M4 X 16MM ROUND HEAD SCRW | $1.99 | |||
| 352736 | 16 | ROLLER | $79.99 | |||
| 352737 | 17 | SMALL SPACER | $3.49 | |||
| 270690 | 17 | LEFT SIDE SHIELD | $161.49 | |||
| 352738 | 18 | UPRIGHT AXLE | $67.49 | |||
| 270691 | 18 | RIGHT SIDE SHIELD | $161.49 | |||
| 361430 | 19 | BUSHING C | $16.99 | |||
| 195561 | 20 | M10 X 55MM BOLT | $11.49 | |||
| 352740 | 21 | LARGE SPACER | $4.99 | |||
| 164675 | 21 | REED SWITCH/WIRE | $29.99 | |||
| 352741 | 22 | PULSE SENSOR | $31.99 | |||
| 368885 | 23A | EDDY MECHANISM | $151.49 | |||
 | 321353 | 23B | RESISTANCE CABLE 13.715″L | $49.99 | ||
 | 363093 | 24 | IDLER | $116.49 | ||
| 180949 | 24 | LEFT PEDAL | $56.99 | |||
 | 208163 | 25 | IDLER SCREW | $1.99 | ||
 | 014033 | 26 | IDLER WASHER | $1.49 | ||
| 180950 | 26 | RIGHT PEDAL | $68.99 | Unavailable to order | ||
 | 281150 | 27 | IDLER PIVOT SCREW | $4.49 | ||
 | 295560 | 27 | CRANK BEARING ASSEMBLY | $54.99 | ||
| 263764 | 28 | M10 NUT | $3.49 | |||
 | 193223 | 29 | RESISTANCE MOTOR | $99.99 | ||
| 191629 | 29 | WATER BOTTLE HOLDER | $28.99 | |||
| 385103 | 30 | CONSOLE | $213.49 | |||
 | 244245 | 30 | IDLER PULLEY | $35.49 | ||
| 349115 | 31 | Pulse Wire | NLA | Unavailable to order | ||
| 242434 | 31 | LOWER WIRE HARNESS | $69.49 | |||
| 399158 | 31 | PULSE WIRE | $59.99 | |||
| 212501 | 32 | UPPER WIRE HARNESS | $68.49 | |||
| 361493 | 32 | MAIN WIRE | $69.99 | |||
| 208580 | 33 | M10 X 76MM BOLT | $14.99 | |||
 | 372087 | 33 | REED SWITCH/WIRE | $23.49 | ||
| 147321 | 34 | M10 SPLIT WASHER | $0.99 | |||
 | 139703 | 34 | SMALL BEARING / FOLDING FRAME BEARING | $33.49 | ||
| 245838 | 35 | M10 X 20MM SCREW | $5.49 | |||
 | 131090 | 35 | CLAMP | $0.99 | ||
 | 363316 | 36 | BUSHING A | $15.99 | ||
| 014066 | 36 | M8 SPLIT WASHER | $0.99 | |||
| 352750 | 37 | BUSHING B | $9.49 | |||
 | 012002 | 37 | SEAT LOCKNUT | $1.49 | ||
| 012022 | 38 | LOCKNUT | $0.99 | |||
 | 246285 | 38 | LEVELING FOOT | $10.99 | ||
| 013294 | 39 | #8 X 1″ PAN HD LEG SCREW | $0.99 | |||
| 352805 | 39 | FOOT | $3.49 | |||
 | 121642 | 40 | 1.25″ ROUND ENDCAP | $1.49 | ||
| 165135 | 40 | M4 X 5MM SCREW | $0.99 | |||
| 104622 | 41 | M8 X 5/8″ Screw | NLA | Unavailable to order | ||
| 352806 | 41 | FOAM GRIP | $11.99 | |||
| 248849 | 42 | HANDLEBAR CAP | $5.99 | |||
| 359866 | 43 | FRONT STABILIZER CAP | $9.49 | |||
 | 361433 | 44 | AXLE COVER | $1.49 | ||
 | 320579 | 45 | CAP | $14.49 | ||
| 380338 | 46 | RIGHT PEDAL | $62.49 | |||
| 380337 | 47 | LEFT PEDAL | $62.49 | |||
| 380411 | 48 | RIGHT SHIELD | $98.99 | |||
| 380410 | 49 | LEFT SHIELD | $98.99 | |||
| 385105 | 50 | ACCESSORY TRAY | $27.99 | |||
| 380346 | 51 | FRONT UPRIGHT COVER | $12.99 | |||
| 352809 | 52 | OUTER CRANK COVER | $31.99 | |||
| 352810 | 53 | INNER CRANK COVER | $29.49 | |||
| 380347 | 54 | REAR UPRIGHT COVER | $12.99 | |||
 | 176559 | 55 | DRIVE BELT | $59.99 | ||
 | 195562 | 56 | M4 X 16MM SCREW | $1.99 | ||
| 352813 | 57 | M4 CONSOLE MTG SCREW | $14.49 | |||
| 352814 | 58 | M4 X 12MM BRIGHT SCREW | $0.99 | |||
 | 193502 | 59 | M8 X 38MM BUTTON SCREW | $4.49 | ||
 | 012042 | 60 | M8 LOCKNUT | $1.99 | ||
| 214679 | 61A | M8 X 20MM SCREW | $3.49 | |||
 | 249930 | 61B | M8 X 20MM SCREW | $2.99 | ||
| 352820 | 62 | M10 CURVED WASHER | $2.49 | |||
 | 352815 | 63 | M8 WASHER | $0.99 | ||
| 248341 | 64 | MECHANISM SPACER | $1.49 | |||
 | 113842 | 65 | MAGNET | $1.49 | ||
| 353005 | 65 | Magnetic Resistance System | NLA | Unavailable to order | ||
 | 209461 | 66 | IDLER BOLT | $29.99 | ||

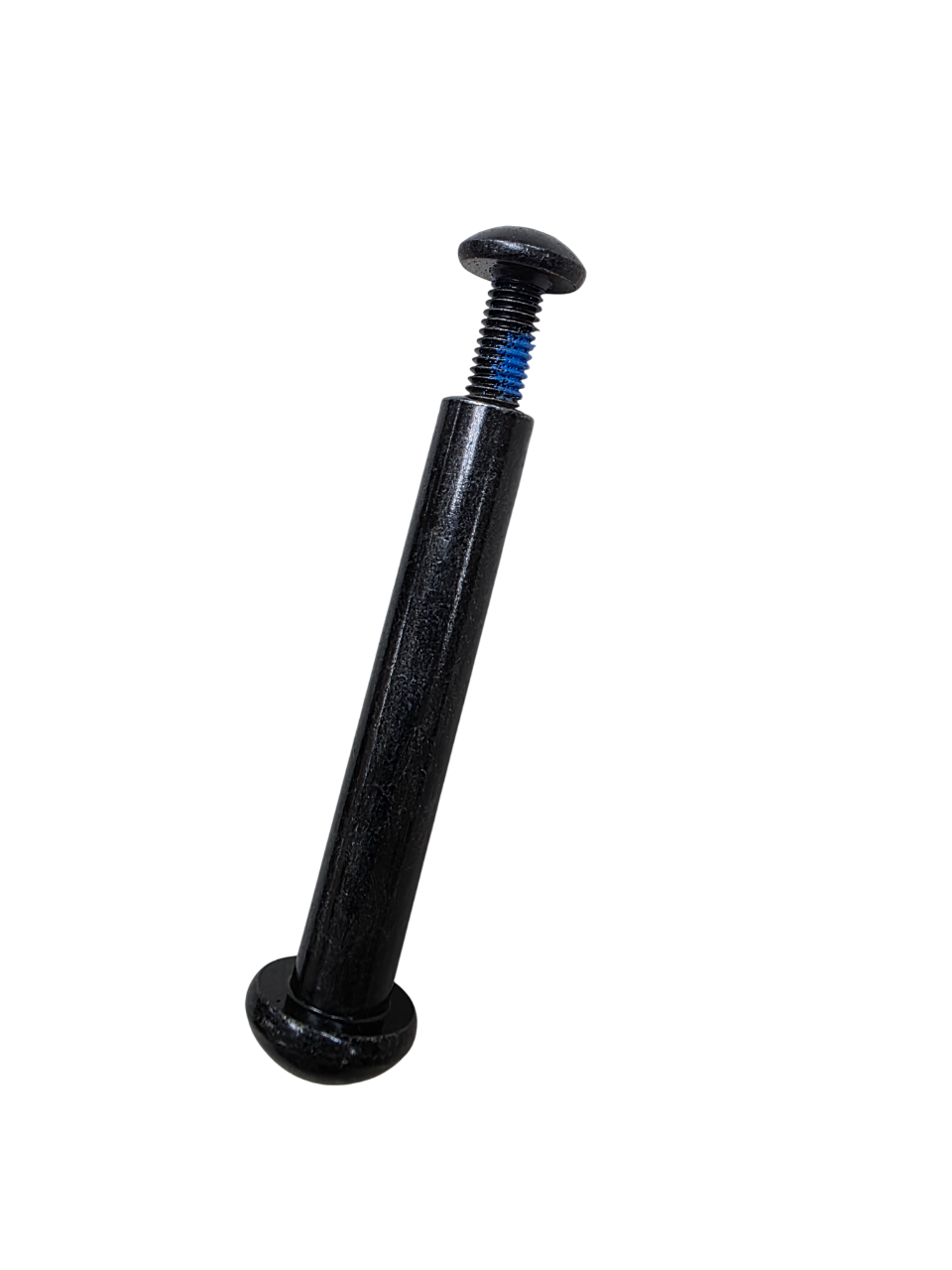

 | 278602 | 67A | M6 BOLT SET | $12.99 | ||
 | 208939 | 67B | M5 X 16MM SCREW | $2.49 | ||
 | 250961 | 68 | M4 X 19MM SCREW | $0.99 | ||
| 352818 | 69 | M8 SPLIT WASHER | $2.49 | |||
| 360668 | 70 | M5 BOLT SET | $11.99 | |||
| 353007 | 71 | COLLAR | $13.49 | |||
| 208938 | 72 | M10 X 60MM BUTTON SCREW | $5.99 | |||
| 252437 | 73 | M10 X 53MM SCREW | $9.49 | |||
| 248334 | 74 | M10 X 19MM PATCH SCREW | $5.49 | |||
| 353417 | 75 | M10 X 38MM SCREW | $8.49 | |||
| 355878 | 76 | M10 X 100MM SCREW | $17.49 | |||
| 221728 | 78 | M5 X 10MM SCREW | $0.99 | |||
| 383854 | 79 | #10 X 14MM SCREW | $0.99 | |||
| 353319 | 80 | M10 SPLIT WASHER | $0.99 | |||
| 361435 | 81 | TRACK CAP | $5.49 | |||
| 348190 | 82 | PEDAL ARM REAR CAP | $6.49 | |||
 | 363313 | 83 | BUSHING D | $18.99 | ||
| 334549 | 84 | M4 X 12MM SCREW | $0.99 | |||
| 380344 | 85 | PIVOT COVER A | $9.49 | |||
| 380345 | 86 | PIVOT COVER B | $9.49 | |||
| 380349 | 87 | LEFT ROLLER COVER | $9.49 | |||
| 380348 | 88 | RIGHT ROLLER COVER | $9.49 | |||
 | 148803 | 89 | WHEEL | $3.49 | ||
| 244931 | 90 | M10 X 60MM SCREW | $15.49 | |||
 | 148710 | 91 | M10 LOCKNUT | $2.49 | ||
| 360681 | 92 | TABLET HOLDER | $146.49 | |||
 | 276104 | 93 | #8X5/8″ MACHINE SCREW | $0.99 | ||
 | 304951 | # | 6MM ALLEN WRENCH | $10.99 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 370081 | # | CABLE CLIP | $1.49 | |||
| 390619 | # | USER’S MANUAL, SPANISH | $22.49 | |||
| 389864 | # | USER’S MANUAL,SPG | $23.49 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 258868 | # | DECAL, GENERAL WARNING | $0.99 | |||
 | 248512 | # | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
 | 104838 | # | GREASE PACKET | $8.49 | ||
 | 045008 | # | 5MM ALLEN WRENCH | $2.49 | ||
 | 140069 | # | SNAP RING PLIERS | $12.99 |
