PROFORM 150I ELLIPTICAL – PFEL02916.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
83 Parts Available for PROFORM 150I ELLIPTICAL - PFEL02916.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 391512 | 1 | FRAME | NLA | Unavailable to order | ||
| 391844 | 2 | UPRIGHT | $109.49 | |||
| 361419 | 3 | LEFT UPPER BODY ARM | $71.99 | |||
| 361418 | 4 | RIGHT UPPER BODY ARM | $71.99 | |||
| 361421 | 5 | RIGHT UPPER BODY LEG | $126.99 | |||
| 361420 | 6 | LEFT UPPER BODY LEG | $126.99 | |||
| 361425 | 7 | RIGHT ROLLER ARM | $110.49 | |||
| 361424 | 8 | LEFT ROLLER ARM | $106.99 | |||
| 361423 | 9 | RIGHT PEDAL ARM | $107.49 | |||
| 361422 | 10 | LEFT PEDAL ARM | $99.49 | |||
| 386390 | 11 | TRACK | $140.99 | |||
| 361427 | 12 | FRONT STABILIZER | $72.49 | |||
| 365426 | 14 | CRANK | $105.49 | |||
| 327627 | 15 | PULLEY | $100.49 | |||
| 352736 | 16 | ROLLER | $79.99 | |||
| 352737 | 17 | SMALL SPACER | $3.49 | |||
| 352738 | 18 | UPRIGHT AXLE | $67.49 | |||
 | 281149 | 20 | DRIVE BELT ADJ SCREW | $6.49 | ||
| 352740 | 21 | LARGE SPACER | $4.99 | |||
| 352741 | 22 | PULSE SENSOR | $31.99 | |||
| 368885 | 23A | EDDY MECHANISM | $151.49 | |||
 | 321353 | 23B | RESISTANCE CABLE 13.715″L | $49.99 | ||
| 396482 | 24 | IDLER | $53.49 | |||
 | 208163 | 25 | M6 X 20MM SCREW | $1.99 | ||
 | 014033 | 26 | M6 WASHER | $1.49 | ||
 | 281150 | 27 | IDLER PIVOT SCREW | $4.49 | ||
| 263764 | 28 | M10 NUT | $3.49 | |||
 | 193223 | 29 | RESISTANCE MOTOR | $99.99 | ||
| 386347 | 30 | CONSOLE (NO RESET) | $192.99 | |||
| 399158 | 31 | PULSE WIRE | $59.99 | |||
| 361493 | 32 | MAIN WIRE | $69.99 | |||
 | 372087 | 33 | REED SWITCH/WIRE | $23.49 | ||
 | 139703 | 34 | SMALL BEARING / FOLDING FRAME BEARING | $29.98 | ||
 | 131090 | 35 | CLAMP | $0.99 | ||
 | 363316 | 36 | BUSHING, UPPER BODY ARM | $15.99 | ||
| 352750 | 37 | BUSHING, PEDAL ARM | $9.49 | |||
| 352752 | 38 | LEVELING FOOT | $20.49 | |||
| 352805 | 39 | FOOT | $3.49 | |||
 | 121642 | 40 | 1.25″ RND ENDCAP | $1.49 | ||
| 352806 | 41 | FOAM GRIP | $11.99 | |||
| 248849 | 42 | DOME CAP | $5.99 | |||
| 352751 | 43 | WHEEL | $29.99 | |||

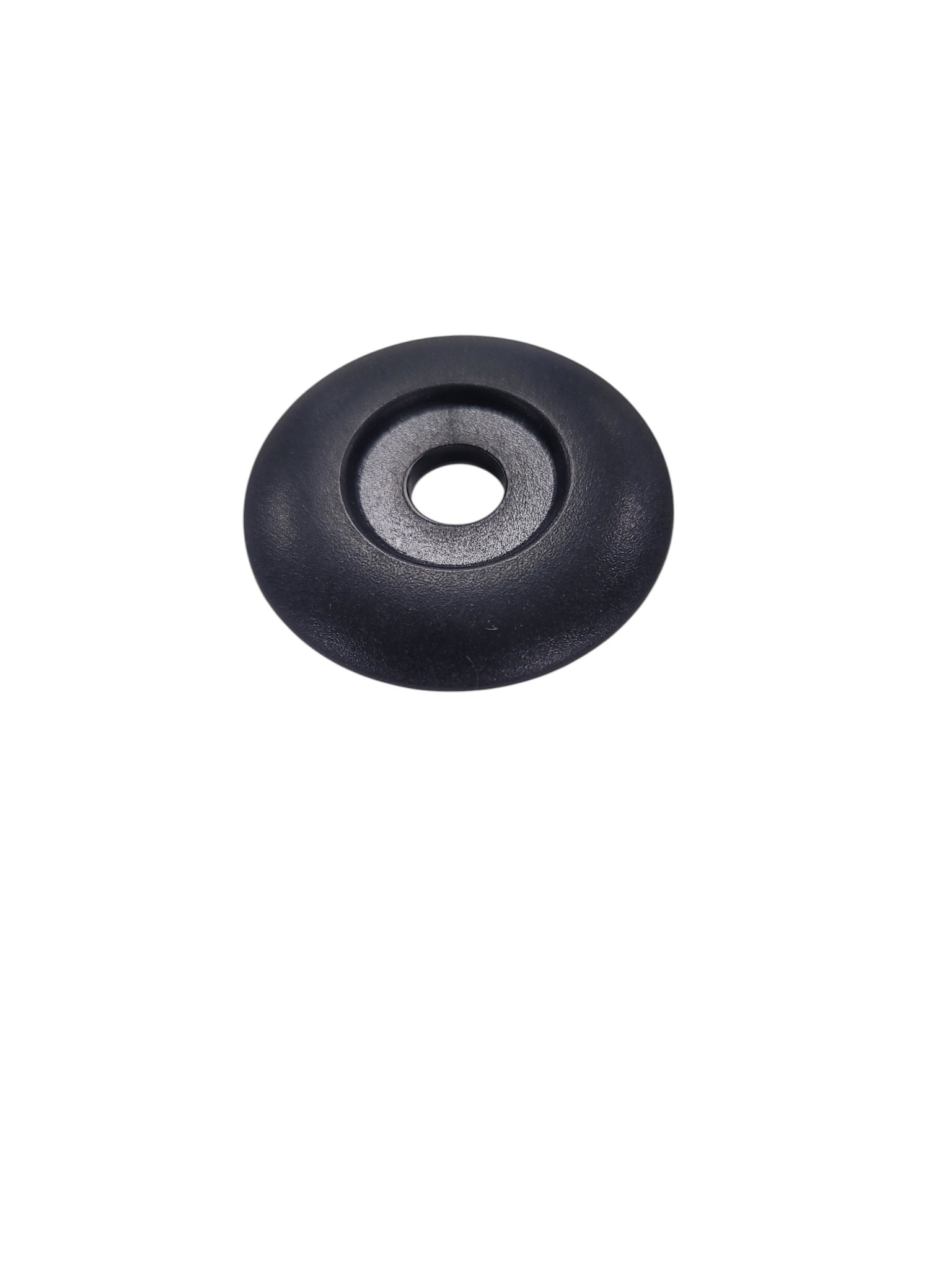

 | 361433 | 44 | AXLE COVER | $1.49 | ||
| 363472 | 46 | RIGHT PEDAL | $103.49 | |||
| 363470 | 47 | LEFT PEDAL | $103.49 | |||
| 386279 | 48 | RIGHT SHIELD | $94.49 | |||
| 386280 | 49 | LEFT SHIELD | $94.49 | |||
| 353293 | 50 | ACCESSORY TRAY | $29.99 | |||
| 352745 | 51 | V-CLIP | $2.49 | |||
| 352809 | 52 | OUTER CRANK COVER | $31.99 | |||
| 352810 | 53 | INNER CRANK COVER | $29.49 | |||
| 361432 | 54 | ANGLE CAP | $6.99 | |||
 | 176559 | 55 | DRIVE BELT | $59.99 | ||
 | 250961 | 56A | M4 X 19MM SCREW | $0.99 | ||
| 352813 | 56B | M4 X 16MM SCREW | $14.49 | |||
| 300323 | 57 | M4 X 13MM SELF-TAP SCREW | $0.99 | |||
| 248364 | 58 | M4 X 12MM BRIGHT SCREW | $0.99 | |||
 | 193502 | 59 | M8 X 38MM BOLT | $4.49 | ||
 | 012042 | 60 | M8 NYLON LOCKNUT | $1.99 | ||
| 214679 | 61A | M8 X 20MM SCREW | $3.49 | |||
 | 249930 | 61B | M8 X 20MM SCREW | $2.99 | ||
| 352820 | 62 | M10 CURVED WASHER | $2.49 | |||

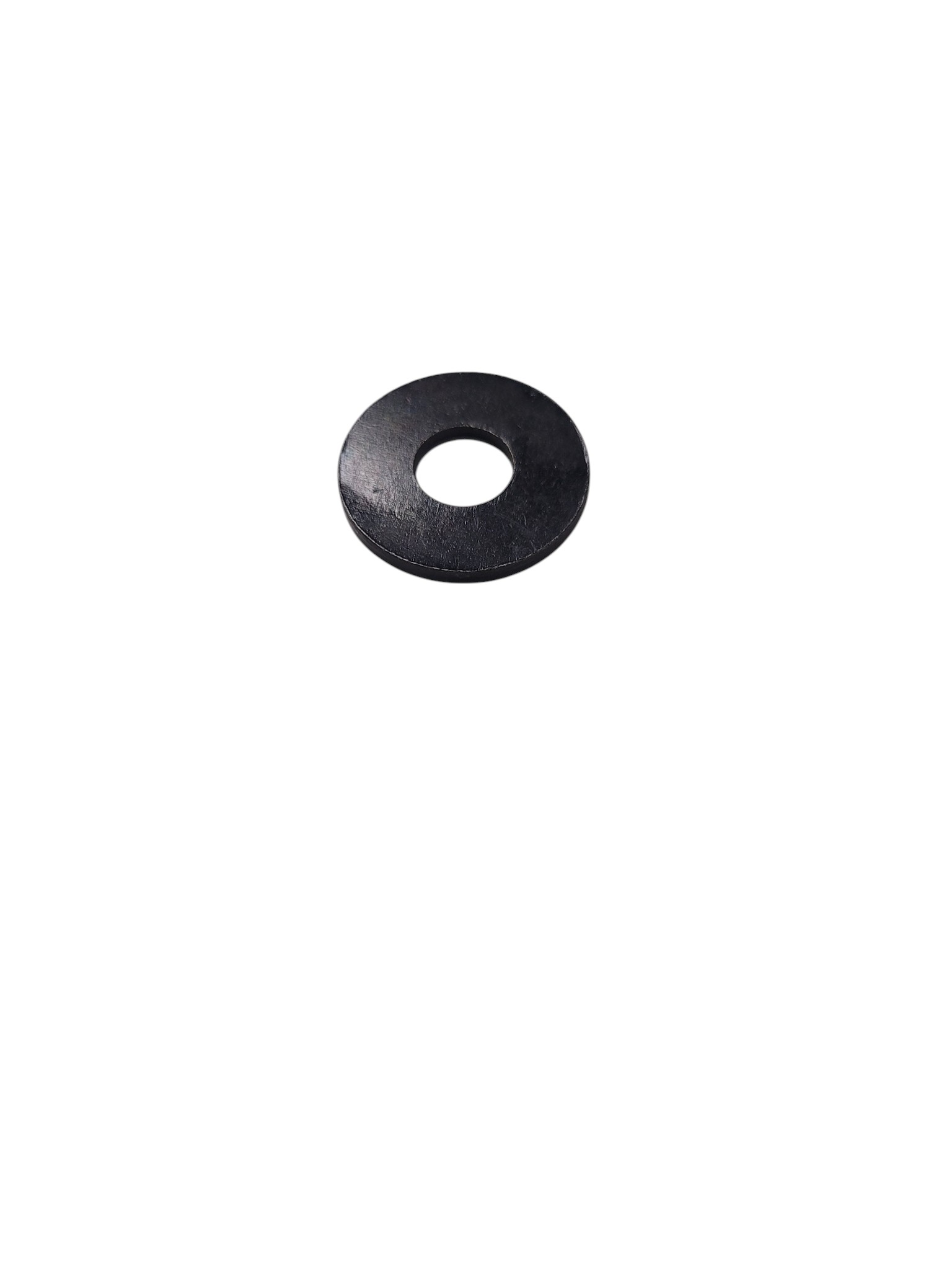

 | 352815 | 63 | M8 WASHER | $0.99 | ||
| 248341 | 64 | IDLER WASHER | $1.49 | |||
 | 113842 | 65 | SENSOR MAGNET | $1.49 | ||
 | 209461 | 66 | FLANGE SCREW | $29.99 | ||
 | 278602 | 67 | M6 BOLT SET | $22.99 | ||
| 352818 | 69 | M8 SPLIT WASHER | $2.49 | |||
| 360668 | 70 | M5 BOLT SET | $11.99 | |||
| 353007 | 71 | COLLAR | $13.49 | |||
| 208938 | 72 | M10 X 60MM BUTTON BOLT | $5.99 | |||
| 252437 | 73 | M10 X 53MM SCREW | $9.49 | |||
| 248334 | 74 | M10 X 20MM SCREW | $5.49 | |||
| 353417 | 75 | M10 X 39MM SCREW | $8.49 | |||
| 254448 | 76 | M10 X 70MM SCREW | $6.49 | |||
 | 148710 | 77 | M10 NYLON LOCKNUT | $2.49 | ||
| 221728 | 78 | M5 X 10MM SCREW | $0.99 | |||
| 169661 | 79 | ROLLER GUARD SCREW | $0.99 | |||
| 353319 | 80 | M10 SPLIT WASHER | $0.99 | |||
| 361435 | 81 | TRACK CAP | $5.49 | |||
 | 363313 | 82 | BUSHING, UPRT/LEG PEDAL | $18.99 | ||
| 361430 | 83 | BUSHING C | $16.99 | |||
| 348190 | 84 | PEDAL ARM CAP | $6.49 | |||
| 328496 | # | 5 FRENCH DECALS ON 1SHEET | $87.99 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
 | 337717 | # | Power Adapter | $18.99 | ||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 132315 | # | CABLE CLAMP TIE | $3.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
 | 104838 | # | GREASE | $8.49 | ||
| 299925 | # | DECAL,GENERAL WARNING | $11.49 | |||
| 330224 | # | DECAL,REWRK,OVRLY SHEET | $61.49 |
