PROFORM 110 R BIKE – 21942.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
47 Parts Available for PROFORM 110 R BIKE - 21942.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 328369 | 2 | UPRIGHT | $96.49 | |||
| 318785 | 3 | SEAT CARRIAGE | $79.49 | |||
| 318783 | 5 | BACKREST FRAME | $102.49 | |||
| 318805 | 6 | BACKREST | $115.49 | |||
| 318787 | 7 | SEAT FRAME | $79.49 | |||
| 318806 | 8 | SEAT | $94.99 | |||
| 324154 | 9 | CARRIAGE RAIL | $102.99 | |||
| 318149 | 10 | PULSE SENSOR | $54.99 | |||
| 328372 | 11 | CONSOLE PLATE | $49.49 | |||
| 318808 | 12 | SHIELD COVER | $25.49 | |||
| 328366 | 13 | HANDLEBAR | $78.99 | |||
 | 244615 | 14 | ADJUSTMENT KNOB | $26.49 | ||
| 318803 | 15 | STABILIZER SHIELD | $70.49 | |||
| 318804 | 16 | CARRIAGE CAP | $6.49 | |||
| 191714 | 17 | SEAT HANDLE FOAM | $12.99 | |||
| 248849 | 18 | HANDLEBAR CAP | $5.99 | |||
| 243654 | 19 | SEAT CARRIAGE CAP | $2.99 | |||
| 196319 | 20 | BACKREST FRAME CAP | $2.99 | |||
 | 121642 | 21 | 1.25″ ROUND ENDCAP | $1.49 | ||
| 260951 | 22 | PULSE WIRE | $27.49 | |||
 | 318852 | 23 | DRIVE BELT | $48.99 | ||
| 245794 | 24 | FOOT | $3.49 | |||
 | 286527 | 25 | COVER MOUNT | $2.49 | ||
| 255149 | 26 | M8 X 35MM PATCH SCREW | $3.49 | |||
 | 256815 | 27 | V-CLIP | $0.99 | ||
| 215823 | 28 | AUDIO WIRE | $11.99 | |||
 | 213457 | 29 | M4 X 12MM SCREW | $1.99 | ||
| 207073 | 30 | M10 X 35MM HEX SCREW | $3.99 | |||
| 324681 | 31 | REAR STABILIZER | $108.99 | |||
| 324677 | 32 | FRONT STABILIZER | $59.49 | |||
| 150757 | 34 | M5 X 16MM FLAT HEAD SCREW | $3.49 | |||
 | 317007 | 35 | WHEEL | $27.49 | ||
| 244000 | 36 | RIGHT PEDAL/STRAP | $82.99 | |||
 | 243998 | 37 | LEFT PEDAL/STRAP | $82.99 | ||
| 319144 | 38 | RIGHT SHIELD | $106.49 | |||
| 319145 | 39 | LEFT SHIELD | $106.49 | |||
 | 012105 | 40 | M8 FLANGE NUT | $3.49 | ||
 | 251978 | 41 | M10 X 41MM SHOULDER SCREW | $12.99 | ||
| 328275 | 43 | CRANK/PULLEY | $152.99 | |||
 | 113842 | 44 | MAGNET | $1.49 | ||
 | 295560 | 45 | CRANK BEARING ASSEMBLY | $54.99 | ||
 | 186070 | 46 | REED SWITCH/WIRE | $28.99 | ||
 | 131090 | 47 | CLAMP | $0.99 | ||
| 318815 | 50 | IDLER | $42.99 | |||
 | 193223 | 51 | RESISTANCE MOTOR | $99.99 | ||
 | 181250 | 52 | RESISTANCE CABLE | $39.99 | ||
| 240819 | 54 | M10 X 80MM SCREW | $14.99 | |||
 | 249930 | 55 | M8 X 20MM SCREW | $2.99 | ||
| 184126 | 56A | M4 RSW CLAMP SCREW | $0.99 | |||
 | 195562 | 56B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 57 | COVER CLIP | $1.99 | ||
| 238899 | 58 | M8 X 48MM BUTTON SCREW | $5.99 | |||
| 324261 | 59 | M4 X 16MM MACHINE SCREW | $7.49 | |||
| 234366 | 60 | M4 X 8MM MACHINE SCREW | $1.49 | |||
 | 256446 | 62 | M8 LOCKNUT | $0.99 | ||
| 322073 | 64 | M8 X 120MM BOLT | $8.49 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
 | 248512 | # | OPTIONAL TRANSFORMER / POWER ADAPTER | $18.99 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 328401 | # | SEAT SUPPORT | $8.49 | |||
| 132315 | # | CABLE CLAMP | $3.49 | |||

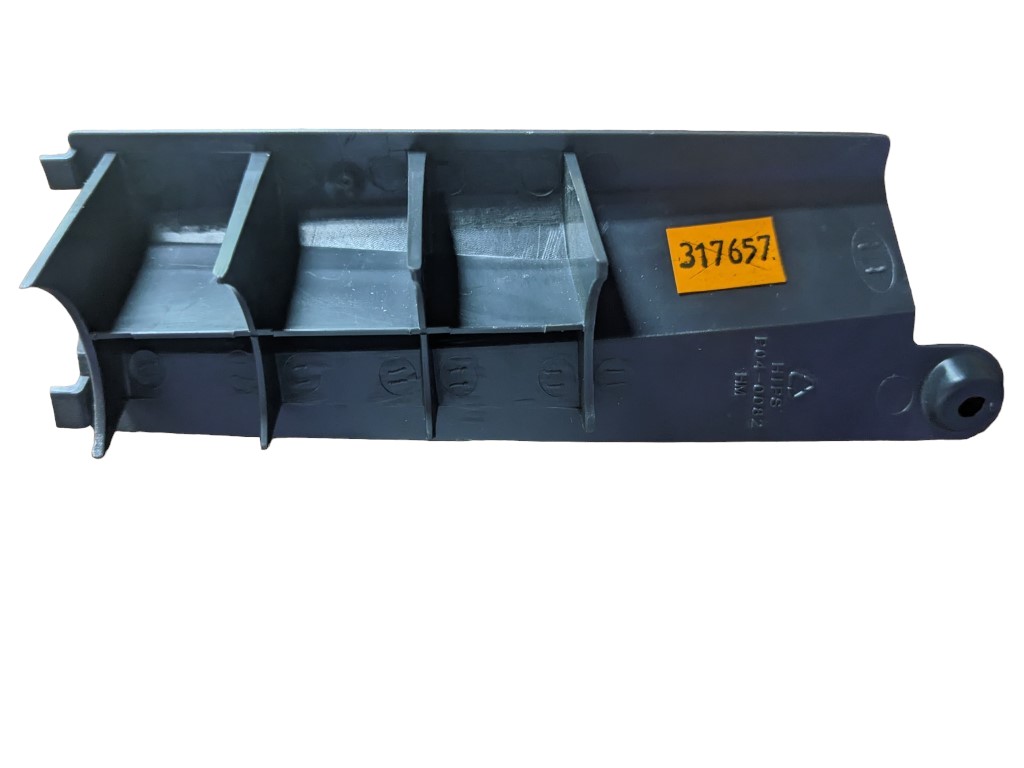

 | 317657 | # | CNSL BATTERY DOOR, RT | $11.49 | ||
 | 304974 | # | 4MM ALLEN WRENCH | $4.49 | ||
| 319622 | # | USER’S MANUAL | $12.49 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 299925 | # | WARNING DECAL | $11.49 | |||
| 328127 | # | CONSOLE BATTERY SCREW | $1.99 | |||
| 317656 | # | CNSL BOOKRACK | $15.99 |
