PROFORM 11.0 TT TREADMILL – PFTL99013.2
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
131 Parts Available for PROFORM 11.0 TT TREADMILL - PFTL99013.2 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 013576 | 1 | #8 X 0.5″ SCREW | $0.99 | ||
 | 013322 | 2A | #8 X 0.75″ SCREW | $0.99 | ||
| 013028 | 2B | REAR ENDCAP/KNOB SCREW | $0.99 | |||
 | 349213 | 3 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 174801 | 4 | CONSOLE BOLT | $0.99 | ||
 | 014088 | 5 | #10 STAR WASHER | $1.49 | ||
 | 125237 | 7 | 3/8″ X 4″ SCREW | $5.99 | ||

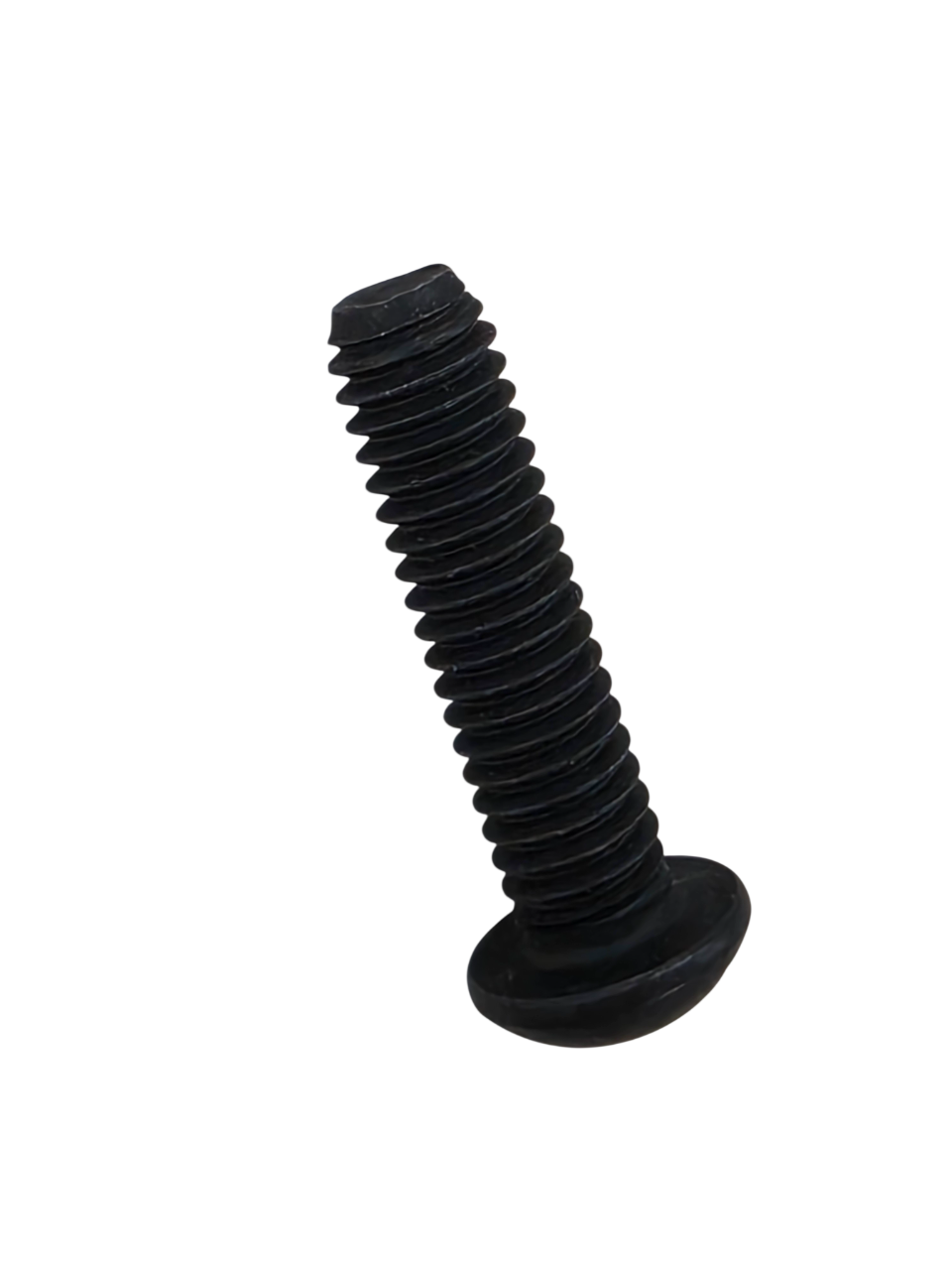

 | 195481 | 8 | 5/16″ X 1 1/4″ BOLT | $1.49 | ||
 | 167049 | 9 | #10 X 0.75″ SCREW | $0.99 | ||
 | 186819 | 10A | #8 X 0.5″ SCREW | $0.99 | ||
 | 013423 | 10B | 1/2″ SCREW | $0.99 | ||
 | 014149 | 11 | 5/16″ STAR WASHER | $0.99 | ||
 | 163045 | 13 | 3/8″ STAR WASHER | $0.99 | ||
 | 013300 | 14 | #8 X 3/4″ SCREW | $0.99 | ||
 | 364027 | 15 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 346519 | 16 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
 | 142622 | 17 | HANDRAIL BOLT | $2.99 | ||
| 306940 | 18 | CONSOLE FRAME | $69.99 | |||
| 136728 | 19 | #8 X 1/2″ SCREW | $0.99 | |||
 | 295758 | 20 | 5/16″ MOTOR BOLT | $3.49 | ||
| 315068 | 21 | 3/8″ PIN | $7.99 | |||
 | 298484 | 23 | 5/16″X1 3/4″ SHOULDERBOLT | $2.49 | ||
 | 130659 | 24 | 3/4″ BELLY PAN SCREW | $0.99 | ||
 | 295136 | 25 | 5/16″ X 3/4″ SCREW | $3.49 | ||
| 302314 | 26 | REAR ISOLATOR TOP | $6.99 | |||

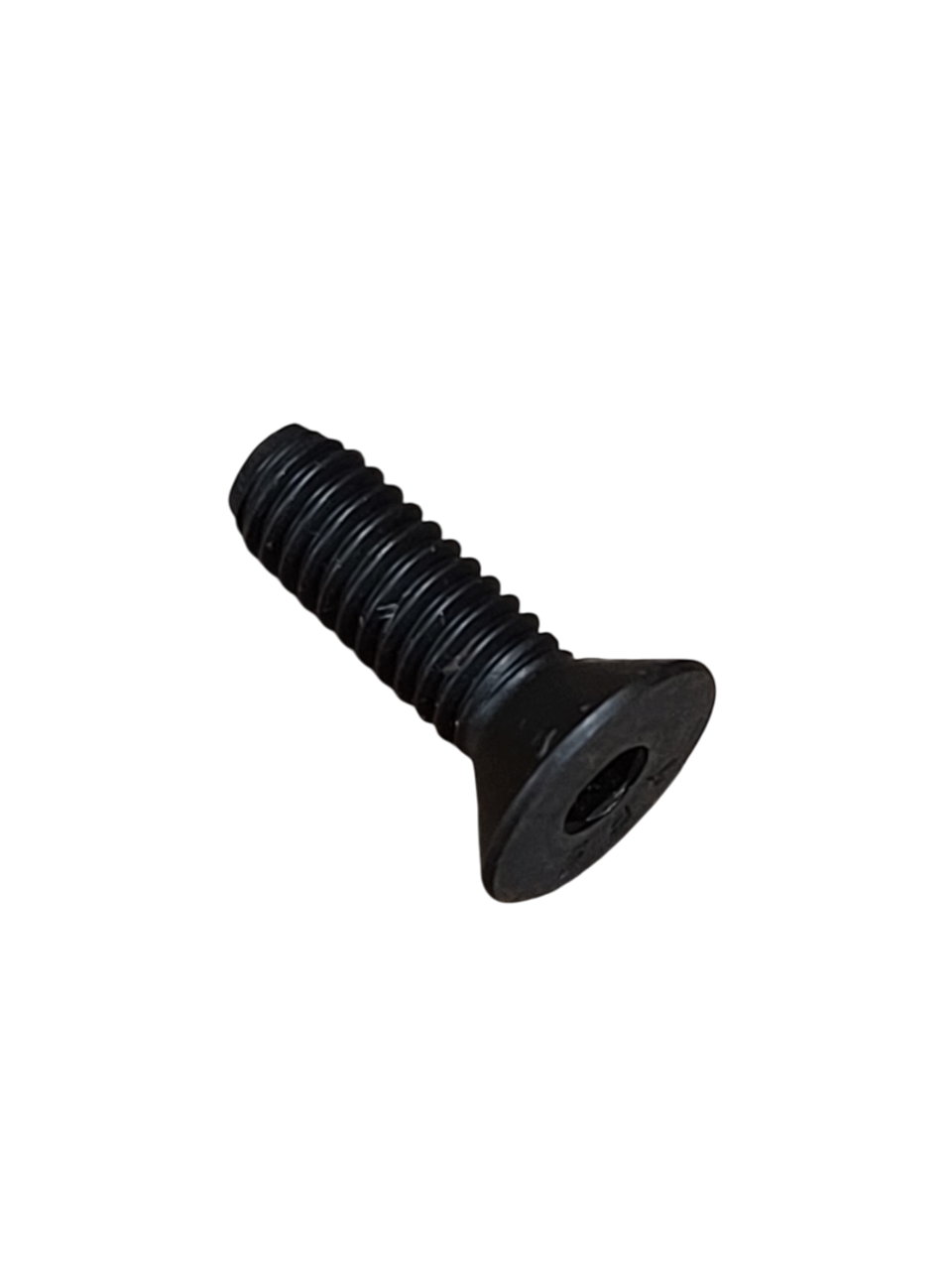

 | 135711 | 28 | 5/16″ X 1″ FLAT HEAD BOLT | $1.99 | ||
| 159986 | 29 | 3/8″ X 2″ HEX BOLT | $6.49 | |||
 | 152478 | 30 | 5/16″ FLAT WASHER | $0.99 | ||
| 014073 | 31 | 5/16″ WASHER | $1.49 | |||
 | 114078 | 32 | INCLINE MOTOR SPACER | $2.49 | ||
 | 119425 | 33 | 3/8″ JAMNUT | $0.99 | ||
 | 100427 | 34 | 5/16″ JAMNUT | $0.99 | ||
| 301510 | 35 | ISOLATOR BOTTOM | $5.49 | |||
| 301337 | 37 | HANDRAIL CAP | $3.49 | |||
 | 354800 | 38 | LATCH CROSSBAR | $74.99 | ||
| 360739 | 39 | CUSHION | $41.99 | |||
| 230979 | 40 | HOOD MOUNT | $5.49 | |||
| 243797 | 41 | CONSOLE CLAMP | $26.99 | Unavailable to order | ||
| 352088 | 42 | LEFT FOOT RAIL | $63.49 | |||
| 413303 | 43A | LARGE WARNING DECAL | $3.99 | |||
| 361007 | 44 | WALKING PLATFORM | $169.49 | |||
 | 361797 | 45 | WALKING BELT | $122.99 | ||
 | 198639 | 46 | BELT GUIDE | $5.99 | ||
| 356349 | 47 | RIGHT REAR FOOT | $33.49 | Unavailable to order | ||
| 240351 | 48 | CLAMP WIRE TIE | $0.99 | |||
| 303466 | 49 | DRIVE ROLLER/PULLEY | $141.49 | |||
 | 131090 | 51 | REED SWITCH CLIP | $0.99 | ||
 | 157504 | 52 | REED SWITCH | $26.99 | ||
 | 388203 | 53 | STORAGE LATCH | $100.49 | ||
 | 405662 | 54 | DRIVE MOTOR | $281.49 | ||
 | 319256 | 55 | MOTOR BELT | $44.99 | ||
| 356350 | 57 | LEFT REAR FOOT | $33.49 | Unavailable to order | ||
 | 215822 | 58 | GROUND WIRE | $5.99 | ||
| 331921 | 59 | RUBBER CUSHION | $2.49 | |||
| 352087 | 60 | RIGHT FOOT RAIL | $63.49 | |||
 | 311588 | 61 | IDLER ROLLER | $114.99 | ||
 | 347760 | 62 | FRONT WHEEL | $6.99 | ||
 | 164906 | 63 | BOLT SPACER | $2.49 | ||
| 360222 | 65 | MOTOR HOOD | $83.49 | |||
| 352089 | 66 | HOOD ACCENT | $64.99 | |||
 | 331515 | 67 | INCLINE FRAME WASHER | $1.49 | ||
 | 133333 | 68 | HOOD CLIP | $0.99 | ||
 | 223676 | 69A | INCLINE MOTOR | $164.49 | ||
 | 286707 | 69B | INCLINE MOTOR SENSOR KIT | $70.49 | ||
| 191554 | 69C | MOTOR CONTROLLER WIRE | $13.99 | |||
| 317148 | 71 | FRAME SPACER | $7.49 | |||
| 365829 | 73 | ELECTRONICS BRACKET | $12.99 | |||
 | 314515 | 74 | BASE CAP | $1.99 | ||
 | 186726 | 75 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
 | 031229 | 76 | POWER CORD | $39.99 | ||
 | 173169 | 77A | POWER CORD GROMMET | $0.99 | ||
 | 227199 | 77B | UPRIGHT GROMMET | $2.49 | ||
| 310874 | 79 | LEFT HANDRAIL COVER | $6.99 | |||
 | 284338 | 80C | FAN | $82.49 | ||
| 212535 | 80D | #3 X 5/16″ SCREW | $0.99 | |||
| 352102 | 81 | UPRIGHT WIRE | $95.99 | |||
| 349631 | 82 | LEFT BASE COVER | $11.99 | |||
| 349632 | 83 | RIGHT BASE COVER | $11.99 | |||
| 352331 | 84 | LEFT UPRIGHT COVER | $17.99 | |||
| 352330 | 85 | RIGHT UPRIGHT COVER | $17.99 | |||
| 350646 | 86 | LEFT HANDRAIL | $80.99 | |||
| 350647 | 87 | RIGHT HANDRAIL | $80.99 | |||
| 310875 | 88 | RIGHT HANDRAIL COVER | $6.99 | |||
| 352085 | 89 | LEFT UPRIGHT | $130.99 | |||
| 352086 | 90 | RIGHT UPRIGHT | $130.99 | |||
| 254359 | 91 | CAUTION DECAL | $12.99 | |||
| 203451 | 92 | 5/16″ CAGE NUT | $3.99 | |||
| 370083 | 94 | BASE | $181.49 | |||
| 132315 | 96 | WIRE TIE | $3.49 | |||
 | 348229 | 97 | WHEEL | $4.99 | ||
| 301511 | 99 | LEFT FRONT ISOLATOR TOP | $8.49 | |||
| 267888 | 100 | 1/4″ X 1 1/2″ BOLT | $2.99 | |||
| 356348 | 101 | RIGHT FOOT PAD | $8.99 | Unavailable to order | ||
 | 013607 | 102 | HOOD SCREW | $0.99 | ||
| 311127 | 104 | RIGHT REAR COVER | $20.49 | |||
 | 121576 | 105 | FRONT ROLLER NUT | $2.49 | ||
| 360378 | 106 | CONTROLLER CLAMP | $10.99 | |||
| 128263 | 107 | SIDESHIELD SCREW | $0.99 | |||
 | 291486 | 108 | #8 X 5/8″ SCREW | $0.99 | ||
 | 307032 | 109 | BASE PAD | $3.99 | ||
| 356347 | 110 | LEFT FOOT PAD | $27.99 | |||
| 307323 | 111 | FILTER BRACKET | $18.99 | |||
| 296477 | 112 | FILTER | $105.49 | |||
| 429182 | 113 | FERRITE BOX | $26.99 | |||
| 177325 | 114 | STOP PLATE | $1.99 | |||
 | 230327 | 115 | FRONT ROLLER ADJ. BOLT | $19.49 | ||
| 143112 | # | 16″ BLUE WIRE,F/F | $5.49 | |||
 | 219170 | # | 3 TUBE LUBE KIT | $39.49 | ||
| 366616 | # | USER’S MANUAL, ENGLISH | $8.49 | |||
| 116566 | # | PLASTIC TIE | $0.99 | |||
| 371132 | # | 21″ CABLE TIE | $3.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 116926 | # | CABLE TIE | $0.99 | |||
| 335472 | # | WALKING BRD SHIM | $4.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| EXIF12 | # | IFIT WIFI ACCESSORY KIT | NLA | Unavailable to order | ||
| 352298 | # | TECH SHEET | $1.99 | |||
| 014157 | # | OPTIC MTG STAR WASHER | $0.99 | |||
 | 128457 | # | ALLEN WRENCH | $25.49 | ||
 | 219168 | # | 1 TUBE LUBE KIT | $18.99 | ||
 | 356520 | # | ACCESSORY KIT | $62.49 | ||
| 137824 | # | 10″ WHITE WIRE, F/F | $4.49 | |||
| 235634 | # | 10″ GREEN JUMPER WIRE,F/R | $3.99 | |||
| 268476 | # | WARNING DECAL | $0.99 | |||
 | 102634 | # | 8″ GREEN GROUND WIRE | $3.49 | ||
 | 153403 | # | 4″ BLUE WIRE M/F | $3.99 | ||
| 107771 | # | 8″ WHITE WIRE,MALE/FEMALE | $4.49 | |||
| 045023 | # | WRENCH | $1.99 | |||
| 367079 | # | HARDWARE KIT, NOTE: | $79.99 | |||
| 366617 | # | USER’S MANUAL, SPANISH | $8.49 |
