NORDICTRACK RW200 ROWER – NTRW59147.1
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
167 Parts Available for NORDICTRACK RW200 ROWER - NTRW59147.1 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 397348 | 2 | RAIL | $193.49 | |||
| 397188 | 3 | STABILIZER | $154.99 | |||
| 385946 | 4 | LEFT FAN | $121.99 | |||
| 363138 | 5 | SEAT CARRIAGE | $27.49 | |||
| 367822 | 6A | RIGHT DEFLECTOR | $45.49 | |||
| 367936 | 6B | LEFT DEFLECTOR | $45.49 | |||
| 396392 | 7 | RIGHT SHIELD | $101.49 | |||
| 396391 | 8 | LEFT SHIELD | $107.99 | |||
| 367821 | 9 | RESISTANCE HANDLE | $29.99 | |||
 | 363155 | 10 | STRAP GROMMET | $2.49 | ||
 | 362435 | 11 | BUNGEE CORD | $62.99 | ||
 | 397466 | 12 | ROW BAR/STRAP | $59.99 | ||
| 400752 | 13 | RESISTANCE PAD | $7.49 | |||
| 397293 | 14 | RIGHT NECK BUSHING | $6.99 | |||
| 397306 | 15 | LEFT NECK BUSHING | $6.99 | |||
 | 397122 | 16 | FOOTREST STRAP | $32.49 | ||
 | 363149 | 17 | RIGHT FOOTREST | $28.99 | ||
 | 367369 | 18 | RIGHT FOOT PAD | $24.99 | ||
 | 363153 | 19 | RIGHT FOOTREST BRACKET | $8.49 | ||
 | 363152 | 20 | LEFT FOOTREST BRACKET | $8.49 | ||
 | 363148 | 21 | LEFT FOOTREST | $28.99 | ||
 | 367368 | 22 | LEFT FOOT PAD | $14.99 | ||
 | 363663 | 23 | SEAT | $143.99 | ||
 | 176420 | 25 | SNAP RING | $6.49 | ||
| 213148 | 28 | 22MM X 16MM WAVE WASHER | $6.49 | |||
 | 375762 | 29 | PULLEY ASSEMBLY | $131.49 | ||
 | 375766 | 30 | AXLE | $55.99 | ||
| 363182 | 31 | PIVOT BUSHING | $2.49 | |||
 | 363166 | 32 | STOP | $1.99 | ||
| 365018 | 33 | BUMPER | $5.49 | |||
 | 363157 | 34 | RAIL HANDLE | $26.99 | ||
| 363171 | 35 | FOLDING CLAMP | $4.99 | |||
| 363163 | 36 | RAIL FOOT | $8.99 | |||
 | 363915 | 37 | SMALL CARRIAGE ROLLER | $7.99 | ||
 | 363164 | 38 | RAIL CAP | $3.99 | ||
 | 363914 | 39 | LARGE CARRIAGE ROLLER | $32.99 | ||
 | 362437 | 40 | CARRIAGE AXLE | $13.99 | ||
 | 363159 | 41 | STABILIZER FOOT | $3.49 | ||
| 365455 | 42 | WHEEL | $3.99 | |||
| 363158 | 43 | STORAGE FOOT | $12.99 | |||
 | 363913 | 44 | RAIL PULLEY | $14.99 | ||
| 363916 | 45 | STRAP ROLLER | $7.99 | |||
| 363142 | 46 | STRAP AXLE | $2.49 | |||
 | 373621 | 47 | REED SWITCH/WIRE | $26.49 | ||
| 363912 | 48 | FRAME PULLEY | $13.49 | |||
| 363165 | 49 | FRAME FOOT | $4.99 | |||
 | 282277 | 50 | CLAMP | $3.49 | ||
| 367365 | 51 | ROW BAR REST | $32.49 | |||
| 363156 | 52 | FRAME HANDLE | $7.49 | |||
| 362434 | 53 | PIVOT AXLE | $6.49 | |||
| 363917 | 54 | DEFLECTOR BRACKET | $3.49 | |||
| 363143 | 55 | PULLEY BRACKET | $0.99 | |||
 | 268411 | 56 | M6 PDL ADT WASHER | $0.99 | ||
 | 012142 | 57A | M6 NYLON LOCKNUT | $0.99 | ||
 | 261150 | 58 | M8 WASHER | $2.20 | ||
| 368570 | 59 | M8 X 12MM SCREW | $0.99 | |||
| 207678 | 60 | M10 X 40MM SCREW | $6.49 | |||
| 367242 | 61 | M10 X 20MM SCREW | $0.99 | |||
 | 363815 | 62 | 5MM WASHER | $2.99 | ||
 | 360925 | 63 | M5 X 10MM SCREW | $0.99 | ||
| 242356 | 64 | M4 X 19MM SCREW | $0.99 | |||
| 246785 | 65 | M6 X 15MM BOLT | $3.49 | |||
 | 339153 | 66 | M10 FLANGE NUT | $0.99 | ||
 | 133333 | 67 | COVER CLIP | $0.99 | ||
 | 195562 | 68 | M4 X 16MM SCREW | $1.99 | ||
 | 250961 | 69A | M4 X 19MM SCREW | $0.99 | ||
 | 208320 | 70 | M4 X 10MM SCREW | $0.99 | ||
 | 197037 | 71 | M6 X 12MM SCREW | $0.99 | ||
| 385632 | 72 | RIGHT FAN | $157.99 | |||
| 193109 | 73 | M8 X 1MM WASHER | $3.99 | |||
| 396494 | 75 | CONSOLE | $194.99 | |||
| 397308 | 76 | NECK | $72.99 | |||
| 397191 | 77 | UPRIGHT | $58.99 | |||
 | 396430 | 78 | Console Adjustment Knob Assembly | $22.99 | ||
| 381768 | 79 | GROMMET | $0.99 | |||
| 397291 | 80 | CVR,UPRT PVT,RT,LWR,BLK | $24.49 | |||
| 397292 | 81 | LEFT UPRIGHT COVER | $24.49 | |||
 | 248333 | 82 | M8 X 35MM SCREW | $2.49 | ||
| 013074 | 83 | BASE BOLT | $8.99 | |||
 | 396508 | 84 | MAIN WIRE | $46.49 | ||

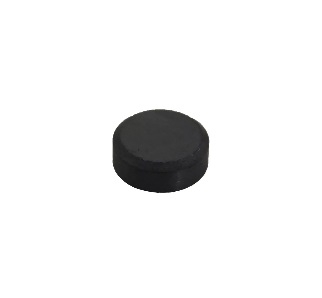

 | 113842 | 85 | MAGNET | $1.49 | ||
 | 012042 | 86 | COVER CLIP | $1.99 | ||
| 371472 | 87 | M4 X 10MM FLAT HEAD SCREW | $0.99 | |||
| 375759 | 88 | BEARING BRACKET,W/BEARING | $33.99 | |||
 | 303952 | 89 | HANDLE BRACKET | $4.99 | ||
 | 391402 | 90 | LINK ARM | $16.99 | ||
 | 396393 | 91 | MAGNET BRACKET | $27.49 | ||
 | 385641 | 92 | RESISTANCE MAGNET | $24.49 | ||
| 275979 | 96 | M6 X 12MM HEX SCREW | $1.99 | |||
| 276048 | 97 | M8 X 12MM HEX SCREW | $0.99 | |||
 | 213457 | 99 | M4 X 12MM SCREW | $1.99 | ||
 | 241949 | 100 | RESISTANCE MOTOR | $99.99 | ||
| 225867 | 101 | M4 NUT | $3.49 | |||
 | 241954 | 102 | RESISTANCE DISC | $1.99 | ||
| 256183 | 103 | M3 X 8MM SCREW | $1.49 | |||
| 397127 | 104 | SPACER | $6.49 | |||
| 397129 | 105 | SPRING | $18.99 | |||
| 404144 | 106 | RESISTANCE PAD BRACKET | $41.49 | |||
 | 337717 | 108 | Power Adapter | $18.99 | ||
 | 397204 | 109 | NECK WIRE | $43.99 | ||
| 370627 | 110 | M10 LOCKNUT | $3.49 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
| 367816 | # | HARDWARE KIT, NOTE: | $28.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
| 367985 | # | DECAL, UPRT SITE WARNING | $0.99 | |||
| 266080 | # | DECAL, GENERAL WARNING | $10.99 | |||
 | 214003 | # | POWER JACK NUT | $5.49 | ||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 364005 | # | STRAP PIN | $0.99 | |||
| 404158 | # | USER’S MANUAL | $23.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 166909 | # | DECAL,SITE WARNING | $2.49 | |||
| 404157 | # | LITPAC, NOTE: | $70.49 | |||
 | 355585 | TS5 | POWER WIRE/RECEPTACLE | $29.99 |
