NORDICTRACK FUSION CST SYSTEM – NTSY19916.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
137 Parts Available for NORDICTRACK FUSION CST SYSTEM - NTSY19916.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 373668 | 2 | TOWER TOP COVER | $34.99 | |||
| 373677 | 3 | SPRING | $53.49 | |||
| 378817 | 4 | SPRING COVER | $19.49 | |||
| 367428 | 5 | DISC COVER | $13.99 | |||
| 373672 | 6 | RESISTANCE DISC | $346.99 | |||
| 367961 | 7 | RESISTANCE AXLE | $103.49 | |||
| 368147 | 8 | RETENTION RING | $0.99 | |||
| 259192 | 9 | MAIN BEARING | $23.49 | |||
| 366150 | 10 | FRONT HUB SPACER | $2.49 | |||
| 258074 | 11 | BEARING SPACER | $56.49 | |||
| 373674 | 12 | PULLEY HUB | $64.49 | |||
| 373673 | 13 | MECHANISM PULLEY | $64.49 | |||
| 366149 | 14 | PULLEY SPACER | $3.99 | |||
| 387939 | 15A | TABLET STAND | $178.49 | |||
| 387938 | 15B | TABLET SLIDE | $34.49 | |||
| 372908 | 16 | TOWER BRACKET | $45.49 | |||
| 367433 | 17 | SLIDE FRAME BRACKET | $3.49 | |||
| 374009 | 18 | RESISTANCE ARM ASSEMBLY | $23.49 | |||
| 387259 | 19 | TOWER ARM | $120.99 | |||
| 372926 | 20 | UPPER TOWER COVER | $6.49 | |||
| 367941 | 21 | RESISTANCE DISC | $0.99 | |||
 | 367939 | 22 | RESISTANCE MOTOR | $118.99 | ||
| 367896 | 23 | REED SWITCH BRACKET | $2.49 | |||
 | 363953 | 24 | REED SWITCH CLAMP/SCREW | $2.49 | ||
 | 372449 | 25 | REED SWITCH/WIRE | $23.49 | ||
| 372928 | 26 | TOWER ARM COVER | $7.99 | |||
| 265485 | 27 | SWIVEL BEARING | $57.49 | |||
| 368148 | 28 | SNAP RING | $0.99 | |||
| 367429 | 29 | COUNTERWEIGHT | $9.49 | |||
| 373112 | 30 | RIGHT PULLEY COVER A | $26.49 | |||
| 373113 | 31 | RIGHT PULLEY COVER B | $26.49 | |||
| 362932 | 32 | SWIVEL PULLEY AXLE | $0.99 | |||
| 366344 | 33 | SWIVEL PULLEY | $22.49 | |||
| 367440 | 34 | ROPE COLLAR | $13.49 | |||
| 373417 | 35 | ROPE END | $11.99 | |||
 | 103087 | 36 | CLIP | $20.99 | ||
| 385883 | 37 | HANDLE | $16.99 | |||
| 372934 | 38 | RIGHT TOWER COVER | $6.49 | |||
| 373401 | 39 | EYEBOLT | $1.99 | |||
| 331708 | 40 | BUMPON,HOOD COWLING | $0.99 | |||
 | 244821 | 41A | POWER RECEPTACLE/WIRE | $99.99 | ||
 | 214003 | 41B | POWER JACK NUT | $5.49 | ||
| 371321 | 42 | REAR HUB SPACER | $2.49 | |||
| 372933 | 43 | LEFT TOWER COVER | $6.49 | |||
| 374014 | 44 | RIGHT LEG | $494.49 | |||
| 350910 | 45 | FOOT | $4.99 | |||
| 372880 | 46 | PULLEY CARRIAGE | $6.99 | |||
| 372924 | 47 | CABLE TRAP | $1.99 | |||
| 373434 | 48 | D SENSOR | $60.99 | |||
| CC1248 | 49 | 1/4″ HEX PLSTC STAND-OFF | $5.49 | |||
| 372922 | 50 | TALL SENSOR BRACKET | $1.49 | |||
| 372920 | 51 | SHORT SENSOR BRACKET | $1.49 | |||
 | 387106 | 52 | ROPE KIT, NOTE: | $194.99 | ||
| 387373 | 53 | ANKLE STRAP | $27.49 | |||
| 366113 | 54 | ARM PULLEY SPACER | $2.49 | |||
| 366347 | 55 | SMALL PULLEY | $19.49 | |||
| 371318 | 56 | LARGE PULLEY | $19.49 | |||
| 373068 | 57 | SHROUD COVER | $152.99 | |||
| 372952 | 58 | FRONT SHROUD | $157.99 | |||
| 373670 | 59A | REAR SHROUD WITH SLOTS | $146.99 | |||
| 387941 | 59B | REAR SHROUD | $146.99 | |||
| 405835 | 60 | RIGHT LEG SHIELD | $129.99 | |||
| 277705 | 61 | M6 X 12MM SCREW | $3.49 | |||
 | 014033 | 62 | M6 WASHER | $1.49 | ||
| 368871 | 63A | OUTER GUIDE | $13.49 | |||
| 180547 | 64 | SQUAT/ROWER PULLEY | $56.49 | |||
| 367404 | 65 | DISC SHIELD | $50.99 | |||
| 374016 | 66 | LEFT LEG | $494.49 | |||
| 373671 | 67 | FRONT BOTTOM COVER | $236.99 | |||
| 373689 | 68 | TABLET HOLDER | $97.49 | |||
| 367434 | 70 | SLIDE FRAME | $9.49 | |||
| 368177 | 71 | MAGNET BRACKET | $39.99 | |||
| 367220 | 72 | LIGHT BAR | $102.49 | |||

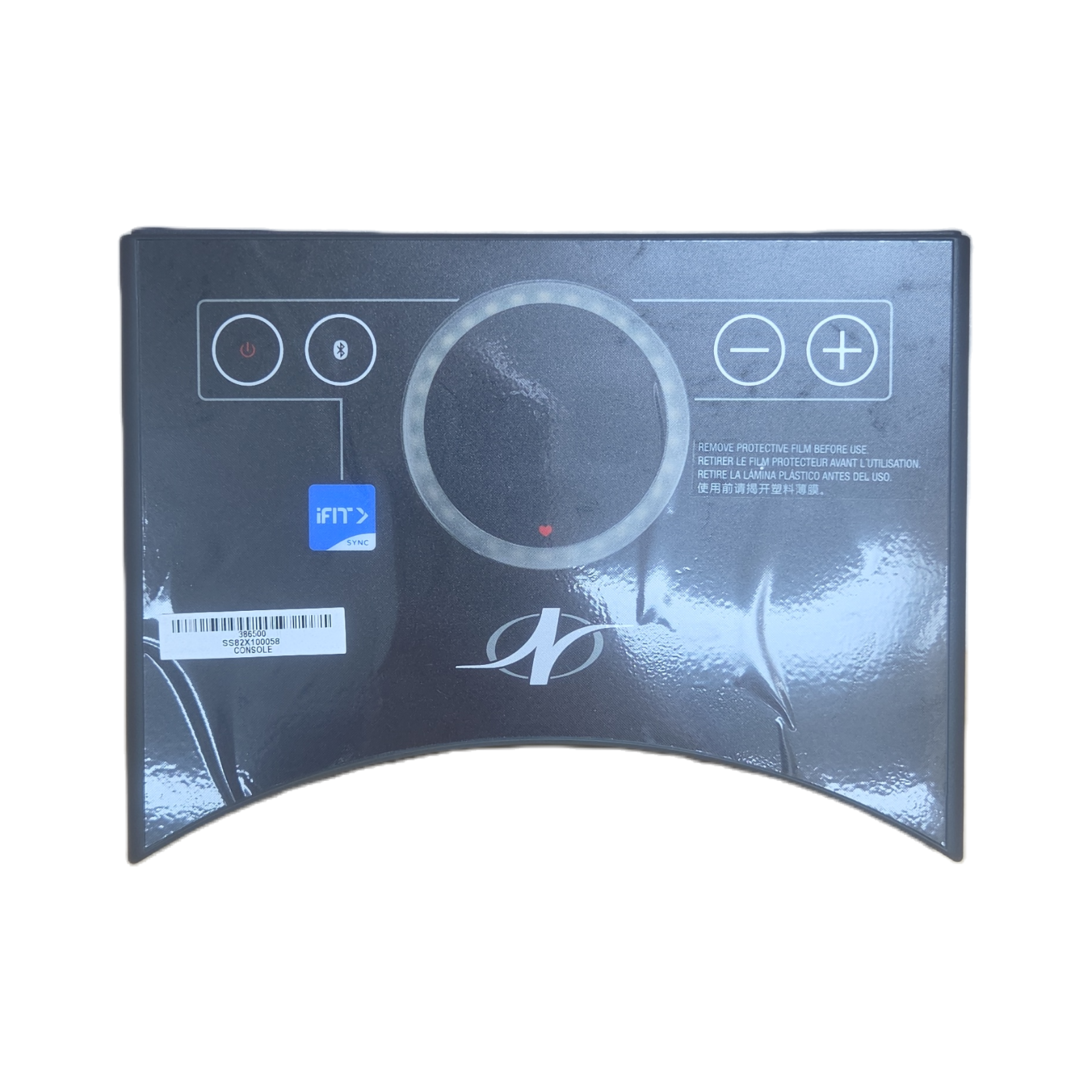

 | 386678 | 73A | CONSOLE | $269.49 | ||
 | 286527 | 74 | COVER INSERT | $2.49 | ||
| 127597 | 75 | PLASTIC FASTENER | $1.99 | |||
| CC1053 | 76 | #5 X .188″ SCREW | $0.99 | |||
| 369109 | 77 | M4 X 5MM SET SCREW | $0.99 | |||
| 226395 | 78 | M4 X 12MM BOLT | $0.99 | |||
| 330440 | 79 | M4 X 30MM MACHINE SCREW | $2.49 | |||
| 013509 | 80 | #6 X 3/8″ SCREW | $0.99 | |||
| 144528 | 81 | #8 X 3/8″ SCREW | $0.99 | |||
 | 013423 | 82 | #8 X 1/2″ SCREW | $0.99 | ||
 | 013576 | 83 | ST4.2 X 10MM SCREW | $0.99 | ||
| 250957 | 84 | #8 X 5/8″ SCREW | $0.99 | |||
| 242355 | 85 | #8 X 3/4″ TEK SCREW | $0.99 | |||
 | 013322 | 86 | M4 X 19MM SCREW | $0.99 | ||
 | 013529 | 87 | #8 X 1 1/2″ SCREW | $0.99 | ||
 | 174108 | 88 | M6 X 13MM SCREW | $5.99 | ||
| 369110 | 89 | M6 X 20MM HEX SCREW | $9.49 | |||
| 234274 | 90 | M8 X 35MM SCREW | $0.99 | |||
| 369114 | 91 | M8 X 115MM BOLT | $3.99 | |||
| 369111 | 92 | M10 X 25MM FLAT HEAD SCRW | $1.49 | |||
| 173852 | 93 | M10 X 67MM BOLT | $6.49 | |||
 | 197037 | 94 | M6X12MM LIFT MOTOR SCREW | $0.99 | ||
| 276016 | 95 | M4 LOCKNUT, NOTE: | $0.99 | |||
 | 012006 | 96 | M6 NUT | $0.99 | ||
 | 333350 | 97 | M8 LOCKNUT | $1.99 | ||
| 203402 | 98 | M10 JAMNUT | $0.99 | |||
| 207522 | 99 | ZIP TIE | $3.49 | |||
| 348905 | 100 | M10X30MM SCREW, ARM/FRAME | $1.49 | |||
| 164237 | 101 | M10 X 25MM BOLT | $8.99 | |||
| 405834 | 102 | LEFT LEG SHIELD | $129.99 | |||
 | 256446 | 106 | M8 NYLON LOCKNUT | $0.99 | ||
 | 209659 | 107 | M8 X 30MM SCREW | $0.99 | ||
| 355570 | 108 | M8 X 30MM PATCH SCREW | $4.99 | |||
| 372930 | 109 | REAR BOTTOM COVER | $20.99 | |||
| 378659 | 112 | M8 X 33MM BOLT | $9.49 | |||
| 223125 | 113 | M8 X 68MM BOLT | $7.49 | |||
 | 248340 | 114 | M10 WASHER | $0.99 | ||
| 373111 | 115 | LEFT PULLEY COVER A | $26.49 | |||
| 373114 | 116 | LEFT PULLEY COVER B | $26.49 | |||

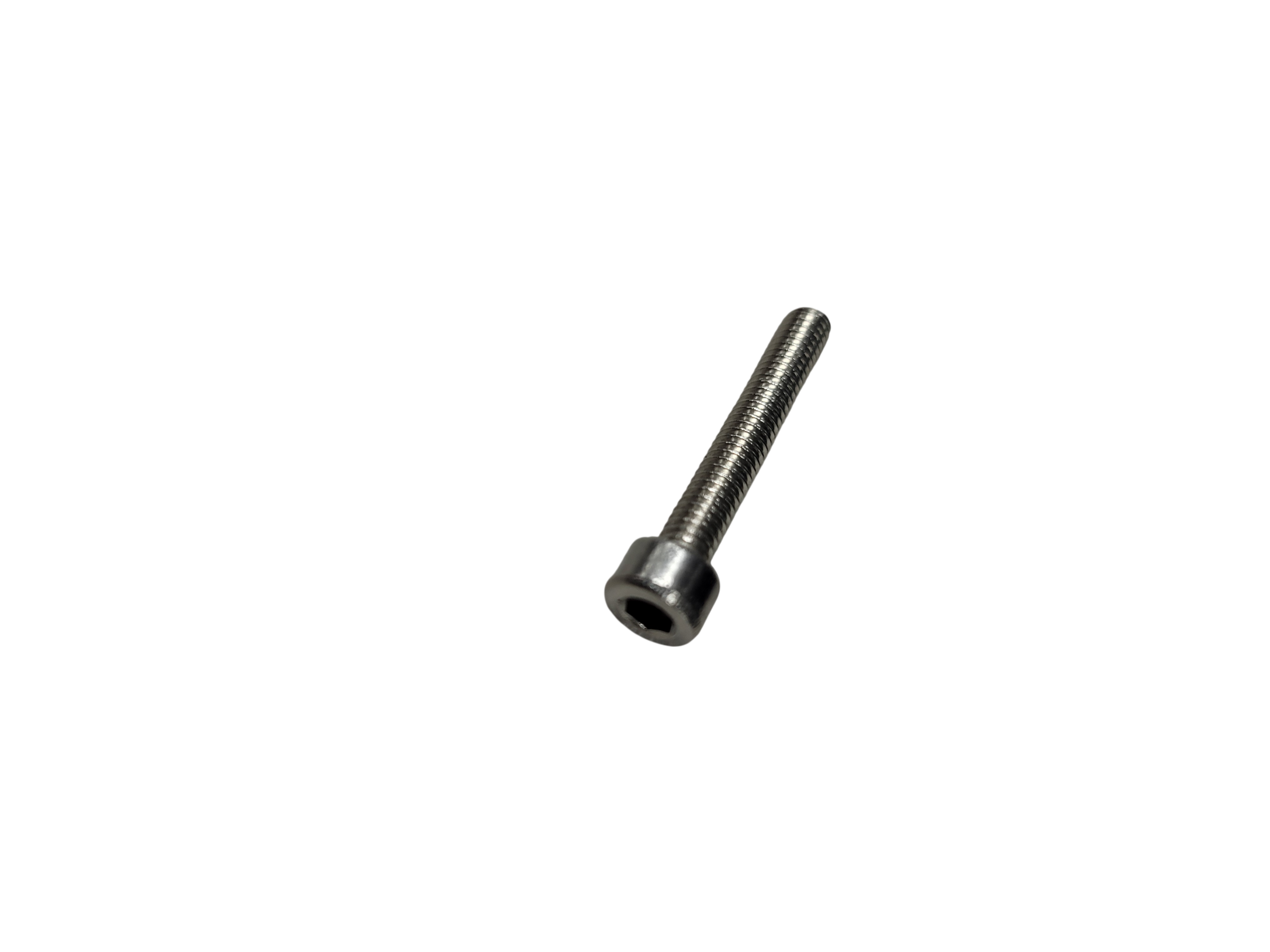

 | 373623 | 118 | M4 X 25MM SCREW | $0.99 | ||
 | 113842 | 119 | MAGNET | $1.49 | ||
| 193109 | 120 | M8 WASHER | $3.99 | |||
| 132315 | 121 | WIRE TIE | $3.49 | |||
| 373556 | 122 | SENSOR WIRE | $27.99 | |||
| 367819 | 123 | MAIN WIRE | $33.99 | |||
| 263974 | 124 | #8 X 5/8″ TEK SCREW | $1.99 | |||
| 367824 | 125 | EXTENSION WIRE | $18.99 | |||
 | 337717 | 126 | Power Adapter | |||
| 364361 | 129 | CHEST HEART RATE MONITOR | $135.99 | |||
| 045021 | # | 6MM ALLEN WRENCH | $7.49 | |||
| 387621 | # | USER’S MANUAL | $22.49 | |||
| 116566 | # | 15 1/2″ CABLE TIE | $0.99 | |||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 375547 | # | 16MM WRENCH | $6.49 | |||
| 013294 | # | #8 X 1″ PAN HD LEG SCREW | $0.99 | |||
 | 140069 | # | SNAP RING PLIERS | $12.99 | ||
 | 173847 | # | M10 X 14MM LEG SCRW | $3.99 | ||
| 125803 | # | #8 X 1″ TRACK SCREW | $1.99 | |||
| 387844 | # | EXERCISE CHART | $33.49 | |||
| 418040 | # | USER’S MANUAL,SP4 | $22.49 | |||
| GZ10196 | # | LEG ENDCAP | $10.99 | |||
| GZ1517 | # | FLOOR BUMPER | $18.49 | |||
| 422224 | # | USER’S MANUAL,SPG | $22.49 |
