NORDICTRACK ELITE 3750 TREADMILL – 25061.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
115 Parts Available for NORDICTRACK ELITE 3750 TREADMILL - 25061.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
 | 295136 | 1 | 5/16″ X 3/4″ SCREW | $1.49 | ||
 | 203283 | 2 | 5/16″ X 2″ SCREW | $2.99 | ||
 | 298484 | 3 | 5/16″ BOLT,FLASH TM11-200 | $2.49 | ||
 | 349213 | 4 | 5/16″ X 2 1/4″ BOLT | $4.49 | ||
 | 013322 | 5 | SCREW | $0.99 | ||
 | 155153 | 6A | UPPER BODY ARM SCREW | $0.99 | ||
 | 167049 | 6B | #10 X 3/4″ SCREW | $0.99 | ||
 | 014149 | 8 | 5/16″ STAR WASHER | $0.99 | ||
 | 100427 | 9 | IDLER ARM NUT | $0.99 | ||
 | 013300 | 10 | 3/4″ SCREW | $0.99 | ||
 | 013576 | 11 | M4 X 16MM FLAT HEAD SCREW | $0.99 | ||
 | 364027 | 12 | 1/4″ X 2 1/2″ SCREW | $2.99 | ||
 | 186819 | 13 | 1/2″ SCREW | $0.99 | ||
 | 346519 | 14 | 3/8″ X 1 1/2″ BOLT | $3.99 | ||
| 159986 | 15 | LIFT MOTOR BOLT | $6.49 | |||
| 269380 | 16 | 5/16″ X 1 1/4″ SCREW | $2.49 | |||
| 128263 | 17 | LONG CONSOLE SCREW | $0.99 | |||
| 136728 | 18 | BELT GUIDE SCREW | $0.99 | |||
| 295758 | 19 | 1/4″ MOTOR BOLT | $3.49 | |||
 | 181979 | 20 | 3/8″ X 1 1/4″ SCREW | $3.49 | ||
 | 102973 | 21 | 3/8″ WASHER | $0.99 | ||
 | 381122 | 22 | 3/8″ WHEEL BOLT,NOTE:OM | $2.99 | ||

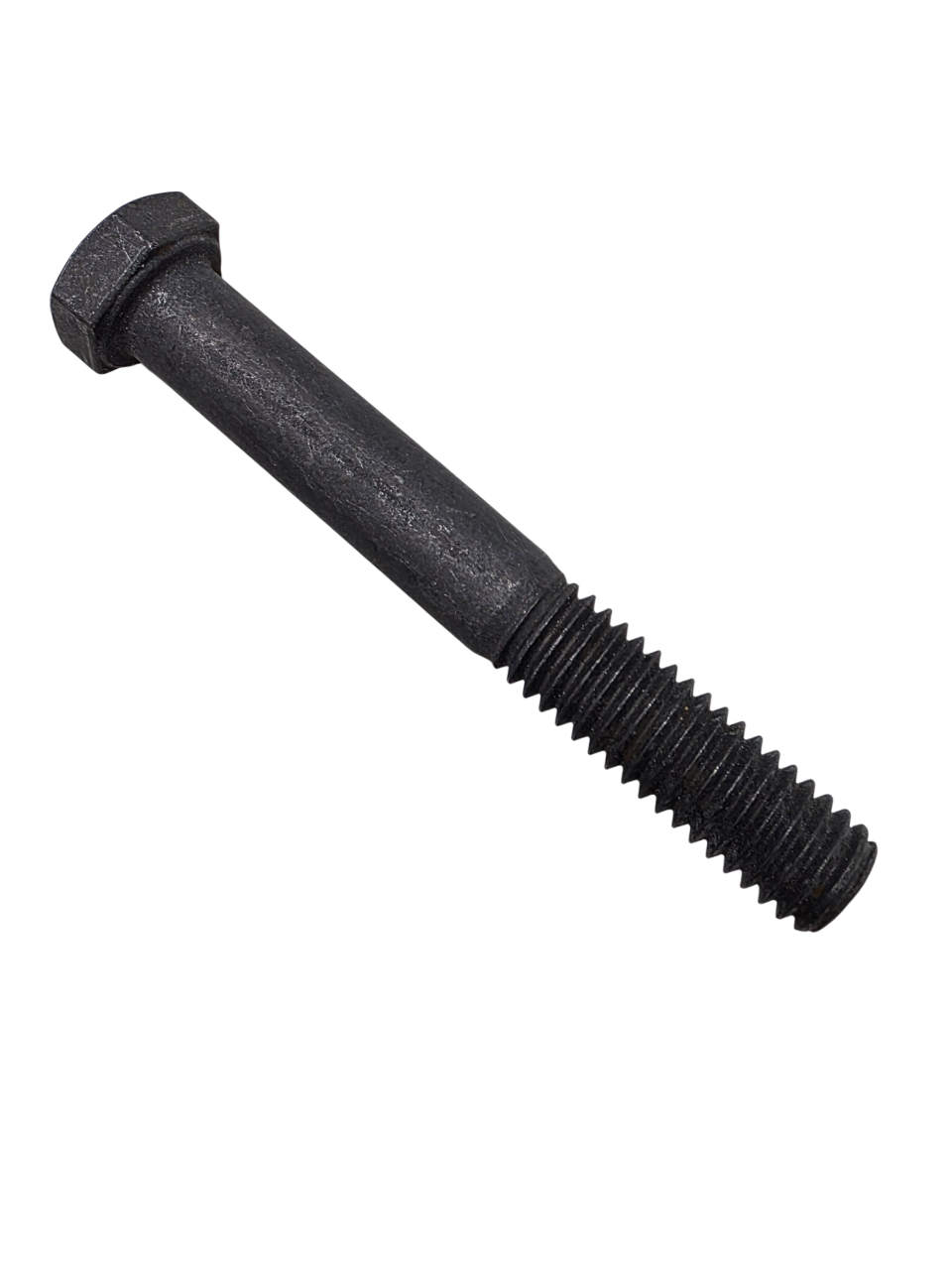

 | 341769 | 23 | 3/8″ 2 3/4″ SCREW | $6.49 | ||
 | 013607 | 24 | #8 X 3/4″ SCREW | $0.99 | ||
 | 163045 | 25 | 3/8″ STAR WASHER | $0.99 | ||
| 372109 | 26 | 1/2″ X 2 1/4″ BOLT | $3.99 | |||
| 116566 | 27 | 15 1/2″ CABLE TIE | $0.99 | |||
| 372033 | 28 | 3/8″ X 1 1/8″ BOLT | $5.49 | |||
| 013509 | 29 | #6 X 3/8″ SCREW, NOTE: | $0.99 | |||
 | 121576 | 30 | ROLLER TENSION NUT | $2.49 | ||
 | 152478 | 31 | 5/16″ FLAT WASHER | $0.99 | ||
 | 298474 | 32 | RUBBER CUSHION | $1.99 | ||
| 301345 | 33 | BASE PAD | $2.99 | |||
 | 100553 | 34 | UPRIGHT PIVOT NUT | $1.49 | ||
 | 119425 | 35 | LOCK NUT | $0.99 | ||
 | 133333 | 36 | CLIP | $0.99 | ||
| 413303 | 38 | WARNING DECAL | $3.99 | |||
| 387692 | 39 | WALKING PLATFORM | $193.49 | |||
 | 352039 | 40 | OEM WALKING BELT | $134.99 | ||
| 353164 | 41 | LEFT FOOT RAIL | $62.99 | |||
 | 198639 | 43 | BELT GUIDE | $5.99 | ||
 | 372092 | 45 | 3/8″ PLASTIC BUSHING | $4.99 | ||
| 372108 | 46 | FRAME SPACER | $4.99 | |||
 | 129144 | 47 | FRAME/LIFT PIVOT WASHER | $3.49 | ||
| 398074 | 48 | CONTROLLER (376695) | $196.99 | |||
| 014157 | 49 | STAR WASHER | $0.99 | |||
| 361845 | 50 | CONTROLLER BRACKET | $26.99 | |||
| 352011 | 51 | DRIVE ROLLER/PULLEY | $148.49 | |||
| 240351 | 53 | 50# WIRE CLAMP | $0.99 | |||
| 405597 | 54 | Drive Motor | $366.49 | |||
 | 319256 | 55 | MOTOR BELT | $44.99 | ||
 | 388199 | 56 | STORAGE LATCH | $119.49 | ||
 | 372664 | 58 | TABLET HOLDER | $96.99 | ||
 | 223662 | 59 | IDLER ROLLER | $165.99 | ||
 | 358780 | 61 | RIGHT REAR FOOT | $24.99 | ||
 | 353269 | 62 | MOTOR HOOD | $101.49 | ||
 | 372106 | 63 | LIFT/BASE PIVOT WASHER | $2.99 | ||
| 372107 | 64 | FRAME SPACER | $2.99 | |||
 | 352008 | 66A | INCLINE MOTOR | $156.49 | ||
 | 286707 | 66B | INCLN SENSOR WIRE KIT | $70.49 | ||
 | 114078 | 67 | INCLINE MOTOR SPACER | $2.49 | ||
| 230979 | 68 | HOOD MOUNT | $5.49 | |||
 | 031229 | 69 | POWER CORD | $39.99 | ||
 | 173169 | 70 | POWER CORD GROMMET | $0.99 | ||
 | 186726 | 71 | RESET/OFF CIRCUIT BREAKER | $22.49 | ||
| 351693 | 72 | BELLY PAN | $99.99 | |||
 | 385214 | 73 | LEFT HANDRAIL TOP COVER | $32.99 | ||
| 357773 | 74 | HANDRAIL | $54.49 | |||
 | 385215 | 75 | LEFT HANDRAIL BOTTOM CVR | $23.49 | ||
| 351467 | 76 | UPRIGHT CROSSBAR | $98.49 | |||
| 104794 | 77 | FRAME CAP | $1.99 | |||
| 364361 | 78 | CHEST PULSE STRAP | $135.99 | |||
| 351687 | 79 | TRAY | $59.99 | |||
| 385210 | 80 | PULSE CROSSBAR | $124.49 | |||
 | 385212 | 81 | RIGHT HANDRAIL TOP COVER | $27.49 | ||
 | 385211 | 82 | RIGHT HANDRAIL BOTTOM CVR | $23.49 | ||
| 383788 | 83 | UPRIGHT WIRE | $72.99 | |||
| 385577 | 84 | RIGHT UPRIGHT | $208.49 | |||
| 252433 | 85 | CAUTION DECAL | $0.99 | |||
 | 227199 | 86 | UPRIGHT WIRE GROMMET | $2.49 | ||
| 360378 | 87 | CONTROLLER CLAMP | $10.99 | |||
 | 351698 | 88 | LEFT REAR CAP | $7.99 | ||
| 382319 | 89 | LEFT BASE COVER | $90.99 | |||
| 382318 | 90 | RIGHT BASE COVER | $90.99 | |||
| 383741 | 91 | LEFT UPRIGHT | $117.99 | |||
 | 382172 | 92 | REAR WHEEL | $6.99 | ||
| 382237 | 93 | BASE | $161.99 | |||
| 385326 | 94 | LEFT TRAY | $31.99 | |||
 | 385818 | 96 | CONSOLE | $271.99 | ||
| 384946 | 97 | LATCH CROSSBAR | $109.49 | |||
| 355175 | 98 | FOOT RAIL CLIP | $2.49 | |||
| 353430 | 99 | SPEAKER | $61.49 | |||
| 385328 | 100 | CONSOLE BASE | $139.49 | |||
| 385327 | 101 | RIGHT TRAY | $31.99 | |||
| 385816 | 103 | RIGHT REAR CAP | $25.99 | |||

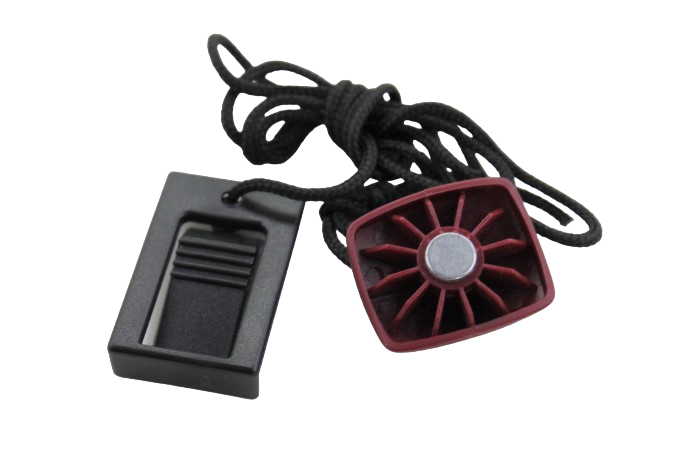

 | 298898 | 104 | KEY/CLIP | $19.99 | ||
| 186253 | 105 | CONSOLE FRAME CAP | $1.99 | |||
| 384809 | 106 | CONSOLE FRAME | $106.99 | |||
| 132315 | 107 | WIRE TIE | $3.49 | |||
| 184369 | 108 | TABLET HOLDER SCREW | $0.99 | |||
 | 291486 | # | #8 X 5/8″ SCREW | $0.99 | ||
 | 209460 | # | ALLEN WRENCH | $7.99 | ||
| 385576 | # | USER’S MANUAL | $23.99 | |||
| 385575 | # | LITPAC:NOTE | $187.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 215823 | . | AUDIO WIRE | $11.99 | |||
| 146119 | . | FLOOR MAT | $79.99 | |||
 | 356520 | . | ACCESSORY KIT | $62.49 | ||
 | 219168 | . | LUBE KIT, 1 TUBE | $18.99 | ||
| 219170 | . | 3 TUBE LUBE KIT | $39.49 | |||
 | ARC14 | . | WALL ARC FILTER | $42.99 | ||
| 101896 | TS12 | 4″ WHITE WIRE,M/F | $3.49 | |||
 | 215822 | TS3 | 4″ GREEN WIRE, M/RING | $5.99 | ||
 | 214773 | TS4 | CONTROLLER GROUND WIRE | $2.99 | ||
| 211260 | TS6 | INCLIME MTR WIRE HARNESS | $12.99 |
