NORDICTRACK ELITE 10.9 I ELLIPTICAL – 23939.0
Click on the part / diagram number to view and add to cart.
If the number does not highlight please check the table below the diagram to see if your part is listed. All parts in the table should have a corresponding diagram number. If your part is not listed at all please Click Here
78 Parts Available for NORDICTRACK ELITE 10.9 I ELLIPTICAL - 23939.0 ↓
| Image | Part # | Diagram # | Title | Price | Details | |
|---|---|---|---|---|---|---|
| 331296 | 2 | REAR STABILIZER | $138.99 | |||
| 376234 | 3 | RAMP | $192.99 | |||
| 404461 | 4 | UPRIGHT | $218.49 | Unavailable to order | ||
 | 194878 | 5 | M4 X 20MM SCREW | $2.99 | ||
| 328773 | 6 | FRONT STABILIZER | $137.49 | |||
| 404460 | 7A | CONSOLE | $541.99 | |||
| 409697 | 7B | REPROG THUMBDRIVE | $111.49 | |||
| 385663 | 7C | FAN | $111.99 | |||
| 371320 | 8 | ROLLER GUIDE | $43.49 | |||
 | 398534 | 9 | TABLET HOLDER | $107.49 | ||
| 404554 | 10 | RAMP COVER | $140.49 | |||
| 320496 | 11 | INCLINE MOTOR | $156.49 | |||
| 331259 | 12 | INCLINE MOTOR ARM | $72.49 | |||
 | 320336 | 14 | RAMP ROLLER | $8.49 | ||
| 404553 | 15 | REAR STABILIZER COVER | $91.49 | |||
 | 371314 | 16A | TRACK | $39.99 | ||
| 317273 | 16B | TRACK FOAM TAPE | $13.49 | |||
 | 320335 | 17 | LARGE FRAME BUSHING | $16.99 | ||
 | 386166 | 18 | CRANK | $162.99 | ||
| 277369 | 19 | PULLEY | $174.49 | |||
| 386662 | 20 | CRANK ARM | $182.99 | |||
 | 208320 | 21 | M4 X 10MM SCREW | $0.99 | ||
 | 363093 | 22 | IDLER | $116.49 | ||
| 332581 | 23 | M10 X 15MM SCREW | $6.49 | |||
| 332579 | 24 | M10 X 95MM BOLT | $14.99 | |||
 | 193223 | 25 | RESISTANCE MOTOR | $99.99 | ||
| 195975 | 26 | M10 X 42MM BUTTON BOLT | $12.49 | |||
 | 125819 | 27 | STANDOFF | $3.99 | ||
| 362898 | 28A | EDDY MECHANISM | $319.99 | |||
 | 321678 | 28B | RESISTANCE CABLE | $46.49 | ||
| 328775 | 30 | STABILIZER CAP | $19.99 | |||
 | 416695 | 31 | CONTROLLER | $161.49 | ||
 | 264511 | 32 | POWER SWITCH | $32.99 | ||
 | 246285 | 33 | LEVELING FOOT | $10.99 | ||
 | 148803 | 34 | WHEEL | $24.99 | ||
| 316837 | 35 | PIVOT AXLE | $74.49 | |||
 | 143426 | 36 | UPRIGHT BUSHING | $8.99 | ||
| 335818 | 37 | ACCESSORY TRAY | $46.49 | |||
 | 372087 | 38 | REED SWITCH/WIRE | $23.49 | ||
 | 131090 | 39 | CLAMP | $0.99 | ||
 | 295804 | 40 | FRAME BEARING | $66.99 | ||
 | 362905 | 41 | MECHANISM SNAP RING | $1.49 | ||
| 338320 | 42 | SLEEVE | $4.99 | |||
 | 113842 | 43 | MAGNET | $1.49 | ||
| 378487 | 44 | LEFT PEDAL ARM | $175.99 | |||
| 379975 | 45 | LEFT ROLLER ARM | $150.49 | |||
| 420314 | 46 | LEFT UPPER BODY LEG | $194.99 | |||
| 331059 | 47 | LEFT UPPER BODY ARM | $102.99 | |||
| 250210 | 48 | HAIRPIN COTTER PIN | $1.99 | |||
| 404462 | 49 | LEFT PEDAL | $146.49 | |||
 | 275907 | 50A | M10 LOCKNUT | $4.49 | ||
 | 148710 | 50B | M10 LOCKNUT | $2.49 | ||
 | 340773 | 51 | ROLLER | $99.99 | ||
| 348190 | 52 | PEDAL ARM CAP | $6.49 | |||
 | 337966 | 53A | LARGE AXLE COVER | $5.49 | ||
 | 384941 | 53B | CRANK COVER | $1.49 | ||
 | 371082 | 54 | PIVOT SPACER | $34.99 | ||
 | 384940 | 55 | RETAINER | $5.99 | ||
 | 390683 | 56 | ROLLER ARM BUSHING | $28.49 | ||
 | 290729 | 57 | LARGE ARM BEARING | $43.49 | ||
| 378490 | 58 | RIGHT PEDAL ARM | $175.99 | |||
| 379970 | 59 | RIGHT ROLLER ARM | $150.49 | |||
| 420315 | 60 | RIGHT UPPER BODY LEG | $194.99 | |||
| 331061 | 61 | RIGHT UPPER BODY ARM | $102.99 | |||
| 316467 | 62 | LEFT GRIP | $107.99 | |||
| 324444 | 63A | PULSE SENSOR (LEFT OR RIGHT) | $59.99 | |||
| 399157 | 63B | PULSE WIRE | $68.99 | |||
 | 384800 | 64 | PEDAL ARM AXLE | $43.99 | ||
| 384834 | 65 | RIGHT ARM FRONT COVER | $53.49 | |||
| 384828 | 66 | RIGHT ARM REAR COVER | $48.99 | |||
| 384816 | 67 | LEFT ARM FRONT COVER | $51.99 | |||
| 384822 | 68 | LEFT ARM REAR COVER | $46.49 | |||
 | 335837 | 69 | RIGHT LEG OUTER COVER | $43.99 | ||
 | 335834 | 70 | LEFT LEG OUTER COVER | $43.99 | ||
| 335815 | 71 | DISC | $87.49 | |||
| 335835 | 72 | LEFT LEG INNER COVER | $43.99 | |||
| 362774 | 73 | LEFT SHIELD | $189.99 | |||
| 362775 | 74 | RIGHT SHIELD | $175.49 | |||
| 383076 | 75 | SHIELD COVER | $89.99 | |||
 | 337964 | 76 | LEFT PEDAL ARM SIDE CAP | $26.99 | ||
 | 281801 | 77 | M8 X 21MM WASHER | $7.49 | ||

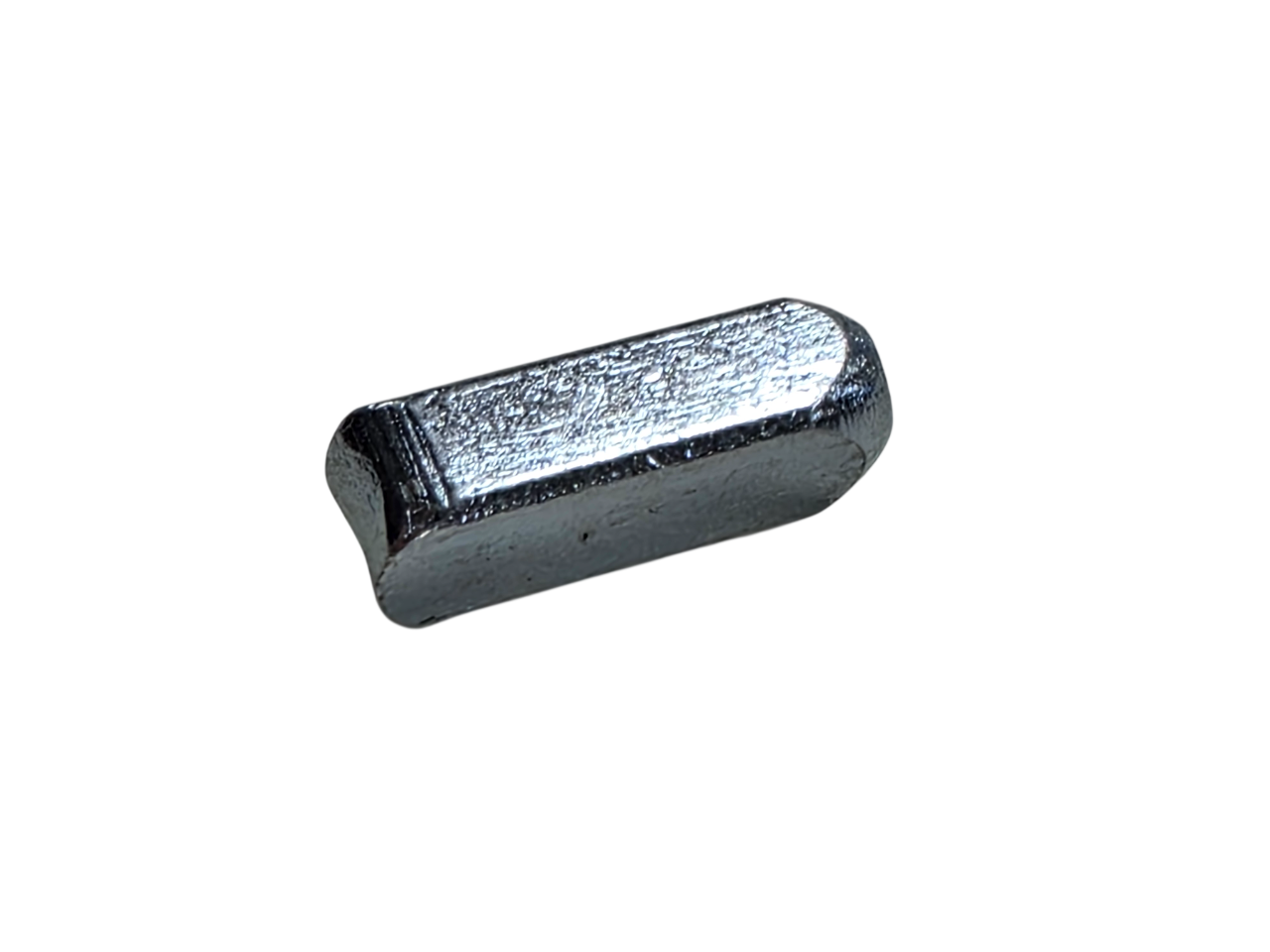

 | 386629 | 78 | KEY | $9.49 | ||
| 252795 | 79 | M10 SPLIT WASHER | $0.99 | |||
| 404463 | 80 | RIGHT PEDAL | $146.49 | |||
| 335817 | 81 | REAR UPRIGHT COVER | $78.99 | |||
 | 383382 | 82 | M8 X 13MM SCREW | $0.99 | ||
| 335836 | 83 | RIGHT LEG INNER COVER | $43.99 | |||
| 238278 | 84A | LIFT ARM WASHER | $1.49 | |||
| 248342 | 84B | M10 WASHER | $1.99 | |||
 | 386630 | 85 | SMALL LEVELING FOOT | $19.99 | ||
| 310999 | 86 | M10 X 58MM BOLT | $8.49 | |||
 | 337965 | 87 | RIGHT PEDAL ARM SIDE CAP | $10.99 | ||
 | 208163 | 88 | IDLER SHOULDER SCREW | $1.99 | ||
 | 281150 | 89 | M6 X 20MM SHLDR SCRW,NOTE | $4.49 | ||
 | 014033 | 90A | M6 WASHER | $1.49 | ||
 | 340140 | 90B | M6 X 26MM WASHER | $1.49 | ||
 | 281149 | 91 | M10 X 50MM HEX SCREW | $6.49 | ||
| 248334 | 92 | M10 X 20MM SCREW | $5.49 | |||
 | 168267 | 93 | M4 X 12.7MM BRIGHT SCREW | $0.99 | ||
| 235322 | 94 | M5 LARGE WASHER | $2.49 | |||
 | 206321 | 95A | M8 X 19MM SCREW | $3.49 | ||
 | 223089 | 95B | M8X15MM ROLLER SCREW | $6.99 | ||
 | 251830 | 96 | M8 X 38MM BOLT | $4.49 | ||
 | 248349 | 97A | M8 CRANK PVT CAP WASHER | $6.49 | ||
 | 223812 | 97B | M8 WASHER, NOTE | $1.99 | ||
 | 224113 | 98 | M8 WASHER | $2.49 | ||
 | 232289 | 99 | M10 X 25MM SCREW | $28.49 | ||
 | 231284 | 100 | LEG BEARING | $31.99 | ||
 | 013162 | 101A | 1/2″ CONSOLE SCREW | $0.99 | ||
 | 195562 | 101B | M4 X 16MM SCREW | $1.99 | ||
 | 012042 | 102 | M8 NYLON LOCKNUT | $1.99 | ||
 | 262341 | 103 | M6 X 12MM SCREW, WT RACK | $3.49 | ||
 | 328293 | 104 | M10 X 122MM SCREW | $18.99 | ||
| 331242 | 105 | GROMMET | $6.49 | |||
 | 286527 | 106A | FOOT RAIL SNAP | $2.49 | ||
| 303479 | 106B | SCREW, COVER MOUNT | $3.99 | |||

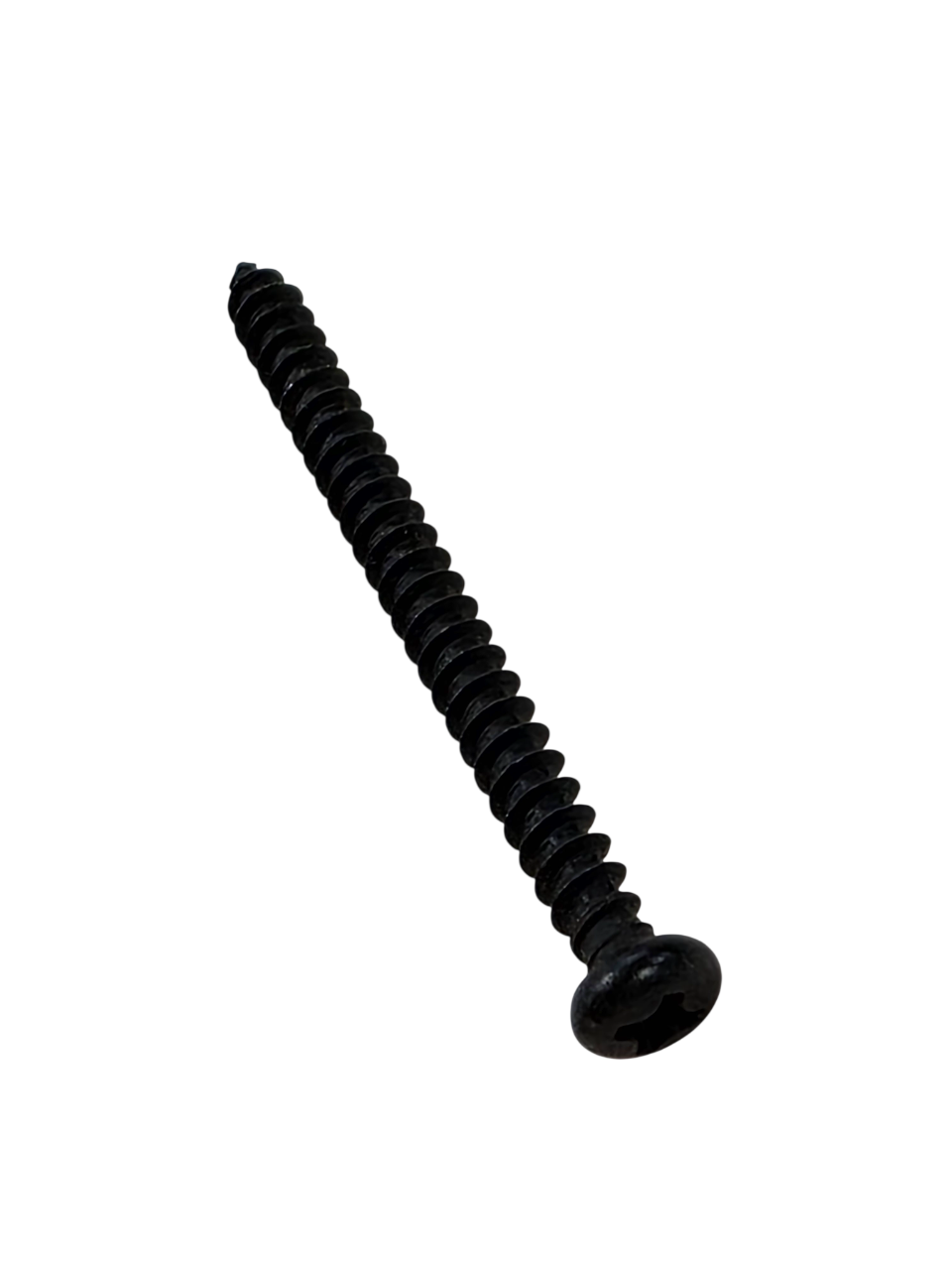

 | 275248 | 107 | M4 X 48MM SCREW | $0.99 | ||
| 242105 | 108 | M6 X 13MM SCREW | $1.99 | |||
| 208938 | 109 | M10 X 60MM BOLT | $5.99 | |||
 | 362904 | 110 | MAIN WIRE | $69.99 | ||
 | 184369 | 111 | M4 X 16MM SCREW | $0.99 | ||
 | 313668 | 112 | GROMMET | $9.49 | ||
 | 175643 | 113 | DRIVE BELT | $49.99 | ||
| 356782 | 114 | M4 X 40MM SCREW | $1.49 | |||
| 300804 | 115 | CONTROLLER BRACKET | $29.99 | |||
| 404555 | 116 | DISC RING | $125.99 | |||
 | 335816 | 117 | FRONT UPRIGHT COVER | $73.99 | ||
| 316692 | 118 | SHIELD COVER CAP | $28.49 | |||
 | 342275 | 119 | POWER CORD | $49.99 | ||
| 316836 | 120 | RAMP AXLE | $54.99 | |||
 | 237616 | 121 | FRAME BUSHING | $4.99 | ||
| 320499 | 122 | CLEVIS PIN | $10.99 | |||
| 306635 | 123 | PLASTIC SPACER | $3.49 | |||
| 273352 | 124 | M4 X 19MM SELF-TAP SCRW | $0.99 | |||
 | 157600 | 125 | BASE FOOT | $1.99 | ||
 | 384942 | 126 | M8 X 20MM FLAT HEAD SCREW | $6.49 | ||
 | 224606 | 127 | M4 X 25MM SCREW | $0.99 | ||
 | 384931 | 129 | SMALL ARM BEARING | $43.99 | ||
| 316468 | 130 | RIGHT GRIP | $80.99 | |||
| 116566 | # | 15.5″ CABLE TIE | $0.99 | |||
| 132315 | # | WIRE TIE | $3.49 | |||
 | 140069 | # | SNAP RING | $12.99 | ||
| 234276 | # | M4 X 12MM SCREW | $0.99 | |||
| 403683 | # | HARDWARE KIT, NOTE: | $157.49 | |||
| 411544 | # | WIFI 2.4GHZ REPEATER | $62.99 | |||
| 297256 | # | 6MM ALLEN WRENCH | $13.49 | |||
| 404459 | # | USER’S MANUAL | $23.99 | |||
| 215823 | # | AUDIO WIRE | $11.99 | |||
 | 104838 | # | GREASE PACKET | $8.49 | ||
| 146119 | # | FLOOR MAT | $79.99 | |||
| 116926 | # | RELEASABLE CABLE TIE | $0.99 | |||
| 016057 | # | 8″ CABLE TIE | $2.99 | |||
| 297255 | # | 5MM ALLEN WRENCH | $7.49 | |||
| 266084 | # | DECAL, GENERAL WARNING | $14.49 | |||
| 364361 | # | CHEST HEART RATE MONITOR | $135.99 | |||
| 320643 | TS4 | 26″ WHITE WIRE, M/F | $34.99 | |||
| 320644 | TS5 | 30″ BLUE WIRE, F/F | $25.49 | |||
 | 142711 | TS6 | 4″ GREEN WIRE, F/RING | $2.49 | ||
| 302754 | TS7 | LIFT MOTOR WIRE HARNESS | $27.49 | |||
| 324737 | TS8 | RESISTANCE MTR WIRE HRNS | $30.49 |
